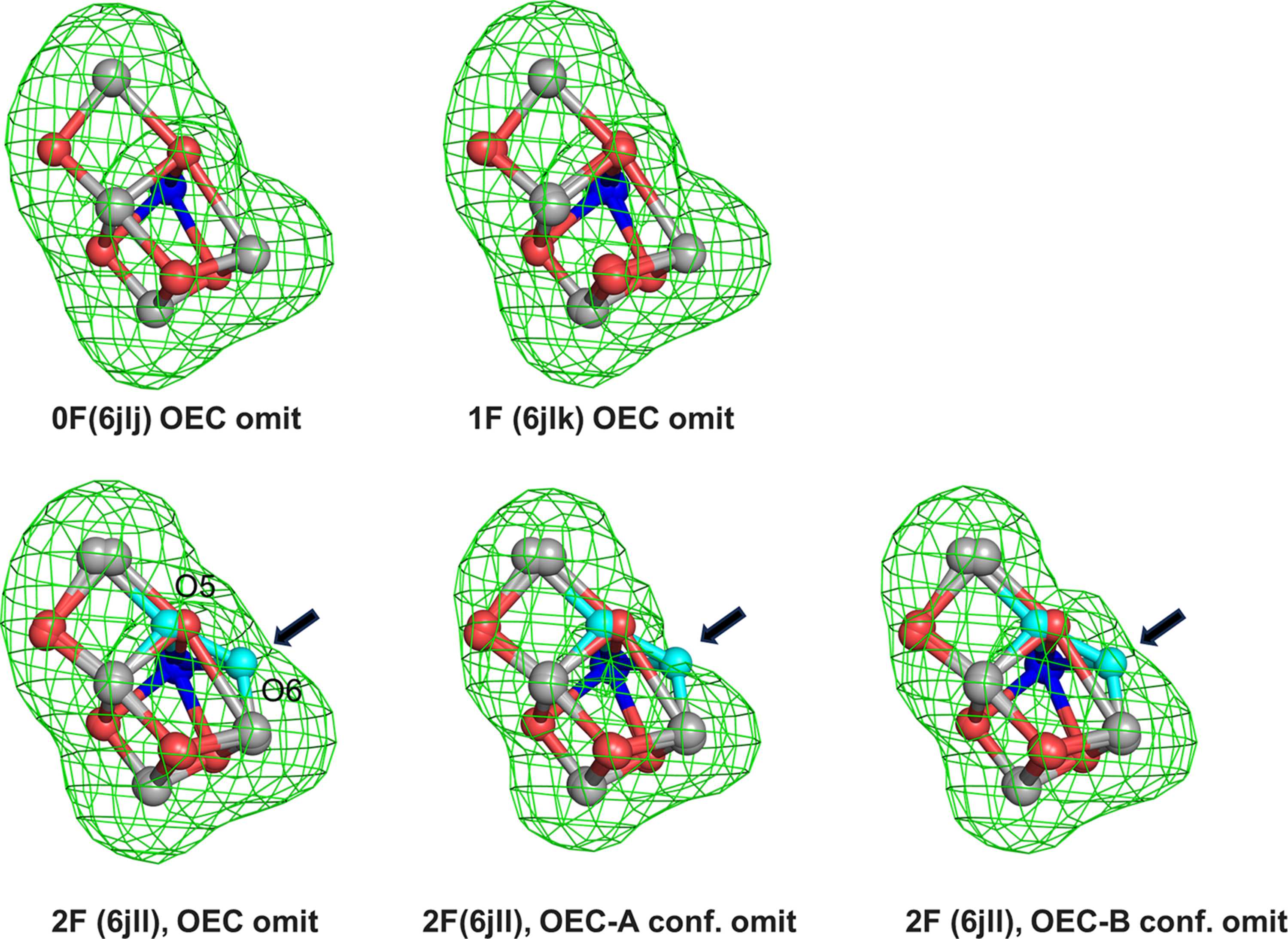

Polder omit maps of OEC. Polder omit maps of OEC in the 0F (PDB entry 6jlj), 1F (PDB entry 6jlk) and 2F (PDB entry 6jll) datasets, contoured at +4.0σ and shown in green. OEC-A conf. and OEC-B conf. in 2F indicate conformation A (S1/S2-like structure) and conformation B (S3-like structure), respectively. Black arrows indicate differences in the 2F omit electron density resulting from mixtures of S1/S2 and S3 states. |
