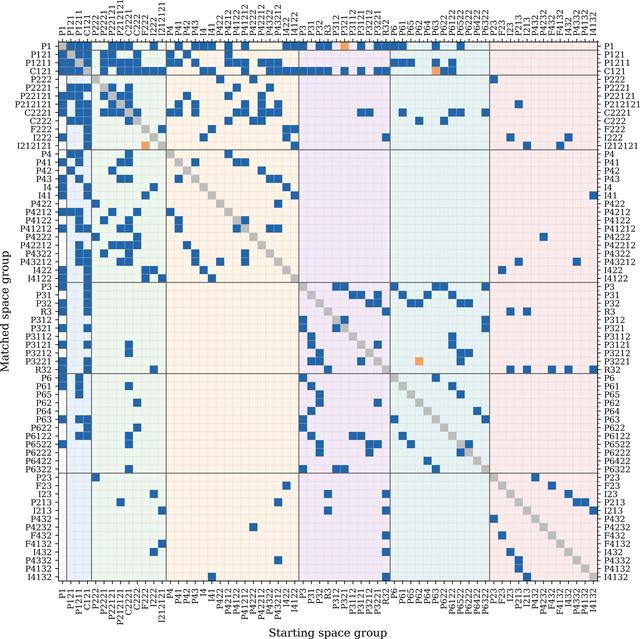

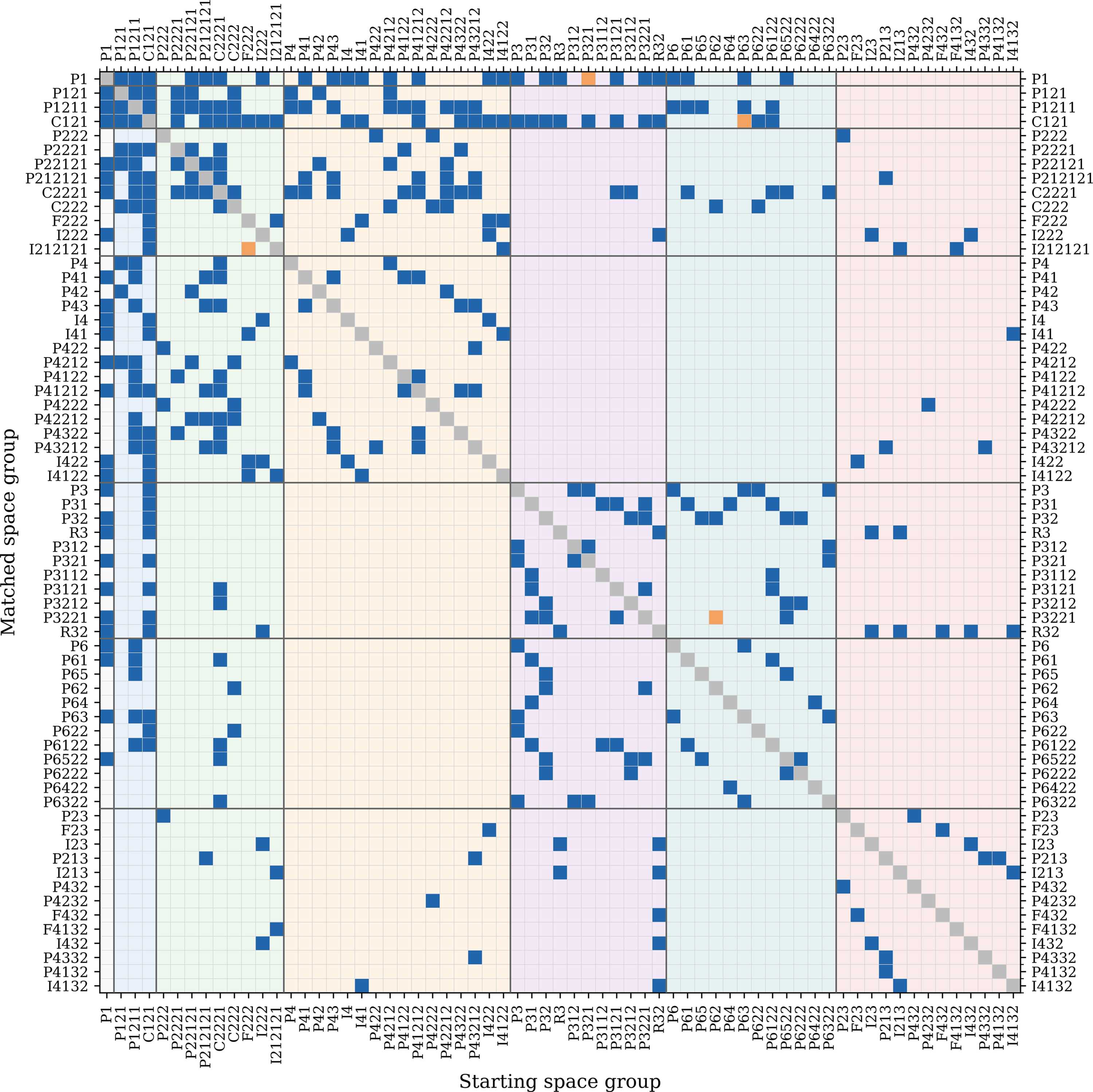

Matrix of space groups of lattice coincidences in PDB snapshot 20260101: probe space group (horizontal axis) and matched space group (vertical axis). Crystal systems for probe space group are coloured for clarity and boundaries between crystal systems are shown with a grey line for both probe and matched space groups. Grid positions are blue where the relationship is found in the data and orange where the relationship is missing but the reciprocal relationship is present; these isolated cases are due to numerical instability in the calculation of √CCI at the selection boundary. Within the 87 404 mismatch pairs, 3174 entries matched with higher symmetry space groups in 30 821 pairs, 13 536 entries matched with lower symmetry space groups in 54 568 pairs, and 1068 entries matched with different space groups with the same number of symmetry operations in 2015 pairs. |
