Figure 3

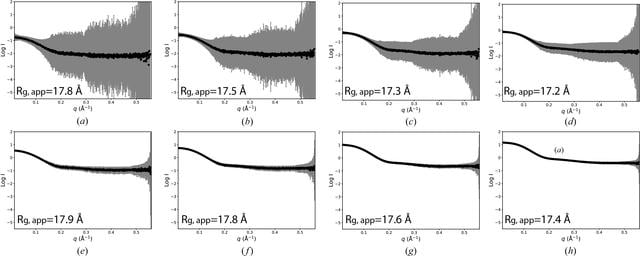

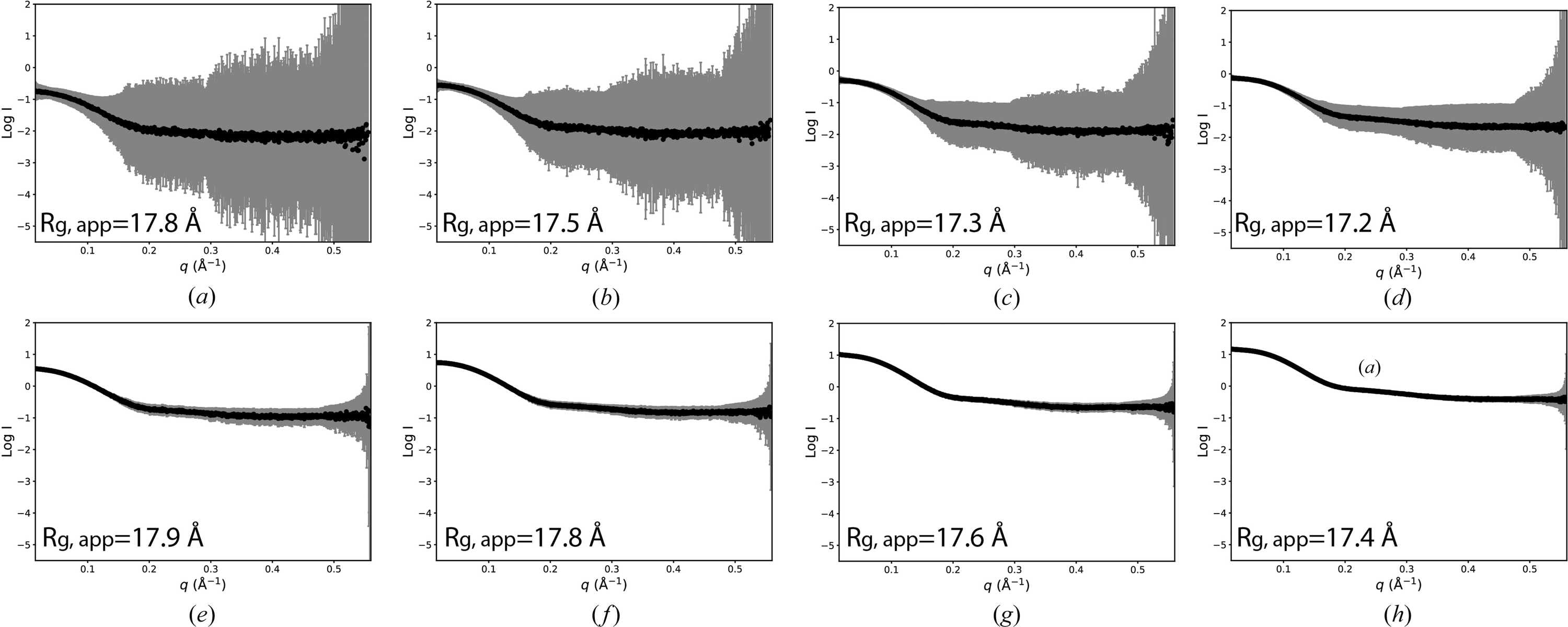

Effects of AdK protein concentration and X-ray exposure on absolute scattering intensity. Intensity [I(q)] as a function of scattering vector (q) at 10 ms exposure for concentrations of (a) 2.5 mg ml−1, (b) 5 mg ml−1, (c) 10 mg ml−1 and (d) 21 mg ml−1, and similarly at 200 ms exposure for (e) 2.5 mg ml−1, (f) 5 mg ml−1, (g) 10 mg ml−1 and (h) 21 mg ml−1. Gray-shaded regions represent standard error bars, with their origins explained in Section 2 ![[link]](../../../../../../logos/arrows/d_arr.gif){kind=small} . |
