Bis(μ-thio­semicarbazide-κ3N1,S:S;κ3S:N1,S)bis­[(di­methyl­formamide-κO)(thio­semicarbazide-κ2N1,S)cadmium(II)] tetra­kis­(2,4,6-tri­nitro­phen­olate): synthesis, crystal structure and Hirshfeld surface analysis

Santhakumaria, R.; Ramamurthi, K.; Kaur, M.; Jasinski, J.P.; Sagadevane, S.; Stoeckli-Evans, H.

doi:10.1107/S2056989025003974

research communications

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 81| Part 6| June 2025|

https://doi.org/10.1107/S2056989025003974

Open

access

Bis(μ-thiosemicarbazide-κ³N¹,S:S;κ³S:N¹,S)bis[(dimethylformamide-κO)(thiosemicarbazide-κ²N¹,S)cadmium(II)] tetrakis(2,4,6-trinitrophenolate): synthesis, crystal structure and Hirshfeld surface analysis

R. Santhakumaria,^a ^* K. Ramamurthi,^b Manpreet Kaur,^c Jerry P. Jasinski,^c ‡ Suresh Sagadevane ^d and Helen Stoeckli-Evans ^e ^*

^aDepartment of Physics, Government. Arts College for Women(Autonomous), Pudukkottai-622 001, Tamil Nadu, India, ^bCrystal Growth and Thin Film Laboratory, Department of Physics and, Nanotechnology, Faculty of Engineering Technology, SRM University, Kattankulathur-603 203, Tamil Nadu, India, ^cDepartment of Chemistry, Keene State College, 229 Main Street, Keene, New Hampshire, 03435-2001, USA, ^dNanotechnology and Catalysis Research Centre, Universiti Malaya, Kuala Lumpur-50603, Malaysia, and ^eInstitute of Physics, University of Neuchâtel, Rue Emile-Argand 11, CH-2000, Neuchâtel, Switzerland
^*Correspondence e-mail: santhasrinithi@yahoo.co.in, helen.stoeckli-evans@unine.ch

Edited by W. T. A. Harrison, University of Aberdeen, United Kingdom (Received 29 April 2025; accepted 5 May 2025; online 13 May 2025)

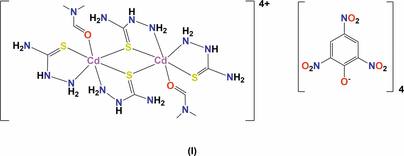

In the title complex salt, [Cd₂(C₃H₇NO)₂(CH₅N₃S)₄](C₆H₂N₃O₇)₄, (I), the binuclear cation is located about a crystallographic center of symmetry. The asymmetric unit of the complex cation is composed of two bidentate thiosemicarbazide ligands and one molecule of dimethylformamide coordinated to a cadmium(II) atom. The S atom of one of the thiosemicarbazide ligands bridges the cadmium atoms about the inversion center. The positive charge of the complex is balanced by picrate anions. In the crystal, the cation is linked to the picrate anions by side-by-side bifurcated N—H⋯(O,O) hydrogen bonds in which the central O atom acts as a double acceptor for two such bonds, enclosing R¹₂(6) and R²₁(6) ring motifs. In the crystal, further N—H⋯O hydrogen bonds link the various units to form slabs lying parallel to the (001) plane and the slabs are linked by C—H⋯O hydrogen bonds, thereby forming a three-dimensional network.

Keywords: crystal structure; cadmium complex; thiosemicarbazide; picrate; hydrogen bonding; Hirshfeld surface; fingerprint plots.

CCDC reference: 2081043

1. Chemical context

Organic molecules containing π-electron conjugated systems, asymmetrized by the electron donor and acceptor groups, are highly polarizable entities for non-linear optical (NLO) applications (Long, 1995 ; Verbiest et al., 1997 ; Pal et al., 2004 ). Furthermore, in metal–organic complexes the metal-to-ligand bonding is expected to display a large molecular hyper–polarizability due to the transfer of electron density between the metal atom and the conjugated ligand system (McArdle et al., 1974 ; Arivanandhan et al., 2005 ). A key factor is that the diversity of the central metal, its oxidation state and the ligands make it possible to optimize the charge-transfer interactions. In the case of metal–organic coordination complexes, group 12 (group IIB) metals are extensively chosen, as their complexes usually achieve high transparency in the UV region because of their closed d¹⁰ shell (Sun et al., 2003 ; Ushasree et al., 1999 ), hence d–d electronic transitions are not possible.

Picric acid (2,4,6-trinitrophenol) is an electron-acceptor forming charge-transfer molecular complexes with a number of electron donor compounds, such as amines, through electrostatic or hydrogen-bonding interactions (Anitha et al., 2005 ; Saminathan et al., 2005 ; Muthamizhchelvan et al., 2005 ; Muthu & Meenakshisundaram, 2012 ). As a result of the formation of the conjugated base on proton loss to form picrate anions, the magnitude of the molecular hyperpolarizability is increased (Anandha Babu et al., 2010 ). Picric acid forms salts with amino acids, such as L-valine and L-asparagine (Anitha et al., 2004 ; Braga et al., 2004 ). Hydrogen bonds play an important role in the supramolecular packing and in the generation of non-centrosymmetric structures (Berkovitch-Yellin & Leiserowitz, 1984 ; Min Jin et al., 2003 ; Frankenbach & Etter, 1992 ; Etter & Huang, 1992 ; Sherwood, 1998 ). Hence, thiosemicarbazide (CH₅N₃S) is an interesting candidate, as it binds well to most transition metals of groups 7–10. The crystal structure of thiosemicarbazidium picrate monohydrate has been reported (Xie, 2007 ) in which extensive hydrogen bonding lead to the formation of a three-dimensional supramolecular structure.

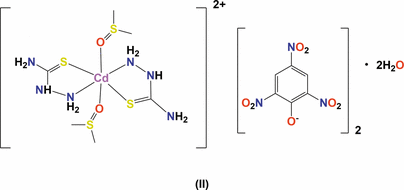

The title compound (I), a cadmium thiosemicarbazide picrate, was prepared using dimethylformamide as solvent. A search of the Cambridge Structural Database (CSD; V5.46, last update February 2025; Groom et al., 2016 ) for cadmium–thiosemicarbazide complexes gave 15 hits. Only one compound involves picrate as anion, namely trans-bis(dimethyl sulfoxide-κO)bis(thiosemicarbazide-κ²N¹,S)cadmium bis(2,4,6-trinitrophenolate) dihydrate (II) (CSD refcode QAJDOW; Shanthakumari et al., 2011 ), which was prepared using dimethyl sulfoxide (DMSO) as solvent. In both cases the solvent molecule coordinates to the cadmium(II) atom via its O atom. Herein, the structures and Hirshfeld surfaces of compounds (I) and (II) are compared.

2. Structural commentary

The title complex (I), is composed of a [Cd₂(thiosemicarbazide)₄(dimethyl formamide)₂]⁴⁺ cation, located about an inversion center, and two crystallographically distinct picrate (2,4,6-trinitrophenolate) anions. The cadmium atom coordinates to atom O1 of a DMF molecule, and to the sulfur (S1 and S2) and nitrogen (N3 and N6) atoms of two bidentate thiosemicarbazide ligands (Fig. 1). Atom S2 bridges the cadmium atoms about the inversion center. Selected bond lengths and bond angles for complexes (I) and (II) are listed in Table 1.

Table 1
A comparison of selected equivalent bond lengths (Å) and bond angles (°) in complexes (I) and (II)

Bond/angle	(I)	(II)^a
Cd1—O1	2.275 (2)	2.401 (2)
Cd1—N3	2.398 (3)	2.382 (2)
Cd1—S1	2.540 (1)	2.551 (1)

Cd1—N6	2.421 (3)	–
Cd1—S2	2.627 (1)	–
Cd1—S1ⁱ	2.841 (1)	–

O1—Cd1—N6	160.89 (9)	180
S1—Cd1—S2	167.97 (3)	180
N3—Cd1—S2ⁱⁱ	171.43 (7)	180
Note: (a) Shanthakumari et al. (2011). Symmetry codes: (i) −x + 1, −y + 2, −z + 1; (ii) −x + 2, −y, −z.

Figure 1
The molecular structure of the complex cation of compound (I), with displacement ellipsoids drawn at the 50% probability level. [Symmetry code (i): −x + 1, −y + 2, −z + 1.]

In the cation of (I), atom Cd1 is sixfold coordinated, CdS₂O₂N₂, in a distorted octahedral geometry. The structural index, τ₆, describing the deformation of an octahedral coordination sphere has a value of [540° – (160.89 + 167.97° + 171.43°)]/180° = 0.22 for Cd1 (τ₆ = 0 for a perfect octahedral geometry; 0.75 for a trigonal prismatic geometry, and = 1 for a pentagonal pyramidal geometry; Stoeckli-Evans et al., 2025 ). In complex (II), the Cd atom is located on an inversion center and is coordinated to the O atom of two DMSO molecules, and to the N and S atoms of two bidentate thiosemicarbazide ligands. The structural index, τ₆, of the sixfold coordination sphere of the cadmium atom (CdS₂O₂N₂) is [540° – (3 × 180°)]/180° = 0.

In (I) the cadmium–nitrogen bond lengths, Cd1—N3 and Cd1—N6, are similar and close to the value observed for complex (II), viz., 2.398 (3) and 2.421 (3) Å, respectively in (I) compared to 2.382 (2) Å in (II). The equivalent Cd—S bond length Cd1—S1 in (I) is 2.540 (1) Å compared to 2.551 (1) Å in (II). The Cd—S bond lengths involving the bridging S atom (S2) in complex (I) are much longer that the terminal bonds, at 2.627 (1) and 2.841 (1) Å.

The difference in the Cd1—O bond lengths involving the dimethylformamide group in (I) and the dimethyl sulfoxide group in (II) is considerable; 2.275 (2) Å in (I) compared to 2.401 (2) Å in (II). However, a search of the CSD for compounds containing a Cd—O(DMF) or a Cd—O(DMSO) bond (with the following restrictions: three-dimensional coordinates determined, R factor ≤ 0.075, no disorder, no errors, not polymeric, no ions,and single crystals only) gave 37 hits for the former and 19 for the latter. The mean value for the Cd—O(DMF) bond length was found to be 2.33 (5) Å (varying from 2.225 to 2.482 Å). The mean value for the Cd—O(DMSO) bond length was found to be 2.33 (4) Å (varying from 2.25 to 2.412 Å). Thus, the Cd—O bond length observed for (I) is near the lower limit while the value observed for (II) is near the upper limit.

In the picrate anions in (I) the nitro groups are inclined by different degrees to the phenolate rings to which they are attached: nitro groups N10/O3/O4, N11/O5/O6 and N12/O7/O8 are inclined to ring C6–C11 by 34.6 (5), 9.9 (4) and 19.3 (4)°, respectively, while nitro groups N13/O10/O11A, N14/O12/O13 and N15/O14/O15 are inclined to the C12–C17 ring by 18.0 (4), 4.8 (5) and 2.8 (6)°, respectively. The picrate anions accept N—H⋯O hydrogen bonds from the cation, as shown in Fig. 2 (see also Table 2). These hydrogen bonds, involving the phenolate O atoms (O2 and O9) and the adjacent nitro groups, are bifurcated, viz. two N—H⋯(O,O) links enclosing R₁²(6) ring motifs, which results in the central phenolate O atom acting as a double acceptor enclosing an R₂¹(6) motif. This situation was also observed in the crystal of complex (II), and in the crystal structure of thiosemicarbazidium picrate monohydrate mentioned above (YIFXUH; Xie, 2007).

Table 2
Hydrogen-bond geometry (Å, °)

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
N1—H1AN⋯O12ⁱ	0.86 (4)	2.06 (4)	2.908 (4)	168 (4)
N1—H1BN⋯O9	0.81 (5)	2.04 (5)	2.737 (4)	145 (4)
N1—H1BN⋯O15	0.81 (5)	2.46 (5)	3.130 (4)	141 (4)
N2—H2N⋯O9	0.94 (4)	1.94 (4)	2.721 (4)	139 (4)
N2—H2N⋯O10	0.94 (4)	2.19 (4)	2.992 (4)	142 (4)
N3—H3AN⋯O6ⁱⁱ	0.89 (6)	2.53 (6)	3.379 (5)	161 (5)
N3—H3BN⋯O3ⁱⁱⁱ	0.96 (6)	2.32 (6)	3.018 (4)	130 (5)
N4—H4AN⋯O11Aⁱⁱ	0.78 (5)	2.36 (5)	3.060 (5)	149 (4)
N4—H4BN⋯O2^iv	0.80 (5)	2.15 (5)	2.842 (4)	145 (5)
N4—H4BN⋯O3^iv	0.80 (5)	2.43 (5)	3.079 (4)	139 (4)
N5—H5N⋯O2^iv	0.95 (5)	1.88 (5)	2.753 (4)	151 (4)
N5—H5N⋯O8^iv	0.95 (5)	2.42 (4)	3.156 (4)	134 (3)
N6—H6AN⋯O1^v	0.85 (4)	2.48 (4)	3.116 (4)	132 (3)
N6—H6AN⋯O7^v	0.85 (4)	2.27 (4)	2.966 (4)	139 (4)
N6—H6BN⋯O5ⁱⁱ	0.94 (5)	2.49 (5)	3.160 (4)	129 (4)
C5—H5C⋯O8^vi	0.98	2.60	3.351 (5)	134
C16—H16⋯O4^vii	0.95	2.46	3.374 (4)	161
Symmetry codes: (i) ; (ii) ; (iii) ; (iv) ; (v) ; (vi) ; (vii) .

Figure 2
A view of the picrate anions hydrogen bonded to the complex cation (dashed lines, Table 2

). The edge-sharing polyhedral of the cadmium(II) atoms are shown in yellow. The displacement ellipsoids are drawn at the 50% probability level. [Symmetry code: (iv) x + 1,y, z.]

3. Supramolecular features

In the crystal of (I), there are a large number of N—H⋯O hydrogen bonds present (Table 2). Apart from those noted above linking the complex cation and the picrate anions (Fig. 2) there are further N—H⋯O hydrogen bonds linking these units to form slabs lying parallel to the ab plane, as shown in Fig. 3. Within the slabs, parallel displaced π–π stacking interactions occur between inversion-related benzene rings (C6–C11) of a picrate anion: the centroid–centroid distance is 3.712 (2) Å, interplanar distance = 3.375 (1) Å, slippage = 1.545 Å (shown in Fig. 3 as black double arrows). The slabs are linked by C—H⋯O hydrogen bonds (Table 2)

Figure 3
A view along the b axis of the crystal packing of compound (I). The N—H⋯O hydrogen bonds (Table 1

) are shown as dashed lines. For clarity, H atoms not involved in hydrogen bonding have been omitted. The π–π interaction is shown as a black double arrow and the C—H⋯O hydrogen bonds are shown as brown dashed lines.

4. Hirshfeld surface analysis and two-dimensional fingerprint plots

The Hirshfeld surface (HS) analyses and the associated two-dimensional fingerprint plots were performed with CrystalExplorer17 (Spackman et al., 2021 ) and interpreted following the protocol of Tan et al. (2019 ). The Hirshfeld surfaces for compounds (I) and (II) are illustrated in Fig. 4a and 4c, respectively. A number of large red spots are observed in the HS which indicates that short contacts are highly significant in the crystal packing of both compounds.

Figure 4
(a) The Hirshfeld surface of compound (I), mapped over d_norm, (b) the full two-dimensional fingerprint plot for compound (I), (c) the Hirshfeld surface of compound (II), mapped over d_norm and (d) the full two-dimensional fingerprint plot for compound (II).

The full two-dimensional fingerprint plots for compounds (I) and (II) are given in Fig. 4b and 4d, respectively. The principal percentage contributions of interatomic contacts to the Hirshfeld surfaces of (I) and (II) are compared in Table 3. Selected two-dimensional fingerprint plots for the two compounds are given in Fig. 5. For both crystal structures the major contributions are from O⋯H/H⋯O interactions; viz. 54.5% for (I) and 44.2% for (II). Both have sharp pincer-like spikes at d_e + d_i ≃ 1.85 Å. The H⋯H contacts also make significant contributions to the HS; 12.7% for (I) and 24.6% for (II). The S⋯H/H⋯S contributions are much more important for compound (II) at 10.9% than for compound (I) at 2.6%. Again both have sharp pincer-like spikes at d_e + d_i ≃ 2.8 Å for (I) and 2.5 Å for (II). These values can be correlated with the various hydrogen bonds and other interatomic interactions in the crystal (Table 2).

Table 3
Principal percentage contributions of inter-atomic contacts to the Hirshfeld surfaces of compounds (I) and (II)^a

Contact	(I)	(II)^a
H⋯H	12.7	24.6
C⋯H/H⋯C	4.5	3.8
N⋯H/H⋯N	2.3	1.4
O⋯H/H⋯O	54.5	44.2
S⋯H/H⋯S	2.6	10.9
C⋯C	2.7	–
N⋯C/C⋯N	2.0	0.7
O⋯C/C⋯O	4.8	5.2
O⋯N/N⋯O	–	3.2
O⋯O	–	4.2
S⋯O/O⋯S	–	1.7
Note: (a) Shanthakumari et al. (2011).

Figure 5
The principal two-dimensional fingerprint plots for compounds (I) and (II), delineated into H⋯H, C⋯H/H⋯C, N⋯H/H⋯O, O⋯H/H⋯O and S⋯H/H⋯S contacts.

5. Synthesis and characterization

An equimolar ratio (1:1:1) of analytical grade reagents was used. Thiosemicarbazide (0.9 g) and CdCl₂ (1.8 g) were dissolved in distilled water, then picric acid (2.3 g) dissolved in acetone was added under stirring. The mixture was refluxed at 373 K for 3 h, yielding a yellow crystalline precipitate. It was dissolved in DMF and a saturated solution at 303 K was prepared. The solvent was then allowed to evaporate slowly at room temperature, yielding large (ca 8 mm × 7 mm × 3 mm) yellow–orange block-like crystals of the title compound (I) [m.p. 412 (1) K], after a growth period of 32 days. Selected FTIR (KBr pellet, cm⁻¹): 3419 (NH₂ asymmetric stretch), 1643 (C=O stretch), 1265 (C—N stretch), 1082 (C=S stretch) (supporting information Fig. S1). For the UV/visible spectrum and TGA/DTA trace for (I) see Figs. S2 and S3 in the supporting information.

6. Refinement

Crystal data, data collection and structure refinement details are summarized in Table 4. The amine H atoms were located in difference-Fourier maps and were freely refined. Atom O11 of a picrate anion was modelled as disordered over two sites in a 0.85:0.15 ratio. The C-bound H atoms were included in calculated positions with C—H = 0.95–0.98 Å and U_iso(H) = 1.2U_eq(C) or 1.5U_eq(methyl-C).

Table 4
Experimental details

Crystal data
Chemical formula	[Cd₂(C₃H₇NO)₂(CH₅N₃S)₄](C₆H₂N₃O₇)₄
M_r	1647.97
Crystal system, space group	Triclinic, P $[\overline{1}]$
Temperature (K)	173
a, b, c (Å)	10.5367 (4), 10.9088 (5), 14.1593 (7)
α, β, γ (°)	92.782 (4), 109.796 (4), 104.077 (4)
V (Å³)	1469.98 (12)
Z	1
Radiation type	Cu Kα
μ (mm⁻¹)	8.14
Crystal size (mm)	0.50 × 0.35 × 0.25

Data collection
Diffractometer	Xcalibur, Eos, Gemini
Absorption correction	Multi-scan (CrysAlis PRO; Rigaku OD, 2015 $[Rigaku OD (2015). CrysAlis PRO. Rigaku Oxford Diffraction, Yarnton, England.]$ )
T_min, T_max	0.326, 1.000
No. of measured, independent and observed [I > 2σ(I)] reflections	10301, 5601, 5028
R_int	0.040
(sin θ/λ)_max (Å⁻¹)	0.615

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.037, 0.095, 1.02
No. of reflections	5601
No. of parameters	478
No. of restraints	1
H-atom treatment	H atoms treated by a mixture of independent and constrained refinement
Δρ_max, Δρ_min (e Å⁻³)	0.91, −0.62
Computer programs: CrysAlis PRO (Rigaku OD, 2015 $[Rigaku OD (2015). CrysAlis PRO. Rigaku Oxford Diffraction, Yarnton, England.]$ ), SHELXT2019/3 (Sheldrick, 2015a ), SHELXL2019/3 (Sheldrick, 2015b ), PLATON (Spek, 2020 ), Mercury (Macrae et al., 2020 ) and publCIF (Westrip, 2010 ).

Supporting information

CCDC reference: 2081043

Crystal structure: contains datablocks I, Global. DOI: https://doi.org/10.1107/S2056989025003974/hb8138sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2056989025003974/hb8138Isup2.hkl

Fig. S1 FTIR Spectrum for (I) FIG. S2 UV/visible spectrum for (I) FIG. S3 TGA/DTA trace for (I). DOI: https://doi.org/10.1107/S2056989025003974/hb8138sup3.pdf

checkCIF report

Computing details top

Bis(µ-thiosemicarbazide-κ³N¹,S:S;κ³S:N¹,S)bis[(dimethylformamide-κO)(thiosemicarbazide-κ²N¹,S)cadmium(II)] tetrakis(2,4,6-trinitrophenolate) top

Crystal data top

[Cd₂(C₃H₇NO)₂(CH₅N₃S)₄](C₆H₂N₃O₇)₄	Z = 1
M_r = 1647.97	F(000) = 828
Triclinic, P1	D_x = 1.862 Mg m⁻³
a = 10.5367 (4) Å	Cu Kα radiation, λ = 1.54184 Å
b = 10.9088 (5) Å	Cell parameters from 4951 reflections
c = 14.1593 (7) Å	θ = 4.2–71.4°
α = 92.782 (4)°	µ = 8.14 mm⁻¹
β = 109.796 (4)°	T = 173 K
γ = 104.077 (4)°	Block, yellow
V = 1469.98 (12) Å³	0.50 × 0.35 × 0.25 mm

Data collection top

Xcalibur, Eos, Gemini diffractometer	5601 independent reflections
Radiation source: fine-focus sealed X-ray tube, Enhance (Cu) X-ray Source	5028 reflections with I > 2σ(I)
Graphite monochromator	R_int = 0.040
Detector resolution: 16.0416 pixels mm^-1	θ_max = 71.4°, θ_min = 3.4°
ω scans	h = −8→12
Absorption correction: multi-scan (CrysAlisPro; Rigaku OD, 2015)	k = −12→13
T_min = 0.326, T_max = 1.000	l = −17→17
10301 measured reflections

Refinement top

Refinement on F²	Primary atom site location: dual
Least-squares matrix: full	Secondary atom site location: difference Fourier map
R[F² > 2σ(F²)] = 0.037	Hydrogen site location: mixed
wR(F²) = 0.095	H atoms treated by a mixture of independent and constrained refinement
S = 1.02	w = 1/[σ²(F_o²) + (0.0524P)²] where P = (F_o² + 2F_c²)/3
5601 reflections	(Δ/σ)_max = 0.001
478 parameters	Δρ_max = 0.91 e Å⁻³
1 restraint	Δρ_min = −0.62 e Å⁻³

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq	Occ. (<1)
Cd1	0.49782 (2)	0.92980 (2)	0.37745 (2)	0.02499 (9)
S2	0.45606 (8)	0.81886 (7)	0.52909 (6)	0.02237 (16)
S1	0.57145 (10)	1.00687 (8)	0.23246 (7)	0.03156 (19)
O1	0.2648 (3)	0.9168 (2)	0.31788 (19)	0.0308 (5)
O2	−0.0937 (3)	0.7022 (2)	0.6663 (2)	0.0303 (5)
O3	−0.2412 (3)	0.4763 (3)	0.6984 (3)	0.0508 (8)
O4	−0.0935 (4)	0.3885 (3)	0.7959 (3)	0.0495 (8)
O5	0.2133 (3)	0.2920 (3)	0.6310 (2)	0.0401 (6)
O6	0.3335 (3)	0.4463 (3)	0.5799 (3)	0.0427 (7)
O7	0.1430 (3)	0.7964 (2)	0.4898 (2)	0.0334 (6)
O8	0.0435 (4)	0.8716 (3)	0.5807 (3)	0.0474 (8)
O9	0.6470 (5)	0.6190 (3)	0.1049 (4)	0.0795 (15)
O10	0.4996 (3)	0.4696 (3)	0.1922 (3)	0.0463 (7)
O11A	0.5513 (4)	0.2969 (3)	0.2271 (3)	0.0455 (9)	0.85
O11B	0.4768 (19)	0.262 (2)	0.1674 (14)	0.0455 (9)	0.15
O12	0.7272 (4)	0.0845 (3)	0.0154 (3)	0.0470 (7)
O13	0.8366 (5)	0.1917 (3)	−0.0681 (3)	0.0688 (12)
O14	0.8799 (5)	0.6291 (3)	−0.0750 (4)	0.0791 (15)
O15	0.7789 (5)	0.7313 (3)	−0.0066 (4)	0.0820 (16)
N1	0.6282 (3)	0.8649 (3)	0.1059 (2)	0.0290 (6)
H1AN	0.658 (4)	0.937 (4)	0.087 (3)	0.026 (10)*
H1BN	0.639 (5)	0.801 (4)	0.083 (4)	0.034 (12)*
N2	0.5270 (3)	0.7499 (3)	0.2023 (2)	0.0271 (6)
H2N	0.539 (4)	0.673 (4)	0.178 (3)	0.032 (11)*
N3	0.4735 (4)	0.7328 (3)	0.2812 (2)	0.0315 (6)
H3AN	0.520 (6)	0.695 (5)	0.330 (4)	0.053 (15)*
H3BN	0.375 (6)	0.693 (5)	0.253 (5)	0.067 (17)*
N4	0.6257 (4)	0.6970 (3)	0.6412 (3)	0.0371 (8)
H4AN	0.567 (5)	0.671 (4)	0.663 (3)	0.028 (11)*
H4BN	0.694 (5)	0.673 (4)	0.661 (4)	0.041 (13)*
N5	0.7261 (3)	0.8318 (3)	0.5551 (2)	0.0222 (5)
H5N	0.809 (5)	0.805 (4)	0.585 (4)	0.037 (12)*
N6	0.7277 (3)	0.9252 (3)	0.4900 (2)	0.0266 (6)
H6AN	0.762 (4)	0.998 (4)	0.526 (3)	0.023 (10)*
H6BN	0.787 (6)	0.912 (5)	0.456 (4)	0.057 (15)*
N7	0.0868 (3)	0.9859 (3)	0.2160 (2)	0.0331 (7)
N10	−0.1256 (4)	0.4557 (3)	0.7304 (3)	0.0328 (7)
N11	0.2397 (3)	0.4025 (3)	0.6116 (2)	0.0288 (6)
N12	0.0900 (3)	0.7869 (3)	0.5553 (2)	0.0261 (6)
N13	0.5526 (3)	0.3869 (3)	0.1780 (2)	0.0335 (7)
N14	0.7719 (4)	0.1851 (3)	−0.0113 (2)	0.0335 (7)
N15	0.8085 (4)	0.6347 (3)	−0.0242 (3)	0.0396 (8)
C2	0.6139 (3)	0.7811 (3)	0.5782 (2)	0.0230 (6)
C1	0.5757 (3)	0.8647 (3)	0.1789 (2)	0.0231 (6)
C3	0.2170 (4)	0.9789 (3)	0.2489 (3)	0.0299 (7)
H3	0.278573	1.023812	0.218513	0.036*
C4	0.0378 (6)	1.0605 (5)	0.1359 (3)	0.0553 (13)
H4C	−0.002629	1.122138	0.159607	0.083*
H4B	−0.033805	1.003453	0.076192	0.083*
H4A	0.116864	1.106238	0.118002	0.083*
C5	−0.0162 (4)	0.9147 (4)	0.2543 (3)	0.0438 (10)
H5C	−0.072361	0.969362	0.265949	0.066*
H5B	0.031938	0.886843	0.318241	0.066*
H5A	−0.077833	0.839869	0.204584	0.066*
C6	−0.0197 (3)	0.6351 (3)	0.6521 (2)	0.0213 (6)
C7	−0.0230 (3)	0.5117 (3)	0.6852 (2)	0.0231 (6)
C8	0.0616 (4)	0.4384 (3)	0.6752 (2)	0.0237 (6)
H8	0.056381	0.359107	0.700753	0.028*
C9	0.1550 (3)	0.4822 (3)	0.6270 (2)	0.0237 (6)
C10	0.1650 (3)	0.5977 (3)	0.5895 (2)	0.0229 (6)
H10	0.229084	0.625979	0.556155	0.027*
C11	0.0801 (3)	0.6710 (3)	0.6016 (2)	0.0221 (6)
C12	0.6766 (4)	0.5218 (3)	0.0800 (3)	0.0334 (8)
C13	0.6341 (4)	0.3998 (3)	0.1128 (2)	0.0265 (7)
C14	0.6667 (4)	0.2920 (3)	0.0858 (2)	0.0266 (7)
H14	0.636851	0.214241	0.109585	0.032*
C15	0.7442 (4)	0.2991 (3)	0.0231 (2)	0.0267 (7)
C16	0.7908 (4)	0.4120 (3)	−0.0109 (3)	0.0296 (7)
H16	0.844751	0.415206	−0.052997	0.035*
C17	0.7584 (4)	0.5193 (3)	0.0167 (3)	0.0291 (7)

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
Cd1	0.02764 (13)	0.03138 (14)	0.02463 (12)	0.01650 (10)	0.01366 (9)	0.00976 (9)
S2	0.0217 (4)	0.0235 (4)	0.0299 (4)	0.0115 (3)	0.0147 (3)	0.0105 (3)
S1	0.0489 (5)	0.0241 (4)	0.0362 (4)	0.0169 (4)	0.0277 (4)	0.0120 (3)
O1	0.0303 (12)	0.0381 (14)	0.0305 (12)	0.0176 (11)	0.0127 (10)	0.0105 (10)
O2	0.0305 (12)	0.0322 (13)	0.0422 (14)	0.0192 (10)	0.0216 (11)	0.0180 (11)
O3	0.0398 (16)	0.0476 (18)	0.085 (2)	0.0166 (13)	0.0415 (17)	0.0299 (16)
O4	0.081 (2)	0.0456 (17)	0.0540 (18)	0.0340 (16)	0.0493 (18)	0.0331 (15)
O5	0.0513 (17)	0.0289 (14)	0.0545 (17)	0.0249 (12)	0.0266 (14)	0.0136 (12)
O6	0.0418 (16)	0.0397 (16)	0.0624 (19)	0.0181 (13)	0.0335 (15)	0.0086 (13)
O7	0.0349 (13)	0.0360 (14)	0.0421 (14)	0.0135 (11)	0.0252 (12)	0.0227 (11)
O8	0.071 (2)	0.0298 (14)	0.071 (2)	0.0283 (14)	0.0490 (18)	0.0252 (14)
O9	0.144 (4)	0.0351 (17)	0.130 (4)	0.042 (2)	0.121 (4)	0.033 (2)
O10	0.0597 (19)	0.0401 (16)	0.0604 (19)	0.0188 (14)	0.0445 (16)	0.0091 (14)
O11A	0.072 (3)	0.0412 (19)	0.047 (2)	0.0263 (18)	0.0412 (19)	0.0214 (16)
O11B	0.072 (3)	0.0412 (19)	0.047 (2)	0.0263 (18)	0.0412 (19)	0.0214 (16)
O12	0.073 (2)	0.0297 (15)	0.0609 (19)	0.0245 (14)	0.0424 (17)	0.0223 (13)
O13	0.131 (4)	0.0371 (17)	0.087 (3)	0.032 (2)	0.093 (3)	0.0160 (17)
O14	0.135 (4)	0.0392 (18)	0.121 (4)	0.029 (2)	0.112 (3)	0.030 (2)
O15	0.152 (4)	0.0304 (17)	0.125 (4)	0.036 (2)	0.117 (4)	0.029 (2)
N1	0.0399 (17)	0.0256 (16)	0.0333 (15)	0.0129 (13)	0.0244 (13)	0.0086 (13)
N2	0.0352 (15)	0.0225 (14)	0.0309 (14)	0.0085 (12)	0.0205 (12)	0.0057 (11)
N3	0.0389 (17)	0.0323 (16)	0.0347 (16)	0.0104 (14)	0.0262 (14)	0.0106 (13)
N4	0.0345 (17)	0.048 (2)	0.055 (2)	0.0279 (16)	0.0330 (16)	0.0379 (17)
N5	0.0242 (13)	0.0223 (14)	0.0288 (13)	0.0121 (11)	0.0152 (11)	0.0109 (11)
N6	0.0279 (14)	0.0244 (15)	0.0345 (15)	0.0108 (12)	0.0164 (12)	0.0135 (13)
N7	0.0381 (16)	0.0392 (17)	0.0243 (14)	0.0219 (14)	0.0063 (12)	0.0053 (12)
N10	0.0448 (18)	0.0251 (15)	0.0411 (17)	0.0130 (13)	0.0280 (15)	0.0112 (13)
N11	0.0319 (15)	0.0295 (16)	0.0304 (14)	0.0159 (12)	0.0132 (12)	0.0041 (12)
N12	0.0247 (13)	0.0223 (14)	0.0340 (14)	0.0074 (11)	0.0122 (12)	0.0106 (11)
N13	0.0428 (18)	0.0334 (17)	0.0384 (16)	0.0170 (14)	0.0265 (14)	0.0142 (13)
N14	0.0502 (19)	0.0289 (16)	0.0320 (15)	0.0174 (14)	0.0226 (14)	0.0097 (12)
N15	0.059 (2)	0.0261 (16)	0.0455 (18)	0.0097 (15)	0.0352 (17)	0.0063 (14)
C2	0.0263 (16)	0.0221 (16)	0.0288 (15)	0.0137 (13)	0.0147 (13)	0.0077 (12)
C1	0.0221 (15)	0.0248 (16)	0.0250 (15)	0.0096 (12)	0.0093 (12)	0.0073 (12)
C3	0.0370 (19)	0.0331 (19)	0.0243 (15)	0.0142 (15)	0.0136 (14)	0.0044 (13)
C4	0.073 (3)	0.062 (3)	0.034 (2)	0.040 (3)	0.007 (2)	0.015 (2)
C5	0.0297 (19)	0.057 (3)	0.045 (2)	0.0168 (18)	0.0101 (17)	0.0080 (19)
C6	0.0199 (14)	0.0252 (16)	0.0202 (13)	0.0108 (12)	0.0053 (11)	0.0079 (12)
C7	0.0261 (16)	0.0249 (16)	0.0214 (14)	0.0090 (13)	0.0106 (12)	0.0079 (12)
C8	0.0312 (16)	0.0209 (16)	0.0220 (14)	0.0105 (13)	0.0104 (13)	0.0061 (12)
C9	0.0246 (15)	0.0248 (16)	0.0252 (15)	0.0125 (13)	0.0090 (13)	0.0068 (12)
C10	0.0219 (14)	0.0250 (16)	0.0233 (14)	0.0052 (12)	0.0109 (12)	0.0047 (12)
C11	0.0207 (14)	0.0199 (15)	0.0259 (15)	0.0072 (12)	0.0069 (12)	0.0080 (12)
C12	0.046 (2)	0.0261 (18)	0.0379 (19)	0.0117 (15)	0.0259 (17)	0.0063 (14)
C13	0.0328 (17)	0.0308 (18)	0.0222 (15)	0.0130 (14)	0.0143 (13)	0.0066 (13)
C14	0.0320 (17)	0.0287 (17)	0.0213 (14)	0.0095 (14)	0.0109 (13)	0.0081 (12)
C15	0.0370 (18)	0.0276 (17)	0.0214 (14)	0.0138 (14)	0.0141 (13)	0.0064 (12)
C16	0.0396 (19)	0.0324 (19)	0.0231 (15)	0.0118 (15)	0.0180 (14)	0.0047 (13)
C17	0.0424 (19)	0.0217 (16)	0.0277 (16)	0.0060 (14)	0.0201 (15)	0.0030 (13)

Geometric parameters (Å, º) top

Cd1—O1	2.275 (2)	N5—N6	1.407 (4)
Cd1—N3	2.398 (3)	N5—H5N	0.95 (5)
Cd1—N6	2.421 (3)	N6—H6AN	0.85 (4)
Cd1—S1	2.5402 (9)	N6—H6BN	0.94 (5)
Cd1—S2	2.6271 (8)	N7—C3	1.314 (5)
Cd1—S2ⁱ	2.8406 (8)	N7—C5	1.451 (5)
S2—C2	1.731 (3)	N7—C4	1.453 (5)
S1—C1	1.711 (3)	N10—C7	1.462 (4)
O1—C3	1.250 (4)	N11—C9	1.446 (4)
O2—C6	1.247 (4)	N12—C11	1.449 (4)
O3—N10	1.228 (5)	N13—C13	1.449 (4)
O4—N10	1.219 (4)	N14—C15	1.444 (4)
O5—N11	1.236 (4)	N15—C17	1.467 (5)
O6—N11	1.223 (4)	C3—H3	0.9500
O7—N12	1.230 (4)	C4—H4C	0.9800
O8—N12	1.237 (4)	C4—H4B	0.9800
O9—C12	1.242 (5)	C4—H4A	0.9800
O10—N13	1.213 (4)	C5—H5C	0.9800
O11A—N13	1.230 (5)	C5—H5B	0.9800
O11B—N13	1.37 (2)	C5—H5A	0.9800
O12—N14	1.216 (4)	C6—C7	1.442 (4)
O13—N14	1.212 (4)	C6—C11	1.452 (5)
O14—N15	1.212 (5)	C7—C8	1.370 (5)
O15—N15	1.207 (5)	C8—C9	1.386 (5)
N1—C1	1.326 (4)	C8—H8	0.9500
N1—H1AN	0.86 (4)	C9—C10	1.385 (5)
N1—H1BN	0.81 (5)	C10—C11	1.382 (4)
N2—C1	1.336 (4)	C10—H10	0.9500
N2—N3	1.414 (4)	C12—C17	1.444 (5)
N2—H2N	0.94 (4)	C12—C13	1.448 (5)
N3—H3AN	0.89 (6)	C13—C14	1.374 (5)
N3—H3BN	0.96 (6)	C14—C15	1.389 (5)
N4—C2	1.310 (4)	C14—H14	0.9500
N4—H4AN	0.78 (5)	C15—C16	1.383 (5)
N4—H4BN	0.80 (5)	C16—C17	1.370 (5)
N5—C2	1.331 (4)	C16—H16	0.9500

O1—Cd1—N3	95.40 (11)	O13—N14—C15	119.0 (3)
O1—Cd1—N6	160.89 (9)	O12—N14—C15	119.3 (3)
N3—Cd1—N6	90.03 (12)	O15—N15—O14	122.1 (3)
O1—Cd1—S1	102.28 (7)	O15—N15—C17	120.0 (3)
N3—Cd1—S1	77.96 (7)	O14—N15—C17	117.9 (3)
N6—Cd1—S1	96.77 (7)	N4—C2—N5	116.9 (3)
O1—Cd1—S2	86.86 (6)	N4—C2—S2	119.1 (3)
N3—Cd1—S2	93.55 (7)	N5—C2—S2	124.0 (2)
N6—Cd1—S2	74.50 (7)	N1—C1—N2	115.6 (3)
S1—Cd1—S2	167.97 (3)	N1—C1—S1	118.8 (3)
O1—Cd1—S2ⁱ	87.19 (7)	N2—C1—S1	125.6 (3)
N3—Cd1—S2ⁱ	171.43 (7)	O1—C3—N7	124.1 (3)
N6—Cd1—S2ⁱ	90.14 (8)	O1—C3—H3	118.0
S1—Cd1—S2ⁱ	93.51 (3)	N7—C3—H3	118.0
S2—Cd1—S2ⁱ	94.75 (2)	N7—C4—H4C	109.5
C2—S2—Cd1	98.61 (11)	N7—C4—H4B	109.5
C2—S2—Cd1ⁱ	106.39 (11)	H4C—C4—H4B	109.5
Cd1—S2—Cd1ⁱ	85.25 (2)	N7—C4—H4A	109.5
C1—S1—Cd1	98.99 (11)	H4C—C4—H4A	109.5
C3—O1—Cd1	119.9 (2)	H4B—C4—H4A	109.5
C1—N1—H1AN	118 (3)	N7—C5—H5C	109.5
C1—N1—H1BN	121 (3)	N7—C5—H5B	109.5
H1AN—N1—H1BN	120 (4)	H5C—C5—H5B	109.5
C1—N2—N3	123.0 (3)	N7—C5—H5A	109.5
C1—N2—H2N	125 (3)	H5C—C5—H5A	109.5
N3—N2—H2N	111 (3)	H5B—C5—H5A	109.5
N2—N3—Cd1	113.3 (2)	O2—C6—C7	123.4 (3)
N2—N3—H3AN	114 (3)	O2—C6—C11	124.6 (3)
Cd1—N3—H3AN	101 (3)	C7—C6—C11	111.9 (3)
N2—N3—H3BN	110 (4)	C8—C7—C6	124.9 (3)
Cd1—N3—H3BN	105 (3)	C8—C7—N10	115.6 (3)
H3AN—N3—H3BN	113 (5)	C6—C7—N10	119.4 (3)
C2—N4—H4AN	121 (3)	C7—C8—C9	118.6 (3)
C2—N4—H4BN	122 (4)	C7—C8—H8	120.7
H4AN—N4—H4BN	117 (5)	C9—C8—H8	120.7
C2—N5—N6	122.3 (3)	C10—C9—C8	121.7 (3)
C2—N5—H5N	119 (3)	C10—C9—N11	119.2 (3)
N6—N5—H5N	119 (3)	C8—C9—N11	119.0 (3)
N5—N6—Cd1	114.5 (2)	C11—C10—C9	118.8 (3)
N5—N6—H6AN	108 (3)	C11—C10—H10	120.6
Cd1—N6—H6AN	104 (3)	C9—C10—H10	120.6
N5—N6—H6BN	106 (3)	C10—C11—N12	115.8 (3)
Cd1—N6—H6BN	114 (3)	C10—C11—C6	124.0 (3)
H6AN—N6—H6BN	110 (4)	N12—C11—C6	120.2 (3)
C3—N7—C5	121.6 (3)	O9—C12—C17	123.5 (3)
C3—N7—C4	121.4 (4)	O9—C12—C13	123.5 (3)
C5—N7—C4	117.0 (4)	C17—C12—C13	113.0 (3)
O4—N10—O3	123.5 (3)	C14—C13—C12	123.8 (3)
O4—N10—C7	118.5 (3)	C14—C13—N13	116.4 (3)
O3—N10—C7	118.0 (3)	C12—C13—N13	119.9 (3)
O6—N11—O5	122.8 (3)	C13—C14—C15	118.7 (3)
O6—N11—C9	119.2 (3)	C13—C14—H14	120.7
O5—N11—C9	117.9 (3)	C15—C14—H14	120.7
O7—N12—O8	121.9 (3)	C16—C15—C14	121.5 (3)
O7—N12—C11	118.1 (3)	C16—C15—N14	118.9 (3)
O8—N12—C11	119.9 (3)	C14—C15—N14	119.5 (3)
O10—N13—O11A	120.5 (3)	C17—C16—C15	119.5 (3)
O10—N13—O11B	117.9 (8)	C17—C16—H16	120.3
O10—N13—C13	120.9 (3)	C15—C16—H16	120.3
O11A—N13—C13	118.2 (3)	C16—C17—C12	123.5 (3)
O11B—N13—C13	110.4 (9)	C16—C17—N15	116.4 (3)
O13—N14—O12	121.7 (3)	C12—C17—N15	120.1 (3)

C1—N2—N3—Cd1	−5.1 (4)	O7—N12—C11—C6	−159.4 (3)
C2—N5—N6—Cd1	−21.7 (4)	O8—N12—C11—C6	19.2 (5)
N6—N5—C2—N4	−178.6 (3)	O2—C6—C11—C10	177.6 (3)
N6—N5—C2—S2	2.1 (5)	C7—C6—C11—C10	−2.0 (5)
Cd1—S2—C2—N4	−163.7 (3)	O2—C6—C11—N12	−5.7 (5)
Cd1ⁱ—S2—C2—N4	108.7 (3)	C7—C6—C11—N12	174.8 (3)
Cd1—S2—C2—N5	15.6 (3)	O9—C12—C13—C14	−179.8 (5)
Cd1ⁱ—S2—C2—N5	−72.0 (3)	C17—C12—C13—C14	−0.6 (5)
N3—N2—C1—N1	177.0 (3)	O9—C12—C13—N13	0.0 (7)
N3—N2—C1—S1	−4.6 (5)	C17—C12—C13—N13	179.2 (3)
Cd1—S1—C1—N1	−171.4 (3)	O10—N13—C13—C14	−167.9 (4)
Cd1—S1—C1—N2	10.4 (3)	O11A—N13—C13—C14	19.9 (5)
Cd1—O1—C3—N7	−173.9 (3)	O11B—N13—C13—C14	−24.5 (8)
C5—N7—C3—O1	−3.4 (6)	O10—N13—C13—C12	12.3 (6)
C4—N7—C3—O1	179.6 (4)	O11A—N13—C13—C12	−159.9 (4)
O2—C6—C7—C8	−176.7 (3)	O11B—N13—C13—C12	155.7 (8)
C11—C6—C7—C8	2.9 (5)	C12—C13—C14—C15	−0.4 (5)
O2—C6—C7—N10	5.3 (5)	N13—C13—C14—C15	179.8 (3)
C11—C6—C7—N10	−175.1 (3)	C13—C14—C15—C16	1.2 (5)
O4—N10—C7—C8	34.2 (5)	C13—C14—C15—N14	−176.1 (3)
O3—N10—C7—C8	−144.0 (3)	O13—N14—C15—C16	0.8 (6)
O4—N10—C7—C6	−147.5 (3)	O12—N14—C15—C16	−177.5 (4)
O3—N10—C7—C6	34.2 (5)	O13—N14—C15—C14	178.2 (4)
C6—C7—C8—C9	−2.2 (5)	O12—N14—C15—C14	−0.2 (5)
N10—C7—C8—C9	175.9 (3)	C14—C15—C16—C17	−0.9 (5)
C7—C8—C9—C10	0.3 (5)	N14—C15—C16—C17	176.4 (3)
C7—C8—C9—N11	−176.9 (3)	C15—C16—C17—C12	−0.2 (6)
O6—N11—C9—C10	11.0 (5)	C15—C16—C17—N15	−178.6 (3)
O5—N11—C9—C10	−168.7 (3)	O9—C12—C17—C16	−179.9 (5)
O6—N11—C9—C8	−171.6 (3)	C13—C12—C17—C16	0.9 (6)
O5—N11—C9—C8	8.6 (5)	O9—C12—C17—N15	−1.6 (7)
C8—C9—C10—C11	0.5 (5)	C13—C12—C17—N15	179.2 (3)
N11—C9—C10—C11	177.8 (3)	O15—N15—C17—C16	176.9 (5)
C9—C10—C11—N12	−176.5 (3)	O14—N15—C17—C16	−3.4 (6)
C9—C10—C11—C6	0.4 (5)	O15—N15—C17—C12	−1.5 (6)
O7—N12—C11—C10	17.6 (4)	O14—N15—C17—C12	178.2 (5)
O8—N12—C11—C10	−163.8 (3)

Symmetry code: (i) −x+1, −y+2, −z+1.

Hydrogen-bond geometry (Å, º) top

D—H···A	D—H	H···A	D···A	D—H···A
N1—H1AN···O12ⁱⁱ	0.86 (4)	2.06 (4)	2.908 (4)	168 (4)
N1—H1BN···O9	0.81 (5)	2.04 (5)	2.737 (4)	145 (4)
N1—H1BN···O15	0.81 (5)	2.46 (5)	3.130 (4)	141 (4)
N2—H2N···O9	0.94 (4)	1.94 (4)	2.721 (4)	139 (4)
N2—H2N···O10	0.94 (4)	2.19 (4)	2.992 (4)	142 (4)
N3—H3AN···O6ⁱⁱⁱ	0.89 (6)	2.53 (6)	3.379 (5)	161 (5)
N3—H3BN···O3^iv	0.96 (6)	2.32 (6)	3.018 (4)	130 (5)
N4—H4AN···O11Aⁱⁱⁱ	0.78 (5)	2.36 (5)	3.060 (5)	149 (4)
N4—H4BN···O2^v	0.80 (5)	2.15 (5)	2.842 (4)	145 (5)
N4—H4BN···O3^v	0.80 (5)	2.43 (5)	3.079 (4)	139 (4)
N5—H5N···O2^v	0.95 (5)	1.88 (5)	2.753 (4)	151 (4)
N5—H5N···O8^v	0.95 (5)	2.42 (4)	3.156 (4)	134 (3)
N6—H6AN···O1ⁱ	0.85 (4)	2.48 (4)	3.116 (4)	132 (3)
N6—H6AN···O7ⁱ	0.85 (4)	2.27 (4)	2.966 (4)	139 (4)
N6—H6BN···O5ⁱⁱⁱ	0.94 (5)	2.49 (5)	3.160 (4)	129 (4)
C5—H5C···O8^vi	0.98	2.60	3.351 (5)	134
C16—H16···O4^vii	0.95	2.46	3.374 (4)	161

Symmetry codes: (i) −x+1, −y+2, −z+1; (ii) x, y+1, z; (iii) −x+1, −y+1, −z+1; (iv) −x, −y+1, −z+1; (v) x+1, y, z; (vi) −x, −y+2, −z+1; (vii) x+1, y, z−1.

A comparison of selected equivalent bond lengths (Å) and bond angles (°) in complexes (I) and (II) top

Bond/angle	(I)	(II)^a
Cd1—O1	2.275 (2)	2.401 (2)
Cd1—N3	2.398 (3)	2.382 (2)
Cd1—S1	2.540 (1)	2.551 (1)

Cd1—N6	2.421 (3)	–
Cd1—S2	2.627 (1)	–
Cd1—S1ⁱ	2.841 (1)	–

O1—Cd1—N6	160.89 (9)	180
S1—Cd1—S2	167.97 (3)	180
N3—Cd1—S2ⁱⁱ	171.43 (7)	180

Note: (a) Shanthakumari et al. (2011). Symmetry codes: (i) -x + 1, -y + 2, -z + 1; (ii) -x + 2, -y, -z.

Principal percentage contributions of inter-atomic contacts to the Hirshfeld surfaces of compounds (I) and (II)^a top

Contact	(I)	(II)^a
H···H	12.7	24.6
C···H/H···C	4.5	3.8
N···H/H···N	2.3	1.4
O···H/H···O	54.5	44.2
S···H/H···S	2.6	10.9
C···C	2.7	–
N···C/C···N	2.0	0.7
O···C/C···O	4.8	5.2
O···N/N···O	–	3.2
O···O	–	4.2
S···O/O···S	–	1.7

Note: (a) Shanthakumari et al. (2011).

Footnotes

‡Deceased.

Acknowledgements

AS, RK, MK and SS thank the late Professor Jerry P. Jasinski (Department of Chemistry, Keene State College, USA) for his help, advice and fruitful collaboration. HSE is grateful to the University of Neuchâtel for their support over the years.

References

Anandha Babu, G., Sreedhar, S., Venugopal Rao, S. & Ramasamy, P. (2010). J. Cryst. Growth 312, 1957–1962. CrossRef Google Scholar
Anitha, K., Athimoolam, S. & Rajaram, R. K. (2005). Acta Cryst. E61, o1604–o1606. Web of Science CSD CrossRef IUCr Journals Google Scholar
Anitha, K., Sridhar, B. & Rajaram, R. K. (2004). Acta Cryst. E60, o1530–o1532. Web of Science CSD CrossRef IUCr Journals Google Scholar
Arivanandhan, M., Sankaranarayanan, K., Ramamoorthy, K., Sanjeeviraja, C. & Ramasamy, P. (2005). Thin Solid Films 477, 2–6. CrossRef CAS Google Scholar
Berkovitch-Yellin, Z. & Leiserowitz, L. (1984). Acta Cryst. B40, 159–165. CrossRef CAS Web of Science IUCr Journals Google Scholar
Braga, D., Maini, L., Polito, M. & Grepioni, F. (2004). Struct. Bond. 111, 1–32. Web of Science CrossRef CAS Google Scholar
Etter, M. C. & Huang, K. S. (1992). Chem. Mater. 4, 824–827. CrossRef CAS Web of Science Google Scholar
Frankenbach, G. M. & Etter, M. C. (1992). Chem. Mater. 4, 272–278. CrossRef CAS Web of Science Google Scholar
Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016). Acta Cryst. B72, 171–179. Web of Science CrossRef IUCr Journals Google Scholar
Long, N. J. (1995). Angew. Chem. Int. Ed. Engl. 34, 21–38. CrossRef CAS Web of Science Google Scholar
Macrae, C. F., Sovago, I., Cottrell, S. J., Galek, P. T. A., McCabe, P., Pidcock, E., Platings, M., Shields, G. P., Stevens, J. S., Towler, M. & Wood, P. A. (2020). J. Appl. Cryst. 53, 226–235. Web of Science CrossRef CAS IUCr Journals Google Scholar
McArdle, B. J., Sherwood, J. N. & Damask, A. C. (1974). J. Cryst. Growth 22, 193–200. CrossRef CAS Google Scholar
Min Jin, Z., Jiang Pan, Y., Lin Hu, M., Shen, L. & Chao Li, M. (2003). Cryst. Res. Technol. 38, 1009–1012. CrossRef Google Scholar
Muthamizhchelvan, C., Saminathan, K., SethuSankar, K. & Sivakumar, K. (2005). Acta Cryst. E61, o3605–o3607. Web of Science CSD CrossRef CAS IUCr Journals Google Scholar
Muthamizhchelvan, C., Saminathan, K., Fraanje, J., Peschar, R. & Sivakumar, K. (2005). Acta Cryst. E61, o1153–o1155. Web of Science CSD CrossRef IUCr Journals Google Scholar
Muthu, K. & Meenakshisundaram, S. (2012). J. Cryst. Growth 352, 163–166. CrossRef CAS Google Scholar
Rigaku OD (2015). CrysAlis PRO. Rigaku Oxford Diffraction, Yarnton, England. Google Scholar
Shanthakumari, R., Hema, R., Ramamurthy, K. & Stoeckli-Evans, H. (2011). Acta Cryst. E67, m127. CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sherwood, J. N. (1998). Pure Appl. Opt. 7, 229–238. CrossRef CAS Google Scholar
Spackman, P. R., Turner, M. J., McKinnon, J. J., Wolff, S. K., Grimwood, D. J., Jayatilaka, D. & Spackman, M. A. (2021). J. Appl. Cryst. 54, 1006–1011. Web of Science CrossRef CAS IUCr Journals Google Scholar
Spek, A. L. (2020). Acta Cryst. E76, 1–11. Web of Science CrossRef IUCr Journals Google Scholar
Stoeckli-Evans, H., Shankar, M. G., Kumaravel, R., Subashini, A., Sabari Girisun, T., Ramamurthi, K., Kučeráková, M., Dušek, M. & Crochet, A. (2025). Acta Cryst. E81, 393–400. CSD CrossRef IUCr Journals Google Scholar
Sun, H. Q., Yuan, D. R., Wang, X. Q., Lü, Y. Q., Sun, Z. H., Wei, X. C., Duan, X. L., Luan, C. N., Lü, M. K. & Xu, D. (2003). J. Cryst. Growth 256, 183–187. CrossRef CAS Google Scholar
Tan, S. L., Jotani, M. M. & Tiekink, E. R. T. (2019). Acta Cryst. E75, 308–318. Web of Science CrossRef IUCr Journals Google Scholar
Pal, T., Kar, T., Bocelli, G. & Rigi, L. (2004). Cryst. Growth Des. 4, 743–747. CrossRef CAS Google Scholar
Ushasree, P. M., Jayavel, R., Subramanian, C. & Ramasamy, P. (1999). J. Cryst. Growth 197, 216–220. CrossRef CAS Google Scholar
Verbiest, T., Houbrechts, S., Kauranen, M., Clays, K. & Persoons, A. J. (1997). J. Mater. Chem. 7, 2175–2189. CrossRef CAS Google Scholar
Westrip, S. P. (2010). J. Appl. Cryst. 43, 920–925. Web of Science CrossRef CAS IUCr Journals Google Scholar
Xie, Z.-Y. (2007). Acta Cryst. E63, o2957–o2958. CrossRef IUCr Journals Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
