Synthesis and structure of 1′,4′-diphenyl-1a,1′,4′,4′′,5′′,9b-hexa­hydro-2′′H-di­spiro­[cyclopropa[l]phenanthrene-1,2′-[1,4]ep­oxy­naphthalene-3′,3′′-thio­phene]

Wen, Y.; Thamattoor, D.M.

doi:10.1107/S2056989025004104

research communications

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 81| Part 6| June 2025|

https://doi.org/10.1107/S2056989025004104

Open

access

Synthesis and structure of 1′,4′-diphenyl-1a,1′,4′,4′′,5′′,9b-hexahydro-2′′H-dispiro[cyclopropa[l]phenanthrene-1,2′-[1,4]epoxynaphthalene-3′,3′′-thiophene]

Yuewei Wen ^a and Dasan M. Thamattoor ^a ^*

^aDepartment of Chemistry, Colby College, Waterville, ME 04901, USA
^*Correspondence e-mail: dmthamat@colby.edu

Edited by W. T. A. Harrison, University of Aberdeen, United Kingdom (Received 5 May 2025; accepted 6 May 2025; online 13 May 2025)

The title compound, C₃₉H₃₀OS, was inadvertently prepared as a Diels–Alder adduct between 1,3-diphenylisobenzofuran and 3-(1a,9b-dihydro-1H-cyclopropa[l]phenanthren-1-ylidene)tetrahydrothiophene. A combination of fused, bridged, and spirocyclic ring systems are all featured within a single molecular structure of this highly crowded polycyclic compound.

Keywords: crystal structure; polycyclic compound; cycloaddition; Hirshfeld analysis.

CCDC reference: 2444424

1. Chemical context

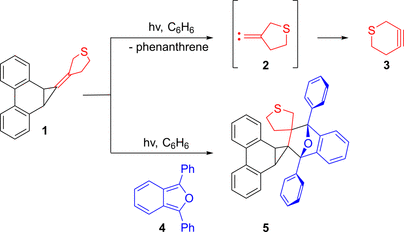

We recently reported (see Scheme below) that the photolysis of 3-(1a,9b-dihydro-1H-cyclopropa[l]phenanthren-1-ylidene)tetrahydrothiophene (1) produces the alkylidenecarbene 2 with the concomitant loss of phenanthrene (Anderson et al., 2023 ). Carbene 2 subsequently rearranges into the strained thiacyclohexyne 3. When the photolysis was carried out in the presence of 1,3-diphenylisobenzofuran (4), in an attempt to intercept 3, the title compound 5, which is the Diels–Alder adduct between 1 and 4, was obtained instead. The crystal structure and Hirshfeld surface analysis of 5 is described herein.

2. Structural commentary

The molecular structure of 5, C₃₉H₃₀OS, is shown in Fig. 1. The structure shows that the thiacyclopentyl ring is on the same side of the molecule as the dibenzonorcarane framework, which is understandable as 4 likely prefers to approach from the less sterically encumbered exo side of 1 to form the 4 + 2 cycloadduct.

Figure 1
The molecular structure of 5. Displacement ellipsoids are shown at the 50% probability level.

The highly crowded adduct 5 displays a variety of ring connections within a single molecule. Besides the fused rings that were inherited from the dibenzonorcarane moiety in 1, the structure of 5 also includes the bridged bicyclic system, 7-oxabicyclo[2.2.1]heptane, which is involved in spirocyclic connections with the thiacyclopentyl and cyclopropyl rings on one side and a fused connection to a benzene ring on the other side. There are six stereogenic centres (C1, C14, C15, C16, C23, C24) in 5; in the arbitrarily chosen asymmetric unit, they have R, R, R, R, S and S configurations, respectively, but crystal symmetry generates a racemic mixture. Both the C16/C17/C22/C23/O1 and C16/C15/C24/C23/O1 five-membered rings are well described as envelopes with the shared O atom as the flap in both cases, whereas the C24/C25/C26/S1/C27 ring is twisted on the C25—C26 bond. The dihedral angles between the C17–C22 phenyl group and the pendant C28–C33 and C34–C39 rings are 28.56 (10) and 47.14 (9)°, respectively; the dihedral angle between the pendant rings is 21.53 (10)°. Some of the C—C—C bond angles associated with the fused rings are notably distorted, such as C17—C16—C28 = 120.88 (15)° and C16—C17—C22 = 104.55 (15)°. The centroid of the thiacyclopentane ring is 3.5062 (11) Å from the centroid of the six-membered ring of the norcarane group. Ten intramolecular short contacts between atoms (shorter than sum of vdW radii – 0.3 Å) were identified and are presented in Table 1.

Table 1
Intramolecular short contacts (Å) in 5

Atom1⋯Atom2	Length	Atom1⋯Atom2	Length
O1⋯H29	2.38	O1⋯H39	2.33
C2⋯H25A	2.35	C13⋯H27A	2.38
C22⋯H27B	2.50	C28⋯H1	2.40
C34⋯H26A	2.58	C35⋯H26A	2.52
H6⋯H9	2.07	H18⋯H33	2.05

3. Supramolecular features

The unit cell of 5, comprising four molecules, is shown in Fig. 2, and a section of the packing diagram viewed along the b-axis direction is depicted in Fig. 3. The only identified directional contact in the extended structure of 5 is a weak C31—H31⋯S1ⁱ [symmetry code: (i) − $[{1\over 2}]$ + x, $[{1\over 2}]$ − y, $[{1\over 2}]$ + z] hydrogen bond with H⋯S = 2.85 Å and C—H⋯S = 135°, which generates [001] chains.

Figure 2
The monoclinic unit cell of 5 with four molecules.

Figure 3
Packing diagram of of 5 viewed along the b-axis direction.

A d_norm Hirshfeld surface (Spackman & Jayatilaka, 2009 ) was generated for 5 with Crystal Explorer 21.5 (Spackman et al., 2021 ) to investigate intermolecular contacts, and is shown in Fig. 4a. There are very few significant short contacts among molecules of 5 as can be seen from the limited number of red regions, which are mostly quite small, on the surface. These contacts primarily stem from the thiacyclpentane ring and one of the phenyl rings attached to the bridgehead of the 7-oxabicyclo[2.2.1]heptane group. The shape-index map (Fig. 4b) reveals hardly any π–π interactions but complementary red and blue regions indicate possible C—H⋯π interactions. The curvedness map (Fig. 4c) shows a ‘crumpled’ structure with many valleys and ridges but no extensive planarity that could facilitate π–π interactions.

Figure 4
The Hirshfeld surface shown as: (a) d_norm plot over the range −0.12 to 1.43 Å, (b) shape index plot over the range −1.00 to 1.00 Å, and (c) curvedness map plot over the range −4.00 to 4.00 Å.

A composite, color-coded reciprocal two-dimensional fingerprint plot (Spackman & McKinnon, 2002 ) of d_i versus d_e, where d_i and d_e are distances from any given point on the surface to the nearest internal and external atom, respectively, is shown in Fig. 5. This plot indicates that H⋯H (61.7%) and C⋯H/H⋯C (30.2%) interactions account for nearly 92% of the intermolecular contacts within the crystal structure of 5. The remaining contributions come from S⋯H/H⋯S (5.4%), O⋯H/H⋯O (1.4%), and C⋯C (1.3%) contacts.

Figure 5
The reciprocal two-dimensional fingerprint plot of d_e versus d_i showing the different types of intermolecular contacts by color.

4. Database survey

A survey of the Cambridge Structural Database (CSD; Groom et al., 2016 ) using WebCSD (version 1.9.66; accessed April 29, 2025) did not find the title compound 5 reported previously. The survey also showed that there were 23 structures featuring the dibenzonorcarane unit. Of these, only three (CSD refcodes DOTJOP, DOTJUV, Roth et al., 2024 ; HOJLIF, Roth & Thamattoor, 2024 ) had the cyclopropyl ring in a spirocyclic system.

5. Synthesis and crystallization

The title compound 5 was inadvertently synthesized while performing the photolysis of 1 (556 mg, 2 mmol) with 4 (559 mg, 2 mmol) in benzene (5 ml). It was isolated in extremely low yield (0.6%) after flash chromatography on silica gel using hexanes as the eluent. Crystals suitable for X-ray diffraction were obtained by slow evaporation of column fractions.

6. Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2. H atoms were positioned geometrically (C—H = 0.95–0.99 Å) and refined as riding with U_iso(H) = 1.2U_eq(C).

Table 2
Experimental details

Crystal data
Chemical formula	C₃₉H₃₀OS
M_r	546.69
Crystal system, space group	Monoclinic, P2₁/n
Temperature (K)	173
a, b, c (Å)	10.2352 (14), 14.3939 (14), 19.120 (3)
β (°)	98.121 (12)
V (Å³)	2788.6 (6)
Z	4
Radiation type	Mo Kα
μ (mm⁻¹)	0.15
Crystal size (mm)	0.21 × 0.15 × 0.10

Data collection
Diffractometer	Bruker D8 QUEST ECO
Absorption correction	Multi-scan (SADABS; Krause et al., 2015 )
T_min, T_max	0.700, 0.745
No. of measured, independent and observed [I > 2σ(I)] reflections	34580, 5692, 4424
R_int	0.035
(sin θ/λ)_max (Å⁻¹)	0.625

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.048, 0.117, 1.04
No. of reflections	5692
No. of parameters	370
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.51, −0.71
Computer programs: APEX4 and SAINT-Plus V8.40B (Bruker, 2021 ), SHELXT (Sheldrick, 2015a ), SHELXL (Sheldrick, 2015b ) and OLEX2 (Dolomanov et al., 2009 ).

Supporting information

CCDC reference: 2444424

Crystal structure: contains datablock I. DOI: https://doi.org/10.1107/S2056989025004104/hb8140sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2056989025004104/hb8140Isup2.hkl

checkCIF report

Computing details top

1',4'-Diphenyl-1a,1',4',4'',5'',9b-hexahydro-2''H-dispiro[cyclopropa[l]phenanthrene-1,2'-[1,4]epoxynaphthalene-3',3''-thiophene] top

Crystal data top

C₃₉H₃₀OS	F(000) = 1152
M_r = 546.69	D_x = 1.302 Mg m⁻³
Monoclinic, P2₁/n	Mo Kα radiation, λ = 0.71073 Å
a = 10.2352 (14) Å	Cell parameters from 9835 reflections
b = 14.3939 (14) Å	θ = 2.6–26.4°
c = 19.120 (3) Å	µ = 0.15 mm⁻¹
β = 98.121 (12)°	T = 173 K
V = 2788.6 (6) Å³	Prism, clear colourless
Z = 4	0.21 × 0.15 × 0.10 mm

Data collection top

Bruker D8 QUEST ECO diffractometer	5692 independent reflections
Radiation source: sealed X-ray tube, Siemens KFFMO2K–90C	4424 reflections with I > 2σ(I)
Curved graphite monochromator	R_int = 0.035
Detector resolution: 7.9 pixels mm^-1	θ_max = 26.4°, θ_min = 2.8°
ω and φ scans	h = −12→11
Absorption correction: multi-scan (SADABS; Krause et al., 2015)	k = −18→17
T_min = 0.700, T_max = 0.745	l = −23→23
34580 measured reflections

Refinement top

Refinement on F²	Primary atom site location: dual
Least-squares matrix: full	Hydrogen site location: inferred from neighbouring sites
R[F² > 2σ(F²)] = 0.048	H-atom parameters constrained
wR(F²) = 0.117	w = 1/[σ²(F_o²) + (0.0449P)² + 1.7735P] where P = (F_o² + 2F_c²)/3
S = 1.04	(Δ/σ)_max < 0.001
5692 reflections	Δρ_max = 0.51 e Å⁻³
370 parameters	Δρ_min = −0.71 e Å⁻³
0 restraints

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
S1	0.50970 (8)	0.41369 (5)	0.15667 (4)	0.0686 (2)
O1	0.44774 (11)	0.32159 (8)	0.39494 (6)	0.0243 (3)
C1	0.21870 (16)	0.21536 (12)	0.27250 (8)	0.0242 (4)
H1	0.172212	0.194188	0.312277	0.029*
C2	0.13212 (16)	0.25996 (12)	0.21334 (9)	0.0252 (4)
C3	0.02796 (18)	0.31451 (13)	0.22878 (10)	0.0323 (4)
H3	0.012505	0.319988	0.276449	0.039*
C4	−0.05379 (19)	0.36102 (14)	0.17650 (11)	0.0380 (5)
H4	−0.125098	0.397612	0.187890	0.046*
C5	−0.0298 (2)	0.35332 (14)	0.10711 (11)	0.0398 (5)
H5	−0.083540	0.386277	0.070746	0.048*
C6	0.0713 (2)	0.29818 (14)	0.09073 (10)	0.0362 (5)
H6	0.086403	0.293921	0.042933	0.043*
C7	0.15291 (18)	0.24800 (13)	0.14271 (9)	0.0288 (4)
C8	0.24977 (18)	0.17904 (14)	0.12482 (9)	0.0313 (4)
C9	0.2579 (2)	0.15425 (18)	0.05462 (10)	0.0469 (6)
H9	0.206655	0.187384	0.017452	0.056*
C10	0.3381 (2)	0.0833 (2)	0.03820 (12)	0.0576 (7)
H10	0.342044	0.068378	−0.009858	0.069*
C11	0.4130 (2)	0.03367 (18)	0.09116 (12)	0.0529 (6)
H11	0.467554	−0.015965	0.079862	0.064*
C12	0.4078 (2)	0.05710 (15)	0.16109 (11)	0.0389 (5)
H12	0.458939	0.022875	0.197677	0.047*
C13	0.32889 (17)	0.12991 (13)	0.17858 (9)	0.0286 (4)
C14	0.32479 (17)	0.14966 (12)	0.25452 (9)	0.0261 (4)
H14	0.335878	0.093116	0.285180	0.031*
C15	0.36395 (16)	0.23926 (12)	0.29390 (8)	0.0226 (4)
C16	0.41919 (17)	0.22644 (12)	0.37444 (8)	0.0258 (4)
C17	0.55821 (18)	0.18749 (12)	0.37587 (9)	0.0281 (4)
C18	0.6166 (2)	0.10124 (14)	0.38863 (10)	0.0412 (5)
H18	0.567022	0.049790	0.401533	0.049*
C19	0.7495 (2)	0.09164 (16)	0.38213 (12)	0.0504 (6)
H19	0.790663	0.032781	0.390675	0.060*
C20	0.8226 (2)	0.16548 (16)	0.36359 (11)	0.0469 (5)
H20	0.913322	0.157079	0.359511	0.056*
C21	0.76479 (19)	0.25235 (15)	0.35078 (10)	0.0357 (4)
H21	0.814975	0.303723	0.338266	0.043*
C22	0.63206 (17)	0.26214 (12)	0.35671 (9)	0.0263 (4)
C23	0.53653 (16)	0.34333 (12)	0.34482 (8)	0.0229 (4)
C24	0.44049 (16)	0.32564 (11)	0.27199 (8)	0.0223 (3)
C25	0.35150 (17)	0.41160 (12)	0.25493 (9)	0.0258 (4)
H25A	0.266860	0.392578	0.226991	0.031*
H25B	0.332092	0.440339	0.299371	0.031*
C26	0.42069 (19)	0.48164 (13)	0.21327 (10)	0.0342 (4)
H26A	0.482016	0.520723	0.245453	0.041*
H26B	0.355581	0.522429	0.184948	0.041*
C27	0.51737 (18)	0.30983 (13)	0.20922 (9)	0.0278 (4)
H27A	0.478300	0.257214	0.180133	0.033*
H27B	0.610486	0.294498	0.226875	0.033*
C28	0.32541 (19)	0.18490 (14)	0.41952 (9)	0.0328 (4)
C29	0.24205 (19)	0.24318 (17)	0.45050 (10)	0.0416 (5)
H29	0.250992	0.308669	0.447239	0.050*
C30	0.1447 (2)	0.2052 (2)	0.48655 (11)	0.0581 (7)
H30	0.087799	0.244976	0.508024	0.070*
C31	0.1315 (3)	0.1098 (2)	0.49090 (11)	0.0645 (8)
H31	0.064266	0.084173	0.514600	0.077*
C32	0.2143 (3)	0.0523 (2)	0.46137 (11)	0.0597 (8)
H32	0.205633	−0.013121	0.465296	0.072*
C33	0.3107 (2)	0.08884 (16)	0.42580 (10)	0.0445 (5)
H33	0.367904	0.048205	0.405312	0.053*
C34	0.59274 (17)	0.43911 (12)	0.35865 (9)	0.0251 (4)
C35	0.69184 (18)	0.47270 (14)	0.32219 (10)	0.0337 (4)
H35	0.727457	0.433680	0.289538	0.040*
C36	0.7387 (2)	0.56281 (14)	0.33335 (12)	0.0412 (5)
H36	0.804790	0.585589	0.307545	0.049*
C37	0.6896 (2)	0.61945 (14)	0.38189 (11)	0.0423 (5)
H37	0.721962	0.680984	0.389631	0.051*
C38	0.5933 (2)	0.58619 (13)	0.41900 (10)	0.0387 (5)
H38	0.560281	0.624748	0.452835	0.046*
C39	0.54436 (18)	0.49685 (13)	0.40730 (9)	0.0294 (4)
H39	0.477228	0.474942	0.432741	0.035*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
S1	0.1024 (6)	0.0599 (4)	0.0558 (4)	0.0274 (4)	0.0535 (4)	0.0297 (3)
O1	0.0262 (6)	0.0279 (6)	0.0188 (6)	−0.0041 (5)	0.0036 (5)	−0.0013 (5)
C1	0.0240 (9)	0.0310 (9)	0.0173 (8)	−0.0051 (7)	0.0017 (6)	0.0003 (7)
C2	0.0212 (9)	0.0314 (9)	0.0222 (8)	−0.0060 (7)	−0.0002 (7)	0.0008 (7)
C3	0.0264 (10)	0.0399 (11)	0.0299 (9)	−0.0049 (8)	0.0017 (7)	−0.0017 (8)
C4	0.0286 (10)	0.0380 (11)	0.0448 (11)	0.0031 (8)	−0.0034 (8)	−0.0025 (9)
C5	0.0429 (12)	0.0343 (11)	0.0363 (11)	0.0006 (9)	−0.0148 (9)	0.0028 (8)
C6	0.0458 (12)	0.0374 (11)	0.0224 (9)	−0.0049 (9)	−0.0052 (8)	0.0014 (8)
C7	0.0276 (9)	0.0350 (10)	0.0222 (8)	−0.0067 (8)	−0.0016 (7)	−0.0003 (7)
C8	0.0281 (10)	0.0431 (11)	0.0219 (9)	−0.0064 (8)	0.0013 (7)	−0.0042 (8)
C9	0.0367 (12)	0.0783 (17)	0.0249 (10)	0.0049 (11)	0.0016 (8)	−0.0067 (10)
C10	0.0424 (13)	0.099 (2)	0.0315 (11)	0.0078 (13)	0.0049 (10)	−0.0235 (12)
C11	0.0388 (12)	0.0702 (16)	0.0497 (13)	0.0075 (11)	0.0061 (10)	−0.0269 (12)
C12	0.0314 (10)	0.0435 (12)	0.0402 (11)	0.0000 (9)	0.0002 (8)	−0.0095 (9)
C13	0.0249 (9)	0.0335 (10)	0.0265 (9)	−0.0062 (8)	0.0005 (7)	−0.0062 (7)
C14	0.0265 (9)	0.0279 (9)	0.0225 (8)	−0.0042 (7)	−0.0010 (7)	0.0011 (7)
C15	0.0226 (9)	0.0279 (9)	0.0164 (7)	−0.0009 (7)	0.0003 (6)	0.0014 (6)
C16	0.0301 (9)	0.0269 (9)	0.0189 (8)	−0.0043 (7)	−0.0013 (7)	0.0012 (7)
C17	0.0329 (10)	0.0303 (9)	0.0181 (8)	0.0000 (8)	−0.0063 (7)	0.0002 (7)
C18	0.0516 (13)	0.0327 (11)	0.0358 (11)	0.0027 (10)	−0.0065 (9)	0.0055 (8)
C19	0.0548 (14)	0.0439 (13)	0.0493 (13)	0.0233 (11)	−0.0041 (11)	0.0067 (10)
C20	0.0349 (12)	0.0567 (14)	0.0470 (12)	0.0172 (10)	−0.0018 (9)	0.0027 (11)
C21	0.0278 (10)	0.0439 (12)	0.0341 (10)	0.0043 (9)	0.0003 (8)	0.0000 (9)
C22	0.0271 (9)	0.0298 (9)	0.0200 (8)	0.0011 (7)	−0.0034 (7)	−0.0014 (7)
C23	0.0218 (8)	0.0277 (9)	0.0192 (8)	−0.0012 (7)	0.0027 (6)	−0.0006 (7)
C24	0.0216 (8)	0.0262 (9)	0.0188 (8)	−0.0010 (7)	0.0020 (6)	0.0002 (6)
C25	0.0241 (9)	0.0277 (9)	0.0251 (8)	0.0014 (7)	0.0018 (7)	0.0022 (7)
C26	0.0351 (11)	0.0319 (10)	0.0354 (10)	0.0029 (8)	0.0040 (8)	0.0098 (8)
C27	0.0283 (9)	0.0333 (10)	0.0223 (8)	−0.0030 (8)	0.0058 (7)	−0.0015 (7)
C28	0.0349 (10)	0.0461 (11)	0.0152 (8)	−0.0134 (9)	−0.0041 (7)	0.0043 (8)
C29	0.0343 (11)	0.0661 (14)	0.0238 (9)	−0.0162 (10)	0.0025 (8)	0.0001 (9)
C30	0.0406 (13)	0.106 (2)	0.0276 (11)	−0.0251 (14)	0.0062 (9)	−0.0057 (12)
C31	0.0600 (16)	0.104 (2)	0.0269 (11)	−0.0535 (16)	−0.0015 (11)	0.0117 (13)
C32	0.0750 (18)	0.0756 (17)	0.0241 (11)	−0.0432 (15)	−0.0077 (11)	0.0115 (11)
C33	0.0558 (13)	0.0506 (13)	0.0231 (9)	−0.0228 (11)	−0.0085 (9)	0.0097 (9)
C34	0.0227 (9)	0.0278 (9)	0.0231 (8)	−0.0003 (7)	−0.0023 (7)	0.0006 (7)
C35	0.0266 (10)	0.0352 (10)	0.0395 (11)	−0.0029 (8)	0.0058 (8)	−0.0015 (8)
C36	0.0313 (11)	0.0396 (12)	0.0517 (12)	−0.0095 (9)	0.0025 (9)	0.0079 (10)
C37	0.0468 (13)	0.0277 (10)	0.0486 (12)	−0.0076 (9)	−0.0069 (10)	−0.0009 (9)
C38	0.0498 (13)	0.0300 (10)	0.0338 (10)	0.0017 (9)	−0.0024 (9)	−0.0047 (8)
C39	0.0324 (10)	0.0298 (9)	0.0247 (9)	0.0008 (8)	−0.0001 (7)	−0.0001 (7)

Geometric parameters (Å, º) top

S1—C26	1.799 (2)	C19—H19	0.9500
S1—C27	1.7968 (18)	C19—C20	1.375 (3)
O1—C16	1.443 (2)	C20—H20	0.9500
O1—C23	1.4451 (19)	C20—C21	1.390 (3)
C1—H1	1.0000	C21—H21	0.9500
C1—C2	1.481 (2)	C21—C22	1.386 (3)
C1—C14	1.516 (2)	C22—C23	1.520 (2)
C1—C15	1.525 (2)	C23—C24	1.607 (2)
C2—C3	1.389 (3)	C23—C34	1.503 (2)
C2—C7	1.407 (2)	C24—C25	1.544 (2)
C3—H3	0.9500	C24—C27	1.542 (2)
C3—C4	1.383 (3)	C25—H25A	0.9900
C4—H4	0.9500	C25—H25B	0.9900
C4—C5	1.387 (3)	C25—C26	1.520 (2)
C5—H5	0.9500	C26—H26A	0.9900
C5—C6	1.375 (3)	C26—H26B	0.9900
C6—H6	0.9500	C27—H27A	0.9900
C6—C7	1.405 (3)	C27—H27B	0.9900
C7—C8	1.477 (3)	C28—C29	1.388 (3)
C8—C9	1.403 (3)	C28—C33	1.398 (3)
C8—C13	1.406 (3)	C29—H29	0.9500
C9—H9	0.9500	C29—C30	1.400 (3)
C9—C10	1.374 (3)	C30—H30	0.9500
C10—H10	0.9500	C30—C31	1.385 (4)
C10—C11	1.380 (3)	C31—H31	0.9500
C11—H11	0.9500	C31—C32	1.363 (4)
C11—C12	1.387 (3)	C32—H32	0.9500
C12—H12	0.9500	C32—C33	1.379 (3)
C12—C13	1.392 (3)	C33—H33	0.9500
C13—C14	1.486 (2)	C34—C35	1.396 (3)
C14—H14	1.0000	C34—C39	1.390 (2)
C14—C15	1.518 (2)	C35—H35	0.9500
C15—C16	1.574 (2)	C35—C36	1.389 (3)
C15—C24	1.558 (2)	C36—H36	0.9500
C16—C17	1.526 (3)	C36—C37	1.382 (3)
C16—C28	1.502 (2)	C37—H37	0.9500
C17—C18	1.385 (3)	C37—C38	1.379 (3)
C17—C22	1.392 (3)	C38—H38	0.9500
C18—H18	0.9500	C38—C39	1.387 (3)
C18—C19	1.390 (3)	C39—H39	0.9500

C27—S1—C26	95.84 (8)	C21—C20—H20	119.8
C16—O1—C23	98.48 (12)	C20—C21—H21	120.8
C2—C1—H1	114.5	C22—C21—C20	118.35 (19)
C2—C1—C14	117.89 (14)	C22—C21—H21	120.8
C2—C1—C15	124.25 (14)	C17—C22—C23	105.72 (15)
C14—C1—H1	114.5	C21—C22—C17	121.18 (17)
C14—C1—C15	59.93 (11)	C21—C22—C23	133.08 (17)
C15—C1—H1	114.5	O1—C23—C22	100.71 (13)
C3—C2—C1	118.49 (15)	O1—C23—C24	100.10 (12)
C3—C2—C7	119.86 (16)	O1—C23—C34	110.06 (13)
C7—C2—C1	121.65 (16)	C22—C23—C24	108.03 (13)
C2—C3—H3	119.2	C34—C23—C22	117.18 (14)
C4—C3—C2	121.62 (17)	C34—C23—C24	118.02 (13)
C4—C3—H3	119.2	C15—C24—C23	99.36 (12)
C3—C4—H4	120.6	C25—C24—C15	113.10 (13)
C3—C4—C5	118.83 (19)	C25—C24—C23	109.05 (13)
C5—C4—H4	120.6	C27—C24—C15	115.01 (14)
C4—C5—H5	119.9	C27—C24—C23	112.38 (13)
C6—C5—C4	120.28 (18)	C27—C24—C25	107.73 (13)
C6—C5—H5	119.9	C24—C25—H25A	109.7
C5—C6—H6	119.1	C24—C25—H25B	109.7
C5—C6—C7	121.81 (18)	H25A—C25—H25B	108.2
C7—C6—H6	119.1	C26—C25—C24	109.72 (14)
C2—C7—C8	120.13 (16)	C26—C25—H25A	109.7
C6—C7—C2	117.44 (17)	C26—C25—H25B	109.7
C6—C7—C8	122.23 (16)	S1—C26—H26A	110.6
C9—C8—C7	121.69 (17)	S1—C26—H26B	110.6
C9—C8—C13	117.75 (18)	C25—C26—S1	105.53 (13)
C13—C8—C7	120.32 (15)	C25—C26—H26A	110.6
C8—C9—H9	119.1	C25—C26—H26B	110.6
C10—C9—C8	121.7 (2)	H26A—C26—H26B	108.8
C10—C9—H9	119.1	S1—C27—H27A	109.9
C9—C10—H10	119.8	S1—C27—H27B	109.9
C9—C10—C11	120.3 (2)	C24—C27—S1	109.01 (12)
C11—C10—H10	119.8	C24—C27—H27A	109.9
C10—C11—H11	120.4	C24—C27—H27B	109.9
C10—C11—C12	119.2 (2)	H27A—C27—H27B	108.3
C12—C11—H11	120.4	C29—C28—C16	119.05 (18)
C11—C12—H12	119.4	C29—C28—C33	118.78 (19)
C11—C12—C13	121.1 (2)	C33—C28—C16	121.88 (19)
C13—C12—H12	119.4	C28—C29—H29	120.1
C8—C13—C14	121.69 (16)	C28—C29—C30	119.8 (2)
C12—C13—C8	119.78 (17)	C30—C29—H29	120.1
C12—C13—C14	118.43 (17)	C29—C30—H30	120.0
C1—C14—H14	113.6	C31—C30—C29	119.9 (3)
C1—C14—C15	60.32 (11)	C31—C30—H30	120.0
C13—C14—C1	117.45 (15)	C30—C31—H31	119.8
C13—C14—H14	113.6	C32—C31—C30	120.4 (2)
C13—C14—C15	127.23 (15)	C32—C31—H31	119.8
C15—C14—H14	113.6	C31—C32—H32	119.9
C1—C15—C16	115.97 (13)	C31—C32—C33	120.2 (2)
C1—C15—C24	128.04 (14)	C33—C32—H32	119.9
C14—C15—C1	59.75 (11)	C28—C33—H33	119.6
C14—C15—C16	114.74 (14)	C32—C33—C28	120.8 (2)
C14—C15—C24	130.69 (14)	C32—C33—H33	119.6
C24—C15—C16	103.40 (13)	C35—C34—C23	121.14 (16)
O1—C16—C15	100.69 (12)	C39—C34—C23	120.17 (15)
O1—C16—C17	101.03 (13)	C39—C34—C35	118.68 (17)
O1—C16—C28	110.07 (14)	C34—C35—H35	119.8
C17—C16—C15	105.41 (13)	C36—C35—C34	120.43 (18)
C28—C16—C15	115.96 (14)	C36—C35—H35	119.8
C28—C16—C17	120.88 (15)	C35—C36—H36	119.9
C18—C17—C16	135.31 (18)	C37—C36—C35	120.22 (19)
C18—C17—C22	120.09 (18)	C37—C36—H36	119.9
C22—C17—C16	104.55 (15)	C36—C37—H37	120.2
C17—C18—H18	120.8	C38—C37—C36	119.67 (19)
C17—C18—C19	118.5 (2)	C38—C37—H37	120.2
C19—C18—H18	120.8	C37—C38—H38	119.8
C18—C19—H19	119.3	C37—C38—C39	120.47 (19)
C20—C19—C18	121.4 (2)	C39—C38—H38	119.8
C20—C19—H19	119.3	C34—C39—H39	119.7
C19—C20—H20	119.8	C38—C39—C34	120.51 (18)
C19—C20—C21	120.4 (2)	C38—C39—H39	119.7

O1—C16—C17—C18	150.6 (2)	C15—C16—C28—C29	−88.3 (2)
O1—C16—C17—C22	−32.00 (15)	C15—C16—C28—C33	85.5 (2)
O1—C16—C28—C29	25.1 (2)	C15—C24—C25—C26	−162.68 (14)
O1—C16—C28—C33	−161.04 (16)	C15—C24—C27—S1	143.94 (12)
O1—C23—C24—C15	−37.87 (14)	C16—O1—C23—C22	−50.74 (14)
O1—C23—C24—C25	80.66 (15)	C16—O1—C23—C24	59.98 (13)
O1—C23—C24—C27	−159.96 (13)	C16—O1—C23—C34	−175.06 (13)
O1—C23—C34—C35	173.15 (15)	C16—C15—C24—C23	3.87 (15)
O1—C23—C34—C39	−8.2 (2)	C16—C15—C24—C25	−111.59 (15)
C1—C2—C3—C4	177.54 (17)	C16—C15—C24—C27	124.06 (15)
C1—C2—C7—C6	−175.70 (16)	C16—C17—C18—C19	177.38 (19)
C1—C2—C7—C8	9.3 (3)	C16—C17—C22—C21	−178.63 (16)
C1—C14—C15—C16	106.82 (15)	C16—C17—C22—C23	0.32 (17)
C1—C14—C15—C24	−116.06 (19)	C16—C28—C29—C30	173.38 (17)
C1—C15—C16—O1	−113.93 (15)	C16—C28—C33—C32	−173.09 (17)
C1—C15—C16—C17	141.36 (15)	C17—C16—C28—C29	142.26 (17)
C1—C15—C16—C28	4.8 (2)	C17—C16—C28—C33	−43.9 (2)
C1—C15—C24—C23	143.16 (16)	C17—C18—C19—C20	0.1 (3)
C1—C15—C24—C25	27.7 (2)	C17—C22—C23—O1	31.36 (16)
C1—C15—C24—C27	−96.66 (19)	C17—C22—C23—C24	−73.07 (16)
C2—C1—C14—C13	−3.8 (2)	C17—C22—C23—C34	150.67 (14)
C2—C1—C14—C15	115.42 (16)	C18—C17—C22—C21	−0.7 (3)
C2—C1—C15—C14	−105.06 (18)	C18—C17—C22—C23	178.22 (15)
C2—C1—C15—C16	150.18 (16)	C18—C19—C20—C21	0.0 (3)
C2—C1—C15—C24	15.1 (3)	C19—C20—C21—C22	−0.4 (3)
C2—C3—C4—C5	−0.6 (3)	C20—C21—C22—C17	0.8 (3)
C2—C7—C8—C9	169.39 (19)	C20—C21—C22—C23	−177.82 (18)
C2—C7—C8—C13	−4.8 (3)	C21—C22—C23—O1	−149.87 (18)
C3—C2—C7—C6	4.5 (3)	C21—C22—C23—C24	105.7 (2)
C3—C2—C7—C8	−170.51 (16)	C21—C22—C23—C34	−30.6 (3)
C3—C4—C5—C6	1.8 (3)	C22—C17—C18—C19	0.3 (3)
C4—C5—C6—C7	0.2 (3)	C22—C23—C24—C15	66.99 (15)
C5—C6—C7—C2	−3.3 (3)	C22—C23—C24—C25	−174.48 (13)
C5—C6—C7—C8	171.56 (18)	C22—C23—C24—C27	−55.10 (17)
C6—C7—C8—C9	−5.4 (3)	C22—C23—C34—C35	59.0 (2)
C6—C7—C8—C13	−179.58 (17)	C22—C23—C34—C39	−122.44 (17)
C7—C2—C3—C4	−2.7 (3)	C23—O1—C16—C15	−57.04 (14)
C7—C8—C9—C10	−173.1 (2)	C23—O1—C16—C17	51.15 (14)
C7—C8—C13—C12	172.01 (17)	C23—O1—C16—C28	−179.94 (13)
C7—C8—C13—C14	−4.2 (3)	C23—C24—C25—C26	87.78 (16)
C8—C9—C10—C11	0.4 (4)	C23—C24—C27—S1	−103.34 (14)
C8—C13—C14—C1	8.3 (2)	C23—C34—C35—C36	177.19 (17)
C8—C13—C14—C15	−63.9 (2)	C23—C34—C39—C38	−178.31 (16)
C9—C8—C13—C12	−2.4 (3)	C24—C15—C16—O1	31.22 (15)
C9—C8—C13—C14	−178.58 (18)	C24—C15—C16—C17	−73.49 (15)
C9—C10—C11—C12	−0.9 (4)	C24—C15—C16—C28	149.93 (15)
C10—C11—C12—C13	−0.3 (3)	C24—C23—C34—C35	−72.9 (2)
C11—C12—C13—C8	2.0 (3)	C24—C23—C34—C39	105.69 (18)
C11—C12—C13—C14	178.27 (19)	C24—C25—C26—S1	36.09 (17)
C12—C13—C14—C1	−167.93 (16)	C25—C24—C27—S1	16.81 (16)
C12—C13—C14—C15	119.9 (2)	C26—S1—C27—C24	3.34 (14)
C13—C8—C9—C10	1.3 (3)	C27—S1—C26—C25	−22.57 (14)
C13—C14—C15—C1	103.49 (19)	C27—C24—C25—C26	−34.44 (18)
C13—C14—C15—C16	−149.69 (17)	C28—C16—C17—C18	29.0 (3)
C13—C14—C15—C24	−12.6 (3)	C28—C16—C17—C22	−153.60 (15)
C14—C1—C2—C3	174.99 (15)	C28—C29—C30—C31	−0.3 (3)
C14—C1—C2—C7	−4.8 (2)	C29—C28—C33—C32	0.7 (3)
C14—C1—C15—C16	−104.76 (16)	C29—C30—C31—C32	1.2 (3)
C14—C1—C15—C24	120.13 (18)	C30—C31—C32—C33	−1.1 (3)
C14—C15—C16—O1	179.19 (13)	C31—C32—C33—C28	0.1 (3)
C14—C15—C16—C17	74.48 (17)	C33—C28—C29—C30	−0.6 (3)
C14—C15—C16—C28	−62.1 (2)	C34—C23—C24—C15	−157.17 (14)
C14—C15—C24—C23	−136.68 (17)	C34—C23—C24—C25	−38.64 (19)
C14—C15—C24—C25	107.85 (19)	C34—C23—C24—C27	80.74 (18)
C14—C15—C24—C27	−16.5 (2)	C34—C35—C36—C37	1.4 (3)
C15—C1—C2—C3	−114.01 (19)	C35—C34—C39—C38	0.3 (3)
C15—C1—C2—C7	66.2 (2)	C35—C36—C37—C38	−0.3 (3)
C15—C1—C14—C13	−119.26 (17)	C36—C37—C38—C39	−0.8 (3)
C15—C16—C17—C18	−105.0 (2)	C37—C38—C39—C34	0.8 (3)
C15—C16—C17—C22	72.46 (16)	C39—C34—C35—C36	−1.4 (3)

Intramolecular short contacts (Å) in 5 top

Atom1···Atom2	Length	Atom1···Atom2	Length
O1···H29	2.38	O1···H39	2.33
C2···H25A	2.35	C13···H27A	2.38
C22···H27B	2.50	C28···H1	2.40
C34···H26A	2.58	C35···H26A	2.52
H6···H9	2.07	H18···H33	2.05

Funding information

Funding for this research was provided by: National Science Foundation, Directorate for Mathematical and Physical Sciences (award No. CHE2400007 to D. M. Thamattoor).

References

Anderson, T. E., Thamattoor, D. M. & Phillips, D. L. (2023). Org. Lett. 25, 1364–1369. CrossRef CAS PubMed Google Scholar
Bruker (2021). APEX4 and SAINT-Plus. Bruker AXS Inc., Madison, Wisconsin, USA. Google Scholar
Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K. & Puschmann, H. (2009). J. Appl. Cryst. 42, 339–341. Web of Science CrossRef CAS IUCr Journals Google Scholar
Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016). Acta Cryst. B72, 171–179. Web of Science CrossRef IUCr Journals Google Scholar
Krause, L., Herbst-Irmer, R., Sheldrick, G. M. & Stalke, D. (2015). J. Appl. Cryst. 48, 3–10. Web of Science CSD CrossRef ICSD CAS IUCr Journals Google Scholar
Roth, A. D., Ramgren, D. R., Wen, Y., Michie, M. S. & Thamattoor, D. M. (2024). J. Org. Chem. 89, 7503–7512. CrossRef CAS PubMed Google Scholar
Roth, A. D. & Thamattoor, D. M. (2024). Org. Lett. 26, 3840–3843. CrossRef CAS PubMed Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Spackman, M. A. & Jayatilaka, D. (2009). CrystEngComm 11, 19–32. Web of Science CrossRef CAS Google Scholar
Spackman, M. A. & McKinnon, J. J. (2002). CrystEngComm 4, 378–392. CrossRef CAS Google Scholar
Spackman, P. R., Turner, M. J., McKinnon, J. J., Wolff, S. K., Grimwood, D. J., Jayatilaka, D. & Spackman, M. A. (2021). J. Appl. Cryst. 54, 1006–1011. Web of Science CrossRef CAS IUCr Journals Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
