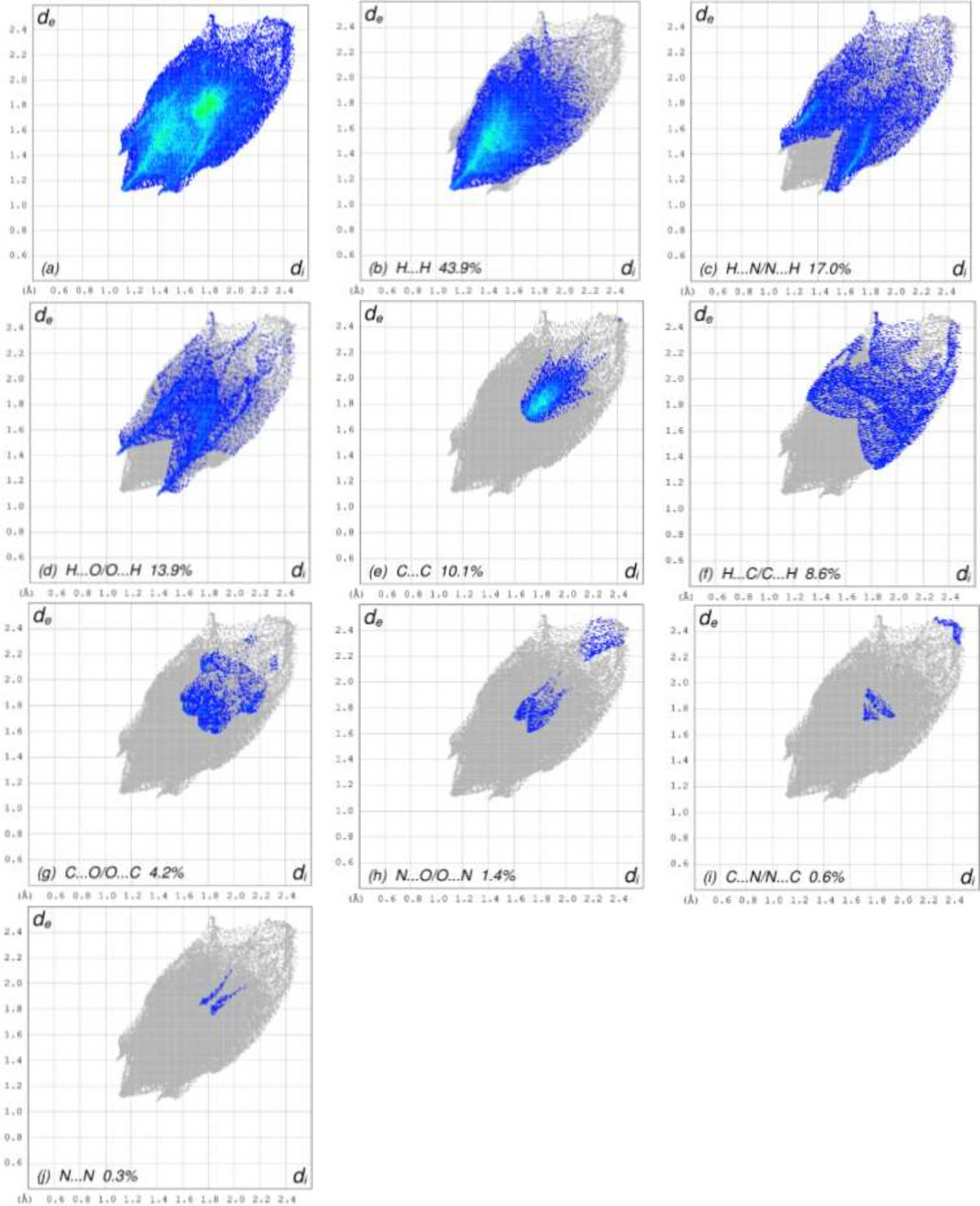

The full two-dimensional fingerprint plots showing (a) all interactions, and delineated into (b) H⋯H, (c) H⋯N/N⋯H, (d) H⋯O/O⋯H, (e) C⋯C, (f) H⋯C/C⋯H, (g) C⋯O/O⋯C, (h) N⋯O/O⋯N, (i) C⋯N/N⋯C and (j) N⋯N interactions. The di and de values are the closest internal and external distances (in Å) from given points on the Hirshfeld surface. |
