Synthesis and crystal structure of (Z)-2-(6-chloroimidazo[1,2-a]pyridin-2-yl)-3-[4-(di­methyl­amino)phen­yl]acrylo­nitrile

Akonan, L.; Ziki, E.; N'guessan, D.U.J.-P.; Coulibaly, S.; Ouattara, M.; Adohi-Krou, V.

doi:10.1107/S2056989025007248

research communications

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 81| Part 9| September 2025| Pages 853-856

https://doi.org/10.1107/S2056989025007248

Open

access

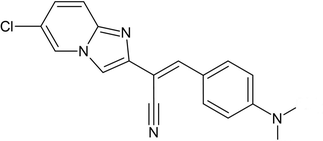

Synthesis and crystal structure of (Z)-2-(6-chloroimidazo[1,2-a]pyridin-2-yl)-3-[4-(dimethylamino)phenyl]acrylonitrile

Ludovic Akonan,^a Eric Ziki,^b ^* Deto Ursul Jean-Paul N'guessan,^c Songuigama Coulibaly,^c Mahama Ouattara ^c and Viviane Adohi-Krou ^b

^aLaboratory of Fundamental and Applied Physics, Nangui ABROGOUA University, Abidjan, Ivory Coast, ^bLaboratory of Matter, Environmental and Solar Energy Sciences, Research Team: Crystallography and Molecular Physics, Félix Houphouët-Boigny University, Abidjan, Ivory Coast, and ^cDepartment of Therapeutic Chemistry and Organic Chemistry, UFR Pharmaceutical and Biological Sciences, Félix Houphouët Boigny University, Abidjan, Ivory Coast
^*Correspondence e-mail: [email protected]

Edited by Y. Ozawa, University of Hyogo, Japan (Received 10 June 2025; accepted 13 August 2025; online 19 August 2025)

The structure of the title compound, C₁₈H₁₅ClN₄, was determined at low temperature (100 K). In the crystal, the molecules are connected through C—H⋯N and C—H⋯Cl intermolecular hydrogen bonds generating a network that extend along the [010] direction. In addition, C—H⋯π and π–π stacking interactions as well as intermolecular contacts contribute to the cohesion of the structure. Hirshfeld surface analysis indicates that the contributions to the surface for the H⋯H, H⋯N/ N⋯H, H⋯C/C⋯H, H⋯Cl/Cl⋯H and C⋯C contacts are 30.2, 19.9, 28.6, 12.2 and 3.7%, respectively.

Keywords: crystal structure; π–π stacking; imidazopyridine; hydrogen bond.

CCDC reference: 2480418

1. Chemical context

Parasitic infections caused by gastrointestinal nematodes such as Haemonchus contortus represent a major challenge to the health of small ruminants, resulting in significant economic losses due to severe clinical symptoms, including diarrhoea, weight loss and increased mortality (Charlier et al., 2014 ; Peter et al., 2005 ; Emery et al., 2016 ).

Among the pharmacochemical strategies for developing new molecules, the concept of molecular juxtaposition is currently one of the fastest growing. It consists of combining two or more biologically active entities to obtain new biomolecules with high medicinal potential (Meunier, 2011 ). The application of this concept has led to the development of numerous drug molecules, such as trioxaquines (antimalarials), vancomycins (antibiotics) and others. This so-called `two-shot gun' strategy was developed with a view to reducing the emergence of drug-resistant germs (Meunier, 2011; Shaveta et al., 2016 ).

As this research method has proved its worth, we adopted it to design a hybrid chemical profile resulting from the association of the imidazopyridine heterocycle and the acrylonitrile functional group. Indeed, acrylonitriles have emerged as a promising class of anthelmintic molecules. In particular, 2-phenyl-3-(1H-pyrrol-2-yl)-acrylonitriles have demonstrated remarkable activity against H. contortus, with a lethal concentration (LD99) of 30 µM (Gordon et al., 2014 ).

Inspired by this work, we propose here an innovative structural design of 2-(6-chloroimidazo[1,2-a]pyridin-2-yl)-3-phenylacrylonitrile derivatives. This design is based on the integration of an imidazopyridine core and a phenyl group within the acrylonitrile scaffold, with the aim of improving anthelmintic activity, metabolic stability and selectivity. The choice of imidazopyridine is justified by the fact that it is an isostere of benzimidazole, which is the pharmacophore carrier for several drugs used in therapeutics (Adachi et al., 1969 ; Badgujar et al., 2010 ; Balzarini et al., 2005 , 2006 ; Inuzuka et al., 1976 ; Stevens et al., 2003 ; Vieites et al., 2008 ). The imidazopyridine core, in particular, offers a versatile chemical platform for specific interactions with parasitic targets, while the phenyl group enables pharmacokinetic properties to be modulated and affinity for parasitic receptors to be optimized.

2. Structural commentary

As shown in Fig. 1, the C1–C7/N1/N2/Cl 6-chloroimidazo[1,2-a]pyridine moiety of the title molecule is almost planar [r.m.s deviation = 0.036 (1) Å] and slightly inclined at an angle of 13.06 (5)° to the phenyl ring (C11–C16). A pseudo-ring with an S(7) motif is formed by atoms H16/C16/C11/C10/C9/C8/N3 as a result of the intramolecular hydrogen bond (C16—H16⋯N3). An inspection of the bond lengths in the imidazo[1,2-a]pyridine ring shows that the N2—C7 [1.3302 (16) Å] and N2—C1 [1.3756 (16) Å] bond lengths are very different, suggesting that the electron density is preferentially located in the N2—C1 bond, as double-bond character, as seen in other imidazopyridine derivatives (Sissouma et al., 2011 ). The length of N3—C9 [1.1502 (17) Å] indicates a double bond (Allen et al., 1987 ). The C17 and N4 atoms of the dimethylamino group lie close to and on either side of the plane of the ring to which they are attached [deviations = 0.032 (1) and −0.036 (1) Å, respectively] whereas N4 is displaced by 0.243 (1) Å.

Figure 1
The molecular structure of the title compound with displacement ellipsoids drawn at the 50% probability level. The dashed line indicates the hydrogen bond forming an S(7) pseudo-ring.

3. Supramolecular features

In the crystal, cohesion is ensured by intermolecular hydrogen bonds. These hydrogen bonds form a chain propagating along [010] axis direction with three adjacent R₂²(9) and R₂²(8) loops between each pair of molecules formed by the C5—H5⋯N3(−x + 1, −y + 2, −z + 1) and C6—H6⋯N2(−x + 1, −y + 2, −z + 1) hydrogen bonds (Fig. 2). Weak hydrogen bonds involving the chlorine atom Cl contribute to the consolidation of the crystal [C17—H17B⋯Cl(x + 1, −y + $[{1\over 2}]$ , z − $[{1\over 2}]$ ), C17—H17C⋯Cl(−x + 1, y + $[{1\over 2}]$ , −z + $[{1\over 2}]$ )] (Fig. 2). Weak aromatic π–π stacking interactions are present between the pyridine (centroid Cg2) and imidazole (centroid Cg1) rings of symmetry-related (−x + 1, −y + 1, −z + 1) molecules [centroid–centroid distance 3.5367 (8) Å], and also C—H⋯π interactions involving the phenyl (centroid Cg3) and imidazole rings (Table 1), forming a three-dimensional supramolecular network (Fig. 3).

Table 1
Hydrogen-bond geometry (Å, °)

Cg1 and Cg3 are the centroids of the N1/C2/C1/N2/C7 and C11–C16 rings, respectively.

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
C5—H5⋯N3ⁱ	0.95	2.58	3.3871 (17)	143
C17—H17C⋯Clⁱⁱ	0.98	2.96	3.6211 (15)	126
C6—H6⋯N2ⁱ	0.95	2.59	3.4554 (16)	151
C16—H16⋯N3	0.95	2.57	3.4275 (17)	151
C3—H3⋯Cg3ⁱⁱⁱ	0.95	2.67	3.3054 (13)	125
C12—H12⋯Cg1ⁱⁱⁱ	0.95	2.80	3.5101 (14)	132
Symmetry codes: (i) ; (ii) $[-x+1, y+{\script{1\over 2}}, -z+{\script{1\over 2}}]$ ; (iii) $[-x+1, y-{\script{1\over 2}}, -z+{\script{1\over 2}}]$ .

Figure 2
Partial packing diagram showing the [010] chains arising from C—H⋯N and C—H⋯Cl hydrogen bonds.

Figure 3
Partial packing diagram showing the π–π stacking and C—H⋯π interactions (dashed lines). The yellow dots are ring centroids.

4. Hirshfeld surface analysis

The Hirshfeld surface and two-dimensional fingerprint (FP) plots (Rohl et al., 2008 ) were generated by CrystalExplorer17 (Spackman et al., 2021 ). Intramolecular and intermolecular interactions were analysed by mapping the surface over d_norm where d_i and d_e are the contact distances from Hirshfeld surface to the nearest atom inside and outside, respectively. The contributions from different contacts are shown by partial analysis of the FP plots (Fig. 4). The π–π intermolecular interactions correspond to C⋯C contacts. The largest contributions to the surface are made by H⋯H (30.2%, Fig. 4b) and H⋯C/C⋯H (28.6%, seen as red spots in Fig. 4a, FP plot in Fig. 4c) contacts. H⋯N/N⋯H and H⋯Cl/Cl⋯H contacts make contributions of 19.9% and 12.2%, respectively (Fig. 4e,f).

Figure 4
(a) Hirshfeld surface mapped over d_norm and two-dimensional fingerprint plots: (b) overall, and delineated into contributions from different contacts: (c) H⋯H, (d) H⋯C/C⋯H, (e) H⋯N/N⋯H, (f) H⋯Cl/Cl⋯H and (g) C⋯C.

5. Database survey

A search of the Cambridge Structural Database (CSD version 5.45; Groom et al., 2016 ) for compounds containing the chloroimidazol and acrylonitrile moieties gave five hits [CSD refcodes APIFEL (Volovnenko et al., 2009 ), BITSAA (Hranjec et al., 2012 ), AZURAP (Zhao & Ng, 2011 ), HUBTOQ (Kusy et al., 2019 ) and ABOFEG (Zhou et al., 2021 )].

6. Synthesis and crystallization

To a solution of 2.35g (24.9 mmol, 1 eq.) of 2-amino 4-chloropyridine in 25 ml of acetonitrile were added 3.2 g (25.2 mmol, 1.01 eq.) of 1,3-dichloro acetone. The mixture was left to stir at room temperature for 12 h. The precipitate formed was isolated by vacuum filtration, washed with 2 × 15 ml of acetonitrile, filtered and dried at room temperature. The residue was then dissolved in 60 ml of water and the solution neutralized with a saturated solution of sodium hydrogen carbonate (NaHCO₃). Impurities were extracted from the mixture with 2 × 15 ml of ethyl acetate; the aqueous phase was then kept refrigerated (278 K) and the product precipitated after 1 h. After vacuum filtration, 2-chloromethyl imidazo[1,2-a]pyridine was isolated as a flaky white solid in 49.28% yield.

A mixture of 2-chloromethyl imidazo[1,2-a]pyiridine (1 g; 6 mmol; 1 eq.) and potassium cyanide (0.43 g; 6.6 mmol; 1.1 eq.) was stirred for 12 h at room temperature in a 100 ml flask containing 10 ml of DMSO. The brown liquid was extracted with dichloromethane (2 × 50 ml), then washed with 2 × 50 ml of water. The organic phase was dried over magnesium sulfate, filtered and concentrated in vacuo. The brown paste formed crystallized after 30 minutes at room temperature in 87.23% yield, as 2-(imidazo[1,2-a]pyridin-2-yl)acetonitrile (N'Guessan et al., 2025 ).

To a solution of 0.5 g (3.18 mmol; 1 eq.) of 2-(imidazo[1,2-a]pyridin-2-yl) acetonitrile in 8 ml of anhydrous ethanol, were added 5 drops of piperidine and 3.2 g (3.5 mmol; 1.1 eq.) of 4-(dimethylamino)benzaldehyde. The mixture was refluxed for 12 h. The precipitate formed was isolated by vacuum filtration, washed with 10 ml of cold methanol, squeezed dry and then dried at room temperature. (Z)-2-(6-Chloroimidazo[1,2-a]pyridin-2-yl)-3-[4-(dimethylamino)phenyl]acrylonitrile was isolated as a lumpy brown powder in 76% yield.

Crystallization was performed under ambient conditions by slow solvent evaporation. Approximately 30 mg of the compound were dissolved in 1 mL of cooled methanol and transferred into a 10 mL glass vial. The vial was sealed with aluminium foil pierced with five small holes using a needle, allowing the solvent to evaporate gradually while limiting dust contamination. The setup was kept undisturbed at room temperature (298 K) on a laboratory bench. After 10 days, well-formed crystals suitable for analysis were obtained. The crystals were then collected and dried in an oven at 313 K for 3 days to remove any residual solvent; m.p. = 469–472 K. ¹H NMR (300 MHz, CDCl₃) δ: 8.19 (s, 2H), 7.91 (s, 1H), 7.88 (s, 1H), 7.85 (s, 1H), 7.56 (d, J = 9.6 Hz, 1H), 7.47–7.45 (m, 1H), 7.44–7.41 (m, 1 H), 7.26 (dd, J = 9.6, 1.9 Hz, 1H). ¹³C NMR (75 MHz, CDCl₃) δ: 130.9, 129.5, 124.0, 117.6, 111.6.

7. Refinement details

Crystal data, data collection and structure refinement details are summarized in Table 2. H atoms were positioned geometrically (C—H = 0.95–0.98 Å) and refined as riding with U_iso(H) = 1.2–1.5U_eq(C).

Table 2
Experimental details

Crystal data
Chemical formula	C₁₈H₁₅ClN₄
M_r	322.79
Crystal system, space group	Monoclinic, P2₁/c
Temperature (K)	100
a, b, c (Å)	12.1985 (7), 6.2726 (3), 20.3813 (11)
β (°)	104.379 (2)
V (Å³)	1510.65 (14)
Z	4
Radiation type	Mo Kα
μ (mm⁻¹)	0.26
Crystal size (mm)	0.30 × 0.10 × 0.10

Data collection
Diffractometer	Bruker D8 Venture
No. of measured, independent and observed [I > 2σ(I)] reflections	79364, 6055, 4535
R_int	0.057
(sin θ/λ)_max (Å⁻¹)	0.784

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.048, 0.137, 1.09
No. of reflections	6055
No. of parameters	210
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.41, −0.56
Computer programs: APEX4 and SAINT (Bruker, 2019 ), SHELXT2018/2 (Sheldrick, 2015a ), SHELXL2018/3 (Sheldrick, 2015b ), PLATON (Spek, 2020 ) and publCIF (Westrip, 2010 ).

Supporting information

CCDC reference: 2480418

Crystal structure: contains datablock I. DOI: https://doi.org/10.1107/S2056989025007248/ox2017sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2056989025007248/ox2017Isup2.hkl

Supporting information file. DOI: https://doi.org/10.1107/S2056989025007248/ox2017Isup3.cml

checkCIF report

Computing details top

(Z)-2-(6-Chloroimidazo[1,2-a]pyridin-2-yl)-3-[4-(dimethylamino)phenyl]prop-2-enenitrile top

Crystal data top

C₁₈H₁₅ClN₄	F(000) = 672
M_r = 322.79	D_x = 1.419 Mg m⁻³
Monoclinic, P2₁/c	Melting point: 469 K
Hall symbol: -P 2ybc	Mo Kα radiation, λ = 0.71073 Å
a = 12.1985 (7) Å	Cell parameters from 6055 reflections
b = 6.2726 (3) Å	θ = 2.1–33.9°
c = 20.3813 (11) Å	µ = 0.26 mm⁻¹
β = 104.379 (2)°	T = 100 K
V = 1510.65 (14) Å³	Prism, yellow
Z = 4	0.30 × 0.10 × 0.10 mm

Data collection top

Bruker D8 Venture diffractometer	4535 reflections with I > 2σ(I)
Radiation source: Fine-focus sealed tube	R_int = 0.057
Mirror monochromator	θ_max = 33.9°, θ_min = 2.1°
π and ω scan	h = −19→18
79364 measured reflections	k = −9→9
6055 independent reflections	l = −30→31

Refinement top

Refinement on F²	Primary atom site location: structure-invariant direct methods
Least-squares matrix: full	Secondary atom site location: difference Fourier map
R[F² > 2σ(F²)] = 0.048	Hydrogen site location: inferred from neighbouring sites
wR(F²) = 0.137	H-atom parameters constrained
S = 1.09	w = 1/[σ²(F_o²) + (0.0678P)² + 0.5322P] where P = (F_o² + 2F_c²)/3
6055 reflections	(Δ/σ)_max < 0.001
210 parameters	Δρ_max = 0.41 e Å⁻³
0 restraints	Δρ_min = −0.56 e Å⁻³

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
Cl	0.21001 (3)	0.25461 (5)	0.50877 (2)	0.02489 (9)
N1	0.40970 (9)	0.51243 (16)	0.40546 (5)	0.01837 (19)
N2	0.49924 (9)	0.82472 (17)	0.40256 (5)	0.01965 (19)
N3	0.68410 (11)	1.12761 (18)	0.34242 (6)	0.0268 (2)
N4	0.99529 (10)	0.63550 (18)	0.13872 (6)	0.0239 (2)
C2	0.47112 (10)	0.4903 (2)	0.35756 (6)	0.0197 (2)
H2	0.475218	0.368416	0.330590	0.024*
C12	0.75773 (11)	0.44782 (19)	0.20603 (6)	0.0197 (2)
H12	0.714509	0.321705	0.205787	0.024*
C3	0.34252 (11)	0.3676 (2)	0.42803 (6)	0.0205 (2)
H3	0.330171	0.228287	0.409333	0.025*
C9	0.65039 (11)	0.9566 (2)	0.33157 (6)	0.0206 (2)
C11	0.73315 (10)	0.62767 (19)	0.24120 (6)	0.0185 (2)
C8	0.60778 (10)	0.74328 (18)	0.31874 (6)	0.0177 (2)
C4	0.29460 (10)	0.4323 (2)	0.47822 (6)	0.0204 (2)
C14	0.90927 (10)	0.6321 (2)	0.17091 (6)	0.0201 (2)
C13	0.84261 (11)	0.4480 (2)	0.17179 (6)	0.0212 (2)
H13	0.856220	0.323192	0.148631	0.025*
C10	0.64595 (10)	0.60587 (19)	0.27785 (6)	0.0189 (2)
H10	0.608870	0.471481	0.272285	0.023*
C7	0.42980 (10)	0.71865 (19)	0.43190 (6)	0.0185 (2)
C1	0.52549 (10)	0.68329 (19)	0.35718 (6)	0.0183 (2)
C5	0.31255 (11)	0.6378 (2)	0.50741 (6)	0.0221 (2)
H5	0.278109	0.677146	0.542630	0.026*
C15	0.88371 (10)	0.8148 (2)	0.20542 (6)	0.0205 (2)
H15	0.925936	0.941883	0.205144	0.025*
C16	0.79884 (10)	0.8120 (2)	0.23939 (6)	0.0200 (2)
H16	0.784285	0.937137	0.262090	0.024*
C17	1.01552 (12)	0.4510 (2)	0.10050 (7)	0.0276 (3)
H17A	1.028965	0.325721	0.130162	0.041*
H17B	1.081974	0.476797	0.082732	0.041*
H17C	0.949284	0.425717	0.062784	0.041*
C6	0.37982 (11)	0.7796 (2)	0.48461 (6)	0.0218 (2)
H6	0.392841	0.917871	0.504016	0.026*
C18	1.04551 (12)	0.8369 (2)	0.12625 (7)	0.0270 (3)
H18A	0.987633	0.926490	0.096997	0.041*
H18B	1.106674	0.809941	0.103943	0.041*
H18C	1.076080	0.910152	0.169393	0.041*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
Cl	0.02422 (15)	0.02859 (16)	0.02381 (16)	−0.00599 (11)	0.00966 (11)	0.00203 (11)
N1	0.0195 (4)	0.0193 (4)	0.0171 (4)	−0.0016 (3)	0.0061 (3)	−0.0007 (3)
N2	0.0212 (5)	0.0199 (4)	0.0193 (5)	−0.0007 (4)	0.0078 (4)	−0.0013 (4)
N3	0.0333 (6)	0.0218 (5)	0.0295 (6)	−0.0022 (4)	0.0157 (5)	−0.0028 (4)
N4	0.0243 (5)	0.0243 (5)	0.0264 (5)	0.0033 (4)	0.0124 (4)	−0.0007 (4)
C2	0.0220 (5)	0.0206 (5)	0.0180 (5)	−0.0015 (4)	0.0081 (4)	−0.0016 (4)
C12	0.0225 (5)	0.0182 (5)	0.0188 (5)	0.0004 (4)	0.0057 (4)	−0.0006 (4)
C3	0.0218 (5)	0.0205 (5)	0.0197 (5)	−0.0025 (4)	0.0063 (4)	−0.0001 (4)
C9	0.0220 (5)	0.0215 (5)	0.0200 (5)	0.0009 (4)	0.0087 (4)	0.0002 (4)
C11	0.0199 (5)	0.0189 (5)	0.0172 (5)	0.0012 (4)	0.0054 (4)	0.0005 (4)
C8	0.0184 (5)	0.0188 (5)	0.0165 (5)	−0.0004 (4)	0.0056 (4)	0.0009 (4)
C4	0.0189 (5)	0.0243 (5)	0.0186 (5)	−0.0026 (4)	0.0057 (4)	0.0019 (4)
C14	0.0190 (5)	0.0234 (5)	0.0185 (5)	0.0031 (4)	0.0056 (4)	0.0004 (4)
C13	0.0245 (6)	0.0198 (5)	0.0203 (5)	0.0029 (4)	0.0073 (4)	−0.0019 (4)
C10	0.0206 (5)	0.0178 (5)	0.0188 (5)	−0.0008 (4)	0.0059 (4)	0.0003 (4)
C7	0.0188 (5)	0.0195 (5)	0.0174 (5)	−0.0009 (4)	0.0048 (4)	−0.0011 (4)
C1	0.0193 (5)	0.0193 (5)	0.0168 (5)	0.0001 (4)	0.0053 (4)	−0.0003 (4)
C5	0.0215 (5)	0.0265 (6)	0.0195 (5)	−0.0007 (4)	0.0076 (4)	−0.0017 (4)
C15	0.0212 (5)	0.0203 (5)	0.0211 (5)	−0.0007 (4)	0.0072 (4)	−0.0015 (4)
C16	0.0217 (5)	0.0194 (5)	0.0200 (5)	0.0002 (4)	0.0074 (4)	−0.0023 (4)
C17	0.0296 (6)	0.0289 (6)	0.0275 (6)	0.0052 (5)	0.0129 (5)	−0.0019 (5)
C6	0.0227 (5)	0.0234 (5)	0.0210 (5)	−0.0018 (4)	0.0086 (4)	−0.0036 (4)
C18	0.0244 (6)	0.0296 (6)	0.0300 (7)	−0.0017 (5)	0.0123 (5)	−0.0011 (5)

Geometric parameters (Å, º) top

Cl—C4	1.7360 (13)	C8—C10	1.3590 (17)
N1—C3	1.3769 (16)	C8—C1	1.4674 (17)
N1—C2	1.3774 (15)	C4—C5	1.4140 (18)
N1—C7	1.3994 (15)	C14—C13	1.4147 (18)
N2—C7	1.3302 (16)	C14—C15	1.4192 (17)
N2—C1	1.3756 (16)	C13—H13	0.9500
N3—C9	1.1503 (17)	C10—H10	0.9500
N4—C14	1.3690 (16)	C7—C6	1.4131 (17)
N4—C17	1.4500 (17)	C5—C6	1.3674 (18)
N4—C18	1.4539 (18)	C5—H5	0.9500
C2—C1	1.3815 (17)	C15—C16	1.3811 (17)
C2—H2	0.9500	C15—H15	0.9500
C12—C13	1.3848 (17)	C16—H16	0.9500
C12—C11	1.4082 (17)	C17—H17A	0.9800
C12—H12	0.9500	C17—H17B	0.9800
C3—C4	1.3602 (17)	C17—H17C	0.9800
C3—H3	0.9500	C6—H6	0.9500
C9—C8	1.4360 (17)	C18—H18A	0.9800
C11—C16	1.4125 (17)	C18—H18B	0.9800
C11—C10	1.4502 (17)	C18—H18C	0.9800

C3—N1—C2	130.07 (11)	C8—C10—H10	114.2
C3—N1—C7	122.91 (10)	C11—C10—H10	114.2
C2—N1—C7	106.99 (10)	N2—C7—N1	111.07 (10)
C7—N2—C1	105.09 (10)	N2—C7—C6	130.50 (11)
C14—N4—C17	119.86 (11)	N1—C7—C6	118.39 (11)
C14—N4—C18	120.26 (11)	N2—C1—C2	111.66 (11)
C17—N4—C18	117.68 (11)	N2—C1—C8	119.86 (11)
N1—C2—C1	105.19 (10)	C2—C1—C8	128.37 (11)
N1—C2—H2	127.4	C6—C5—C4	119.56 (11)
C1—C2—H2	127.4	C6—C5—H5	120.2
C13—C12—C11	122.42 (11)	C4—C5—H5	120.2
C13—C12—H12	118.8	C16—C15—C14	121.50 (12)
C11—C12—H12	118.8	C16—C15—H15	119.2
C4—C3—N1	117.18 (11)	C14—C15—H15	119.2
C4—C3—H3	121.4	C15—C16—C11	121.61 (11)
N1—C3—H3	121.4	C15—C16—H16	119.2
N3—C9—C8	179.32 (14)	C11—C16—H16	119.2
C12—C11—C16	116.65 (11)	N4—C17—H17A	109.5
C12—C11—C10	117.57 (11)	N4—C17—H17B	109.5
C16—C11—C10	125.74 (11)	H17A—C17—H17B	109.5
C10—C8—C9	122.62 (11)	N4—C17—H17C	109.5
C10—C8—C1	123.28 (11)	H17A—C17—H17C	109.5
C9—C8—C1	113.98 (10)	H17B—C17—H17C	109.5
C3—C4—C5	122.55 (11)	C5—C6—C7	119.40 (12)
C3—C4—Cl	118.87 (10)	C5—C6—H6	120.3
C5—C4—Cl	118.57 (9)	C7—C6—H6	120.3
N4—C14—C13	122.03 (11)	N4—C18—H18A	109.5
N4—C14—C15	120.91 (11)	N4—C18—H18B	109.5
C13—C14—C15	117.06 (11)	H18A—C18—H18B	109.5
C12—C13—C14	120.74 (11)	N4—C18—H18C	109.5
C12—C13—H13	119.6	H18A—C18—H18C	109.5
C14—C13—H13	119.6	H18B—C18—H18C	109.5
C8—C10—C11	131.53 (11)

C3—N1—C2—C1	−177.90 (12)	C2—N1—C7—N2	0.53 (14)
C7—N1—C2—C1	0.03 (13)	C3—N1—C7—C6	0.72 (17)
C2—N1—C3—C4	177.72 (12)	C2—N1—C7—C6	−177.39 (11)
C7—N1—C3—C4	0.08 (18)	C7—N2—C1—C2	0.87 (14)
C13—C12—C11—C16	0.73 (18)	C7—N2—C1—C8	−175.75 (11)
C13—C12—C11—C10	−177.18 (11)	N1—C2—C1—N2	−0.56 (14)
N1—C3—C4—C5	−0.68 (19)	N1—C2—C1—C8	175.71 (12)
N1—C3—C4—Cl	−179.55 (9)	C10—C8—C1—N2	173.65 (11)
C17—N4—C14—C13	3.96 (19)	C9—C8—C1—N2	−2.42 (16)
C18—N4—C14—C13	166.69 (12)	C10—C8—C1—C2	−2.3 (2)
C17—N4—C14—C15	−176.41 (12)	C9—C8—C1—C2	−178.42 (12)
C18—N4—C14—C15	−13.68 (18)	C3—C4—C5—C6	0.5 (2)
C11—C12—C13—C14	0.14 (19)	Cl—C4—C5—C6	179.34 (10)
N4—C14—C13—C12	178.58 (12)	N4—C14—C15—C16	−178.52 (12)
C15—C14—C13—C12	−1.06 (18)	C13—C14—C15—C16	1.13 (18)
C9—C8—C10—C11	2.2 (2)	C14—C15—C16—C11	−0.26 (19)
C1—C8—C10—C11	−173.55 (12)	C12—C11—C16—C15	−0.67 (18)
C12—C11—C10—C8	176.01 (13)	C10—C11—C16—C15	177.05 (12)
C16—C11—C10—C8	−1.7 (2)	C4—C5—C6—C7	0.37 (19)
C1—N2—C7—N1	−0.84 (14)	N2—C7—C6—C5	−178.37 (13)
C1—N2—C7—C6	176.75 (13)	N1—C7—C6—C5	−0.92 (18)
C3—N1—C7—N2	178.64 (11)

Hydrogen-bond geometry (Å, º) top

Cg1 and Cg3 are the centroids of the N1/C2/C1/N2/C7 and C11–C16 rings, respectively.

D—H···A	D—H	H···A	D···A	D—H···A
C5—H5···N3ⁱ	0.95	2.58	3.3871 (17)	143
C17—H17C···Clⁱⁱ	0.98	2.96	3.6211 (15)	126
C6—H6···N2ⁱ	0.95	2.59	3.4554 (16)	151
C16—H16···N3	0.95	2.57	3.4275 (17)	151
C3—H3···Cg3ⁱⁱⁱ	0.95	2.67	3.3054 (13)	125
C12—H12···Cg1ⁱⁱⁱ	0.95	2.80	3.5101 (14)	132

Symmetry codes: (i) −x+1, −y+2, −z+1; (ii) −x+1, y+1/2, −z+1/2; (iii) −x+1, y−1/2, −z+1/2.

Acknowledgements

The authors thank the PMD2X X-ray diffraction facility (https://crm2.univ-lorraine.fr/lab/fr/services/pmd2x) of the Université de Lorraine for the X-ray diffraction measurements and the AFRAMED project. CCDC is also thanked for providing access to the Cambridge Structural Database through the FAIRE program. The authors are very grateful to UNESCO, CNRS and the IUCr for their support of the AFRAMED project.

References

Adachi, H., Inuzuka, M. & Tomoeda, M. (1969). Jpn. J. Genet. 44, 31–40. CrossRef Google Scholar
Allen, F. H., Kennard, O., Watson, D. G., Brammer, L., Orpen, A. G. & Taylor, R. (1987). J. Chem. Soc. Perkin Trans. 2 pp. S1–S19. Google Scholar
Badgujar, D. M., Talawar, M. B., Asthana, S. N. & Mahulikar, P. P. (2010). Indian J. Chem. 49B, 1675–1677. CAS Google Scholar
Balzarini, J., Keyaerts, E., Vijgen, L., Vandermeer, F., Stevens, M., De Clercq, E., Egberink, H. & Van Ranst, M. (2006). J. Antimicrob. Chemother. 57, 472–481. CrossRef PubMed Google Scholar
Balzarini, J., Stevens, M., De Clercq, E., Schols, D. & Pannecouque, C. (2005). J. Antimicrob. Chemother. 55, 135–138. Web of Science CrossRef PubMed CAS Google Scholar
Bruker (2019). APEX4 and SAINT. Bruker AXS Inc., Madison, Wisconsin, USA. Google Scholar
Charlier, J., van der Voort, M., Kenyon, F., Skuce, P. & Vercruysse, J. (2014). Trends Parasitol. 30, 361–367. CrossRef PubMed Google Scholar
Emery, D. L., Hunt, P. W. & Le Jambre, L. F. (2016). Int. J. Parasitol. 46, 755–769. CrossRef PubMed Google Scholar
Gordon, C. P., Hizartzidis, L., Tarleton, M., Sako, J. A., Gilbert, J., Campbell, B. E., Gasser, R. B. & McCluskey, A. (2014). Med. Chemi. Commun. 5, 159–164. CrossRef Google Scholar
Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016). Acta Cryst. B72, 171–179. Web of Science CrossRef IUCr Journals Google Scholar
Hranjec, M., Horak, E., Tireli, M., Pavlović, G. & Karminski-Zamola, G. (2012). Dyes Pigm. 95, 644–656. CSD CrossRef Google Scholar
Inuzuka, M., Miyano, H. & Tomoeda, M. (1976). Antimicrob. Agents Chemother. 10, 325–332. CrossRef PubMed Google Scholar
Kusy, D., Maniukiewicz, W. & Błażewska, K. M. (2019). Tetrahedron Lett. 60, 151244. CSD CrossRef Google Scholar
Meunier, B. (2011). C. R. Chim. 14, 400–405. CrossRef Google Scholar
N'guessan, D. U. J.-P., Coulibaly, S., Kacou, A. A., Angora, K. E., Koffi, F. & Ouattara, M. (2025). Asian J. Chem. Sci,15, 32–41. Google Scholar
Peter, J. W. & Chandrawathani, P. (2005). Trop. Biomed. 22, 131–137. PubMed Google Scholar
Rohl, A. L., Moret, M., Kaminsky, W., Claborn, K., McKinnon, J. J. & Kahr, B. (2008). Cryst. Growth Des. 8, 4517–4525. Web of Science CSD CrossRef CAS Google Scholar
Shaveta, , Mishra, S. & Singh, P. (2016). Eur. J. Med. Chem. 124, 500–536. Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sissouma, D., Ouattara, M., Koné, M. W., Menan, H. E., Adjou, A. & Ouattara, L. (2011). Africa J. Pharm. Pharmacol. 5, 2086–2093. Google Scholar
Spackman, P. R., Turner, M. J., McKinnon, J. J., Wolff, S. K., Grimwood, D. J., Jayatilaka, D. & Spackman, M. A. (2021). J. Appl. Cryst. 54, 1006–1011. Web of Science CrossRef CAS IUCr Journals Google Scholar
Spek, A. L. (2020). Acta Cryst. E76, 1–11. Web of Science CrossRef IUCr Journals Google Scholar
Stevens, M., Pannecouque, C., De Clercq, E. & Balzarini, J. (2003). Antimicrob. Agents Chemother. 47, 2951–2957. CrossRef PubMed Google Scholar
Vieites, M., Smircich, P., Parajón-Costa, B., Rodríguez, J., Galaz, V., Olea-Azar, C., Otero, L., Aguirre, G., Cerecetto, H., et al. (2008). J. Inorg. Biochem. 13, 723–735. Google Scholar
Volovnenko, T. A., Tarasov, A. V., Zubatyuk, R. I., Shishkin, O. V., Turov, A. V. & Volovenko, Yu. M. (2009). Chem. Heterocycl. Compd 45, 1489–1502. CrossRef Google Scholar
Westrip, S. P. (2010). J. Appl. Cryst. 43, 920–925. Web of Science CrossRef CAS IUCr Journals Google Scholar
Zhao, Y. & Ng, C. K. L. (2011). Acta Cryst. E67, o2710. CSD CrossRef IUCr Journals Google Scholar
Zhou, L., Chen, W.., Tan, J.., Ji, S., Yang, Q., Mu, Y., Zhang, H.., Zhao, J., Huo, Y. & Lee, C.. (2021). Dyes Pigm. 195, 109729. CSD CrossRef Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 81| Part 9| September 2025| Pages 853-856

https://doi.org/10.1107/S2056989025007248

Open

access

Format		BIBTeX
		EndNote
		RefMan
		Refer
		Medline
		CIF
		SGML
		Plain Text
		Text

Format		BIBTeX
		EndNote
		RefMan
		Refer
		Medline
		CIF
		SGML
		Plain Text
		Text

Search IUCr Journals		doi		Advanced search
Author		volume	page

research communications\(\def\hfill{\hskip 5em}\def\hfil{\hskip 3em}\def\eqno#1{\hfil {#1}}\)

Synthesis and crystal structure of (Z)-2-(6-chloroimidazo[1,2-a]pyridin-2-yl)-3-[4-(di­methyl­amino)phen­yl]acrylo­nitrile

1. Chemical context

2. Structural commentary

3. Supra­molecular features

4. Hirshfeld surface analysis

5. Database survey

6. Synthesis and crystallization

7. Refinement details

Supporting information

Acknowledgements

References

research communications

Synthesis and crystal structure of (Z)-2-(6-chloroimidazo[1,2-a]pyridin-2-yl)-3-[4-(dimethylamino)phenyl]acrylonitrile

3. Supramolecular features
