Crystal structure of the 1:1 adduct of (E)-5-(2,3-dihydrobenzo[d]thiazol-2-ylidene)-2,6-dioxo-4-phenyl-1,2,5,6-tetrahydropyridine-3-carbonitrile and its piperidinium salt, piperidinium (Z)-5-(benzo[d]thiazol-2-yl)-3-cyano-6-oxo-4-phenyl-1,6-dihydropyridin-2-olate

Galal H. Elgemeie,^a Nadia H. Metwally,^b El-shimaa S. M. Abd Al-latif ^b and Peter G. Jones ^c ^*

^aChemistry Department, Faculty of Science, Helwan University, Cairo, Egypt, ^bChemistry Department, Faculty of Science, Cairo University, Giza, Egypt, and ^cInstitut für Anorganische und Analytische Chemie, Technische Universität Braunschweig, Hagenring 30, D-38106 Braunschweig, Germany
^*Correspondence e-mail: [email protected]

Edited by C. Schulzke, Universität Greifswald, Germany (Received 7 July 2025; accepted 4 August 2025; online 12 August 2025)

In the structure of the title compound, C₅H₁₂N⁺·C₁₉H₁₀N₃O₂S⁻·C₁₉H₁₁N₃O₂S, the central pyridinic rings are approximately coplanar to the benzothiazole moieties. The phenyl groups are appreciably angled to the central rings [interplanar angles of 57.30 (3)° for the anion and 79.01 (4)° for the neutral molecule]. Bond lengths and angles correspond to considerable delocalization of the π bonding, especially for the anion; all four C=O bond lengths are similar [1.2365 (13)–1.2591 (13) Å]. The two main residues display different configurations about the formally double C—C bonds between the benzothiazole and pyridinic ring systems; the neutral molecule is E, facilitating an intramolecular N—H⋯O hydrogen bond, but the anion is Z, allowing a short intramolecular S⋯O contact of 2.5794 (10) Å. Within the asymmetric unit, the piperidinium cation is hydrogen bonded to an oxygen atom of the anion; the anion and the neutral molecule are connected by two N—H⋯O hydrogen bonds, forming a ring of graph-set R²₂(8). Asymmetric units are linked to form inversion-symmetric dimers by an H_cation⋯O_anion hydrogen bond. These are further linked by a C—H⋯O hydrogen bond to form a broad ribbon of residues parallel to the a axis.

Keywords: benzothiazole; hydrogen bonds; crystal structure.

CCDC reference: 2478343

1. Chemical context

A wide range of pharmacological preparations contain benzothiazoles, which are adaptable heterocyclic biologically active compounds (Azzam et al., 2017 ; Elboshi et al., 2024 ). Because of their exceptional pharmacological potential, these molecules are very significant in the field of medicinal chemistry (Keri et al., 2015 ). The hunt for novel therapeutic agents has benefited from the great degree of chemical variety displayed by benzothiazole derivatives (Gill et al., 2015 ). Since several benzothiazole-based compounds have been utilized extensively as clinical medications to treat a variety of disorders with great therapeutic benefit, research in benzothiazole-based medicinal chemistry has quickly become an important area (Sharma et al., 2013 ). Medicinal chemists have invented numerous new synthetic methods targeting benzothiazole-related derivatives (Azzam et al., 2022 ; Elgemeie et al., 2000 ). 2-Pyridylbenzothiazoles and 2-pyrimidinylbenzothiazoles have emerged as a significant class of pharmacological agents in the creation of anti-tumour treatments in recent years (Azzam et al., 2020 ; Das et al., 2003 ); their synthetic accessibility and promising biological profile have aided in their development as possible chemotherapeutics. Many new synthetic techniques have been developed to introduce diversity and obtain this class of compounds in high yield (Seenaiah et al., 2014 ). We have recently reported the synthesis of a variety of antimetabolites starting from activated and unsaturated nitriles (Abu-Zaied et al., 2024 ; Mohamed-Ezzat & Elgemeie, 2024 ). The reaction between 2-(benzo[d]thiazol-2-yl)-3-phenylacrylamide, 1, and ethyl cyanoacetate in refluxing ethanol containing a small amount of piperidine (initially intended as a catalyst) was examined as part of this program (Fig. 1). The product was shown to be neither of the expected condensed benzothiazolo[3,2-a]pyridines (8 or 9) but rather the 1:1 adduct 10 of (E)-5-(benzo[d]thiazol-2(3H)-ylidene)-1,2,5,6-tetrahydro-2,6-dioxo-4-phenylpyridine-3-carbonitrile with its piperidinium salt. We assume that the formation of 10 proceeds via addition of the active methylene group of ethyl cyanoacetate to the double bond of 1, followed by cyclization via elimination of EtOH to give the intermediate 2. This is then oxidized under the reaction conditions, formally losing one molecule of hydrogen to give the intermediate 4 or its tautomer 7. The latter clearly forms a pyridinium salt under the reaction conditions, and this in turn forms the 1:1 adduct 10 on crystallization. The chemical structure of 10 is consistent with elemental analysis and spectroscopic data and was determined unambiguously by single-crystal X-ray diffraction structural analysis.

Figure 1

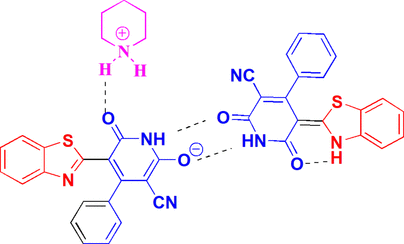

The reaction scheme for the synthesis of adduct 10.

2. Structural commentary

The structure of the adduct 10 is shown in Fig. 2; hydrogen bonds between residues are discussed in Supramolecular features. The anion and the neutral molecule of 7 were assigned the same atom numbering (which corresponds to standard numbering for the benzothiazole moieties), but the latter has atom names with primes (′). Table 1 presents a selection of paired molecular dimensions, with values in the left column for the anion and the corresponding values in the right column for the neutral molecule.

Table 1
Selected geometric parameters (Å, °)

S1—C2	1.7742 (10)	S1′—C2′	1.7331 (11)
S1—C7A	1.7265 (13)	S1′—C7A′	1.7422 (12)
C2—N3	1.3058 (13)	C2′—N3′	1.3417 (14)
C2—C8	1.4610 (14)	C2′—C8′	1.4317 (15)
N3—C3A	1.3828 (13)	N3′—C3A′	1.3830 (16)
C3A—C7A	1.4033 (15)	C3A′—C7A′	1.3898 (19)
C9—O1	1.2446 (13)	C9′—O1′	1.2523 (13)
C10—O2	1.2591 (13)	C10′—O2′	1.2365 (13)

C7A—S1—C2	89.05 (5)	C2′—S1′—C7A′	91.12 (6)
N3—C2—C8	124.75 (9)	N3′—C2′—C8′	121.35 (10)
N3—C2—S1	114.49 (8)	N3′—C2′—S1′	110.55 (8)
C8—C2—S1	120.73 (7)	C8′—C2′—S1′	128.07 (8)
C2—N3—C3A	111.53 (9)	C2′—N3′—C3A′	116.07 (11)
N3—C3A—C7A	114.97 (10)	N3′—C3A′—C7A′	111.40 (10)
C3A—C7A—S1	109.95 (8)	C3A′—C7A′—S1′	110.84 (9)
C10—N1—C9	126.18 (9)	C9′—N1′—C10′	126.23 (9)

N3—C2—C8—C12	11.74 (15)	N3′—C2′—C8′—C12′	175.67 (9)
S1—C2—C8—C12	−170.52 (7)	S1′—C2′—C8′—C12′	−6.52 (15)
N3—C2—C8—C9	−164.55 (9)	N3′—C2′—C8′—C9′	−4.04 (14)
S1—C2—C8—C9	13.19 (12)	S1′—C2′—C8′—C9′	173.77 (7)

Figure 2
The formula unit of adduct 10 in the crystal. Ellipsoids represent 50% probability levels. Dashed lines indicate hydrogen bonds within the asymmetric unit.

In the neutral molecule, the heterocyclic nitrogen atom N3′ is protonated. The two main residues display different configurations about the bonds C2—C8/C2′—C8′ between the approximately coplanar benzothiazole and pyridinic ring systems, with an E configuration for the neutral molecule, facilitating the intramolecular hydrogen bond N3′—H⋯O1′, but a Z configuration for the anion, allowing a short intramolecular S1⋯O1 contact of 2.5794 (10) Å. We have observed several such S⋯O contacts in related heterocyclic systems, e.g. 2.5992 (4) Å in 1-amino-3-(4-chlorophenyl)-2-cyano-3H-benzo[4,5]thiazolo[3,2-a]pyridine-4-carboxamide (Metwally et al., 2025 ). Torsion angles about the C2—C8 bonds are given in Table 1. A least-squares fit of the pyridinic rings of both residues makes the difference clear (Fig. 3). The interplanar angles to the central pyridinic ring are: for the anion, phenyl 57.30 (3)° and benzothiazole 15.34 (5)° and for the neutral molecule, phenyl 79.01 (4)° and benzothiazole 6.00 (5)°.

Figure 3
Least-squares fit of the neutral molecule and anion of 10. The former is drawn purple and the latter green. Fitted atoms are labelled. The r.m.s. deviation is 0.07 Å.

The resonance formulae given in the scheme are clearly an oversimplification, since extensive delocalization of formal double bonds can be expected, especially for the anion. For example, the formal negative charge at O2 of the anion is not reflected in any major differences in the four C—O bond lengths (including those of the neutral molecule), which lie in the range 1.2365 (13)–1.2591 (13) Å, corresponding to delocalized double-bond character [the ‘standard' table of bond lengths (Allen et al., 1987 ) gives C—O bond lengths of 1.192 (5) Å for aldehydes, 1.210 (8) Å for ketones and 1.254 (10) Å for carboxylates; a more recent (2023) anonymous internet summary gives 1.22 (2) Å for aldehydes and ketones, grouped together, and 1.25 (2) Å for carboxylates (https://www.chem.uzh.ch/en/research/services/xray/bond_lenghts.html (sic)]. The formal double bonds C2′—C8′ and C2—N3 are significantly shorter than their formally single bond counterparts C2—C8 and C2′—N3′; the shorter C2—N3 bond is compensated for in the five-membered ring by the longer S1—C2 bond. Two of the angles in the five-membered rings differ appreciably; at N3/N3′ the angle is some 4.5° narrower for the anion, and the angle at C2/C2′ is correspondingly wider for the anion, preserving the angle sum of 540°. The exocyclic angles at C2/C2′ also differ notably; particularly striking is the very wide angle of 128.07 (8)° at C2′ of the neutral molecule, which may perhaps be attributed to the close 1,5 approach of S1′ to the phenyl ring, with S1′⋯C21′ = 2.9190 (10) Å. The angle sums at C2 and C2′ are 359.97°.

3. Supramolecular features

Hydrogen bonds are listed in Table 2. Within the asymmetric unit (Fig. 2), the piperidinium cation is hydrogen bonded via H031 to atom O1 of the anion; the anion and the neutral molecule are connected by the hydrogen bonds H01⋯O2′ and H01′⋯O2, which together form a ring of the well-known graph set R₂²(8). Asymmetric units are then connected to form inversion-symmetric dimers by the hydrogen bond H032⋯O2(1 − x, 1 − y, 1 − z). These dimers are further linked by the ‘weak' but very short hydrogen bond H22′⋯O1′(−x, 1 − y, 1 − z), connecting adjacent neutral molecules, to form a broad ribbon of residues parallel to the a axis (Fig. 4). Three further C—H⋯O hydrogen bonds, within the dimeric units, are not shown in Fig. 4 but are given in Table 2.

Table 2
Hydrogen-bond geometry (Å, °)

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
N1—H01⋯O2′	0.888 (18)	1.887 (18)	2.7703 (11)	172.9 (16)
N3′—H03′⋯O1′	0.804 (19)	1.878 (19)	2.5399 (15)	139.0 (18)
N1′—H01′⋯O2	0.883 (17)	2.016 (18)	2.8903 (11)	169.8 (16)
N31—H031⋯O1	0.86 (2)	1.91 (2)	2.7327 (12)	158.7 (18)
N31—H032⋯O2ⁱ	0.87 (2)	1.88 (2)	2.7322 (13)	169.3 (19)
C36—H36B⋯O1′ⁱ	0.99	2.52	3.4487 (16)	157
C22′—H22′⋯O1′ⁱⁱ	0.95	2.34	3.2691 (13)	165
C26′—H26′⋯N3ⁱ	0.95	2.44	3.3437 (13)	159
Symmetry codes: (i) ; (ii) .

Figure 4
The packing of compound 10 viewed parallel to the b axis. Hydrogen atoms not involved in hydrogen bonding are omitted for clarity. Dashed lines indicate classical (thick) or ‘weak' (thin) hydrogen bonds. Atom labels indicate the asymmetric unit.

4. Database survey

The searches employed Version 2024.3.0 of the routine ConQuest (Bruno et al., 2002 ), as contained in the Cambridge Structural Database (Groom et al., 2016 ). A search for the 1,3-benzothiazole framework with no substituents (other than H) at the benzo group, a hydrogen atom at N3 and a substituent at C2, two bonded atoms at sulfur and three at nitrogen, gave 113 hits (organic ordered structures only). Restricting the search to a carbon atom substituent at C2 reduced the number of hits to 37. Restricting the number of bonded atoms at C2 to three (corresponding to an exocyclic double bond at C2) and rejecting metal-bearing and ionic species led to eight final hits. Curiously, two of the hits correspond to a duplicated structure, with two apparently different datasets but three common authors [(E)-4-(2,3-dihydro-1,3-benzothiazol-2-ylidene)-3-methyl-1-phenyl-1H-pyrazol-5(4H)-one, refcodes NUQBIL and NUQBIL01, Chakibe et al. (2010 ) and Chakib et al. (2019 )]. Furthermore, the structure of 6-[3-(2-benzothiazolyl)pyridin-2-ylthio]-N-[3-(2-benzothiazolyl)pyridin-2-yl]aniline (QEKNIE; De Souza et al., 2006 ) has what seems to be an erroneously placed hydrogen at one of the two N3 atoms; since no structure factors were deposited, this cannot be checked. The other hits were 1,3-benzothiazol-2(3H)-ylidenemalonaldehyde [AYOMAN, Ennajih et al. (2011 ), with an intramolecular S⋯O contact of 2.763 Å]; 3-[1,3-benzothiazol-2(3H)-ylidene]-4-(4-bromophenyl)-2,4-dioxo-N-phenylbutanamide [DOQFAU, Lystsova et al. (2024 ), S⋯O 2.672 Å]; 2-(3H-benzothiazol-2-ylidene)-2-cyanothioacetamide [GIYZIY, Basheer & Rappoport (2008 )]; 2-(1,3-benzothiazol-2(3H)-ylidene)cyclohexane-1,3-dione [SOTHUH, Kumar & Ila (2019 ), S⋯O 2.646 Å]; and 2-[1,3-benzothiazol-2(3H)-ylidene]-5,7-di-t-butyl-4-nitrocyclohepta-4,6-diene-1,3-dione [TADXIJ, Tkachev (2020 ), S⋯O 2.564 Å].

5. Synthesis and crystallization

A mixture of 2-(benzo[d]thiazol-2-yl)-3-phenylacrylamide (0.01 mol, 2.68 g), and ethyl 2-cyanoacetate (0.01 mole, 1.13 g) was dissolved in 70 mL of ethanol, and ca. 0.085 g (0.01 mmol) piperidine were added. The reaction mixture was stirred under reflux for 5 h. After cooling, the buff-coloured crystals thus obtained were filtered, washed with ethanol and dried at room temperature. Yield: 87%, m.p.: > 573 K. IR (KBr): ν (cm⁻¹) = 3240 (NH), 2958 (CH, aromatic), 2220 (CN), 1674 (C=O); ¹H NMR (400 MHz, DMSO-d₆): δ_H 1.49 (d, 2H, J = 4.76 Hz, piperidine-H), 1.62 (d, 4H, J = 5.04 Hz, piperidine-H), 3.00 (t, 4H, J = 5.76 Hz, piperidine-H), 7.33–7.36 (m, 2H, Ar-H), 7.43–7.52 (m, 6H, Ar-H), 7.62–7.70 (m, 6H, Ar-H), 7.82 (d, 2H, J = 7.96 Hz, Ar-H), 8.03 (d, 2H, J = 8.16 Hz, Ar-H), 11.68 (br, 1H, NH) ppm; ¹³C NMR (100 MHz, DMSO-d₆): δ_C = 22.09, 22.71, 44.29, 83.12, 102.20, 120.36, 121.13, 121.27, 123.26, 125.15, 128.24, 128.43, 135.06, 136.36, 137.47, 152.22, 158.79, 163.73, 163.88 ppm. Analysis: Calculated for C₄₃H₃₃N₇O₄S₂ (775.88): C 66.56, H 4.29, N 12.64, S 8.26%. Found: C 66.76, H 4.36, N 12.44, S 8.40%.

6. Refinement

Details of data collection and structure refinement are summarized in Table 3. The hydrogen atoms of the NH groups were refined freely. Other hydrogen atoms were included using a riding model starting from calculated positions (C—H_methylene = 0.99, C—H_arom = 0.95 Å). The U(H) values were fixed at 1.2 × U_eq of the parent carbon atoms.

Table 3
Experimental details

Crystal data
Chemical formula	C₅H₁₂N⁺·C₁₉H₁₀N₃O₂S⁻·C₁₉H₁₁N₃O₂S
M_r	775.88
Crystal system, space group	Monoclinic, P2₁/c
Temperature (K)	100
a, b, c (Å)	11.3927 (2), 22.2956 (5), 14.6155 (3)
β (°)	91.4989 (18)
V (Å³)	3711.15 (13)
Z	4
Radiation type	Mo Kα
μ (mm⁻¹)	0.20
Crystal size (mm)	0.20 × 0.18 × 0.12

Data collection
Diffractometer	XtaLAB Synergy
Absorption correction	Multi-scan (CrysAlis PRO; Rigaku OD, 2024 )
T_min, T_max	0.833, 1.000
No. of measured, independent and observed [I > 2σ(I)] reflections	308721, 17991, 13421
R_int	0.058
θ values (°)	θ_max = 36.3, θ_min = 2.0
(sin θ/λ)_max (Å⁻¹)	0.833

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.048, 0.130, 1.01
No. of reflections	17991
No. of parameters	525
H-atom treatment	H atoms treated by a mixture of independent and constrained refinement
Δρ_max, Δρ_min (e Å⁻³)	0.54, −0.43
Computer programs: CrysAlis PRO (Rigaku OD, 2024), SHELXT (Sheldrick, 2015a ), SHELXL2019/3 (Sheldrick, 2015b ), XP (Bruker, 1998 ) and publCIF (Westrip, 2010 ).

Supporting information

CCDC reference: 2478343

Crystal structure: contains datablocks I, global. DOI: https://doi.org/10.1107/S2056989025006991/yz2070sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2056989025006991/yz2070Isup3.hkl

checkCIF report

Computing details top

Piperidinium (Z)-5-(benzo[d]thiazol-2-yl)-3-cyano-6-oxo-4-phenyl-1,6-dihydropyridin-2-olate–(E)-5-(2,3-dihydrobenzo[d]thiazol-2-ylidene)-2,6-dioxo-4-phenyl-1,2,5,6-tetrahydropyridine-3-carbonitrile (1/1) top

Crystal data top

C₅H₁₂N⁺·C₁₉H₁₀N₃O₂S⁻·C₁₉H₁₁N₃O₂S·C₅H₁₂N	F(000) = 1616
M_r = 775.88	D_x = 1.389 Mg m⁻³
Monoclinic, P2₁/c	Mo Kα radiation, λ = 0.71073 Å
a = 11.3927 (2) Å	Cell parameters from 99329 reflections
b = 22.2956 (5) Å	θ = 2.3–41.4°
c = 14.6155 (3) Å	µ = 0.20 mm⁻¹
β = 91.4989 (18)°	T = 100 K
V = 3711.15 (13) Å³	Block, pale orange
Z = 4	0.20 × 0.18 × 0.12 mm

Data collection top

XtaLAB Synergy diffractometer	17991 independent reflections
Radiation source: micro-focus sealed X-ray tube, PhotonJet (Mo) X-ray Source	13421 reflections with I > 2σ(I)
Mirror monochromator	R_int = 0.058
Detector resolution: 10.0000 pixels mm^-1	θ_max = 36.3°, θ_min = 2.0°
ω scans	h = −18→18
Absorption correction: multi-scan (CrysAlisPro; Rigaku OD, 2024)	k = −37→37
T_min = 0.833, T_max = 1.000	l = −24→24
308721 measured reflections

Refinement top

Refinement on F²	Primary atom site location: dual
Least-squares matrix: full	Hydrogen site location: mixed
R[F² > 2σ(F²)] = 0.048	H atoms treated by a mixture of independent and constrained refinement
wR(F²) = 0.130	w = 1/[σ²(F_o²) + (0.0621P)² + 1.247P] where P = (F_o² + 2F_c²)/3
S = 1.01	(Δ/σ)_max = 0.001
17991 reflections	Δρ_max = 0.54 e Å⁻³
525 parameters	Δρ_min = −0.43 e Å⁻³
0 restraints

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
S1	0.71164 (3)	0.33569 (2)	0.28714 (2)	0.02558 (6)
C2	0.70539 (9)	0.40954 (4)	0.24208 (7)	0.01945 (16)
N3	0.79003 (7)	0.42271 (4)	0.18698 (6)	0.02095 (15)
C3A	0.86519 (9)	0.37470 (5)	0.17600 (7)	0.02228 (17)
C4	0.96547 (10)	0.37498 (5)	0.12237 (8)	0.0280 (2)
H4	0.986670	0.409828	0.089244	0.034*
C5	1.03307 (11)	0.32333 (6)	0.11867 (10)	0.0342 (3)
H5	1.100731	0.322773	0.082038	0.041*
C6	1.00311 (12)	0.27198 (6)	0.16813 (11)	0.0372 (3)
H6	1.050738	0.237131	0.164531	0.045*
C7	0.90580 (12)	0.27128 (5)	0.22178 (10)	0.0342 (3)
H7	0.886269	0.236544	0.255821	0.041*
C7A	0.83611 (10)	0.32294 (5)	0.22512 (8)	0.02545 (19)
C8	0.61355 (8)	0.45117 (4)	0.26917 (6)	0.01869 (15)
C9	0.54643 (9)	0.43430 (5)	0.34723 (7)	0.02114 (17)
C10	0.44963 (9)	0.53224 (5)	0.34739 (7)	0.02072 (16)
C11	0.51217 (9)	0.54763 (4)	0.26706 (6)	0.01932 (16)
C12	0.59153 (8)	0.50714 (4)	0.22774 (6)	0.01743 (15)
C13	0.48682 (9)	0.60528 (5)	0.22925 (7)	0.02280 (18)
N1	0.46867 (8)	0.47575 (4)	0.38062 (6)	0.02260 (16)
H01	0.4263 (15)	0.4639 (8)	0.4275 (12)	0.037 (4)*
N2	0.46324 (9)	0.65278 (5)	0.20303 (8)	0.0316 (2)
O1	0.55326 (8)	0.38457 (4)	0.38568 (6)	0.02875 (16)
O2	0.37784 (7)	0.56595 (4)	0.38654 (5)	0.02544 (15)
C21	0.64521 (8)	0.52531 (4)	0.14002 (6)	0.01792 (15)
C22	0.70857 (9)	0.57856 (5)	0.13397 (7)	0.02216 (17)
H22	0.719625	0.603117	0.186611	0.027*
C23	0.75581 (10)	0.59597 (6)	0.05105 (8)	0.0283 (2)
H23	0.800085	0.631968	0.047631	0.034*
C24	0.73836 (10)	0.56089 (6)	−0.02646 (8)	0.0307 (2)
H24	0.770665	0.572789	−0.082918	0.037*
C25	0.67349 (10)	0.50831 (6)	−0.02130 (7)	0.0286 (2)
H25	0.660566	0.484542	−0.074554	0.034*
C26	0.62730 (9)	0.49028 (5)	0.06161 (7)	0.02262 (17)
H26	0.583547	0.454099	0.064855	0.027*
S1'	−0.16760 (2)	0.54952 (2)	0.71007 (2)	0.02374 (6)
C2'	−0.05035 (9)	0.57006 (5)	0.64368 (7)	0.02178 (17)
N3'	−0.06080 (10)	0.62743 (4)	0.61697 (7)	0.02728 (18)
H03'	−0.0104 (16)	0.6404 (8)	0.5850 (13)	0.041 (5)*
C3A'	−0.15731 (12)	0.65807 (5)	0.64839 (8)	0.0296 (2)
C4'	−0.18492 (14)	0.71833 (6)	0.63328 (10)	0.0385 (3)
H4'	−0.137277	0.743219	0.596763	0.046*
C5'	−0.28451 (15)	0.74025 (6)	0.67371 (10)	0.0435 (4)
H5'	−0.305249	0.781198	0.665437	0.052*
C6'	−0.35485 (14)	0.70369 (7)	0.72613 (10)	0.0425 (3)
H6'	−0.423517	0.720059	0.751898	0.051*
C7'	−0.32756 (12)	0.64384 (6)	0.74194 (9)	0.0350 (3)
H7'	−0.375404	0.619173	0.778637	0.042*
C7A'	−0.22680 (11)	0.62141 (5)	0.70160 (8)	0.0282 (2)
C8'	0.04555 (9)	0.53358 (4)	0.61541 (6)	0.01990 (16)
C9'	0.12669 (10)	0.55998 (5)	0.55169 (7)	0.02201 (17)
C10'	0.23707 (9)	0.46552 (5)	0.54682 (7)	0.02103 (17)
C11'	0.15670 (8)	0.44088 (4)	0.61192 (6)	0.01916 (16)
C12'	0.06532 (8)	0.47404 (4)	0.64627 (6)	0.01820 (15)
C13'	0.18219 (9)	0.38101 (5)	0.64011 (7)	0.02272 (18)
N1'	0.21530 (8)	0.52401 (4)	0.52096 (6)	0.02232 (16)
H01'	0.2676 (15)	0.5403 (8)	0.4849 (12)	0.034 (4)*
N2'	0.20876 (9)	0.33293 (5)	0.65995 (8)	0.0329 (2)
O1'	0.12078 (8)	0.61269 (4)	0.52232 (6)	0.02846 (16)
O2'	0.32082 (7)	0.43730 (4)	0.51621 (6)	0.02727 (16)
C21'	−0.00711 (8)	0.44752 (4)	0.71946 (6)	0.01795 (15)
C22'	−0.09844 (9)	0.40759 (5)	0.69898 (7)	0.02164 (17)
H22'	−0.113584	0.395214	0.637603	0.026*
C23'	−0.16728 (9)	0.38600 (5)	0.76928 (8)	0.02446 (19)
H23'	−0.230441	0.359392	0.755511	0.029*
C24'	−0.14416 (10)	0.40310 (5)	0.85906 (8)	0.0269 (2)
H24'	−0.191538	0.388380	0.906654	0.032*
C25'	−0.05148 (10)	0.44184 (5)	0.87938 (7)	0.0266 (2)
H25'	−0.035010	0.453075	0.941086	0.032*
C26'	0.01712 (9)	0.46420 (5)	0.81015 (7)	0.02136 (17)
H26'	0.080264	0.490733	0.824330	0.026*
N31	0.58360 (10)	0.32155 (4)	0.54491 (7)	0.02745 (18)
H031	0.5776 (17)	0.3327 (9)	0.4883 (14)	0.047 (5)*
H032	0.5914 (17)	0.3556 (9)	0.5729 (13)	0.046 (5)*
C32	0.47111 (13)	0.29215 (7)	0.56629 (12)	0.0422 (3)
H32A	0.404921	0.318311	0.546616	0.051*
H32B	0.466803	0.286055	0.633215	0.051*
C33	0.46082 (18)	0.23233 (8)	0.51799 (13)	0.0558 (5)
H33A	0.452938	0.239223	0.451199	0.067*
H33B	0.388859	0.211715	0.537840	0.067*
C34	0.56620 (19)	0.19212 (6)	0.53749 (10)	0.0535 (5)
H34A	0.568542	0.180584	0.602922	0.064*
H34B	0.558939	0.155062	0.500446	0.064*
C35	0.67791 (18)	0.22428 (7)	0.51472 (11)	0.0488 (4)
H35A	0.679198	0.231704	0.447972	0.059*
H35B	0.746045	0.198617	0.531503	0.059*
C36	0.68824 (12)	0.28326 (6)	0.56510 (10)	0.0350 (3)
H36A	0.695068	0.275690	0.631769	0.042*
H36B	0.760063	0.304450	0.546279	0.042*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
S1	0.03005 (13)	0.01907 (11)	0.02744 (12)	−0.00193 (9)	−0.00306 (9)	0.00599 (9)
C2	0.0217 (4)	0.0177 (4)	0.0187 (4)	−0.0024 (3)	−0.0035 (3)	0.0013 (3)
N3	0.0206 (3)	0.0190 (3)	0.0232 (4)	0.0008 (3)	−0.0006 (3)	0.0011 (3)
C3A	0.0224 (4)	0.0197 (4)	0.0245 (4)	0.0018 (3)	−0.0047 (3)	−0.0004 (3)
C4	0.0247 (5)	0.0268 (5)	0.0326 (5)	0.0053 (4)	0.0006 (4)	−0.0001 (4)
C5	0.0285 (5)	0.0320 (6)	0.0418 (7)	0.0092 (4)	−0.0020 (5)	−0.0045 (5)
C6	0.0340 (6)	0.0262 (5)	0.0510 (8)	0.0101 (4)	−0.0082 (5)	−0.0045 (5)
C7	0.0358 (6)	0.0201 (5)	0.0463 (7)	0.0039 (4)	−0.0089 (5)	0.0031 (4)
C7A	0.0273 (5)	0.0190 (4)	0.0297 (5)	0.0006 (3)	−0.0070 (4)	0.0014 (4)
C8	0.0205 (4)	0.0190 (4)	0.0166 (4)	−0.0026 (3)	0.0005 (3)	0.0014 (3)
C9	0.0236 (4)	0.0219 (4)	0.0180 (4)	−0.0047 (3)	0.0006 (3)	0.0026 (3)
C10	0.0223 (4)	0.0222 (4)	0.0179 (4)	−0.0050 (3)	0.0043 (3)	0.0002 (3)
C11	0.0207 (4)	0.0195 (4)	0.0180 (4)	−0.0015 (3)	0.0044 (3)	0.0014 (3)
C12	0.0178 (4)	0.0190 (4)	0.0155 (3)	−0.0025 (3)	0.0008 (3)	0.0006 (3)
C13	0.0214 (4)	0.0244 (4)	0.0229 (4)	0.0000 (3)	0.0073 (3)	0.0019 (3)
N1	0.0266 (4)	0.0230 (4)	0.0185 (3)	−0.0051 (3)	0.0061 (3)	0.0026 (3)
N2	0.0296 (5)	0.0274 (5)	0.0385 (5)	0.0048 (4)	0.0115 (4)	0.0076 (4)
O1	0.0355 (4)	0.0251 (4)	0.0257 (4)	−0.0031 (3)	0.0024 (3)	0.0096 (3)
O2	0.0269 (4)	0.0252 (4)	0.0247 (3)	−0.0039 (3)	0.0105 (3)	−0.0011 (3)
C21	0.0174 (4)	0.0203 (4)	0.0162 (3)	0.0018 (3)	0.0015 (3)	0.0021 (3)
C22	0.0217 (4)	0.0241 (4)	0.0209 (4)	−0.0019 (3)	0.0040 (3)	0.0029 (3)
C23	0.0254 (5)	0.0328 (5)	0.0272 (5)	−0.0011 (4)	0.0075 (4)	0.0095 (4)
C24	0.0260 (5)	0.0460 (7)	0.0204 (4)	0.0054 (4)	0.0073 (4)	0.0084 (4)
C25	0.0257 (5)	0.0427 (6)	0.0175 (4)	0.0073 (4)	0.0019 (3)	−0.0010 (4)
C26	0.0220 (4)	0.0271 (5)	0.0187 (4)	0.0026 (3)	0.0001 (3)	−0.0014 (3)
S1'	0.02431 (11)	0.02488 (12)	0.02196 (11)	0.00288 (9)	−0.00049 (8)	−0.00297 (9)
C2'	0.0280 (4)	0.0203 (4)	0.0169 (4)	−0.0007 (3)	−0.0033 (3)	−0.0015 (3)
N3'	0.0374 (5)	0.0212 (4)	0.0230 (4)	0.0016 (3)	−0.0023 (4)	−0.0004 (3)
C3A'	0.0399 (6)	0.0234 (5)	0.0250 (5)	0.0060 (4)	−0.0090 (4)	−0.0059 (4)
C4'	0.0550 (8)	0.0239 (5)	0.0358 (6)	0.0088 (5)	−0.0131 (6)	−0.0050 (4)
C5'	0.0582 (9)	0.0305 (6)	0.0407 (7)	0.0166 (6)	−0.0191 (6)	−0.0143 (5)
C6'	0.0459 (7)	0.0410 (7)	0.0398 (7)	0.0193 (6)	−0.0138 (6)	−0.0191 (6)
C7'	0.0337 (6)	0.0386 (6)	0.0322 (6)	0.0102 (5)	−0.0082 (5)	−0.0134 (5)
C7A'	0.0324 (5)	0.0274 (5)	0.0243 (5)	0.0071 (4)	−0.0085 (4)	−0.0083 (4)
C8'	0.0250 (4)	0.0191 (4)	0.0156 (4)	−0.0030 (3)	0.0001 (3)	0.0008 (3)
C9'	0.0299 (5)	0.0207 (4)	0.0154 (4)	−0.0070 (3)	−0.0006 (3)	0.0007 (3)
C10'	0.0220 (4)	0.0239 (4)	0.0172 (4)	−0.0058 (3)	0.0019 (3)	0.0025 (3)
C11'	0.0196 (4)	0.0198 (4)	0.0183 (4)	−0.0037 (3)	0.0029 (3)	0.0024 (3)
C12'	0.0199 (4)	0.0197 (4)	0.0150 (3)	−0.0041 (3)	0.0000 (3)	0.0010 (3)
C13'	0.0185 (4)	0.0252 (4)	0.0246 (4)	−0.0029 (3)	0.0052 (3)	0.0030 (3)
N1'	0.0256 (4)	0.0237 (4)	0.0179 (3)	−0.0072 (3)	0.0031 (3)	0.0036 (3)
N2'	0.0265 (4)	0.0287 (5)	0.0440 (6)	0.0001 (4)	0.0088 (4)	0.0094 (4)
O1'	0.0430 (5)	0.0201 (3)	0.0223 (3)	−0.0061 (3)	0.0019 (3)	0.0035 (3)
O2'	0.0251 (4)	0.0307 (4)	0.0265 (4)	−0.0019 (3)	0.0095 (3)	0.0058 (3)
C21'	0.0174 (4)	0.0191 (4)	0.0174 (4)	−0.0010 (3)	0.0022 (3)	0.0012 (3)
C22'	0.0214 (4)	0.0218 (4)	0.0218 (4)	−0.0036 (3)	0.0017 (3)	−0.0006 (3)
C23'	0.0211 (4)	0.0223 (4)	0.0302 (5)	−0.0034 (3)	0.0061 (3)	0.0006 (4)
C24'	0.0258 (5)	0.0285 (5)	0.0270 (5)	−0.0008 (4)	0.0106 (4)	0.0039 (4)
C25'	0.0283 (5)	0.0333 (5)	0.0183 (4)	−0.0012 (4)	0.0049 (3)	0.0007 (4)
C26'	0.0209 (4)	0.0258 (4)	0.0174 (4)	−0.0020 (3)	0.0008 (3)	−0.0002 (3)
N31	0.0410 (5)	0.0176 (4)	0.0238 (4)	0.0023 (3)	0.0030 (4)	0.0047 (3)
C32	0.0350 (6)	0.0430 (7)	0.0487 (8)	−0.0018 (5)	0.0039 (6)	0.0075 (6)
C33	0.0655 (11)	0.0483 (9)	0.0524 (9)	−0.0254 (8)	−0.0220 (8)	0.0077 (7)
C34	0.1079 (15)	0.0193 (5)	0.0322 (6)	−0.0086 (7)	−0.0215 (8)	0.0013 (5)
C35	0.0772 (12)	0.0340 (7)	0.0352 (7)	0.0242 (7)	−0.0022 (7)	−0.0041 (5)
C36	0.0344 (6)	0.0295 (6)	0.0411 (7)	0.0039 (4)	0.0012 (5)	−0.0005 (5)

Geometric parameters (Å, º) top

S1—C2	1.7742 (10)	C12'—C21'	1.4902 (13)
S1—C7A	1.7265 (13)	C13'—N2'	1.1491 (15)
C2—N3	1.3058 (13)	C21'—C22'	1.3958 (13)
C2—C8	1.4610 (14)	C21'—C26'	1.3973 (14)
N3—C3A	1.3828 (13)	C22'—C23'	1.3946 (14)
C3A—C4	1.4023 (16)	C23'—C24'	1.3850 (16)
C3A—C7A	1.4033 (15)	C24'—C25'	1.3903 (17)
C4—C5	1.3872 (16)	C25'—C26'	1.3873 (14)
C5—C6	1.401 (2)	N31—C32	1.4801 (18)
C6—C7	1.375 (2)	N31—C36	1.4895 (17)
C7—C7A	1.4005 (16)	C32—C33	1.512 (2)
C8—C12	1.4067 (13)	C33—C34	1.519 (3)
C8—C9	1.4399 (13)	C34—C35	1.506 (3)
C9—O1	1.2446 (13)	C35—C36	1.510 (2)
C9—N1	1.3782 (14)	C4—H4	0.9500
C10—O2	1.2591 (13)	C5—H5	0.9500
C10—N1	1.3652 (14)	C6—H6	0.9500
C10—C11	1.4310 (13)	C7—H7	0.9500
C11—C12	1.4107 (13)	N1—H01	0.888 (18)
C11—C13	1.4257 (14)	C22—H22	0.9500
C12—C21	1.4910 (13)	C23—H23	0.9500
C13—N2	1.1553 (14)	C24—H24	0.9500
C21—C22	1.3934 (14)	C25—H25	0.9500
C21—C26	1.3975 (14)	C26—H26	0.9500
C22—C23	1.3940 (14)	N3'—H03'	0.804 (19)
C23—C24	1.3866 (18)	C4'—H4'	0.9500
C24—C25	1.3889 (19)	C5'—H5'	0.9500
C25—C26	1.3930 (15)	C6'—H6'	0.9500
S1'—C2'	1.7331 (11)	C7'—H7'	0.9500
S1'—C7A'	1.7422 (12)	N1'—H01'	0.883 (17)
C2'—N3'	1.3417 (14)	C22'—H22'	0.9500
C2'—C8'	1.4317 (15)	C23'—H23'	0.9500
N3'—C3A'	1.3830 (16)	C24'—H24'	0.9500
C3A'—C7A'	1.3898 (19)	C25'—H25'	0.9500
C3A'—C4'	1.3963 (17)	C26'—H26'	0.9500
C4'—C5'	1.382 (2)	N31—H031	0.86 (2)
C5'—C6'	1.388 (3)	N31—H032	0.87 (2)
C6'—C7'	1.388 (2)	C32—H32A	0.9900
C7'—C7A'	1.3967 (18)	C32—H32B	0.9900
C8'—C12'	1.4182 (14)	C33—H33A	0.9900
C8'—C9'	1.4536 (14)	C33—H33B	0.9900
C9'—O1'	1.2523 (13)	C34—H34A	0.9900
C9'—N1'	1.3739 (15)	C34—H34B	0.9900
C10'—O2'	1.2365 (13)	C35—H35A	0.9900
C10'—N1'	1.3784 (14)	C35—H35B	0.9900
C10'—C11'	1.4461 (13)	C36—H36A	0.9900
C11'—C12'	1.3821 (14)	C36—H36B	0.9900
C11'—C13'	1.4245 (14)

C7A—S1—C2	89.05 (5)	C25'—C26'—C21'	119.68 (10)
N3—C2—C8	124.75 (9)	C32—N31—C36	113.41 (10)
N3—C2—S1	114.49 (8)	N31—C32—C33	110.43 (14)
C8—C2—S1	120.73 (7)	C32—C33—C34	112.44 (13)
C2—N3—C3A	111.53 (9)	C35—C34—C33	110.23 (12)
N3—C3A—C4	125.27 (10)	C34—C35—C36	111.26 (13)
N3—C3A—C7A	114.97 (10)	N31—C36—C35	110.53 (12)
C4—C3A—C7A	119.75 (10)	C5—C4—H4	120.7
C5—C4—C3A	118.64 (12)	C3A—C4—H4	120.7
C4—C5—C6	121.01 (13)	C4—C5—H5	119.5
C7—C6—C5	120.98 (11)	C6—C5—H5	119.5
C6—C7—C7A	118.48 (12)	C7—C6—H6	119.5
C7—C7A—C3A	121.13 (12)	C5—C6—H6	119.5
C7—C7A—S1	128.89 (10)	C6—C7—H7	120.8
C3A—C7A—S1	109.95 (8)	C7A—C7—H7	120.8
C12—C8—C9	118.71 (9)	C10—N1—H01	117.7 (11)
C12—C8—C2	124.59 (9)	C9—N1—H01	116.2 (11)
C9—C8—C2	116.60 (9)	C21—C22—H22	119.8
O1—C9—N1	118.08 (9)	C23—C22—H22	119.8
O1—C9—C8	124.20 (10)	C24—C23—H23	119.9
N1—C9—C8	117.71 (9)	C22—C23—H23	119.9
O2—C10—N1	119.22 (9)	C23—C24—H24	120.1
O2—C10—C11	124.96 (9)	C25—C24—H24	120.1
N1—C10—C11	115.79 (9)	C24—C25—H25	119.8
C12—C11—C13	123.00 (8)	C26—C25—H25	119.8
C12—C11—C10	121.26 (9)	C25—C26—H26	119.9
C13—C11—C10	115.73 (9)	C21—C26—H26	119.9
C8—C12—C11	120.09 (8)	C2'—N3'—H03'	117.0 (13)
C8—C12—C21	122.60 (8)	C3A'—N3'—H03'	127.0 (13)
C11—C12—C21	117.25 (8)	C5'—C4'—H4'	121.4
N2—C13—C11	176.22 (11)	C3A'—C4'—H4'	121.4
C10—N1—C9	126.18 (9)	C4'—C5'—H5'	119.3
C22—C21—C26	119.28 (9)	C6'—C5'—H5'	119.3
C22—C21—C12	120.73 (9)	C5'—C6'—H6'	119.1
C26—C21—C12	119.92 (9)	C7'—C6'—H6'	119.1
C21—C22—C23	120.32 (10)	C6'—C7'—H7'	121.4
C24—C23—C22	120.19 (11)	C7A'—C7'—H7'	121.4
C23—C24—C25	119.78 (10)	C9'—N1'—H01'	117.9 (11)
C24—C25—C26	120.31 (11)	C10'—N1'—H01'	115.6 (11)
C25—C26—C21	120.10 (10)	C23'—C22'—H22'	120.2
C2'—S1'—C7A'	91.12 (6)	C21'—C22'—H22'	120.2
N3'—C2'—C8'	121.35 (10)	C24'—C23'—H23'	119.8
N3'—C2'—S1'	110.55 (8)	C22'—C23'—H23'	119.8
C8'—C2'—S1'	128.07 (8)	C23'—C24'—H24'	120.1
C2'—N3'—C3A'	116.07 (11)	C25'—C24'—H24'	120.1
N3'—C3A'—C7A'	111.40 (10)	C26'—C25'—H25'	119.8
N3'—C3A'—C4'	126.91 (13)	C24'—C25'—H25'	119.8
C7A'—C3A'—C4'	121.68 (13)	C25'—C26'—H26'	120.2
C5'—C4'—C3A'	117.17 (15)	C21'—C26'—H26'	120.2
C4'—C5'—C6'	121.38 (13)	C32—N31—H031	106.4 (13)
C5'—C6'—C7'	121.77 (14)	C36—N31—H031	113.3 (13)
C6'—C7'—C7A'	117.18 (15)	C32—N31—H032	111.6 (13)
C3A'—C7A'—C7'	120.81 (12)	C36—N31—H032	109.8 (13)
C3A'—C7A'—S1'	110.84 (9)	H031—N31—H032	101.8 (17)
C7'—C7A'—S1'	128.34 (11)	N31—C32—H32A	109.6
C12'—C8'—C2'	123.78 (9)	C33—C32—H32A	109.6
C12'—C8'—C9'	118.97 (9)	N31—C32—H32B	109.6
C2'—C8'—C9'	117.24 (9)	C33—C32—H32B	109.6
O1'—C9'—N1'	117.97 (9)	H32A—C32—H32B	108.1
O1'—C9'—C8'	124.76 (10)	C32—C33—H33A	109.1
N1'—C9'—C8'	117.26 (9)	C34—C33—H33A	109.1
O2'—C10'—N1'	121.15 (9)	C32—C33—H33B	109.1
O2'—C10'—C11'	123.54 (10)	C34—C33—H33B	109.1
N1'—C10'—C11'	115.31 (9)	H33A—C33—H33B	107.8
C12'—C11'—C13'	123.09 (9)	C35—C34—H34A	109.6
C12'—C11'—C10'	122.12 (9)	C33—C34—H34A	109.6
C13'—C11'—C10'	114.74 (9)	C35—C34—H34B	109.6
C11'—C12'—C8'	120.01 (9)	C33—C34—H34B	109.6
C11'—C12'—C21'	119.01 (8)	H34A—C34—H34B	108.1
C8'—C12'—C21'	120.90 (9)	C34—C35—H35A	109.4
N2'—C13'—C11'	175.93 (11)	C36—C35—H35A	109.4
C9'—N1'—C10'	126.23 (9)	C34—C35—H35B	109.4
C22'—C21'—C26'	120.06 (9)	C36—C35—H35B	109.4
C22'—C21'—C12'	121.52 (8)	H35A—C35—H35B	108.0
C26'—C21'—C12'	118.42 (8)	N31—C36—H36A	109.5
C23'—C22'—C21'	119.51 (9)	C35—C36—H36A	109.5
C24'—C23'—C22'	120.42 (10)	N31—C36—H36B	109.5
C23'—C24'—C25'	119.86 (10)	C35—C36—H36B	109.5
C26'—C25'—C24'	120.45 (10)	H36A—C36—H36B	108.1

C7A—S1—C2—N3	−0.77 (8)	S1'—C2'—N3'—C3A'	1.61 (12)
C7A—S1—C2—C8	−178.73 (8)	C2'—N3'—C3A'—C7A'	−1.08 (14)
C8—C2—N3—C3A	178.49 (9)	C2'—N3'—C3A'—C4'	177.27 (11)
S1—C2—N3—C3A	0.62 (11)	N3'—C3A'—C4'—C5'	−178.06 (12)
C2—N3—C3A—C4	−178.93 (10)	C7A'—C3A'—C4'—C5'	0.13 (18)
C2—N3—C3A—C7A	−0.08 (13)	C3A'—C4'—C5'—C6'	−0.79 (19)
N3—C3A—C4—C5	179.44 (11)	C4'—C5'—C6'—C7'	1.2 (2)
C7A—C3A—C4—C5	0.64 (16)	C5'—C6'—C7'—C7A'	−0.95 (19)
C3A—C4—C5—C6	−0.72 (19)	N3'—C3A'—C7A'—C7'	178.56 (10)
C4—C5—C6—C7	0.0 (2)	C4'—C3A'—C7A'—C7'	0.11 (17)
C5—C6—C7—C7A	0.8 (2)	N3'—C3A'—C7A'—S1'	0.03 (12)
C6—C7—C7A—C3A	−0.85 (18)	C4'—C3A'—C7A'—S1'	−178.42 (9)
C6—C7—C7A—S1	−178.78 (10)	C6'—C7'—C7A'—C3A'	0.29 (17)
N3—C3A—C7A—C7	−178.78 (10)	C6'—C7'—C7A'—S1'	178.54 (9)
C4—C3A—C7A—C7	0.14 (16)	C2'—S1'—C7A'—C3A'	0.71 (8)
N3—C3A—C7A—S1	−0.49 (12)	C2'—S1'—C7A'—C7'	−177.68 (11)
C4—C3A—C7A—S1	178.43 (8)	N3'—C2'—C8'—C12'	175.67 (9)
C2—S1—C7A—C7	178.78 (11)	S1'—C2'—C8'—C12'	−6.52 (15)
C2—S1—C7A—C3A	0.67 (8)	N3'—C2'—C8'—C9'	−4.04 (14)
N3—C2—C8—C12	11.74 (15)	S1'—C2'—C8'—C9'	173.77 (7)
S1—C2—C8—C12	−170.52 (7)	C12'—C8'—C9'—O1'	−177.30 (9)
N3—C2—C8—C9	−164.55 (9)	C2'—C8'—C9'—O1'	2.43 (15)
S1—C2—C8—C9	13.19 (12)	C12'—C8'—C9'—N1'	3.46 (13)
C12—C8—C9—O1	175.35 (10)	C2'—C8'—C9'—N1'	−176.80 (9)
C2—C8—C9—O1	−8.13 (15)	O2'—C10'—C11'—C12'	178.63 (10)
C12—C8—C9—N1	−3.82 (13)	N1'—C10'—C11'—C12'	−0.63 (14)
C2—C8—C9—N1	172.70 (9)	O2'—C10'—C11'—C13'	1.01 (15)
O2—C10—C11—C12	179.76 (10)	N1'—C10'—C11'—C13'	−178.25 (9)
N1—C10—C11—C12	−2.32 (14)	C13'—C11'—C12'—C8'	179.62 (9)
O2—C10—C11—C13	−1.57 (15)	C10'—C11'—C12'—C8'	2.20 (14)
N1—C10—C11—C13	176.35 (9)	C13'—C11'—C12'—C21'	2.99 (14)
C9—C8—C12—C11	5.22 (13)	C10'—C11'—C12'—C21'	−174.43 (9)
C2—C8—C12—C11	−170.99 (9)	C2'—C8'—C12'—C11'	176.69 (9)
C9—C8—C12—C21	−172.04 (9)	C9'—C8'—C12'—C11'	−3.60 (14)
C2—C8—C12—C21	11.75 (14)	C2'—C8'—C12'—C21'	−6.75 (14)
C13—C11—C12—C8	179.29 (9)	C9'—C8'—C12'—C21'	172.96 (8)
C10—C11—C12—C8	−2.15 (14)	O1'—C9'—N1'—C10'	178.65 (10)
C13—C11—C12—C21	−3.31 (14)	C8'—C9'—N1'—C10'	−2.06 (15)
C10—C11—C12—C21	175.25 (9)	O2'—C10'—N1'—C9'	−178.66 (10)
O2—C10—N1—C9	−178.05 (10)	C11'—C10'—N1'—C9'	0.62 (14)
C11—C10—N1—C9	3.90 (15)	C11'—C12'—C21'—C22'	−81.65 (12)
O1—C9—N1—C10	179.90 (10)	C8'—C12'—C21'—C22'	101.76 (11)
C8—C9—N1—C10	−0.87 (15)	C11'—C12'—C21'—C26'	99.31 (11)
C8—C12—C21—C22	−125.55 (10)	C8'—C12'—C21'—C26'	−77.29 (12)
C11—C12—C21—C22	57.12 (12)	C26'—C21'—C22'—C23'	1.92 (15)
C8—C12—C21—C26	57.61 (13)	C12'—C21'—C22'—C23'	−177.11 (9)
C11—C12—C21—C26	−119.72 (10)	C21'—C22'—C23'—C24'	−1.15 (16)
C26—C21—C22—C23	−1.44 (15)	C22'—C23'—C24'—C25'	−0.25 (17)
C12—C21—C22—C23	−178.30 (9)	C23'—C24'—C25'—C26'	0.91 (18)
C21—C22—C23—C24	1.10 (17)	C24'—C25'—C26'—C21'	−0.13 (17)
C22—C23—C24—C25	0.06 (17)	C22'—C21'—C26'—C25'	−1.28 (15)
C23—C24—C25—C26	−0.87 (17)	C12'—C21'—C26'—C25'	177.78 (10)
C24—C25—C26—C21	0.52 (16)	C36—N31—C32—C33	−54.46 (16)
C22—C21—C26—C25	0.63 (15)	N31—C32—C33—C34	53.39 (19)
C12—C21—C26—C25	177.52 (9)	C32—C33—C34—C35	−54.42 (19)
C7A'—S1'—C2'—N3'	−1.29 (8)	C33—C34—C35—C36	55.39 (17)
C7A'—S1'—C2'—C8'	−179.30 (9)	C32—N31—C36—C35	56.13 (16)
C8'—C2'—N3'—C3A'	179.77 (9)	C34—C35—C36—N31	−56.07 (16)

Hydrogen-bond geometry (Å, º) top

D—H···A	D—H	H···A	D···A	D—H···A
N1—H01···O2′	0.888 (18)	1.887 (18)	2.7703 (11)	172.9 (16)
N3′—H03′···O1′	0.804 (19)	1.878 (19)	2.5399 (15)	139.0 (18)
N1′—H01′···O2	0.883 (17)	2.016 (18)	2.8903 (11)	169.8 (16)
N31—H031···O1	0.86 (2)	1.91 (2)	2.7327 (12)	158.7 (18)
N31—H032···O2ⁱ	0.87 (2)	1.88 (2)	2.7322 (13)	169.3 (19)
C36—H36B···O1′ⁱ	0.99	2.52	3.4487 (16)	157
C22′—H22′···O1′ⁱⁱ	0.95	2.34	3.2691 (13)	165
C26′—H26′···N3ⁱ	0.95	2.44	3.3437 (13)	159

Symmetry codes: (i) −x+1, −y+1, −z+1; (ii) −x, −y+1, −z+1.

Acknowledgements

The authors acknowledge support by the Open Access Publication Funds of the Technical University of Braunschweig.

References

Abu-Zaied, M. A., Hebishy, A. M. S., Salama, H. T. & Elgemeie, G. H. (2024). Nucleosides Nucleotides Nucleic Acids 43, 1529–1548. Web of Science CAS PubMed Google Scholar
Allen, F. H., Kennard, O., Watson, D. G., Brammer, L., Orpen, A. G. & Taylor, R. (1987). J. Chem. Soc. Perkin Trans. 2 pp. S1–S19. Google Scholar
Azzam, R. A., Elboshi, H. A. & Elgemeie, G. H. (2022). Antibiotics 11, 1799. https://doi.org/10.3390/antibiotics11121799 Google Scholar
Azzam, R. A., Elgemeie, G. H., Elsayed, R. E. & Jones, P. G. (2017). Acta Cryst. E73, 1041–1043. Web of Science CSD CrossRef IUCr Journals Google Scholar
Azzam, R. A., Elsayed, R. E. & Elgemeie, G. H. (2020). ACS Omega 5, 26182–26194. Web of Science CrossRef CAS PubMed Google Scholar
Basheer, A. & Rappoport, Z. (2008). J. Org. Chem. 73, 1386–1396. Web of Science CSD CrossRef PubMed CAS Google Scholar
Bruker (1998). XP. Bruker Analytical X–Ray Instruments, Madison, Wisconsin, USA. Google Scholar
Bruno, I. J., Cole, J. C., Edgington, P. R., Kessler, M., Macrae, C. F., McCabe, P., Pearson, J. & Taylor, R. (2002). Acta Cryst. B58, 389–397. Web of Science CrossRef CAS IUCr Journals Google Scholar
Chakib, I., El Bakri, Y., Lai, C.-H., Benbacer, L., Zerzouf, A., Essassi, E. M. & Mague, J. T. (2019). J. Mol. Struct. 1198 paper no. 126910. https://doi.org/10.1016/molstruc. 2019.126910 Google Scholar
Chakibe, I., Zerzouf, A., Essassi, E. M., Reichelt, M. & Reuter, H. (2010). Acta Cryst. E66, o1096. Web of Science CSD CrossRef IUCr Journals Google Scholar
Das, J., Moquin, R. V., Lin, J., Liu, C., Doweyko, A. M., DeFex, H. F., Fang, Q., Pang, S., Pitt, S., Shen, D. R., Schieven, G. L., Barrish, J. C. & Wityak, J. (2003). Bioorg. Med. Chem. Lett. 13, 2587–2590. Web of Science CrossRef PubMed CAS Google Scholar
De Souza, M. V. N., Wardell, S. M. S. V., Wardell, J. L., Vasconcelos, T. A. & De Carvalho, E. M. (2006). J. Sulfur Chem. 27, 193–202. CSD CrossRef CAS Google Scholar
Elboshi, H. A., Azzam, R. A., Elgemeie, G. H. & Jones, P. G. (2024). Acta Cryst. E80, 289–291. Web of Science CSD CrossRef IUCr Journals Google Scholar
Elgemeie, G. H., Shams, Z., Elkholy, M. & Abbas, N. S. (2000). Heterocycl. Commun. 6, 363–268. CrossRef CAS Google Scholar
Ennajih, H., Bouhfid, R., Massip, S., Leger, J. M. & Essassi, E. M. (2011). Acta Cryst. E67, o2260. Web of Science CSD CrossRef IUCr Journals Google Scholar
Gill, R. K., Rawal, R. K. & Bariwal, J. (2015). Arch. Pharm. 348, 155–178. Web of Science CrossRef CAS Google Scholar
Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016). Acta Cryst. B72, 171–179. Web of Science CrossRef IUCr Journals Google Scholar
Keri, R. S., Patil, M. R., Patil, S. A. & Budagumpi, S. (2015). Eur. J. Med. Chem. 89, 207–251. Web of Science CrossRef CAS PubMed Google Scholar
Kumar, Y. & Ila, H. (2019). Org. Lett. 21, 7863–7867. Web of Science CSD CrossRef CAS PubMed Google Scholar
Lystsova, E. A., Novokshonova, A. D., Khramtsov, P. V., Novikov, A. S., Dmitriev, M. V., Maslivets, A. N. & Khramtsova, E. E. (2024). Molecules 29, 2089. https://10.3390/molecules29092089 Google Scholar
Metwally, N. H., Elgemeie, G. H., Abd Al-latif, E. S. M. & Jones, P. G. (2025). Acta Cryst. E81, 279–283. Web of Science CSD CrossRef IUCr Journals Google Scholar
Mohamed-Ezzat, R. A. & Elgemeie, G. H. (2024). Nucleosides Nucleotides Nucleic Acids 43, 1511–1528. Web of Science CAS PubMed Google Scholar
Rigaku OD (2024). CrysAlis PRO. Rigaku Oxford Diffraction, Yarnton, England. Google Scholar
Seenaiah, D., Reddy, P. R., Reddy, G. M., Padmaja, A., Padmavathi, V. & Siva krishna, N. (2014). Eur. J. Med. Chem. 77, 1–7. Web of Science CrossRef CAS PubMed Google Scholar
Sharma, P. C., Sinhmar, A., Sharma, A., Rajak, H. & Pathak, D. P. J. (2013). J. Enzyme Inhib. Med. Chem. 28, 240–266. Web of Science CrossRef PubMed Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Tkachev, V. (2020). CSD Communication (CCDC-204335). CCDC, Cambridge, England. https::/doi.org/10.5517/ccdc.csd.cc26l9ns. Google Scholar
Westrip, S. P. (2010). J. Appl. Cryst. 43, 920–925. Web of Science CrossRef CAS IUCr Journals Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
