Different packing motifs mediated by hydrogen bonds in the hydrochloride salts of two pyridoxal N-acylhydrazone derivatives

Thais C. M. Nogueira,^a Marcus V. N. deSouza,^a James L. Wardell ^b and William T. A. Harrison ^b ^*

^aFundação Oswaldo Cruz, Instituto de Tecnologia em Fármacos-Far, Manguinhos, 21041-250, Rio de Janeiro, RJ, Brazil, and ^bDepartment of Chemistry, University of Aberdeen, Meston Walk, Aberdeen AB24 3UE, Scotland, United Kingdom
^*Correspondence e-mail: [email protected]

Edited by J. Reibenspies, Texas A & M University, USA (Received 4 August 2025; accepted 3 September 2025; online 9 September 2025)

The crystal structures of two hydrochloride salts of pyridoxal–N-acylhydrazone–Q (Q = heterocyclic aromatic ring) derivatives, viz. (E)-3-hydroxy-5-(hydroxymethyl)-2-methyl-4-{[(pyridin-4-ylformamido)imino]methyl}pyridin-1-ium chloride dihydrate, C₁₄H₁₅N₄O₃⁺·Cl⁻·2H₂O, (I), and (E)-3-hydroxy-5-(hydroxymethyl)-2-methyl-4-{[(pyrimidin-2-ylformamido)imino]methyl}pyridin-1-ium chloride dihydrate, C₁₃H₁₄N₅O₃⁺·Cl⁻·2H₂O, (II) are described. The cations, which are protonated at the pyridine N atom of the pyridoxal ring, have similar overall conformations: the dihedral angles between the pyridoxal ring and the terminal aromatic ring are 12.63 (12) and 6.11 (15)° for (I) and (II), respectively. Each cation features an intramolecular O—H⋯N hydrogen bond, which closes an S(6) ring, but a difference arises in the conformation of the C—C—C—O fragment terminated by the the ring carbon atom bonded to the side chain and the O atom of the hydroxymethyl group: gauche for (I) and anti for (II). The extended structures of (I) and (II) feature numerous strong (N—H and O—H donors) and weak (C—H donor) hydrogen bonds. In (I), the NH_p (pyridine) grouping links to the terminal N atom of the pendant unprotonated pyridine ring of an adjacent cation to generate [010] chains, whereas the NH_h (hydrazide) and OH_hm (hydroxymethyl) moieties link to chloride ion acceptors. In (II), the NH_p and OH_hm groupings bond to chloride anions whereas NH_h bonds to a water molecule. Hydrogen-bonded chains of water molecules occur in (I) and centrosymmetric tetramers in (II). The Hirshfeld surfaces of (I) and (II) are computed and the structures of related compounds are briefly compared.

Keywords: crystal structure; pyridoxal ring; hydrochloride salt; hydrogen bonding.

CCDC references: 2485015; 2485014

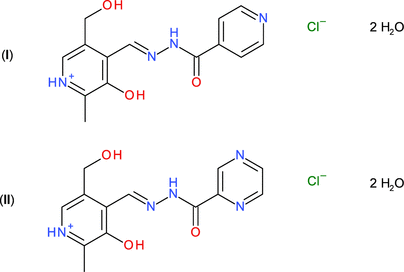

1. Chemical context

Vitamin B6 is a water-soluble vitamin that is naturally present in many foods, added to others, and available as a dietary supplement. It is crucial for various bodily functions, including energy metabolism, nerve function, brain development, and immune support and numerous reviews have been published (e.g., Stach et al., 2021 ; Muhamad et al., 2023 ; Santos et al., 2023 ). Vitamin B6 is the generic name for a group of six compounds (vitamers), which can readily be interconverted via biochemical pathways, namely pyridoxine (with a hydroxymethyl group trans to the pyridine N atom), pyridoxal (an aldehyde) and pyridoxamine (an amine) and their respective 5′-phosphate esters (see Fig. 1 of Stach et al., 2021). Pyridoxal 5′ and pyridoxamine 5′ phosphates are the active coenzyme forms of vitamin B6. Vitamin B6–metal complexes (Casas et al., 2012 ; Gupta, 2022 ) and chemical modifications of the vitamers have been widely studied for their biological activities (Pawar et al., 2023 ). In keeping with the general finding that hydrazonyl and acylhydrazonyl compounds have potentially useful biological activities (Socea et al., 2022 ), various derivatives of the B6 vitamers have been shown to have bio-activities, and have been studied for their iron chelating (Bartolić et al., 2024 ) and anti-tumour activities (Chen et al., 2019 ) and, by some of us, for their anti-microbial and anti-tuberculosis properties (Nogueira et al., 2019 ).

In continuation of our earlier work (Nogueira et al., 2019), we now describe the crystal structures and Hirshfeld surfaces of (E)-3-hydroxy-5-(hydroxymethyl)-2-methyl-4-{[(pyridin-4-ylformamido)imino]methyl}pyridin-1-ium chloride dihydrate, C₁₄H₁₅N₄O₃⁺·Cl⁻·2H₂O, (I) and (E)-3-hydroxy-5-(hydroxymethyl)-2-methyl-4-{[(pyrimidin-2-ylformamido)imino]methyl}pyridin-1-ium chloride dihydrate, C₁₃H₁₄N₅O₃⁺·Cl⁻·2H₂O, (II).

2. Structural commentary

The crystal structures of (I) and (II) confirm the atomic connectivities of the (stated) neutral molecules described in the previous study (Nogueira et al., 2019): here, each compound crystallizes as a hydrochloride salt protonated at the pyridine N atom of the pyridoxal ring, accompanied by two water molecules of crystallization.

Compound (I) crystallizes in the monoclinic space group Ia, with one cation, one chloride counter ion and two water molecules of crystallization in the asymmetric unit (Fig. 1). In the C₁₄H₁₅N₄O₃⁺ cation, the C8=N2 double bond is in an E configuration, with a C1—C8—N2—N3 torsion angle of −179.1 (2)°. The C8—N2—N3—C9 torsion angle is −179.8 (2)° and oxygen atoms O1 and O3 lie to the same side of the molecule. The C1—C5—C7—O2 torsion angle associated with the hydroxymethyl group is 61.9 (3)°, i.e., O2 is gauche with respect to C1, and the dihedral angle between the pyridoxal C1–C5/N1 pyridine ring and the pendant C10–C14/N4 pyridine ring is 12.63 (12)°, with the most significant twist occurring about the C9—C10 bond [N3—C9—C10—C11 = −13.5 (3)°]. The N2—N3 bond length of 1.367 (3) Å is significantly shorter than a typical N—N single bond (∼1.44 Å), which suggests substantial delocalization of electrons (i.e., resonance forms) between the C8=N2 double bond and C8=O3 carbonyl group of the carbohydrazide grouping as observed previously for related compounds (Cardoso et al., 2016 ). An intramolecular O1—H1O⋯N2 hydrogen bond (Table 1) closes an S(6) loop. Otherwise, the bond lengths and angles in (I) may be regarded as unexceptional.

Table 1
Hydrogen-bond geometry (Å, °) for (I)

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
N1—H1N⋯N4ⁱ	0.99 (3)	1.82 (3)	2.809 (3)	175 (3)
N3—H2N⋯Cl1	0.85 (4)	2.26 (4)	3.103 (2)	170 (3)
O1—H1O⋯N2	0.74 (4)	1.89 (4)	2.553 (3)	148 (4)
O2—H2O⋯Cl1ⁱⁱ	0.81 (4)	2.28 (4)	3.081 (2)	168 (3)
O4—H1W⋯O3	0.97 (4)	2.08 (5)	3.027 (3)	163 (3)
O4—H2W⋯O5ⁱⁱⁱ	0.90 (4)	1.87 (4)	2.751 (3)	166 (4)
O5—H3W⋯Cl1^iv	0.90 (5)	2.37 (5)	3.247 (2)	166 (4)
O5—H4W⋯O4	0.95 (4)	1.84 (4)	2.758 (3)	162 (4)
C4—H4⋯O4^v	0.95	2.42	3.347 (3)	166
C6—H6A⋯Cl1^vi	0.98	2.82	3.495 (3)	127
C6—H6C⋯O3ⁱⁱⁱ	0.98	2.72	3.380 (3)	125
C7—H7B⋯O2ⁱⁱⁱ	0.99	2.59	3.530 (3)	159
C8—H8⋯Cl1	0.95	2.78	3.556 (2)	139
C11—H11⋯Cl1	0.95	2.64	3.555 (3)	162
C12—H12⋯O5^vii	0.95	2.57	3.439 (3)	152
C13—H13⋯O2^viii	0.95	2.45	3.351 (3)	159
C14—H14⋯Cl1^viii	0.95	2.89	3.810 (3)	163
Symmetry codes: (i) ; (ii) $[x+{\script{1\over 2}}, -y+1, z]$ ; (iii) $[x-{\script{1\over 2}}, -y+1, z]$ ; (iv) $[x+1, -y+{\script{3\over 2}}, z+{\script{1\over 2}}]$ ; (v) $[x-{\script{1\over 2}}, y-{\script{1\over 2}}, z-{\script{1\over 2}}]$ ; (vi) $[x+{\script{1\over 2}}, y-{\script{1\over 2}}, z+{\script{1\over 2}}]$ ; (vii) $[x-{\script{1\over 2}}, y+{\script{1\over 2}}, z-{\script{1\over 2}}]$ ; (viii) $[x, -y+{\script{3\over 2}}, z+{\script{1\over 2}}]$ .

Figure 1
The molecular structure of (I) showing 50% displacement ellipsoids. The hydrogen bonds are indicated by double-dashed lines.

In compound (II), the pyrimidine analogue of (I), there are one cation, one chloride anion and two water molecules of crystallization in the asymmetric unit (Fig. 2) in the triclinic space group P $[\overline{1}]$ . In the C₁₃H₁₄N₅O₃⁺ cation, the C8=N2 double bond is in an E configuration, with C1—C8—N2—N3 = 178.2 (3)° and C8—N2—N3—C9 = 179.5 (3)°. The C1—C5—C7—O2 torsion angle of 178.2 (3)° indicates an anti conformation for O2 and the dihedral angle between the C1–C5/N1 pyridine ring and C10–C13/N4/N5 pyrimidine ring is 6.11 (15)°, with the largest twist occurring about the C1—C8 bond [C2—C1—C8—N2 = −3.3 (5)°]. The N2—N3 bond length is 1.373 (4) Å and, as in (I), an intramolecular O—H⋯N hydrogen bond (Table 2) occurs.

Table 2
Hydrogen-bond geometry (Å, °) for (II)

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
N1—H1N⋯Cl1	0.80 (4)	2.29 (4)	3.089 (3)	174 (4)
N3—H2N⋯O4ⁱ	0.87 (4)	2.02 (4)	2.854 (4)	160 (3)
O1—H1O⋯N2	0.77 (4)	1.92 (4)	2.606 (3)	149 (4)
O2—H2O⋯Cl1ⁱⁱ	0.83 (4)	2.33 (4)	3.157 (3)	175 (4)
O4—H1W⋯Cl1ⁱⁱⁱ	0.85 (4)	2.45 (4)	3.222 (3)	152 (4)
O4—H2W⋯O5	0.81 (4)	1.97 (4)	2.753 (4)	163 (4)
O5—H3W⋯O3	0.85 (5)	1.99 (5)	2.833 (3)	170 (4)
O5—H4W⋯O4^iv	0.97 (4)	1.89 (4)	2.859 (4)	173 (4)
C4—H4⋯N4^v	0.95	2.46	3.400 (4)	170
C8—H8⋯O4ⁱ	0.95	2.33	3.145 (4)	143
C11—H11⋯Cl1^vi	0.95	2.84	3.724 (3)	155
C12—H12⋯O2^vi	0.95	2.50	3.186 (4)	129
Symmetry codes: (i) ; (ii) ; (iii) ; (iv) ; (v) ; (vi) .

Figure 2
The molecular structure of (II) showing 50% displacement ellipsoids. The hydrogen bonds are indicated by double-dashed lines.

3. Supramolecular features

Geometrical data for the directional intermolecular interactions in (I) and (II) are listed in Tables 1 and 2, respectively. As well as the intramolecular links involving O1—H1O⋯N2 noted above, the cations in these structures have the ability to form three strong intermolecular hydrogen bonds, from the pyridine N1—H1N, the hydrazide N3—H2N and the hydroxymethyl O2—H2O groupings and these form quite different arrangements in these two structures.

In (I), the N1—H1N grouping links to the terminal N4 atom of the pendant pyridine ring of an adjacent cation displaced by translation in the b-axis direction, to generate [010] chains of cations, whereas N3—H2N and O2—H2O link to nearby chloride ions (Fig. 3). Conversely, in (II), the N1—H1n and O2—H2O moieties make links to chloride anions whereas N3—H2N bonds to a water molecule (Fig. 4). The O4 water molecule in (I) forms O—H⋯O hydrogen bonds to the ketone O atom of the cation and the other water molecule, whilst the O5 water molecule forms a hydrogen bond to the other water molecule (thereby forming infinite [100] chains of water molecules) and one link to a chloride ion. In (II), the water molecules form the same local pattern of hydrogen bonds as in (I), but here a completely different supramolecular motif of centrosymmetric tetramers of hydrogen-bonded water molecules arises (Fig. 5). These two structures also feature various weak C—H⋯X (X = N, O, Cl) interactions as listed in the hydrogen-bond tables; it may be mentioned that there are no fewer than nine of these bonds in (I) compared to just four in (II). The shortest aromatic ring centroid–centroid separations in these structures are π_q–π_q = 3.8543 (14) Å (slippage = 2.062 Å) for (I) and π_p–π_q = 3.4724 (18) Å (slippage = 1.047 Å) for (II) where π_p and π_q are the centroids of the pyridoxal ring and pendant aromatic ring, respectively.

Figure 3
Fragment of the crystal structure of (I) showing hydrogen bonds as dashed lines.

Figure 4
Fragment of the crystal structure of (II) showing hydrogen bonds as dashed lines.

Figure 5
Cyclic tetramer of hydrogen-bonded water molecules in the extended structure of (II). The hydrogen bonds associated with the tetramer are rendered in black and the other hydrogen bonds are coloured orange.

In order to gain more insight into these different packing motifs, the Hirshfeld surfaces and fingerprint plots for (I) and (II) were calculated using CrystalExplorer (Spackman et al., 2021 ) following the protocol of Tan et al. (2019 ). The Hirshfeld surfaces (see supplementary materials) show the expected red spots (close contacts) in the vicinities of the various donor and acceptor atoms of the respective cations noted in the previous paragraph. The fingerprint plots decomposed into the different percentage contact types (Table 3) show that the most important contributions are H⋯H, O⋯H/H⋯O and C⋯H/H⋯C, in descending order. The N⋯H/H⋯N contact percentage in (I) is notably lower than in (II), perhaps due to the presence of the ‘extra' N atom in the pyrimidine ring in the latter. The percentage contributions of O⋯O and O⋯Cl contacts are close to zero in both structures, presumably reflecting the fact that ‘bare' (unprotonated) O atoms and Cl⁻ anions avoid each other in the solid state for electrostatic reasons.

Table 3
Hirshfeld fingerprint contact percentages for the cations in (I) and (II)

Contact type	(I)	(II)
H⋯H	39.2	36.3
O⋯H/H⋯O	19.9	16.7
C⋯H/H⋯C	12.6	9.0
N⋯H/H⋯N	6.0	11.6
H⋯Cl	6.5	7.5
C⋯C	4.5	6.0
C⋯O/O⋯C	0.7	4.2
C⋯N/N⋯C	9.1	4.8
O⋯O	0.3	0.0
O⋯Cl/Cl⋯O	0.0	0.0

4. Database survey

A survey of the Cambridge Structural Database [CSD 2025.1 (released May 2025); Groom et al., 2016 ] revealed 101 structures incorporating a pyridoxal (px) ring, of which 52 were protonated at the pyridine N atom, with a wide variety of substituents at the carbon atom (C1 in our numbering scheme) trans to the pyridine N atom. A total of 32 structures contain a pyroxidal ring–hydrazone grouping of which 16 are protonated at the pyridine N atom., while the px—CH=N—NH—C(=O)– atom connectivity is found in 18 structures (10 protonated, 8 unprotonated).

The structures of four hydrochloride salts of pyroxidal–carbohydrazide–aromatic ring derivatives closely related to (I) and (II) include (using the nomenclature of the respective authors), ((3-hydroxy-5-(hydroxymethyl)-2-methylpyridine-4-yl)methylene)benzohydrazide hydrochloride monohydrate (CSD refcode IGELOW; Back et al., 2009 ), N-pyridoxylidene-N′-picolinoylhydrazine hydrochloride monohydrate (PYPICZ; Domiano et al., 1978 ), 3-hydroxy-5-(hydroxymethyl)-2-methyl-4-((2-(pyridine-4-carbonyl)hydrazinylidene)methyl)pyridin-1-ium chloride dimethyl sulfoxide solvate (VUYPOW; Mezey et al., 2015 ) and 3-hydroxy-5-(hydroxymethyl)-2-methyl-4-((2-(pyrimidine-2-carbonyl)hydrazineylidene)methyl)pyridin-1-ium chloride monohydrate (XARHUX; Low, 2021 ).

Key structural data for (I), (II) and these phases are listed in Table 4. Despite their different hydrogen-bonding patterns, the cations in (I), (II) and the refcodes noted in the previous paragraph have similar conformations as shown in the overlay plot generated with QMOL (Gans & Shalloway, 2001 ) (Fig. 6). The ‘most different' structure is (I), with a gauche disposition of the O atom of the hydroxymethyl group and a hydrogen bond to an N-atom acceptor from N1—H1n. All the other structures have an anti conformation for the O atom of the hydroxymethyl group and form an N1—H1n⋯Cl hydrogen bond.

Table 4
Key structural data for the cations in (I), (II) and related phases

φ is the dihedral angle (°) between the pyridoxal ring and the pendant ring and ζ is the conformation of the C1—C5—C7—O2 grouping (our numbering scheme). The atom designations in the N1, N3 and O2 columns are the hydrogen-bond acceptors for these protonated atoms in the respective cations; N_p = pyridine, O_w = water; O_D = DMSO (dimethylsulfoxide). Atom O1 forms an intramolecular O—H⋯N hydrogen bond in every case.

Compound	Space group	φ	ζ	N1	N3	O2
(I)	Ia	12.63 (12)	gauche	N_p	Cl⁻	Cl⁻
(II)	P $[\overline{1}]$	6.11 (15)	anti	Cl⁻	O_w	Cl⁻
IGELOW	Cc	5.4	anti	Cl⁻	Cl⁻	O_w
PYPICZ	Cc	5.1	anti	Cl⁻	Cl⁻	O_w
VUYPOW	P $[\overline{1}]$	7.6	anti	Cl⁻	O_D	Cl⁻
XARHUX	P2₁/c	3.5	anti	Cl⁻	O_w	Cl⁻

Figure 6
Overlay plot of the cations in (I) (red), (II) (blue), IGELOW (purple), PYPICZ (green), VUYPOW (yellow) and XARHUX (black). The conformations of the pyridoxal rings overlap almost perfectly.

5. Synthesis and crystallization

For the syntheses and spectroscopic data of (I) and (II), see Nogueira et al. (2019), where they were designated as compounds 2d and 2f, respectively. Single crystals [yellow plates for (I) and colourless slabs for (II)] were recrystallized from ethanol solution at room temperature.

6. Refinement

Crystal data, data collection and structure refinement details are summarized in Table 5. The N-and O-bound H atoms were located in difference maps and their positions were freely refined with U_iso(H) = 1.2U_eq(N, O). All the C-bound H atoms were located geometrically (C—H = 0.95–0.99 Å) and refined as riding atoms with U_iso(H) = 1.2U_eq(C) or 1.5U_eq(methyl C). The methyl groups were allowed to rotate, but not to tip, to best fit the electron density. The crystal of (I) chosen for data collection was found to be twinned by 180° rotation about the [001] axis in reciprocal space or the [0.29,0.00,0.96] axis in direct space and was modelled as a non-merohedral two-component twin with a refined domain ratio of 0.4994 (11):0.5006 (11). Reflections were not merged (HKLF 5 card in SHELXL) and therefore R_Int for (I) is not defined. If the twinning was neglected and the reflections were merged (R_Int = 0.058), significantly poorer residuals (R1 = 0.046, wR2 = 0.132, S = 1.11) arose.

Table 5
Experimental details

	(I)	(II)
Crystal data
Chemical formula	C₁₄H₁₅N₄O₃⁺·Cl⁻·2H₂O	C₁₃H₁₄N₅O₃⁺·Cl⁻·2H₂O
M_r	358.78	359.77
Crystal system, space group	Monoclinic, Ia	Triclinic, P $[\overline{1}]$
Temperature (K)	100	100
a, b, c (Å)	6.6920 (3), 14.0625 (5), 16.9446 (6)	7.5854 (2), 9.0709 (3), 11.4235 (3)
α, β, γ (°)	90, 96.821 (4), 90	87.954 (2), 89.397 (2), 86.604 (3)
V (Å³)	1583.31 (11)	784.10 (4)
Z	4	2
Radiation type	Mo Kα	Mo Kα
μ (mm⁻¹)	0.28	0.28
Crystal size (mm)	0.15 × 0.05 × 0.02	0.04 × 0.04 × 0.01

Data collection
Diffractometer	XtaLAB AFC12 (RCD3): Kappa single CCD	XtaLAB AFC12 (RCD3): Kappa single CCD
Absorption correction	Multi-scan (CrysAlis PRO; Rigaku OD, 2015 )	Multi-scan (CrysAlis PRO; Rigaku OD, 2015)
T_min, T_max	0.817, 1.000	0.748, 1.000
No. of measured, independent and observed [I > 2σ(I)] reflections	3463, 3463, 3382	14113, 3586, 3448
R_int	–	0.046
(sin θ/λ)_max (Å⁻¹)	0.649	0.649

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.028, 0.076, 1.04	0.088, 0.137, 1.43
No. of reflections	3463	3586
No. of parameters	243	242
No. of restraints	2	0
H-atom treatment	H atoms treated by a mixture of independent and constrained refinement	H atoms treated by a mixture of independent and constrained refinement
Δρ_max, Δρ_min (e Å⁻³)	0.32, −0.17	0.48, −0.37
Absolute structure	Flack (1983 )	–
Absolute structure parameter	0.43 (3)	–
Computer programs: CrysAlis PRO (Rigaku OD, 2015), SHELXT (Sheldrick, 2015a ), SHELXL2019/2 (Sheldrick, 2015b ), ORTEP-3 for Windows (Farrugia, 2012 ) and publCIF (Westrip, 2010 ).

Supporting information

CCDC references: 2485015; 2485014

Crystal structure: contains datablocks I, II, global. DOI: https://doi.org/10.1107/S2056989025007856/jy2065sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2056989025007856/jy2065Isup2.hkl

Structure factors: contains datablock II. DOI: https://doi.org/10.1107/S2056989025007856/jy2065IIsup3.hkl

Supporting information file. DOI: https://doi.org/10.1107/S2056989025007856/jy2065Isup4.cml

Supporting information file. DOI: https://doi.org/10.1107/S2056989025007856/jy2065IIsup5.cml

checkCIF report

Computing details top

(E)-3-Hydroxy-5-(hydroxymethyl)-2-methyl-4-{[(pyridin-4-ylformamido)imino]methyl}pyridin-1-ium chloride dihydrate (I) top

Crystal data top

C₁₄H₁₅N₄O₃⁺·Cl⁻·2H₂O	F(000) = 752
M_r = 358.78	D_x = 1.505 Mg m⁻³
Monoclinic, Ia	Mo Kα radiation, λ = 0.71073 Å
a = 6.6920 (3) Å	Cell parameters from 8822 reflections
b = 14.0625 (5) Å	θ = 1.9–31.9°
c = 16.9446 (6) Å	µ = 0.28 mm⁻¹
β = 96.821 (4)°	T = 100 K
V = 1583.31 (11) Å³	Plate, yellow
Z = 4	0.15 × 0.05 × 0.02 mm

Data collection top

XtaLAB AFC12 (RCD3): Kappa single CCD diffractometer	3463 independent reflections
Radiation source: fine-focus sealed X-ray tube	3382 reflections with I > 2σ(I)
Graphite monochromator	θ_max = 27.5°, θ_min = 1.9°
ω scans	h = −8→8
Absorption correction: multi-scan (CrysAlisPro; Rigaku OD, 2015)	k = −18→18
T_min = 0.817, T_max = 1.000	l = −21→21
3463 measured reflections

Refinement top

Refinement on F²	Hydrogen site location: mixed
Least-squares matrix: full	H atoms treated by a mixture of independent and constrained refinement
R[F² > 2σ(F²)] = 0.028	w = 1/[σ²(F_o²) + (0.0538P)² + 0.4094P] where P = (F_o² + 2F_c²)/3
wR(F²) = 0.076	(Δ/σ)_max = 0.001
S = 1.04	Δρ_max = 0.32 e Å⁻³
3463 reflections	Δρ_min = −0.17 e Å⁻³
243 parameters	Absolute structure: Flack (1983)
2 restraints	Absolute structure parameter: 0.43 (3)
Primary atom site location: dual

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Refinement. Refined as a 2-component twin.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
C1	0.1894 (4)	0.41717 (17)	0.41587 (15)	0.0089 (4)
C2	0.2311 (4)	0.38525 (17)	0.49480 (15)	0.0102 (5)
C3	0.2362 (4)	0.28718 (17)	0.51110 (16)	0.0107 (5)
C4	0.1568 (4)	0.25379 (17)	0.37381 (14)	0.0113 (5)
H4	0.131032	0.207330	0.333166	0.014*
C5	0.1503 (4)	0.34915 (17)	0.35443 (14)	0.0098 (4)
C6	0.2784 (4)	0.25102 (19)	0.59378 (16)	0.0155 (5)
H6A	0.414244	0.270233	0.616103	0.023*
H6B	0.268905	0.181482	0.593584	0.023*
H6C	0.179980	0.277507	0.626196	0.023*
C7	0.1043 (4)	0.37799 (16)	0.26815 (17)	0.0121 (5)
H7A	0.074577	0.320447	0.235182	0.014*
H7B	−0.016782	0.419004	0.261839	0.014*
C8	0.1808 (4)	0.51891 (15)	0.39765 (14)	0.0092 (4)
H8	0.152324	0.541553	0.344683	0.011*
C9	0.2432 (4)	0.72744 (18)	0.51043 (15)	0.0103 (5)
C10	0.2316 (3)	0.83284 (17)	0.49734 (15)	0.0102 (5)
C11	0.2261 (4)	0.87597 (18)	0.42325 (16)	0.0133 (5)
H11	0.226505	0.838917	0.376386	0.016*
C12	0.2200 (4)	0.97495 (17)	0.41954 (16)	0.0133 (5)
H12	0.218239	1.004509	0.369056	0.016*
C13	0.2214 (4)	0.98771 (17)	0.55463 (15)	0.0120 (5)
H13	0.218617	1.026386	0.600454	0.014*
C14	0.2305 (4)	0.88987 (17)	0.56446 (15)	0.0110 (5)
H14	0.235759	0.862334	0.615865	0.013*
N1	0.1996 (3)	0.22622 (14)	0.45033 (13)	0.0106 (4)
H1N	0.204 (5)	0.158 (2)	0.465 (2)	0.013*
N2	0.2139 (3)	0.57609 (14)	0.45695 (14)	0.0109 (4)
N3	0.2052 (3)	0.67197 (14)	0.44364 (13)	0.0101 (4)
H2N	0.174 (5)	0.690 (2)	0.396 (2)	0.012*
N4	0.2164 (3)	1.03054 (14)	0.48363 (13)	0.0124 (4)
O1	0.2682 (3)	0.44138 (14)	0.55825 (11)	0.0157 (4)
H1O	0.262 (5)	0.491 (3)	0.544 (2)	0.019*
O2	0.2685 (3)	0.42794 (13)	0.24086 (11)	0.0150 (4)
H2O	0.367 (6)	0.394 (3)	0.240 (2)	0.018*
O3	0.2836 (3)	0.69357 (13)	0.57644 (11)	0.0164 (4)
Cl1	0.12246 (8)	0.71352 (4)	0.26284 (4)	0.01433 (14)
O4	0.4821 (3)	0.60393 (16)	0.72829 (14)	0.0276 (5)
H1W	0.394 (6)	0.632 (3)	0.685 (3)	0.033*
H2W	0.451 (6)	0.542 (3)	0.729 (2)	0.033*
O5	0.8937 (3)	0.58262 (15)	0.75869 (14)	0.0254 (5)
H3W	0.966 (6)	0.635 (3)	0.752 (2)	0.031*
H4W	0.758 (6)	0.594 (3)	0.737 (2)	0.031*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
C1	0.0098 (10)	0.0052 (10)	0.0117 (11)	−0.0003 (8)	0.0012 (8)	−0.0011 (8)
C2	0.0114 (10)	0.0079 (11)	0.0113 (11)	0.0000 (8)	0.0007 (9)	−0.0009 (9)
C3	0.0135 (12)	0.0083 (11)	0.0107 (12)	0.0011 (8)	0.0028 (9)	0.0009 (9)
C4	0.0140 (11)	0.0084 (10)	0.0122 (12)	0.0004 (9)	0.0045 (10)	−0.0020 (9)
C5	0.0113 (10)	0.0079 (10)	0.0103 (11)	0.0002 (8)	0.0021 (9)	−0.0013 (8)
C6	0.0252 (13)	0.0104 (11)	0.0106 (12)	0.0011 (10)	0.0010 (10)	0.0018 (10)
C7	0.0186 (12)	0.0084 (9)	0.0093 (11)	−0.0012 (9)	0.0017 (9)	0.0018 (10)
C8	0.0141 (10)	0.0038 (10)	0.0099 (11)	0.0008 (8)	0.0018 (9)	0.0012 (8)
C9	0.0139 (11)	0.0069 (11)	0.0104 (12)	0.0003 (9)	0.0026 (9)	0.0006 (9)
C10	0.0110 (10)	0.0059 (10)	0.0136 (12)	0.0000 (8)	0.0011 (8)	−0.0008 (8)
C11	0.0198 (13)	0.0078 (11)	0.0125 (12)	−0.0006 (9)	0.0028 (9)	−0.0007 (9)
C12	0.0196 (12)	0.0076 (11)	0.0124 (12)	−0.0011 (8)	0.0012 (9)	0.0016 (9)
C13	0.0167 (10)	0.0072 (11)	0.0124 (11)	−0.0003 (9)	0.0033 (9)	−0.0019 (9)
C14	0.0144 (11)	0.0093 (11)	0.0095 (11)	−0.0007 (8)	0.0027 (9)	−0.0004 (9)
N1	0.0130 (10)	0.0059 (9)	0.0129 (10)	0.0003 (7)	0.0023 (8)	0.0002 (8)
N2	0.0143 (10)	0.0052 (9)	0.0138 (10)	−0.0001 (7)	0.0034 (8)	0.0008 (8)
N3	0.0167 (10)	0.0034 (9)	0.0101 (10)	0.0006 (7)	0.0011 (8)	0.0001 (7)
N4	0.0158 (9)	0.0072 (9)	0.0140 (10)	−0.0006 (7)	0.0015 (8)	−0.0005 (8)
O1	0.0303 (11)	0.0062 (8)	0.0096 (9)	−0.0007 (7)	−0.0015 (8)	−0.0005 (7)
O2	0.0191 (9)	0.0117 (8)	0.0147 (9)	−0.0011 (7)	0.0049 (7)	0.0035 (7)
O3	0.0290 (10)	0.0093 (8)	0.0108 (9)	0.0013 (7)	0.0027 (7)	0.0012 (7)
Cl1	0.0198 (3)	0.0120 (2)	0.0109 (2)	0.0005 (2)	0.0003 (2)	0.0003 (2)
O4	0.0311 (12)	0.0185 (10)	0.0317 (13)	−0.0014 (9)	−0.0028 (10)	0.0009 (9)
O5	0.0311 (11)	0.0171 (10)	0.0270 (11)	−0.0022 (8)	−0.0011 (10)	0.0017 (9)

Geometric parameters (Å, º) top

C1—C2	1.407 (3)	C9—C10	1.499 (3)
C1—C5	1.415 (3)	C10—C11	1.391 (3)
C1—C8	1.463 (3)	C10—C14	1.392 (3)
C2—O1	1.333 (3)	C11—C12	1.394 (3)
C2—C3	1.406 (3)	C11—H11	0.9500
C3—N1	1.340 (3)	C12—N4	1.341 (3)
C3—C6	1.486 (3)	C12—H12	0.9500
C4—N1	1.351 (3)	C13—N4	1.342 (3)
C4—C5	1.380 (3)	C13—C14	1.386 (3)
C4—H4	0.9500	C13—H13	0.9500
C5—C7	1.513 (3)	C14—H14	0.9500
C6—H6A	0.9800	N1—H1N	0.99 (3)
C6—H6B	0.9800	N2—N3	1.367 (3)
C6—H6C	0.9800	N3—H2N	0.85 (4)
C7—O2	1.427 (3)	O1—H1O	0.74 (4)
C7—H7A	0.9900	O2—H2O	0.81 (4)
C7—H7B	0.9900	O4—H1W	0.97 (4)
C8—N2	1.285 (3)	O4—H2W	0.90 (4)
C8—H8	0.9500	O5—H3W	0.90 (5)
C9—O3	1.216 (3)	O5—H4W	0.95 (4)
C9—N3	1.373 (3)

C2—C1—C5	118.8 (2)	O3—C9—N3	122.3 (2)
C2—C1—C8	120.7 (2)	O3—C9—C10	121.7 (2)
C5—C1—C8	120.4 (2)	N3—C9—C10	116.0 (2)
O1—C2—C3	115.1 (2)	C11—C10—C14	119.0 (2)
O1—C2—C1	125.1 (2)	C11—C10—C9	124.0 (2)
C3—C2—C1	119.8 (2)	C14—C10—C9	117.0 (2)
N1—C3—C2	118.6 (2)	C10—C11—C12	118.3 (2)
N1—C3—C6	120.2 (2)	C10—C11—H11	120.9
C2—C3—C6	121.2 (2)	C12—C11—H11	120.9
N1—C4—C5	120.3 (2)	N4—C12—C11	123.3 (2)
N1—C4—H4	119.9	N4—C12—H12	118.3
C5—C4—H4	119.9	C11—C12—H12	118.3
C4—C5—C1	118.9 (2)	N4—C13—C14	123.3 (2)
C4—C5—C7	119.2 (2)	N4—C13—H13	118.3
C1—C5—C7	121.9 (2)	C14—C13—H13	118.3
C3—C6—H6A	109.5	C13—C14—C10	118.5 (2)
C3—C6—H6B	109.5	C13—C14—H14	120.7
H6A—C6—H6B	109.5	C10—C14—H14	120.7
C3—C6—H6C	109.5	C3—N1—C4	123.5 (2)
H6A—C6—H6C	109.5	C3—N1—H1N	116 (2)
H6B—C6—H6C	109.5	C4—N1—H1N	121 (2)
O2—C7—C5	111.7 (2)	C8—N2—N3	119.2 (2)
O2—C7—H7A	109.3	N2—N3—C9	115.1 (2)
C5—C7—H7A	109.3	N2—N3—H2N	117 (2)
O2—C7—H7B	109.3	C9—N3—H2N	128 (2)
C5—C7—H7B	109.3	C12—N4—C13	117.6 (2)
H7A—C7—H7B	107.9	C2—O1—H1O	107 (3)
N2—C8—C1	116.6 (2)	C7—O2—H2O	112 (3)
N2—C8—H8	121.7	H1W—O4—H2W	107 (4)
C1—C8—H8	121.7	H3W—O5—H4W	109 (3)

C5—C1—C2—O1	−179.2 (2)	N3—C9—C10—C11	−13.5 (3)
C8—C1—C2—O1	−0.9 (4)	O3—C9—C10—C14	−12.0 (4)
C5—C1—C2—C3	1.0 (4)	N3—C9—C10—C14	167.9 (2)
C8—C1—C2—C3	179.2 (2)	C14—C10—C11—C12	0.1 (3)
O1—C2—C3—N1	179.7 (2)	C9—C10—C11—C12	−178.5 (2)
C1—C2—C3—N1	−0.4 (4)	C10—C11—C12—N4	−0.9 (4)
O1—C2—C3—C6	0.6 (4)	N4—C13—C14—C10	−0.9 (4)
C1—C2—C3—C6	−179.6 (2)	C11—C10—C14—C13	0.8 (3)
N1—C4—C5—C1	0.1 (4)	C9—C10—C14—C13	179.5 (2)
N1—C4—C5—C7	179.3 (2)	C2—C3—N1—C4	−0.3 (4)
C2—C1—C5—C4	−0.8 (4)	C6—C3—N1—C4	178.9 (2)
C8—C1—C5—C4	−179.1 (2)	C5—C4—N1—C3	0.5 (4)
C2—C1—C5—C7	−180.0 (2)	C1—C8—N2—N3	−179.1 (2)
C8—C1—C5—C7	1.7 (4)	C8—N2—N3—C9	−179.8 (2)
C4—C5—C7—O2	−117.3 (2)	O3—C9—N3—N2	0.8 (4)
C1—C5—C7—O2	61.9 (3)	C10—C9—N3—N2	−179.15 (19)
C2—C1—C8—N2	0.2 (3)	C11—C12—N4—C13	0.8 (4)
C5—C1—C8—N2	178.5 (2)	C14—C13—N4—C12	0.2 (4)
O3—C9—C10—C11	166.6 (2)

Hydrogen-bond geometry (Å, º) top

D—H···A	D—H	H···A	D···A	D—H···A
N1—H1N···N4ⁱ	0.99 (3)	1.82 (3)	2.809 (3)	175 (3)
N3—H2N···Cl1	0.85 (4)	2.26 (4)	3.103 (2)	170 (3)
O1—H1O···N2	0.74 (4)	1.89 (4)	2.553 (3)	148 (4)
O2—H2O···Cl1ⁱⁱ	0.81 (4)	2.28 (4)	3.081 (2)	168 (3)
O4—H1W···O3	0.97 (4)	2.08 (5)	3.027 (3)	163 (3)
O4—H2W···O5ⁱⁱⁱ	0.90 (4)	1.87 (4)	2.751 (3)	166 (4)
O5—H3W···Cl1^iv	0.90 (5)	2.37 (5)	3.247 (2)	166 (4)
O5—H4W···O4	0.95 (4)	1.84 (4)	2.758 (3)	162 (4)
C4—H4···O4^v	0.95	2.42	3.347 (3)	166
C6—H6A···Cl1^vi	0.98	2.82	3.495 (3)	127
C6—H6C···O3ⁱⁱⁱ	0.98	2.72	3.380 (3)	125
C7—H7B···O2ⁱⁱⁱ	0.99	2.59	3.530 (3)	159
C8—H8···Cl1	0.95	2.78	3.556 (2)	139
C11—H11···Cl1	0.95	2.64	3.555 (3)	162
C12—H12···O5^vii	0.95	2.57	3.439 (3)	152
C13—H13···O2^viii	0.95	2.45	3.351 (3)	159
C14—H14···Cl1^viii	0.95	2.89	3.810 (3)	163

Symmetry codes: (i) x, y−1, z; (ii) x+1/2, −y+1, z; (iii) x−1/2, −y+1, z; (iv) x+1, −y+3/2, z+1/2; (v) x−1/2, y−1/2, z−1/2; (vi) x+1/2, y−1/2, z+1/2; (vii) x−1/2, y+1/2, z−1/2; (viii) x, −y+3/2, z+1/2.

(E)-3-Hydroxy-5-(hydroxymethyl)-2-methyl-4-{[(pyrimidin-2-ylformamido)imino]methyl}pyridin-1-ium chloride dihydrate (II) top

Crystal data top

C₁₃H₁₄N₅O₃⁺·Cl⁻·2H₂O	Z = 2
M_r = 359.77	F(000) = 376
Triclinic, P1	D_x = 1.524 Mg m⁻³
a = 7.5854 (2) Å	Mo Kα radiation, λ = 0.71073 Å
b = 9.0709 (3) Å	Cell parameters from 4248 reflections
c = 11.4235 (3) Å	θ = 3.6–29.2°
α = 87.954 (2)°	µ = 0.28 mm⁻¹
β = 89.397 (2)°	T = 100 K
γ = 86.604 (3)°	Slab, colourless
V = 784.10 (4) Å³	0.04 × 0.04 × 0.01 mm

Data collection top

XtaLAB AFC12 (RCD3): Kappa single CCD diffractometer	3586 independent reflections
Radiation source: fine-focus sealed X-ray tube	3448 reflections with I > 2σ(I)
Graphite monochromator	R_int = 0.046
ω scans	θ_max = 27.5°, θ_min = 3.2°
Absorption correction: multi-scan (CrysAlisPro; Rigaku OD, 2015)	h = −9→9
T_min = 0.748, T_max = 1.000	k = −11→11
14113 measured reflections	l = −14→14

Refinement top

Refinement on F²	Primary atom site location: dual
Least-squares matrix: full	Hydrogen site location: mixed
R[F² > 2σ(F²)] = 0.088	H atoms treated by a mixture of independent and constrained refinement
wR(F²) = 0.137	w = 1/[σ²(F_o²) + (0.0136P)² + 1.6469P] where P = (F_o² + 2F_c²)/3
S = 1.43	(Δ/σ)_max < 0.001
3586 reflections	Δρ_max = 0.48 e Å⁻³
242 parameters	Δρ_min = −0.36 e Å⁻³
0 restraints

Special details top

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
C1	0.4725 (4)	0.4993 (3)	0.2266 (3)	0.0079 (6)
C2	0.4864 (4)	0.3444 (3)	0.2280 (3)	0.0079 (6)
C3	0.4072 (4)	0.2679 (3)	0.1399 (3)	0.0086 (6)
C4	0.2922 (4)	0.4970 (3)	0.0553 (3)	0.0084 (6)
H4	0.222538	0.546413	−0.004305	0.010*
C5	0.3692 (4)	0.5767 (3)	0.1391 (3)	0.0072 (6)
C6	0.4226 (4)	0.1037 (3)	0.1359 (3)	0.0126 (7)
H6A	0.391395	0.060692	0.212683	0.019*
H6B	0.544209	0.071156	0.115600	0.019*
H6C	0.342162	0.071263	0.076644	0.019*
C7	0.3392 (4)	0.7439 (3)	0.1395 (3)	0.0088 (6)
H7A	0.278121	0.772012	0.213111	0.011*
H7B	0.454829	0.789112	0.137262	0.011*
C8	0.5606 (4)	0.5814 (3)	0.3145 (3)	0.0094 (6)
H8	0.555226	0.686354	0.310129	0.011*
C9	0.8183 (4)	0.5209 (4)	0.5649 (3)	0.0093 (6)
C10	0.9064 (4)	0.6210 (3)	0.6448 (3)	0.0083 (6)
C11	0.9998 (4)	0.5607 (4)	0.7406 (3)	0.0098 (6)
H11	1.010912	0.456382	0.752455	0.012*
C12	1.0558 (4)	0.7921 (4)	0.7937 (3)	0.0128 (7)
H12	1.105845	0.857195	0.845754	0.015*
C13	0.9654 (4)	0.8515 (4)	0.6959 (3)	0.0118 (7)
H13	0.958466	0.955603	0.682057	0.014*
N1	0.3160 (4)	0.3485 (3)	0.0581 (2)	0.0089 (5)
H1N	0.271 (5)	0.302 (4)	0.010 (3)	0.011*
N2	0.6450 (3)	0.5108 (3)	0.3976 (2)	0.0090 (5)
N3	0.7292 (4)	0.5939 (3)	0.4756 (2)	0.0095 (5)
H2N	0.726 (5)	0.690 (4)	0.465 (3)	0.011*
N4	1.0745 (4)	0.6464 (3)	0.8167 (2)	0.0120 (6)
N5	0.8883 (4)	0.7665 (3)	0.6211 (2)	0.0106 (6)
O1	0.5713 (3)	0.2600 (3)	0.3110 (2)	0.0118 (5)
H1O	0.610 (5)	0.313 (4)	0.354 (3)	0.014*
O2	0.2376 (3)	0.8000 (2)	0.04339 (19)	0.0121 (5)
H2O	0.133 (5)	0.803 (4)	0.065 (3)	0.015*
O3	0.8257 (3)	0.3867 (2)	0.58106 (19)	0.0124 (5)
Cl1	0.15229 (10)	0.18625 (9)	−0.14370 (7)	0.01120 (19)
O4	0.6679 (3)	−0.1073 (3)	0.3922 (2)	0.0171 (5)
H1W	0.729 (5)	−0.097 (4)	0.330 (4)	0.020*
H2W	0.698 (5)	−0.044 (5)	0.435 (4)	0.020*
O5	0.7031 (4)	0.1000 (3)	0.5594 (2)	0.0207 (6)
H3W	0.735 (6)	0.188 (5)	0.557 (4)	0.025*
H4W	0.579 (6)	0.107 (4)	0.581 (4)	0.025*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
C1	0.0083 (15)	0.0092 (15)	0.0067 (14)	−0.0016 (12)	0.0012 (12)	−0.0031 (11)
C2	0.0080 (14)	0.0102 (15)	0.0055 (14)	0.0001 (12)	0.0011 (11)	−0.0001 (11)
C3	0.0070 (14)	0.0104 (15)	0.0084 (14)	−0.0005 (12)	0.0017 (12)	0.0001 (12)
C4	0.0087 (14)	0.0093 (15)	0.0077 (14)	−0.0035 (12)	−0.0012 (11)	−0.0008 (11)
C5	0.0079 (14)	0.0076 (14)	0.0061 (14)	0.0003 (12)	0.0029 (11)	0.0006 (11)
C6	0.0166 (17)	0.0093 (16)	0.0120 (16)	−0.0007 (13)	−0.0019 (13)	−0.0030 (12)
C7	0.0125 (15)	0.0062 (14)	0.0081 (14)	−0.0027 (12)	−0.0019 (12)	−0.0012 (11)
C8	0.0085 (15)	0.0099 (15)	0.0104 (15)	−0.0032 (12)	−0.0002 (12)	−0.0032 (12)
C9	0.0054 (14)	0.0150 (16)	0.0076 (14)	−0.0012 (12)	0.0014 (12)	−0.0026 (12)
C10	0.0087 (15)	0.0101 (15)	0.0064 (14)	−0.0012 (12)	0.0014 (11)	−0.0022 (11)
C11	0.0099 (15)	0.0106 (15)	0.0092 (15)	−0.0022 (12)	0.0005 (12)	−0.0038 (12)
C12	0.0111 (16)	0.0159 (17)	0.0122 (15)	−0.0055 (13)	0.0006 (13)	−0.0069 (13)
C13	0.0156 (16)	0.0088 (15)	0.0116 (15)	−0.0043 (13)	−0.0005 (13)	−0.0015 (12)
N1	0.0108 (13)	0.0103 (13)	0.0061 (12)	−0.0022 (10)	−0.0020 (10)	−0.0034 (10)
N2	0.0083 (13)	0.0116 (13)	0.0076 (12)	−0.0021 (10)	−0.0031 (10)	−0.0037 (10)
N3	0.0135 (14)	0.0095 (13)	0.0061 (12)	−0.0028 (11)	−0.0028 (10)	−0.0022 (10)
N4	0.0126 (14)	0.0159 (14)	0.0079 (13)	−0.0037 (11)	−0.0010 (11)	−0.0008 (11)
N5	0.0117 (13)	0.0120 (13)	0.0085 (13)	−0.0027 (11)	−0.0017 (10)	−0.0029 (10)
O1	0.0155 (12)	0.0098 (11)	0.0102 (11)	−0.0011 (9)	−0.0066 (9)	−0.0011 (9)
O2	0.0138 (12)	0.0134 (12)	0.0089 (11)	0.0005 (10)	−0.0052 (9)	0.0015 (9)
O3	0.0160 (12)	0.0097 (11)	0.0118 (11)	−0.0019 (9)	−0.0028 (9)	−0.0025 (9)
Cl1	0.0123 (4)	0.0120 (4)	0.0097 (3)	−0.0017 (3)	−0.0035 (3)	−0.0036 (3)
O4	0.0243 (14)	0.0148 (13)	0.0130 (12)	−0.0059 (11)	−0.0032 (11)	−0.0040 (10)
O5	0.0259 (15)	0.0126 (13)	0.0245 (14)	−0.0039 (11)	−0.0045 (11)	−0.0067 (10)

Geometric parameters (Å, º) top

C1—C2	1.402 (4)	C9—N3	1.360 (4)
C1—C5	1.417 (4)	C9—C10	1.500 (4)
C1—C8	1.461 (4)	C10—N5	1.337 (4)
C2—O1	1.343 (4)	C10—C11	1.388 (4)
C2—C3	1.403 (4)	C11—N4	1.339 (4)
C3—N1	1.339 (4)	C11—H11	0.9500
C3—C6	1.489 (4)	C12—N4	1.338 (4)
C4—N1	1.347 (4)	C12—C13	1.392 (5)
C4—C5	1.375 (4)	C12—H12	0.9500
C4—H4	0.9500	C13—N5	1.334 (4)
C5—C7	1.520 (4)	C13—H13	0.9500
C6—H6A	0.9800	N1—H1N	0.80 (4)
C6—H6B	0.9800	N2—N3	1.373 (4)
C6—H6C	0.9800	N3—H2N	0.87 (4)
C7—O2	1.410 (4)	O1—H1O	0.77 (4)
C7—H7A	0.9900	O2—H2O	0.83 (4)
C7—H7B	0.9900	O4—H1W	0.85 (4)
C8—N2	1.282 (4)	O4—H2W	0.81 (4)
C8—H8	0.9500	O5—H3W	0.85 (5)
C9—O3	1.223 (4)	O5—H4W	0.97 (4)

C2—C1—C5	119.1 (3)	C1—C8—H8	120.2
C2—C1—C8	121.1 (3)	O3—C9—N3	124.2 (3)
C5—C1—C8	119.8 (3)	O3—C9—C10	122.2 (3)
O1—C2—C1	124.1 (3)	N3—C9—C10	113.6 (3)
O1—C2—C3	115.7 (3)	N5—C10—C11	122.7 (3)
C1—C2—C3	120.2 (3)	N5—C10—C9	117.8 (3)
N1—C3—C2	117.3 (3)	C11—C10—C9	119.5 (3)
N1—C3—C6	120.5 (3)	N4—C11—C10	121.4 (3)
C2—C3—C6	122.2 (3)	N4—C11—H11	119.3
N1—C4—C5	119.8 (3)	C10—C11—H11	119.3
N1—C4—H4	120.1	N4—C12—C13	122.1 (3)
C5—C4—H4	120.1	N4—C12—H12	118.9
C4—C5—C1	118.6 (3)	C13—C12—H12	118.9
C4—C5—C7	120.5 (3)	N5—C13—C12	121.9 (3)
C1—C5—C7	120.9 (3)	N5—C13—H13	119.1
C3—C6—H6A	109.5	C12—C13—H13	119.1
C3—C6—H6B	109.5	C3—N1—C4	124.9 (3)
H6A—C6—H6B	109.5	C3—N1—H1N	115 (3)
C3—C6—H6C	109.5	C4—N1—H1N	120 (3)
H6A—C6—H6C	109.5	C8—N2—N3	116.8 (3)
H6B—C6—H6C	109.5	C9—N3—N2	117.6 (3)
O2—C7—C5	112.2 (2)	C9—N3—H2N	123 (2)
O2—C7—H7A	109.2	N2—N3—H2N	120 (2)
C5—C7—H7A	109.2	C12—N4—C11	116.1 (3)
O2—C7—H7B	109.2	C13—N5—C10	115.8 (3)
C5—C7—H7B	109.2	C2—O1—H1O	107 (3)
H7A—C7—H7B	107.9	C7—O2—H2O	107 (3)
N2—C8—C1	119.5 (3)	H1W—O4—H2W	105 (4)
N2—C8—H8	120.2	H3W—O5—H4W	106 (4)

C5—C1—C2—O1	−175.6 (3)	N3—C9—C10—N5	0.3 (4)
C8—C1—C2—O1	3.5 (5)	O3—C9—C10—C11	0.0 (5)
C5—C1—C2—C3	3.6 (4)	N3—C9—C10—C11	179.1 (3)
C8—C1—C2—C3	−177.2 (3)	N5—C10—C11—N4	1.4 (5)
O1—C2—C3—N1	177.6 (3)	C9—C10—C11—N4	−177.3 (3)
C1—C2—C3—N1	−1.7 (4)	N4—C12—C13—N5	1.8 (5)
O1—C2—C3—C6	−2.4 (4)	C2—C3—N1—C4	−1.2 (5)
C1—C2—C3—C6	178.3 (3)	C6—C3—N1—C4	178.9 (3)
N1—C4—C5—C1	0.1 (4)	C5—C4—N1—C3	2.0 (5)
N1—C4—C5—C7	−178.1 (3)	C1—C8—N2—N3	178.2 (3)
C2—C1—C5—C4	−2.8 (4)	O3—C9—N3—N2	−1.2 (5)
C8—C1—C5—C4	178.0 (3)	C10—C9—N3—N2	179.7 (2)
C2—C1—C5—C7	175.4 (3)	C8—N2—N3—C9	179.5 (3)
C8—C1—C5—C7	−3.7 (4)	C13—C12—N4—C11	−0.6 (5)
C4—C5—C7—O2	−3.6 (4)	C10—C11—N4—C12	−1.0 (4)
C1—C5—C7—O2	178.2 (3)	C12—C13—N5—C10	−1.3 (5)
C2—C1—C8—N2	−3.3 (5)	C11—C10—N5—C13	−0.3 (4)
C5—C1—C8—N2	175.8 (3)	C9—C10—N5—C13	178.5 (3)
O3—C9—C10—N5	−178.9 (3)

Hydrogen-bond geometry (Å, º) top

D—H···A	D—H	H···A	D···A	D—H···A
N1—H1N···Cl1	0.80 (4)	2.29 (4)	3.089 (3)	174 (4)
N3—H2N···O4ⁱ	0.87 (4)	2.02 (4)	2.854 (4)	160 (3)
O1—H1O···N2	0.77 (4)	1.92 (4)	2.606 (3)	149 (4)
O2—H2O···Cl1ⁱⁱ	0.83 (4)	2.33 (4)	3.157 (3)	175 (4)
O4—H1W···Cl1ⁱⁱⁱ	0.85 (4)	2.45 (4)	3.222 (3)	152 (4)
O4—H2W···O5	0.81 (4)	1.97 (4)	2.753 (4)	163 (4)
O5—H3W···O3	0.85 (5)	1.99 (5)	2.833 (3)	170 (4)
O5—H4W···O4^iv	0.97 (4)	1.89 (4)	2.859 (4)	173 (4)
C4—H4···N4^v	0.95	2.46	3.400 (4)	170
C8—H8···O4ⁱ	0.95	2.33	3.145 (4)	143
C11—H11···Cl1^vi	0.95	2.84	3.724 (3)	155
C12—H12···O2^vi	0.95	2.50	3.186 (4)	129

Symmetry codes: (i) x, y+1, z; (ii) −x, −y+1, −z; (iii) −x+1, −y, −z; (iv) −x+1, −y, −z+1; (v) x−1, y, z−1; (vi) x+1, y, z+1.

Hirshfeld fingerprint contact percentages for the cations in (I) and (II) top

Contact type	(I)	(II)
H···H	39.2	36.3
O···H/H···O	19.9	16.7
C···H/H···C	12.6	9.0
N···H/H···N	6.0	11.6
H···Cl	6.5	7.5
C···C	4.5	6.0
C···O/O···C	0.7	4.2
C···N/N···C	9.1	4.8
O···O	0.3	0.0
O···Cl/Cl···O	0.0	0.0

Key structural data for the cations in (I), (II) and related phases top

Compound	Space group	φ	ζ	N1	N3	O2
(I)	Ia	12.63 (12)	gauche	N_p	Cl^–	Cl^–
(II)	P1	6.11 (15)	anti	Cl^–	O_w	Cl^–
IGELOW	Cc	5.4	anti	Cl^–	Cl^–	O_w
PYPICZ	Cc	5.1	anti	Cl^–	Cl^–	O_w
VUYPOW	P1	7.6	anti	Cl^–	O_D	Cl^–
XARHUX	P2₁/c	3.5	anti	Cl^–	O_w	Cl^–

Acknowledgements

We thank the EPSRC National Crystallography Service (University of Southampton) for the X-ray data collections.

References

Back, D. F., Ballin, M. A. & de Oliveira, G. M. (2009). J. Mol. Struct. 935, 151–155. Web of Science CSD CrossRef CAS Google Scholar
Bartolić, M., Matošević, A., Maraković, N., Bušić, V., Roca, S., Vikić-Topić, D., Sabljić, A., Bosak, A. & Gašo-Sokač, D. (2024). J. Enzyme Inhib. Med. Chem. 39 Art. No 2431832 (14 pages). Google Scholar
Cardoso, L. N. F., Noguiera, T. C. M., Kaiser, C. R., Wardell, J. L., de Souza, M. V. N., Lancaster, S. T. & Harrison, W. T. A. (2016). Acta Cryst. E72, 1677–1682. CrossRef IUCr Journals Google Scholar
Casas, J. S., Couce, M. D. & Sordo, J. (2012). Coord. Chem. Rev. 256, 3036–3062. Web of Science CrossRef CAS Google Scholar
Chen, X., Li, H., Luo, H., Lin, Z. & Luo, W. (2019). Pharmacology 104, 244–257. Web of Science CrossRef CAS PubMed Google Scholar
Domiano, P., Musatti, A., Pelizzi, C. & Predieri, G. (1978). Cryst. Struct. Commun. 7, 751–754. CAS Google Scholar
Farrugia, L. J. (2012). J. Appl. Cryst. 45, 849–854. Web of Science CrossRef CAS IUCr Journals Google Scholar
Flack, H. D. (1983). Acta Cryst. A39, 876–881. CrossRef CAS Web of Science IUCr Journals Google Scholar
Gans, J. & Shalloway, D. (2001). J. Mol. Graph. Model. 19, 557–559. Web of Science CrossRef PubMed CAS Google Scholar
Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016). Acta Cryst. B72, 171–179. Web of Science CrossRef IUCr Journals Google Scholar
Gupta, S. (2022). Rev. Inorg. Chem. 42, 161–177. Web of Science CrossRef CAS Google Scholar
Low, J. N. (2021). CSD Communication (1944935). CCDC, Cambridge, England.CCDC No. Google Scholar
Mezey, R.-Ş., Máthé, I., Shova, S., Grecu, M.-N. & Roşu, T. (2015). Polyhedron 102, 684–692. Web of Science CSD CrossRef CAS Google Scholar
Muhamad, R., Akrivaki, A., Papagiannopoulou, G., Zavridis, P. & Zis, P. (2023). Nutrients 15, Art. No. 2823 (12 pages). Google Scholar
Nogueira, T. C. M., dos Santos Cruz, L., Lourenço, M. C. & de Souza, M. V. N. (2019). Lett. Drug. Des. & Discov. 16, 792–798. Web of Science CrossRef Google Scholar
Pawar, R., Chaudhran, P., Pandey, D. & Sharma, A. (2023). Curr. Top. Med. Chem. 23, 98–113. Web of Science CAS PubMed Google Scholar
Rigaku OD (2015). CrysAlis PRO Software system. Rigaku Corporation, Wroclaw, Poland. Google Scholar
Santos, A. J. M., Khemiri, S., Simo, S., Prista, C., Sousa, I. & Raymundo, A. (2023). Food Chem. 426 Art. No. 136606 (14 pages). Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Socea, L. I., Barbuceanu, S. F., Pahontu, E. M., Dumitru, A. C., Nitulescu, G. M., Sfetea, R. C. & Apostol, T. V. (2022). Molecules 27, Art. No. 8719 (38 pages). Web of Science CrossRef Google Scholar
Spackman, P. R., Turner, M. J., McKinnon, J. J., Wolff, S. K., Grimwood, D. J., Jayatilaka, D. & Spackman, M. A. (2021). J. Appl. Cryst. 54, 1006–1011. Web of Science CrossRef CAS IUCr Journals Google Scholar
Stach, K., Stach, W. & Augoff, K. (2021). Nutrients 13, Art. No. 3229 (11 pages). Web of Science CrossRef Google Scholar
Tan, S. L., Jotani, M. M. & Tiekink, E. R. T. (2019). Acta Cryst. E75, 308–318. Web of Science CrossRef IUCr Journals Google Scholar
Westrip, S. P. (2010). J. Appl. Cryst. 43, 920–925. Web of Science CrossRef CAS IUCr Journals Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 81| Part 10| October 2025| Pages 938-943

https://doi.org/10.1107/S2056989025007856

Open

access

Format		BIBTeX
		EndNote
		RefMan
		Refer
		Medline
		CIF
		SGML
		Plain Text
		Text

Format		BIBTeX
		EndNote
		RefMan
		Refer
		Medline
		CIF
		SGML
		Plain Text
		Text

Search IUCr Journals		doi		Advanced search
Author		volume	page

research communications\(\def\hfill{\hskip 5em}\def\hfil{\hskip 3em}\def\eqno#1{\hfil {#1}}\)

Different packing motifs mediated by hydrogen bonds in the hydro­chloride salts of two pyridoxal N-acyl­hydrazone derivatives

1. Chemical context

2. Structural commentary

3. Supra­molecular features

4. Database survey

5. Synthesis and crystallization

6. Refinement

Supporting information

Acknowledgements

References

research communications

Different packing motifs mediated by hydrogen bonds in the hydrochloride salts of two pyridoxal N-acylhydrazone derivatives

3. Supramolecular features
