Figure 3

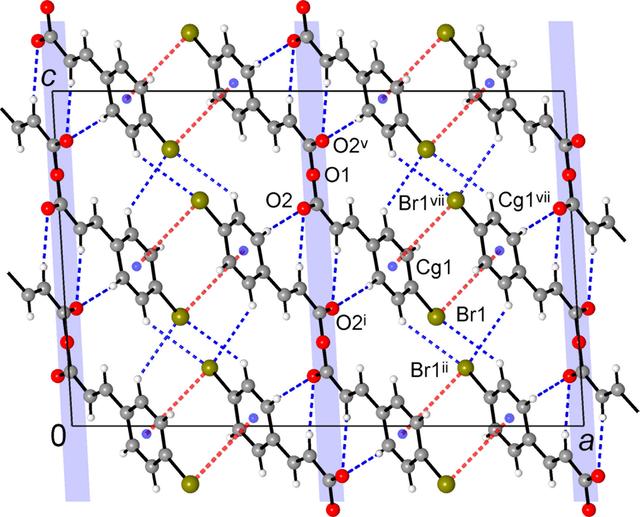

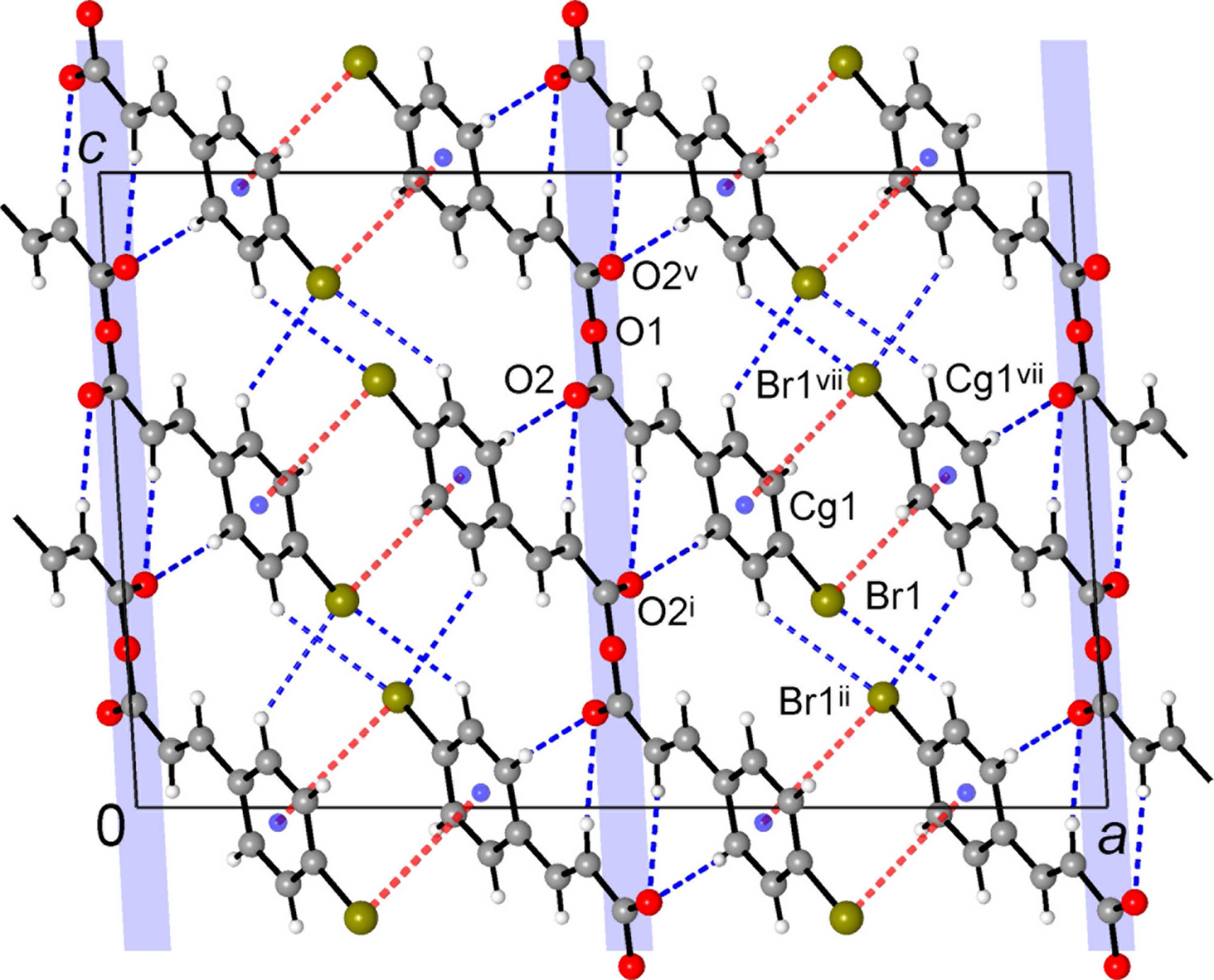

Projection of the structure in the ac-plane showing mutual inter­actions of C6H4Br groups and C—H⋯Br contacts between successive hydrogen- and O⋯π bonded layers (which are orthogonal to the drawing plane and are indicated by blue strips). [Symmetry codes: (i) −x + 1, −y, −z + 1; (ii) −x + [{3\over 2}], y − [{1\over 2}], −z + [{1\over 2}]; (v) −x + 1, y, −z + [{1\over 2}]; (vii) −x + [{3\over 2}], −z + [{3\over 2}], −z + 1.]
