A pentanuclear iridium(III) hydride cluster: aggregation of an iridium(I) precatalyst

Ben. J. Tickner,^a Richard J. Gammons,^b Carlos Platas-Iglesias,^c Adrian C. Whitwood ^b and Simon B. Duckett ^a ^*

^aCentre for Hyperpolarisation in Magnetic Resonance, University of York, Heslington, YO10 5NY, United Kingdom, ^bDepartment of Chemistry, University of York, Heslington, YO10 5DD, United Kingdom, and ^cCentro Interdisciplinar de Química e Bioloxía (CICA), Facultade de Ciencias, Universidade da Coruña, A Coruña, 15001, Spain
^*Correspondence e-mail: [email protected]

Edited by M. Weil, Vienna University of Technology, Austria (Received 3 July 2025; accepted 8 September 2025; online 16 September 2025)

The crystal structure of a unique pentanuclear Ir cluster, tetrakis[1,3-bis(2,4,6-trimethylphenyl)-1,3-dihydro-2H-imidazol-2-ylidene-κC²]carbonyldi-μ₃-hydrido-tetra-μ₂-hydrido-nonahydridopentairidium(III), [Ir₅(μ₃-H)₂(μ₂-H)₄H₉(C₂₁H₂₄N₂)₄(CO)], has been refined from X-ray data and supported by density functional theory (DFT) calculations. The five iridium(III) sites of the cluster form a trigonal–bipyramidal structure: three are located in the equatorial triangular plane and are capped by axial metal sites above and below the centre of this plane. Four of these iridium atoms are associated with an N-heterocyclic carbene ligand, and a fifth, which is located in the equatorial plane, is bonded to a CO ligand, which must come from the methanol solvent. The 15 hydride ligands in the cluster could not be located in electron-density difference maps and their locations were optimized by using DFT approaches to calculate the lowest energy structure. These methods revealed the presence of nine terminal, four μ₂-, and two μ₃-bridging hydrides, which unusually cap faces of three metal atoms. The cluster formed from reaction of an Ir^I precursor with H₂ and NaOMe base in methanol, and it likely reflects an example of a catalytic deactivation product when active Ir^III hydrogenation, isotope exchange, or signal amplification by reversible exchange (SABRE) catalysts aggregate in solution to form crystalline or other solid-state products.

Keywords: crystal structure; Ir clusters; polynuclear cluster; hydrides; catalysis; bridging hydride ligands.; crystal structure.

CCDC reference: 2486492

1. Chemical context

Polynuclear clusters can feature as key intermediates or deactivation products in metal-catalysed reactions. Notably, metallic clusters can be highly useful as they may display properties somewhere between single-site homogeneous systems and higher order nanoparticles (Tang & Zhao, 2020 ). Accordingly, their preparation and structural elucidation can further understanding of the role such species play in catalysis. In this work we describe a metal hydride cluster containing five iridium(III) atoms. This species is formed from the 16-electron iridium(I) precursor [IrCl(COD)(IMes)] (where COD is cis,cis-1,5-cyclooctadiene and IMes is 1,3-bis(2,4,6-trimethyl-phenyl)imidazol-2-ylidene), which is commonly used as a precatalyst for hydrogenation (Tickner et al., 2019 ), hydrogen isotope exchange (Cochrane et al., 2013 ; Timofeeva et al., 2020 ; Kerr et al., 2021 ), and the signal amplification by reversible exchange (SABRE) hyperpolarization method (Cowley et al., 2011 ). In these cases, active catalysts are usually based on mononuclear Ir sites, although reactions of [IrCl(COD)(IMes)] with H₂ and various ligands can lead to dimeric Ir byproducts (Tickner & Zhivonitko, 2022 ). In some processes, such as hydrogen isotope exchange, dimeric Ir species have been indicated to exhibit catalytic activity and play a role in the overall catalysis (Tickner et al., 2025 ). However, in many examples utilising this Ir^I precursor, aggregation of the resultant {Ir^IIIH₂} units can lead to a decrease in general catalytic efficiency over time, particularly in cases where [IrCl(COD)(IMes)] is used as a SABRE catalyst (Tickner & Zhivonitko, 2022). In fact, [IrCl(COD)(IMes)] has been reported to aggregate into trinuclear and tetranuclear species upon its reaction with NaOMe and H₂ in methanol (Tickner et al., 2024 ), and these catalytically inactive products likely form during routine SABRE catalysis as low concentration byproducts. To this end, we were able to extend these observations further by the preparation and growth of single crystals of a higher order pentanuclear Ir cluster, which were examined using X-ray diffraction studies and were formed from the reaction of an Ir^I precatalyst with a base in methanol.

2. Structural commentary

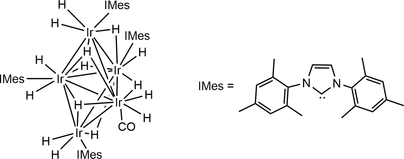

The molecular structure of the title compound, [Ir₅(μ₃-H)₂(μ₂-H)₄(H)₉(CO)(C₂₁H₂₄N₂)₄] where C₂₁H₂₄N₂ is the N-heterocyclic carbene ligand IMes, is displayed in Fig. 1. The metallic core adopts a trigonal–bipyramidal shape consisting of three metal sites in the equatorial plane (Ir1, Ir3, Ir4), capped with iridium sites above and below the equatorial plane (Ir2, Ir5) (Fig. 2). Four of these five Ir atoms are ligated by the N-heterocyclic carbene IMes (Ir1, Ir2, Ir4, Ir5). However, one iridium site (Ir3) is bound to a CO ligand and its location in the equatorial plane is likely related to steric constraints associated with fitting three {Ir(IMes)} units in the same equatorial plane. Placing a sterically costly {Ir(IMes)} unit in the axial sites is likely favoured compared to the equatorial sites, as when in the axial position these ligands largely point away from the rest of the cluster. The presence of a CO ligand within this cluster is unanticipated given that it has not been prepared in the presence of carbon monoxide. The source of this ligand is likely solvent methanol, which can decompose to form CO and dihydrogen. It is noteworthy that we are not aware of any reports of single site IrI or Ir^III-catalysed methanol decomposition to CO, and this reaction has not been observed in many other examples where dimeric (or even up to tetrameric) Ir clusters are present as byproducts (Tickner et al., 2024; Tickner & Zhivonitko, 2022). However, it has been reported to occur on heterogeneous iridium surfaces (Wang et al., 2013 ; Weststrate et al., 2007 ). The presence of CO in the cluster reported here suggests the cluster could have novel catalytic properties intermediate between single-site catalysts and the larger solid supported systems that are typically used for methanol decomposition (Chen et al., 2019 ; Matsumura et al., 1998 , 2000 ; Ranaweera et al., 2017 ; Shen & Matsumura, 2000 ).

Figure 1
The molecular structure of [Ir₅(μ₃-H)₂(μ₂-H)₄(H)₉(CO)(IMes)₄], with displacement ellipsoids given at the 50% probability level. Note that non-hydride hydrogen atoms are omitted for clarity.

Figure 2
Pentanuclear core of [Ir₅(μ₃-H)₂(μ₂-H)₄(H)₉(CO)(IMes)₄], with displacement ellipsoids given at the 50% probability level. Note that only the carbene carbon atoms of the NHC ligands are shown.

The axial Ir sites (Ir2, Ir5), and two within the trigonal plane (Ir1, Ir3) are each associated with two terminal hydride ligands. The two NHC-bound Ir sites within this equatorial plane (Ir1, Ir4) are distinct as one only (Ir4) contains one terminal hydride. Accordingly, the whole cluster has a pseudo-mirror plane running through the three equatorial Ir sites, but no perpendicular symmetry planes due to the different arrangement of the hydride ligands on effectively inequivalent Ir sites. The four μ₂ hydrides bridge adjacent Ir–Ir pairs, two of which are between Ir sites within the equatorial plane and the remaining two link equatorial and axial Ir sites. Two of the 15 hydrides in the cluster cap three Ir sites, with these two μ₃-bridging hydrides both capping the same two equatorial Ir atoms but different axial sites.

The bond lengths between the atoms within the pentanuclear core, and the ligands directly bound to them, are shown in Table 1. The nine Ir—Ir distances range from 2.8438 (3) to 3.0067 (3) Å. As the atomic radius of iridium is 1.36 Å (Van Zon et al., 1993 ; Kirschen et al., 1995 ) these distances are comparable to the sum of the atomic radii of adjacent Ir sites. Therefore, metallophilic interactions are likely to play a large role in the bonding within the cluster (Sculfort & Braunstein, 2011 ). The Ir—CO bond length is shorter [1.752 (6) Å] compared to the Ir—C(IMes) bond lengths [>1.950 (5) Å] and is likely related to electronic and steric factors. Of the metal–hydride interactions, terminal Ir—H bonds are generally shorter whereas hydrides spanning more than one metal tend to have longer metal–hydride distances.

Table 1
Key bond lengths (Å) within the title compound

Bond type	Atom	Atom	Length determined by X-ray study	Length predicted by DFT study
Metal–Metal	Ir1	Ir3	3.0067 (3)	2.849
	Ir1	Ir4	2.9936 (3)	2.995
	Ir1	Ir5	2.9838 (3)	3.159
	Ir1	Ir2	2.9682 (3)	3.240
	Ir4	Ir5	2.9310 (3)	2.957
	Ir2	Ir4	2.9295 (3)	2.926
	Ir3	Ir5	2.9277 (3)	2.847
	Ir2	Ir3	2.9192 (3)	2.854
	Ir3	Ir4	2.8438 (3)	2.894
Metal–IMes	Ir1	C1	2.056 (5)	2.007
	Ir4	C44	2.007 (5)	2.003
	Ir5	C22	1.974 (5)	1.940
	Ir2	C65	1.950 (5)	1.944
Metal–CO	Ir3	C97	1.750 (6)	1.846
Metal–μ3 hydride	Ir3	HA	1.891	1.894
Metal–μ2 hydride	Ir5	HK	1.889	1.862
Metal–μ3 hydride	Ir3	H	1.889	1.895
Metal–μ3 hydride	Ir2	HA	1.888	1.901
Metal–μ3 hydride	Ir5	H	1.884	1.880
Metal–μ3 hydride	Ir1	HA	1.883	1.965
Metal–μ2 hydride	Ir2	HA	1.882	1.911
Metal–μ3 hydride	Ir1	H	1.879	1.930
Metal–μ2 hydride	Ir3	HH	1.754	1.761
Metal–μ2 hydride	Ir1	HB	1.748	1.739
Metal–μ2 hydride	Ir4	HB	1.742	1.778
Metal–μ2 hydride	Ir4	HG	1.706	1.707
Metal–μ2 hydride	Ir4	HK	1.702	1.712
Metal–μ2 hydride	Ir4	HH	1.697	1.698
Metal–μ1 hydride	Ir3	HJ	1.661	1.894
Metal–μ1 hydride	Ir3	HI	1.660	1.586
Metal–μ1 hydride	Ir4	HL	1.596	1.597
Metal–μ1 hydride	Ir5	HN	1.590	1.592
Metal–μ1 hydride	Ir2	HE	1.582	1.578
Metal–μ1 hydride	Ir1	HC	1.564	1.576
Metal–μ1 hydride	Ir1	HD	1.562	1.559
Metal–μ1 hydride	Ir2	HF	1.535	1.535
Metal–μ1 hydride	Ir5	HM	1.527	1.534

3. Supramolecular features

The crystal does not contain any solvent-filled voids, or solvent of crystallization. Long-range interactions between the molecules of [Ir₅(μ₃-H)₂(μ₂-H)₄(H)₉(CO)(IMes)₄] involve interactions between the IMes ligands on adjacent molecules. The shortest of these is a 2.294 Å interaction between two hydrogen atoms on terminal mesityl methyl groups between different IMes ligands (H30C and H61B). A similar 2.273 Å interaction exists between an imidazole CH hydrogen atom within the IMes ligand and a hydrogen atom on the meta CH₃ group of the mesityl ring of a different IMes (H67 and H34A). Interactions between the IMes ligands on different molecules play a role in the crystal packing, but there do not seem to be many π-stacking interactions. Instead, the terminal methyl groups of IMes ligands sit above the plane of a mesityl ring on another IMes ligand, rather than the two rings being in parallel planes. This is evidenced by an almost perpendicular 88.09° angle between the C25, C26, C28, C29, C32, C33 mesityl plane on one IMes and the C56, C57, C59, C60, C62, C63 mesityl plane on an adjacent IMes and a short 2.357 (5) Å distance between a terminal methyl H atom on IMes (H30C) and the C56, C57, C59, C60, C62, C63 mesityl plane. The crystal packing is shown in Fig. 3.

Figure 3
Crystal packing of [Ir₅(μ₃-H)₂(μ₂-H)₄(H)₉(CO)(IMes)₄], shown along the crystallographic b axis. Displacement ellipsoids are given at the 50% probability level and hydrogen atoms are omitted for clarity.

4. Database survey

A search of the Cambridge Structure Database (CSD, Version 5.45, update November 2023; Groom et al., 2016 ) revealed crystal structures for a range of other iridium clusters, several of which contain a higher number of iridium sites, i.e. greater than the five observed in the cluster reported here (Adams et al., 2005 ; Della Pergola et al., 1990 , 1998 ; Pierpont et al., 1978 ; Pergola et al., 1999 ). However, these typically contain CO and/or phosphine ligands with CO often acting as a bridging ligand. Iridium hydride clusters are rarer and examples of them typically involve fewer Ir sites, four or fewer (Xu et al., 2009 ; Tickner et al., 2024; Tang et al., 2011 ). The crystal presented here reflects an interesting example bridging these extremes as it is predominantly an iridium hydride cluster, with a high number of metal atoms. The majority of these metal–hydride clusters contain terminal, or μ₂-bridging hydrides. The cluster reported herein provides an unusual example containing two μ₃-bridging hydrides. Structures containing hydrides spanning three metal atoms have been reported before, but examples are rare (Ferrer et al., 1992 ; Andrews et al., 1980 ).

An analysis of 35 Ir—Ir bond lengths for similar Ir^III–IMes hydride dimers, trimers, and tetramers revealed an average Ir—Ir distance of 2.77 ± 0.16 Å (mean ± standard deviation), which is comparable to the average Ir—Ir distances in the pentanuclear cluster described here (2.94 ± 0.05 Å). The average Ir—IMes bond length in the title compound is 2.00 ± 0.05 Å and is consistent with other Ir^III—IMes bond lengths in related crystal structures (2.02 ± 0.05 Å, n = 61). The shape of the Ir₅ core in [Ir₅(H)₁₅(CO)(IMes)₄] consists of an equatorial Ir₃ plane, with axial Ir sites above and below this plane. It is closely related to that of a similar [Ir₃(H)₉(IMes)₃] cluster in which three core Ir atoms are in a trigonal–planar shape. The related tetrameric butterfly cluster [Ir₄(H)₁₂(IMes)₄] has also been reported consisting of two fused trigonal Ir₃ units along a shared Ir—Ir axis (Fig. 4). Both these trimeric and tetrameric Ir clusters have been reported to form from the same reaction of [IrCl(COD)(IMes)] with NaOMe in methanol as used here (Tickner et al., 2024). These clusters could be important precursors to the formation of higher order Ir aggregates, such as nanoparticles. Formation of these deactivation products is likely linked to a drop in catalytic performance as a function of reaction time when Ir^I precursors are used for hydrogenation or SABRE (Tickner et al., 2019, 2020 ).

Figure 4
Similarity of [Ir₅(H)₁₅(CO)(IMes)₄] (shown in c) to other reported (a) Ir₃ and (b) Ir₄ clusters (Tickner et al., 2024

). All of these closely related clusters are formed from reaction of the Ir(I) precursor [IrCl(COD)(IMes)] with NaOMe and H₂ in methanol. Displacement ellipsoids are given at the 50% probability level and only the carbene carbon atoms of the NHC ligands are shown.

5. Synthesis and crystallization

The pentanuclear Ir cluster was obtained by reaction of [Ir(Cl)(COD)(IMes)] (2.00 mg) with a solution of NaOMe (7.2 µl of a 25% w/w solution of NaOMe in methanol) and H₂ (3 bar) in methanol-d₄ (0.6 ml) for several days at room temperature (ca 291 K) in a 5 mm NMR tube with a J. Youngs tap. All reagents were added to the NMR tube before it was degassed using three freeze–pump–thaw cycles on a high vacuum line. Hydrogen gas was then added by connecting a hydrogen cylinder with a regulator to the high vacuum line and opening the lid of the NMR tube. The tube was vigorously shaken to dissolve the hydrogen gas. After reaction for several days at room temperature, the solution was cooled to 278 K in a fridge for several weeks to form single crystals, which were found by X-ray diffraction to be the title compound. Under these conditions, we found crystallization of the title compound to be extremely challenging, and crystals of the title compound formed in a small percentage of samples prepared in this way. Note that the crystals prepared as described can be [Ir₃(H)₉(IMes)₃] or [Ir₄(H)₁₂(IMes)₄], with crystallization of the former more likely. More details about these other products, their formation, and this reaction, have been reported elsewhere (Tickner et al., 2024).

6. Refinement and accompanying DFT calculations

Crystal data, data collection and structure refinement details are summarized in Table 2. All iridium atoms were confirmed to be in a +III oxidation state from the Ir—IMes bond lengths (see section 4), which confirmed that there must be 15 hydride ligands. These could not be located by electron-density difference maps and, therefore, density functional theory (DFT) calculations were performed to obtain the lowest energy shape of the cluster. The shape of the cluster was optimized using the Gaussian 16 program package (Frisch et al., 2016 ) and the wB97XD functional (Chai & Head-Gordon, 2008 ). A polarized basis set with double-ζ quality (Def2-SVP) was employed for all atoms except Ir. For the latter, a relativistic effective core potential that includes 60 electrons in the core (ECP60MDF) was used, in combination with the ECP60MDF_VTZ valence basis set (Figgen et al., 2009 ). An ultrafine integration grid was used throughout. The DFT-calculated lowest energy shape revealed average Ir—Ir bond lengths of 2.969 ± 0.142 Å, which are broadly consistent with those refined on the basis of X-ray data (2.944 ± 0.05 Å). DFT-calculated bond lengths within the pentanuclear core are comparable to those within the crystal structure and differ by less than 6% (Fig. 5). The exception is the Ir1—Ir2 bond length, which is predicted by DFT to be longer [3.240 Å compared to 2.9682 (3) Å, reflecting a 9% difference)] The bond lengths for the DFT-calculated structure are given in Table 1 for comparison. Accordingly, the hydride ligands were initially placed on basis of the DFT-optimized structure, and were then included in the model. The hydride locations gave Ir—H bond lengths within 4% of the DFT predicted values. For final refinement, DFIX commands were used to restrain Ir—H bond lengths to be meaningful; the U_iso parameter of some of the hydride H atoms were refined freely and some were fixed at 0.04 or 0.05 Å². We note that this placement is also consistent with hydride sites in analogous trimeric and tetrameric Ir hydride clusters (Fig. 4) and generally gives an octahedral, or distorted octahedral, shape around each Ir atom. C-bound H atoms were refined with a riding model. Mesityl group atoms C30:C31, C29A:C29B, C28A:C28B, C32A:C32B are disordered over two sets of sites (refined ratio 0.57:0.43); the ADPs of these equivalent atoms were constrained to be equal.

Table 2
Experimental details

Crystal data
Chemical formula	[Ir₅H₁₅(C₂₁H₂₄N₂)₄(CO)]
M_r	2221.81
Crystal system, space group	Monoclinic, P2₁/c
Temperature (K)	110
a, b, c (Å)	16.9589 (2), 15.7640 (2), 29.5834 (3)
β (°)	94.602 (1)
V (Å³)	7883.33 (16)
Z	4
Radiation type	Cu Kα
μ (mm⁻¹)	16.31
Crystal size (mm)	0.09 × 0.07 × 0.05

Data collection
Diffractometer	Oxford Diffraction Supernova
Absorption correction	Gaussian (CrysAlis PRO; Rigaku OD, 2020 )
T_min, T_max	0.918, 1.000
No. of measured, independent and observed [I > 2σ(I)] reflections	58807, 14393, 12837
R_int	0.034
(sin θ/λ)_max (Å⁻¹)	0.602

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.028, 0.074, 1.04
No. of reflections	14393
No. of parameters	985
No. of restraints	36
H-atom treatment	H atoms treated by a mixture of independent and constrained refinement
Δρ_max, Δρ_min (e Å⁻³)	3.41, −1.38
Computer programs: CrysAlis PRO (Rigaku OD, 2020), SHELXL2018/3 (Sheldrick, 2015a ), SHELXL2018/3 (Sheldrick, 2015b ), OLEX2 (Dolomanov et al., 2009 ) and publCIF (Westrip, 2010 ).

Figure 5
Comparison of bond lengths for [Ir₅(H)₁₅(CO)(IMes)₄] determined from X-ray crystallography and density functional theory.

Supporting information

CCDC reference: 2486492

Crystal structure: contains datablock I. DOI: https://doi.org/10.1107/S2056989025008023/wm5764sup1.cif
