5-Cyclo­hexyl-1,3-diphenyl-1,3,5-di­aza­phosphinane, its phosphine oxide, and its [NiCl2L2] complex

Esjornson, D.; Anderson, D.; Vo, J.; Krause, J.A.; Hubin, T.J.; Oliver, A.G.

doi:10.1107/S2056989025010011

research communications

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 81| Part 12| December 2025| Pages 1144-1148

https://doi.org/10.1107/S2056989025010011

Open

access

5-Cyclohexyl-1,3-diphenyl-1,3,5-diazaphosphinane, its phosphine oxide, and its [NiCl₂L₂] complex

David Esjornson,^a ‡ Denise Anderson,^a Jessica Vo,^a Jeanette A. Krause,^b Timothy J. Hubin ^a and Allen G. Oliver ^c ^*

^aDepartment of Chemistry and Physics, Southwestern Oklahoma State University, Weatherford, OK 73096, USA, ^bDepartment of Chemistry, University of Cincinnati, Cincinnati, OH 45221, USA, and ^cDepartment of Chemistry and Biochemistry, University of Notre Dame, Notre Dame, IN 46556, USA
^*Correspondence e-mail: [email protected]

Edited by S. P. Kelley, University of Missouri-Columbia, USA (Received 21 October 2025; accepted 10 November 2025; online 14 December 2025)

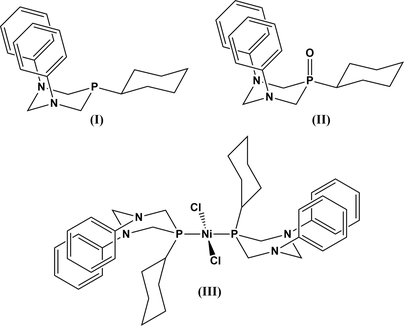

The crystal structures of 5-cyclohexyl-1,3-diphenyl-1,3,5-diazaphosphinane, C₂₁H₂₇N₂P, and its oxidized phosphine oxide, 5-cyclohexyl-1,3-diphenyl-1,3,5-diazaphosphinan-5-one, C₂₁H₂₇N₂OP, have primitive monoclinic symmetry (both in space group P2₁/m) at 150 K. The nickel(II) complex trans-dichloridobis(5-cyclohexyl-1,3-diphenyl-1,3,5-diazaphosphinane-κP)nickel(II), [NiCl₂(C₂₁H₂₇N₂P)₂], consists of two diazaphosphinane ligands (monoclinic C2/c, 150 K) bound through their phosphorous atoms, which adopts a four-coordinate square-planar geometry. The bulky cyclohexyl substituents of the ligand are axially positioned in their respective chair six-membered ligand rings, and are in an anti-configuration, with respect to the square plane. The nickel atom is located on a center of symmetry.

Keywords: crystal structure; phosphazine; nickel complex.

CCDC references: 2501742; 2501741; 2501740

1. Chemical context

Tri-substituted six-membered NPN heterocycles are known and generally require a substituent on the phosphorous atom for stability. The best characterized is 1,3,5-triphenyl-1,3,5-diazaphosphinane, which has been known since 1979 (Arbuzov et al., 1979 ). Relevant papers detail the original synthesis (Arbuzov et al., 1979), an additional synthetic route (Maerkl & Yu, 1981 ), its oxidation to the phosphine oxide (Arbuzov et al., 1980 ), axial/equatorial conformational equilibria of its phenyl substitutents (Arbuzov et al., 1981 ), and its complexation with transition-metal ions (Karasik et al., 1993 , 1996a ,b ; Khadiullin et al., 1993 ; Pisarevskii et al., 1995 ). An additional six-membered NPN ligand, 1,3-dicyclohexyl-5-phenyl-1,3,5-diazaphosphinane, has been reported (Karsch et al., 1997 ) with two cyclohexyl groups on the two nitrogen atoms, and a phenyl substituent on the phosphorous. However, it is not structurally characterized.

In an attempt to diversify this family of compounds, we were able to produce a new six-membered NPN ligand, 5-cyclohexyl-1,3-diphenyl-1,3,5-diazaphosphinane (I). We found that the phosphine was air sensitive in the presence of nickel(II) and air, and it could be oxidized to its phosphine oxide (II), which has also been structurally characterized. However, further attempts to produce this phosphine oxide by independent, intentional air oxidation of (I) have not been successful in our hands. The original phosphine was deemed likely to be a good ligand for transition metals, as evidenced by the other members of the ligand family (Karasik et al., 1993, 1996a,b; Khadiullin et al., 1993). We successfully produced a trans, square-planar nickel(II) complex containing two of the ligands, compound (III). The structural details of these compounds will be disclosed and discussed below.

2. Structural commentary

5-Cyclohexyl-1,3-diphenyl-1,3,5-diazaphosphinane, (I) (Fig. 1), is a rare example of the ligand-only structurally characterized six-membered NPN heterocycle. Most of the similar known diazaphosphinane ligands also incorporate benzyl or larger substituents bonded to the N and P atoms. Its main ring and the cyclohexyl group are both found in chair conformations with each ring equatorially located on the other. The unique phenyl group is oriented in an axial fashion on the nitrogen atom. The molecule is located on the crystallographic mirror plane at (x, 0.25, z) with C2, P1, C3 and C6 located on the plane. The bond angles about the phosphorus are all smaller than an ideal tetrahedral angle (Table 1). In contrast, the angles about the unique nitrogen atom are more relaxed and tend to a more obtuse angle (Table 1).

Table 1
Selected geometric parameters (Å, °) for (I)

P1—C3	1.862 (3)	N1—C7	1.403 (3)
P1—C1ⁱ	1.888 (2)	N1—C2	1.466 (3)
P1—C1	1.888 (2)	N1—C1	1.470 (3)

C3—P1—C1ⁱ	98.94 (11)	C7—N1—C2	120.8 (2)
C3—P1—C1	98.94 (11)	C7—N1—C1	120.5 (2)
C1ⁱ—P1—C1	92.49 (16)	C2—N1—C1	111.7 (2)
Symmetry code: (i) $[x, -y+{\script{1\over 2}}, z]$ .

Figure 1
The labeling scheme for 5-cyclohexyl-1,3-diphenyl-1,3,5-diazaphosphinane (I). Atomic displacement ellipsoids shown at 50% probability and hydrogen atoms as spheres of an arbitrary radius. Symmetry code: (i) x, −y + $[{1\over 2}]$ , z.

5-Cyclohexyl-1,3-diphenyl-1,3,5-diazaphosphinan-5-one, (II) (Fig. 2), maintains much of the same geometry, and can be described in similar terms, except for the added P=O double bond. It too resides on the mirror plane at (x, 0.75, z) that bisects the molecule through C2, P1, O1, C3, and C6. The bond angles about the phosphorus atom have increased compared with those in the unoxidized form (Table 2). Surprisingly, the C1—P—C1ⁱ angle is still more acute than an ideal tetrahedral angle, although it has changed significantly compared with the parent (I) [symmetry code: (i) x, −y + $[{3\over 2}]$ , z].

Table 2
Selected geometric parameters (Å, °) for (II)

P1—O1	1.4924 (13)	N1—C7	1.3999 (15)
P1—C3	1.8114 (17)	N1—C1	1.4609 (15)
P1—C1ⁱ	1.8309 (12)	N1—C2	1.4615 (14)
P1—C1	1.8309 (12)

O1—P1—C3	114.82 (8)	C1ⁱ—P1—C1	98.38 (8)
O1—P1—C1ⁱ	115.28 (5)	C7—N1—C1	121.28 (10)
C3—P1—C1ⁱ	105.65 (5)	C7—N1—C2	121.71 (11)
O1—P1—C1	115.28 (5)	C1—N1—C2	111.95 (11)
C3—P1—C1	105.65 (5)
Symmetry code: (i) $[x, -y+{\script{3\over 2}}, z]$ .

Figure 2
The labeling scheme for 5-cyclohexyl-1,3-diphenyl-1,3,5-diazaphosphinan-5-one (II). Atomic displacement ellipsoids shown at 50% probability and hydrogen atoms as spheres of an arbitrary radius. Symmetry code: (i) x, −y + $[{3\over 2}]$ , z.

The coordination complex, trans-dichloro-bis(5-cyclohexyl-1,3-diphenyl-1,3,5-diazaphosphinan-5-yl)-nickel(II), (III) (Fig. 3), contains a square-planar nickel(II) ion with two trans 5-cyclohexyl-1,3-diphenyl-1,3,5-diazaphosphinane (I) ligands, coordinated via the phosphorus atom and two trans chloro ligands. The nickel atom is located on a center of symmetry (0.75, 0.25, 0.5). The coordination geometry around nickel is nearly perfectly square planar, with all cis-bond angles close to 90° (Table 3). Notably, the six-membered heterocyclic ring is ring-flipped compared with the free ligand structure, because the cyclohexyl substituent is now in an axial position (rather than equatorial in the free ligand) and the phenyl substituents are in equatorial positions (rather than axial in the free ligand). Axial/equatorial conformational equilibria of its phenyl substituents in related NPN heterocycle 1,3,5-triphenyl-1,3,5-diazaphosphinane have previously been described (Arbuzov et al., 1981). As noted below in the Database survey, similar triphenyl ligands are able to bind in a cis fashion to Mo⁰, Pt^II, and Pd^II (Karasik et al., 1993, 1996b; Pisarevskii et al., 1995). The bulkier cyclohexyl substituent on the phosphorous atom likely contributes to the need for trans coordination in the case of (III). Additionally, this steric bulk requires an axial orientation of the cyclohexyl group in order to coordinate to the nickel(II) center. Finally, the two cyclohexyl groups from the two heterocyclic ligands are found in a necessarily anti-configuration about the square plane, enforced by the center of symmetry, and likely due to their steric bulk.

Table 3
Selected geometric parameters (Å, °) for (III)

Ni1—Cl1ⁱ	2.1736 (8)	P1—C1	1.829 (3)
Ni1—Cl1	2.1736 (8)	P1—C3	1.841 (3)
Ni1—P1	2.2138 (8)	P1—C4	1.841 (3)
Ni1—P1ⁱ	2.2138 (8)

Cl1ⁱ—Ni1—Cl1	180.0	C1—P1—C3	97.82 (14)
Cl1ⁱ—Ni1—P1	90.03 (3)	C1—P1—C4	105.16 (14)
Cl1—Ni1—P1	89.97 (3)	C3—P1—C4	108.38 (14)
Cl1ⁱ—Ni1—P1ⁱ	89.97 (3)	C1—P1—Ni1	116.88 (10)
Cl1—Ni1—P1ⁱ	90.03 (3)	C3—P1—Ni1	115.44 (10)
P1—Ni1—P1ⁱ	180.0	C4—P1—Ni1	111.83 (10)
Symmetry code: (i) $[-x+{\script{3\over 2}}, -y+{\script{1\over 2}}, -z+1]$ .

Figure 3
The labeling scheme for the complex trans-dichlorobis(5-cyclohexyl-1,3-diphenyl-1,3,5-diazaphosphinan-5-yl)nickel(II) (III). Atomic displacement ellipsoids shown at 50% probability and hydrogen atoms as spheres of an arbitrary radius. Symmetry code: (i) −x + $[{3\over 2}]$ , −y + $[{1\over 2}]$ , −z + 1.

3. Supramolecular features

The packing of compound (I) is solely influenced by van de Waals interactions. The lack of directional electropositive coupled with electronegative elements in the structure enforces this. Although (II) has been oxidized and includes a potential hydrogen-bond acceptor (O1), there are no hydrogen-bond donor atoms in the molecule. Thus, the only intermolecular interactions for (II) are through van der Waals contacts. Compounds (I) and (II) are essentially isostructural with very similar cell parameters (Table 4) and an identical packing motif, despite the presence of the additional oxygen atom in (II). Similarly, despite being coordinated to a metal center that also contains chlorine atoms, compound (III) contains no strong, electropositive groups and the extended structure is again dictated by van der Waals interactions.

Table 4
Experimental details

	(I)	(II)	(III)
Crystal data
Chemical formula	C₂₁H₂₇N₂P	C₂₁H₂₇N₂OP	[NiCl₂(C₂₁H₂₇N₂P)₂]
M_r	338.41	354.41	806.44
Crystal system, space group	Monoclinic, P2₁/m	Monoclinic, P2₁/m	Monoclinic, C2/c
Temperature (K)	150	150	150
a, b, c (Å)	5.3767 (17), 14.082 (4), 12.165 (4)	5.2996 (3), 14.1195 (7), 12.0711 (6)	23.5711 (15), 10.0062 (6), 17.8428 (10)
β (°)	98.560 (6)	96.736 (2)	109.371 (3)
V (Å³)	910.8 (5)	897.02 (8)	3970.1 (4)
Z	2	2	4
Radiation type	Synchrotron, λ = 1.0333 Å	Synchrotron, λ = 0.7288 Å	Synchrotron, λ = 0.7288 Å
μ (mm⁻¹)	0.42	0.17	0.79
Crystal size (mm)	0.08 × 0.04 × 0.02	0.04 × 0.03 × 0.01	0.06 × 0.04 × 0.04

Data collection
Diffractometer	Bruker D8	Bruker D8	Bruker D8
Absorption correction	Multi-scan (SADABS; Krause et al., 2015 )	Multi-scan (SADABS; Krause et al., 2015)	Multi-scan (SADABS; Krause et al., 2015)
T_min, T_max	0.508, 0.748	0.696, 0.746	0.690, 0.746
No. of measured, independent and observed [I > 2σ(I)] reflections	6147, 1903, 1469	24018, 2313, 1956	36108, 4383, 3341
R_int	0.078	0.047	0.103
(sin θ/λ)_max (Å⁻¹)	0.624	0.667	0.642

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.060, 0.160, 1.11	0.034, 0.087, 1.03	0.056, 0.101, 1.07
No. of reflections	1903	2313	4383
No. of parameters	115	121	232
H-atom treatment	H-atom parameters constrained	H-atom parameters constrained	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.36, −0.55	0.32, −0.37	0.37, −0.41
Computer programs: APEX3 and SAINT (Bruker, 2019), SHELXT2018/2 (Sheldrick, 2015a), SHELXL2019/3 (Sheldrick, 2015b), Mercury (Macrae et al., 2020 ) and publCIF (Westrip, 2010 ).

4. Database survey

No structures of the published similar ligands, 1,3,5-triphenyl-1,3,5-diazaphosphinane and 1,3-dicyclohexyl-5-phenyl-1,3,5-diazaphosphinane, nor of their phosphine oxides were found in the CSD v2025.2.0, Aug 2025 update; Groom et al., 2016 ). However, four different transition-metal complexes of 1,3,5-triphenyl-1,3,5-diazaphosphinane have been deposited CSD refcodes [TECZAC (Karasik et al., 1996b), YUXNEK (Pisarevskii et al., 1995), YUXKEH (Karasik et al., 1993), and YUXKAD (Karasik et al., 1993)]. Three of these complexes are four-coordinate complexes with two of the bulky 1,3,5-triphenyl-1,3,5-diazaphosphinane ligand bound surprisingly, in a cis-square-planar geometry to dichloropalladium(II) (YUXNEK) and dichloroplatinum(II) (two different crystal forms: one is unsolvated in the solid state, the second is an acetonitrile/water solvate; YUXKAD, YUXKEH). The fourth reported structure containing 1,3,5-triphenyl,-1,3,5-diazaphosphinane ligand is an octahedral molybdenum tetracarbonyl complex (TECZAC). The bulky phosphinane ligands adopt a very similar internal conformation and ligand/ligand arrangement around the molybdenum, similar to the palladium complex. The steric bulk of the phenyl groups on the two phosphorous atoms of the separate ligands can be accommodated in a cis arrangement around the respective metal ion, in both square-planar and octahedral coordination geometries. This cis arrangement contrasts with the trans arrangement of trans-dichloro-bis(5-cyclohexyl-1,3-diphenyl-1,3,5-diazaphosphinan-5-yl)nickel(II) in structure (III) (Fig. 3). The steric bulk of the cyclohexyl substituent in this new ligand is greater than that of a phenyl group, and perhaps this bulk is enough to drive the formation of the trans nickel(II) complex. This may be a useful property of this new ligand if trans complexes are desired.

5. Synthesis and crystallization

Preparation of the precursor cyclohexylbis(phenylaminomethyl)phosphine

In an inert atmosphere glovebox, to cyclohexylphosphine (10.00 g, 0.0861 mol) in 100 mL of ethanol was added paraformaldehyde (5.20 g, 0.399 mol). A white suspension formed and was left to stir. After 3 d, the solution was removed from the glovebox. In a separate container, 25 mL of aniline was mixed with 80 mL of ethanol and heated to reflux. The hot aniline/ethanol solution was dripped into the cyclohexylphosphine solution over 30 min and the whole solution refluxed for 1 h and left to cool while stirring. After 3 d, a white precipitate was filtered from the solution and washed with 125 mL ethanol. The filtrate was evaporated at 323 K to dryness and placed under vacuum for 20 min. To the reduced solution were added 20 mL of pentane and the flask allowed to sit for 2 d at room temperature. The filtrate contained excess aniline, which dissolved into the pentane, and two layers formed. Crystals of diamino phosphine formed in the bottom layer. The liquid was decanted off, and the crystallized layer was filtered and washed with minimal amounts of pentane. The precipitate yielded 10.164 g of the phosphine (36% yield).

Preparation of 5-cyclohexyl-1,3-diphenyl-1,3-diaza-5-phosphacyclohexane (I)

In an inert atmosphere glovebox, paraformaldehyde (5.00 g, 0.384 mol) was mixed with cyclohexylbis(phenylaminomethyl)phosphine (10.4 g, 0.0861 mol) in 100 mL of ethanol and left to stir for 3 d. The solution was removed from the glovebox. In a separate container, 25 mL aniline (0.276 mol) in 80 mL of ethanol (1.370 mol) was heated to reflux. The cyclohexylphosphine solution was slowly dripped into the heated solution. An additional 75 mL ethanol was used to rinse the cyclohexylphosphine flask and added to the aniline solution. The solution was refluxed for 1 h then left to cool and stir for 3 d. A white precipitate was filtered and rinsed with 100 mL ethanol. The precipitate was washed with diethyl ether and dried under vacuum to give 6.495 g (22% yield) of the final product (I). X-ray quality crystals were obtained by dichloromethane diffusion into an ethanol solution.

Preparation of 5-cyclohexyl-1,3-diphenyl-1,3,5-diazaphosphinan-5-one (II), and trans-dichloro-bis(5-cyclohexyl-1,3-diphenyl-1,3,5-diazaphosphinan-5-yl)-nickel(II) (III)

To a solution of 5-cyclohexyl-1,3-diphenyl-1,3-diaza-5-phosphacyclohexane (0.163 g, 0.48 mmol) in 10 mL of DMF was added nickel(II) chloride (0.065 g, 0.50 mmol). The solution was left to stir for 4 d open to the air. After stirring, the solution was filtered, and the precipitate was washed with minimal amounts of DMF followed by diethyl ether. The combined washings and filtrate were reduced to 1/3 volume under reduced pressure. The additional precipitate was filtered and washed with minimal amounts of diethyl ether, giving a total of 0.159 g of total product (70% yield). Two types of crystals were obtained from the precipitated material. Blue–green plates obtained from the mixture were structurally characterized as the nickel complex (III), and colorless plates were structurally characterized as the phosphine oxide (II). Phosphine oxide (II) has not been produced by any other method in our hands.

6. Refinement

Data were recorded on Advanced Light Source beamlines 11.3.1 (I) or 12.2.1 (II), (III) with a Bruker Photon-100 or Bruker Photon-II detector, respectively (Bruker, 2019 ). It should be noted that the sample sizes range from 0.01 to 0.06 mm (10 to 60 micrometers) and it was particularly challenging to find samples suitable for diffraction. Hence access to a synchrotron source was required to measure these crystals. Some artifacts from the measurement do appear in the data (slightly higher R_int values for example). However, the models are still suitable and correct. Data analysis followed a routine workflow for corrections and space group analysis. All three structures were solved using dual-space methods (Sheldrick, 2015a ) and refined routinely (Sheldrick, 2015b , Table 4). Anomalous scattering and mass attenuation factors appropriate for the wavelengths accessed at the two sources were determined by Brennan & Cowan (1992 ) methods, in PLATON (Spek, 2020 ). Non-hydrogen atoms were treated with an anisotropic model and hydrogen atoms were included in calculated positions, riding on the atoms to which they are bonded with U_iso(H) = 1.2 × U_eq(C).

Supporting information

CCDC references: 2501742; 2501741; 2501740

Crystal structure: contains datablocks I, II, III. DOI: https://doi.org/10.1107/S2056989025010011/ev2023sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2056989025010011/ev2023Isup2.hkl

Structure factors: contains datablock II. DOI: https://doi.org/10.1107/S2056989025010011/ev2023IIsup3.hkl

Structure factors: contains datablock III. DOI: https://doi.org/10.1107/S2056989025010011/ev2023IIIsup4.hkl

Supporting information file. DOI: https://doi.org/10.1107/S2056989025010011/ev2023Isup5.cml

Supporting information file. DOI: https://doi.org/10.1107/S2056989025010011/ev2023IIsup6.cml

checkCIF report

Computing details top

5-Cyclohexyl-1,3-diphenyl-1,3,5-diazaphosphinane (I) top

Crystal data top

C₂₁H₂₇N₂P	F(000) = 364
M_r = 338.41	D_x = 1.234 Mg m⁻³
Monoclinic, P2₁/m	Synchrotron radiation, λ = 1.0333 Å
a = 5.3767 (17) Å	Cell parameters from 3418 reflections
b = 14.082 (4) Å	θ = 3.2–40.0°
c = 12.165 (4) Å	µ = 0.42 mm⁻¹
β = 98.560 (6)°	T = 150 K
V = 910.8 (5) Å³	Tablet, colorless
Z = 2	0.08 × 0.04 × 0.02 mm

Data collection top

Bruker D8 diffractometer	1903 independent reflections
Radiation source: synchrotron	1469 reflections with I > 2σ(I)
Channel-cut Si-<111> monochromator	R_int = 0.078
Detector resolution: 7.41 pixels mm^-1	θ_max = 40.1°, θ_min = 2.5°
combination of ω and φ–scans	h = −6→6
Absorption correction: multi-scan (SADABS; Krause et al., 2015)	k = −17→17
T_min = 0.508, T_max = 0.748	l = −14→15
6147 measured reflections

Refinement top

Refinement on F²	Primary atom site location: dual
Least-squares matrix: full	Secondary atom site location: difference Fourier map
R[F² > 2σ(F²)] = 0.060	Hydrogen site location: inferred from neighbouring sites
wR(F²) = 0.160	H-atom parameters constrained
S = 1.11	w = 1/[σ²(F_o²) + (0.0643P)² + 0.4286P] where P = (F_o² + 2F_c²)/3
1903 reflections	(Δ/σ)_max < 0.001
115 parameters	Δρ_max = 0.36 e Å⁻³
0 restraints	Δρ_min = −0.55 e Å⁻³

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
P1	0.39516 (17)	0.250000	0.59171 (7)	0.0293 (3)
N1	0.5578 (4)	0.33722 (13)	0.40867 (16)	0.0308 (5)
C1	0.5739 (5)	0.34684 (16)	0.5299 (2)	0.0309 (6)
H1A	0.505217	0.409371	0.547311	0.037*
H1B	0.752676	0.344618	0.564214	0.037*
C2	0.6798 (7)	0.250000	0.3782 (3)	0.0315 (8)
H2A	0.856867	0.250000	0.414947	0.038*
H2B	0.680768	0.250001	0.296860	0.038*
C3	0.5719 (7)	0.250000	0.7355 (3)	0.0300 (8)
H3A	0.755820	0.250001	0.730465	0.036*
C4	0.5118 (5)	0.33978 (17)	0.7998 (2)	0.0368 (6)
H4A	0.557121	0.397018	0.759871	0.044*
H4B	0.328976	0.342251	0.803012	0.044*
C5	0.6568 (6)	0.33984 (18)	0.9181 (2)	0.0436 (7)
H5A	0.608779	0.396533	0.958282	0.052*
H5B	0.839382	0.343817	0.914757	0.052*
C6	0.6031 (8)	0.250000	0.9824 (3)	0.0430 (10)
H6A	0.709754	0.250000	1.056151	0.052*
H6B	0.424941	0.250000	0.994313	0.052*
C7	0.3552 (5)	0.37690 (15)	0.3374 (2)	0.0298 (6)
C8	0.3520 (5)	0.37552 (17)	0.2207 (2)	0.0350 (6)
H8	0.484137	0.344781	0.190768	0.042*
C9	0.1591 (5)	0.41829 (18)	0.1498 (2)	0.0380 (6)
H9	0.158656	0.414859	0.071758	0.046*
C10	−0.0342 (5)	0.46622 (18)	0.1907 (2)	0.0393 (7)
H10	−0.164488	0.496323	0.141625	0.047*
C11	−0.0323 (5)	0.46904 (17)	0.3048 (2)	0.0363 (6)
H11	−0.162969	0.501599	0.333830	0.044*
C12	0.1576 (5)	0.42505 (16)	0.3777 (2)	0.0320 (6)
H12	0.153618	0.427566	0.455505	0.038*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
P1	0.0385 (5)	0.0182 (4)	0.0299 (5)	0.000	0.0010 (4)	0.000
N1	0.0412 (12)	0.0194 (10)	0.0317 (12)	0.0000 (8)	0.0051 (9)	0.0015 (8)
C1	0.0407 (14)	0.0192 (11)	0.0320 (14)	−0.0019 (10)	0.0026 (10)	−0.0017 (10)
C2	0.038 (2)	0.0216 (16)	0.035 (2)	0.000	0.0077 (15)	0.000
C3	0.040 (2)	0.0197 (16)	0.0284 (19)	0.000	−0.0013 (14)	0.000
C4	0.0573 (17)	0.0186 (12)	0.0336 (15)	0.0011 (11)	0.0041 (12)	−0.0024 (10)
C5	0.068 (2)	0.0254 (13)	0.0362 (16)	−0.0027 (12)	0.0032 (13)	−0.0059 (11)
C6	0.065 (3)	0.033 (2)	0.031 (2)	0.000	0.0051 (18)	0.000
C7	0.0381 (14)	0.0145 (10)	0.0365 (15)	−0.0056 (9)	0.0043 (11)	0.0005 (9)
C8	0.0467 (15)	0.0243 (12)	0.0341 (15)	0.0008 (11)	0.0063 (11)	−0.0029 (10)
C9	0.0543 (17)	0.0264 (13)	0.0324 (15)	−0.0046 (12)	0.0034 (12)	0.0004 (10)
C10	0.0448 (15)	0.0275 (13)	0.0424 (17)	−0.0015 (11)	−0.0041 (12)	0.0044 (11)
C11	0.0425 (15)	0.0227 (12)	0.0437 (17)	0.0010 (11)	0.0066 (12)	0.0005 (11)
C12	0.0417 (14)	0.0213 (12)	0.0332 (14)	−0.0030 (10)	0.0058 (11)	0.0002 (10)

Geometric parameters (Å, º) top

P1—C3	1.862 (3)	C5—C6	1.537 (3)
P1—C1ⁱ	1.888 (2)	C5—H5A	0.9900
P1—C1	1.888 (2)	C5—H5B	0.9900
N1—C7	1.403 (3)	C6—H6A	0.9900
N1—C2	1.466 (3)	C6—H6B	0.9900
N1—C1	1.470 (3)	C7—C12	1.409 (4)
C1—H1A	0.9900	C7—C8	1.417 (4)
C1—H1B	0.9900	C8—C9	1.385 (4)
C2—H2A	0.9900	C8—H8	0.9500
C2—H2B	0.9900	C9—C10	1.392 (4)
C3—C4	1.546 (3)	C9—H9	0.9500
C3—C4ⁱ	1.546 (3)	C10—C11	1.387 (4)
C3—H3A	1.0000	C10—H10	0.9500
C4—C5	1.532 (4)	C11—C12	1.394 (3)
C4—H4A	0.9900	C11—H11	0.9500
C4—H4B	0.9900	C12—H12	0.9500

C3—P1—C1ⁱ	98.94 (11)	C4—C5—C6	111.7 (2)
C3—P1—C1	98.94 (11)	C4—C5—H5A	109.3
C1ⁱ—P1—C1	92.49 (16)	C6—C5—H5A	109.3
C7—N1—C2	120.8 (2)	C4—C5—H5B	109.3
C7—N1—C1	120.5 (2)	C6—C5—H5B	109.3
C2—N1—C1	111.7 (2)	H5A—C5—H5B	107.9
N1—C1—P1	112.07 (15)	C5ⁱ—C6—C5	110.8 (3)
N1—C1—H1A	109.2	C5ⁱ—C6—H6A	109.5
P1—C1—H1A	109.2	C5—C6—H6A	109.5
N1—C1—H1B	109.2	C5ⁱ—C6—H6B	109.5
P1—C1—H1B	109.2	C5—C6—H6B	109.5
H1A—C1—H1B	107.9	H6A—C6—H6B	108.1
N1—C2—N1ⁱ	113.9 (3)	N1—C7—C12	122.2 (2)
N1—C2—H2A	108.8	N1—C7—C8	120.4 (2)
N1ⁱ—C2—H2A	108.8	C12—C7—C8	117.3 (2)
N1—C2—H2B	108.8	C9—C8—C7	121.0 (3)
N1ⁱ—C2—H2B	108.8	C9—C8—H8	119.5
H2A—C2—H2B	107.7	C7—C8—H8	119.5
C4—C3—C4ⁱ	109.7 (3)	C8—C9—C10	121.2 (3)
C4—C3—P1	111.07 (17)	C8—C9—H9	119.4
C4ⁱ—C3—P1	111.07 (17)	C10—C9—H9	119.4
C4—C3—H3A	108.3	C11—C10—C9	118.5 (2)
C4ⁱ—C3—H3A	108.3	C11—C10—H10	120.8
P1—C3—H3A	108.3	C9—C10—H10	120.8
C5—C4—C3	111.1 (2)	C10—C11—C12	121.3 (3)
C5—C4—H4A	109.4	C10—C11—H11	119.3
C3—C4—H4A	109.4	C12—C11—H11	119.3
C5—C4—H4B	109.4	C11—C12—C7	120.7 (2)
C3—C4—H4B	109.4	C11—C12—H12	119.6
H4A—C4—H4B	108.0	C7—C12—H12	119.6

C7—N1—C1—P1	86.3 (2)	C4—C5—C6—C5ⁱ	54.7 (4)
C2—N1—C1—P1	−64.6 (2)	C2—N1—C7—C12	146.7 (2)
C3—P1—C1—N1	154.91 (18)	C1—N1—C7—C12	−1.5 (3)
C1ⁱ—P1—C1—N1	55.5 (2)	C2—N1—C7—C8	−37.8 (3)
C7—N1—C2—N1ⁱ	−86.1 (3)	C1—N1—C7—C8	173.9 (2)
C1—N1—C2—N1ⁱ	64.6 (3)	N1—C7—C8—C9	−177.0 (2)
C1ⁱ—P1—C3—C4	165.8 (2)	C12—C7—C8—C9	−1.3 (3)
C1—P1—C3—C4	71.8 (2)	C7—C8—C9—C10	1.8 (4)
C1ⁱ—P1—C3—C4ⁱ	−71.8 (2)	C8—C9—C10—C11	−1.1 (4)
C1—P1—C3—C4ⁱ	−165.8 (2)	C9—C10—C11—C12	−0.1 (4)
C4ⁱ—C3—C4—C5	56.8 (4)	C10—C11—C12—C7	0.6 (4)
P1—C3—C4—C5	179.9 (2)	N1—C7—C12—C11	175.7 (2)
C3—C4—C5—C6	−56.4 (3)	C8—C7—C12—C11	0.1 (3)

Symmetry code: (i) x, −y+1/2, z.

5-Cyclohexyl-1,3-diphenyl-1,3,5-diazaphosphinan-5-one (II) top

Crystal data top

C₂₁H₂₇N₂OP	F(000) = 380
M_r = 354.41	D_x = 1.312 Mg m⁻³
Monoclinic, P2₁/m	Synchrotron radiation, λ = 0.7288 Å
a = 5.2996 (3) Å	Cell parameters from 9912 reflections
b = 14.1195 (7) Å	θ = 2.3–29.1°
c = 12.0711 (6) Å	µ = 0.17 mm⁻¹
β = 96.736 (2)°	T = 150 K
V = 897.02 (8) Å³	Plate, colorless
Z = 2	0.04 × 0.03 × 0.01 mm

Data collection top

Bruker D8 diffractometer	2313 independent reflections
Radiation source: synchrotron	1956 reflections with I > 2σ(I)
Channel-cut Si-<111> monochromator	R_int = 0.047
Detector resolution: 7.41 pixels mm^-1	θ_max = 29.1°, θ_min = 2.3°
combination of ω and φ–scans	h = −7→7
Absorption correction: multi-scan (SADABS; Krause et al., 2015)	k = −18→18
T_min = 0.696, T_max = 0.746	l = −16→16
24018 measured reflections

Refinement top

Refinement on F²	Primary atom site location: dual
Least-squares matrix: full	Secondary atom site location: difference Fourier map
R[F² > 2σ(F²)] = 0.034	Hydrogen site location: inferred from neighbouring sites
wR(F²) = 0.087	H-atom parameters constrained
S = 1.03	w = 1/[σ²(F_o²) + (0.0382P)² + 0.3642P] where P = (F_o² + 2F_c²)/3
2313 reflections	(Δ/σ)_max < 0.001
121 parameters	Δρ_max = 0.32 e Å⁻³
0 restraints	Δρ_min = −0.37 e Å⁻³

Special details top

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
P1	0.44186 (8)	0.750000	0.58754 (3)	0.01761 (12)
O1	0.1587 (2)	0.750000	0.57920 (10)	0.0247 (3)
N1	0.54933 (19)	0.66370 (7)	0.39544 (8)	0.0196 (2)
C1	0.5815 (2)	0.65185 (9)	0.51651 (9)	0.0200 (2)
H1A	0.765025	0.647569	0.543300	0.024*
H1B	0.500574	0.591792	0.535671	0.024*
C2	0.6714 (3)	0.750000	0.36131 (15)	0.0209 (3)
H2A	0.667862	0.750000	0.279131	0.025*
H2B	0.851633	0.750000	0.394144	0.025*
C3	0.6019 (3)	0.750000	0.72862 (13)	0.0197 (3)
H3A	0.789336	0.750000	0.724639	0.024*
C4	0.5347 (3)	0.83939 (9)	0.79162 (10)	0.0253 (3)
H4A	0.586612	0.896269	0.752008	0.030*
H4B	0.348520	0.842312	0.793260	0.030*
C5	0.6682 (3)	0.83907 (10)	0.91095 (11)	0.0306 (3)
H5A	0.854114	0.843194	0.909074	0.037*
H5B	0.614442	0.895407	0.951021	0.037*
C6	0.6071 (4)	0.750000	0.97378 (15)	0.0312 (4)
H6A	0.424649	0.750000	0.984278	0.037*
H6B	0.706891	0.750000	1.048453	0.037*
C7	0.3452 (2)	0.62210 (8)	0.32873 (10)	0.0192 (2)
C8	0.1520 (2)	0.57287 (9)	0.37382 (10)	0.0225 (3)
H8	0.150975	0.570713	0.452427	0.027*
C9	−0.0385 (2)	0.52706 (10)	0.30474 (11)	0.0272 (3)
H9	−0.165646	0.492736	0.337053	0.033*
C10	−0.0462 (3)	0.53059 (10)	0.18996 (11)	0.0290 (3)
H10	−0.178353	0.499959	0.143280	0.035*
C11	0.1428 (3)	0.57973 (10)	0.14460 (11)	0.0292 (3)
H11	0.139163	0.583094	0.065830	0.035*
C12	0.3368 (3)	0.62402 (9)	0.21176 (10)	0.0255 (3)
H12	0.466260	0.656206	0.178536	0.031*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
P1	0.0169 (2)	0.0194 (2)	0.0156 (2)	0.000	−0.00177 (15)	0.000
O1	0.0188 (6)	0.0313 (7)	0.0235 (6)	0.000	−0.0001 (5)	0.000
N1	0.0212 (5)	0.0202 (5)	0.0168 (5)	−0.0009 (4)	−0.0001 (4)	0.0001 (4)
C1	0.0210 (6)	0.0199 (6)	0.0182 (6)	0.0012 (4)	−0.0019 (4)	0.0006 (4)
C2	0.0197 (8)	0.0211 (8)	0.0221 (8)	0.000	0.0032 (6)	0.000
C3	0.0202 (8)	0.0222 (8)	0.0157 (8)	0.000	−0.0023 (6)	0.000
C4	0.0339 (7)	0.0213 (6)	0.0197 (6)	0.0001 (5)	−0.0014 (5)	−0.0011 (5)
C5	0.0452 (8)	0.0265 (7)	0.0189 (6)	−0.0029 (6)	−0.0021 (6)	−0.0038 (5)
C6	0.0448 (12)	0.0324 (10)	0.0160 (8)	0.000	0.0014 (8)	0.000
C7	0.0201 (6)	0.0167 (5)	0.0202 (6)	0.0039 (4)	−0.0007 (4)	−0.0013 (4)
C8	0.0231 (6)	0.0234 (6)	0.0208 (6)	0.0007 (5)	0.0017 (5)	−0.0019 (5)
C9	0.0236 (6)	0.0268 (6)	0.0311 (7)	−0.0026 (5)	0.0024 (5)	−0.0027 (5)
C10	0.0271 (7)	0.0285 (7)	0.0292 (7)	−0.0005 (5)	−0.0062 (5)	−0.0057 (5)
C11	0.0373 (7)	0.0292 (7)	0.0192 (6)	0.0017 (6)	−0.0050 (5)	−0.0006 (5)
C12	0.0302 (7)	0.0254 (6)	0.0205 (6)	−0.0021 (5)	0.0007 (5)	0.0016 (5)

Geometric parameters (Å, º) top

P1—O1	1.4924 (13)	C5—C6	1.5229 (17)
P1—C3	1.8114 (17)	C5—H5A	0.9900
P1—C1ⁱ	1.8309 (12)	C5—H5B	0.9900
P1—C1	1.8309 (12)	C6—H6A	0.9900
N1—C7	1.3999 (15)	C6—H6B	0.9900
N1—C1	1.4609 (15)	C7—C8	1.3993 (17)
N1—C2	1.4615 (14)	C7—C12	1.4077 (17)
C1—H1A	0.9900	C8—C9	1.3914 (18)
C1—H1B	0.9900	C8—H8	0.9500
C2—H2A	0.9900	C9—C10	1.3822 (19)
C2—H2B	0.9900	C9—H9	0.9500
C3—C4	1.5369 (15)	C10—C11	1.383 (2)
C3—C4ⁱ	1.5369 (16)	C10—H10	0.9500
C3—H3A	1.0000	C11—C12	1.3820 (18)
C4—C5	1.5285 (17)	C11—H11	0.9500
C4—H4A	0.9900	C12—H12	0.9500
C4—H4B	0.9900

O1—P1—C3	114.82 (8)	H4A—C4—H4B	108.1
O1—P1—C1ⁱ	115.28 (5)	C6—C5—C4	111.71 (12)
C3—P1—C1ⁱ	105.65 (5)	C6—C5—H5A	109.3
O1—P1—C1	115.28 (5)	C4—C5—H5A	109.3
C3—P1—C1	105.65 (5)	C6—C5—H5B	109.3
C1ⁱ—P1—C1	98.38 (8)	C4—C5—H5B	109.3
C7—N1—C1	121.28 (10)	H5A—C5—H5B	107.9
C7—N1—C2	121.71 (11)	C5—C6—C5ⁱ	111.35 (16)
C1—N1—C2	111.95 (11)	C5—C6—H6A	109.4
N1—C1—P1	112.06 (8)	C5ⁱ—C6—H6A	109.4
N1—C1—H1A	109.2	C5—C6—H6B	109.4
P1—C1—H1A	109.2	C5ⁱ—C6—H6B	109.4
N1—C1—H1B	109.2	H6A—C6—H6B	108.0
P1—C1—H1B	109.2	C8—C7—N1	122.40 (11)
H1A—C1—H1B	107.9	C8—C7—C12	117.47 (11)
N1—C2—N1ⁱ	112.97 (14)	N1—C7—C12	120.02 (11)
N1—C2—H2A	109.0	C9—C8—C7	120.69 (12)
N1ⁱ—C2—H2A	109.0	C9—C8—H8	119.7
N1—C2—H2B	109.0	C7—C8—H8	119.7
N1ⁱ—C2—H2B	109.0	C10—C9—C8	121.19 (12)
H2A—C2—H2B	107.8	C10—C9—H9	119.4
C4—C3—C4ⁱ	110.42 (14)	C8—C9—H9	119.4
C4—C3—P1	110.80 (8)	C9—C10—C11	118.51 (12)
C4ⁱ—C3—P1	110.80 (8)	C9—C10—H10	120.7
C4—C3—H3A	108.2	C11—C10—H10	120.7
C4ⁱ—C3—H3A	108.2	C12—C11—C10	121.22 (12)
P1—C3—H3A	108.2	C12—C11—H11	119.4
C5—C4—C3	110.81 (11)	C10—C11—H11	119.4
C5—C4—H4A	109.5	C11—C12—C7	120.89 (12)
C3—C4—H4A	109.5	C11—C12—H12	119.6
C5—C4—H4B	109.5	C7—C12—H12	119.6
C3—C4—H4B	109.5

C7—N1—C1—P1	−94.67 (11)	C3—C4—C5—C6	−55.80 (17)
C2—N1—C1—P1	60.54 (12)	C4—C5—C6—C5ⁱ	54.7 (2)
O1—P1—C1—N1	74.33 (10)	C1—N1—C7—C8	4.59 (17)
C3—P1—C1—N1	−157.77 (8)	C2—N1—C7—C8	−148.20 (12)
C1ⁱ—P1—C1—N1	−48.83 (11)	C1—N1—C7—C12	−171.59 (11)
C7—N1—C2—N1ⁱ	87.73 (16)	C2—N1—C7—C12	35.61 (17)
C1—N1—C2—N1ⁱ	−67.35 (16)	N1—C7—C8—C9	−175.64 (11)
O1—P1—C3—C4	−61.46 (10)	C12—C7—C8—C9	0.64 (18)
C1ⁱ—P1—C3—C4	66.72 (11)	C7—C8—C9—C10	−1.5 (2)
C1—P1—C3—C4	170.35 (9)	C8—C9—C10—C11	1.0 (2)
O1—P1—C3—C4ⁱ	61.46 (10)	C9—C10—C11—C12	0.4 (2)
C1ⁱ—P1—C3—C4ⁱ	−170.35 (9)	C10—C11—C12—C7	−1.3 (2)
C1—P1—C3—C4ⁱ	−66.72 (11)	C8—C7—C12—C11	0.74 (19)
C4ⁱ—C3—C4—C5	56.44 (18)	N1—C7—C12—C11	177.11 (12)
P1—C3—C4—C5	179.58 (10)

Symmetry code: (i) x, −y+3/2, z.

trans-Dichloridobis(5-cyclohexyl-1,3-diphenyl-1,3,5-diazaphosphinane-κP)nickel(II) (III) top

Crystal data top

[NiCl₂(C₂₁H₂₇N₂P)₂]	F(000) = 1704
M_r = 806.44	D_x = 1.349 Mg m⁻³
Monoclinic, C2/c	Synchrotron radiation, λ = 0.7288 Å
a = 23.5711 (15) Å	Cell parameters from 9967 reflections
b = 10.0062 (6) Å	θ = 2.3–27.8°
c = 17.8428 (10) Å	µ = 0.79 mm⁻¹
β = 109.371 (3)°	T = 150 K
V = 3970.1 (4) Å³	Tablet, orange
Z = 4	0.06 × 0.04 × 0.04 mm

Data collection top

Bruker D8 diffractometer	4383 independent reflections
Radiation source: synchrotron	3341 reflections with I > 2σ(I)
Channel-cut Si-<111> monochromator	R_int = 0.103
Detector resolution: 7.41 pixels mm^-1	θ_max = 27.9°, θ_min = 1.9°
combination of ω and φ–scans	h = −30→29
Absorption correction: multi-scan (SADABS; Krause et al., 2015)	k = −12→12
T_min = 0.690, T_max = 0.746	l = −22→22
36108 measured reflections

Refinement top

Refinement on F²	Primary atom site location: dual
Least-squares matrix: full	Secondary atom site location: difference Fourier map
R[F² > 2σ(F²)] = 0.056	Hydrogen site location: inferred from neighbouring sites
wR(F²) = 0.101	H-atom parameters constrained
S = 1.07	w = 1/[σ²(F_o²) + 13.1065P] where P = (F_o² + 2F_c²)/3
4383 reflections	(Δ/σ)_max < 0.001
232 parameters	Δρ_max = 0.37 e Å⁻³
0 restraints	Δρ_min = −0.41 e Å⁻³

Special details top

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
Ni1	0.750000	0.250000	0.500000	0.01964 (15)
Cl1	0.76558 (4)	0.44883 (8)	0.55189 (4)	0.02871 (19)
P1	0.70172 (3)	0.33837 (8)	0.38232 (4)	0.01920 (18)
N1	0.67565 (11)	0.3202 (2)	0.22142 (14)	0.0237 (6)
N2	0.70331 (11)	0.5407 (2)	0.27898 (14)	0.0248 (6)
C1	0.70476 (13)	0.2463 (3)	0.29518 (16)	0.0230 (7)
H1A	0.747278	0.229128	0.300466	0.028*
H1B	0.684546	0.158821	0.292651	0.028*
C2	0.70808 (15)	0.4453 (3)	0.22065 (18)	0.0277 (7)
H2A	0.751070	0.424756	0.230806	0.033*
H2B	0.691932	0.486095	0.167194	0.033*
C3	0.73197 (13)	0.4982 (3)	0.36111 (17)	0.0236 (7)
H3A	0.725876	0.567810	0.397123	0.028*
H3B	0.775779	0.488852	0.371885	0.028*
C4	0.62106 (13)	0.3605 (3)	0.36669 (17)	0.0228 (7)
H4	0.601435	0.400019	0.312796	0.027*
C5	0.59203 (15)	0.2247 (3)	0.3701 (2)	0.0404 (9)
H5A	0.594290	0.168635	0.325428	0.048*
H5B	0.614992	0.179076	0.420194	0.048*
C6	0.52635 (15)	0.2373 (4)	0.3655 (2)	0.0477 (10)
H6A	0.502135	0.270773	0.312234	0.057*
H6B	0.510774	0.148019	0.372609	0.057*
C7	0.51960 (15)	0.3307 (4)	0.4278 (2)	0.0432 (10)
H7A	0.540664	0.293261	0.481193	0.052*
H7B	0.476485	0.340089	0.421717	0.052*
C8	0.54550 (16)	0.4663 (4)	0.4205 (3)	0.0546 (12)
H8A	0.541466	0.526066	0.462682	0.066*
H8B	0.522688	0.506178	0.368461	0.066*
C9	0.61192 (15)	0.4545 (4)	0.4280 (2)	0.0445 (10)
H9A	0.627533	0.543993	0.421389	0.053*
H9B	0.635113	0.421636	0.481755	0.053*
C10	0.65417 (13)	0.2439 (3)	0.15073 (17)	0.0209 (6)
C11	0.62063 (14)	0.1279 (3)	0.14937 (19)	0.0269 (7)
H11	0.614858	0.098394	0.196935	0.032*
C12	0.59571 (14)	0.0555 (3)	0.08023 (19)	0.0309 (8)
H12	0.573213	−0.023042	0.080877	0.037*
C13	0.60329 (16)	0.0964 (3)	0.01029 (19)	0.0343 (8)
H13	0.585589	0.047754	−0.037527	0.041*
C14	0.63691 (16)	0.2087 (3)	0.01126 (19)	0.0351 (8)
H14	0.642740	0.236638	−0.036542	0.042*
C15	0.66262 (15)	0.2825 (3)	0.07993 (18)	0.0289 (7)
H15	0.685979	0.359436	0.078846	0.035*
C16	0.65664 (14)	0.6354 (3)	0.26034 (17)	0.0245 (7)
C17	0.60640 (15)	0.6278 (3)	0.19134 (19)	0.0350 (8)
H17	0.601986	0.553800	0.156474	0.042*
C18	0.56324 (17)	0.7267 (4)	0.1735 (2)	0.0418 (9)
H18	0.529596	0.720339	0.126153	0.050*
C19	0.56809 (16)	0.8343 (4)	0.2232 (2)	0.0397 (9)
H19	0.537958	0.901630	0.210400	0.048*
C20	0.61703 (15)	0.8435 (3)	0.2915 (2)	0.0327 (8)
H20	0.620357	0.916983	0.326411	0.039*
C21	0.66137 (15)	0.7469 (3)	0.30972 (18)	0.0279 (7)
H21	0.695493	0.755988	0.356299	0.034*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
Ni1	0.0214 (3)	0.0207 (3)	0.0178 (3)	0.0013 (2)	0.0079 (2)	−0.0002 (2)
Cl1	0.0395 (5)	0.0228 (4)	0.0213 (4)	0.0011 (3)	0.0067 (3)	−0.0018 (3)
P1	0.0215 (4)	0.0208 (4)	0.0171 (4)	0.0007 (3)	0.0088 (3)	0.0000 (3)
N1	0.0371 (15)	0.0187 (14)	0.0175 (14)	−0.0042 (11)	0.0123 (12)	0.0003 (11)
N2	0.0368 (15)	0.0219 (14)	0.0195 (14)	−0.0027 (12)	0.0142 (12)	−0.0002 (11)
C1	0.0278 (16)	0.0249 (17)	0.0193 (16)	0.0021 (13)	0.0121 (13)	−0.0008 (13)
C2	0.043 (2)	0.0229 (17)	0.0244 (18)	−0.0051 (14)	0.0212 (15)	−0.0022 (14)
C3	0.0273 (17)	0.0236 (17)	0.0209 (17)	−0.0044 (13)	0.0092 (14)	0.0002 (13)
C4	0.0218 (15)	0.0290 (17)	0.0184 (16)	0.0017 (13)	0.0079 (13)	0.0015 (13)
C5	0.0304 (19)	0.035 (2)	0.062 (3)	−0.0072 (15)	0.0236 (18)	−0.0129 (19)
C6	0.0288 (19)	0.056 (3)	0.066 (3)	−0.0107 (18)	0.0262 (19)	−0.023 (2)
C7	0.0264 (18)	0.069 (3)	0.041 (2)	−0.0039 (18)	0.0200 (17)	−0.009 (2)
C8	0.037 (2)	0.054 (3)	0.083 (3)	0.0025 (19)	0.032 (2)	−0.026 (2)
C9	0.0313 (19)	0.042 (2)	0.068 (3)	−0.0066 (16)	0.0276 (19)	−0.026 (2)
C10	0.0267 (16)	0.0205 (16)	0.0184 (16)	0.0060 (13)	0.0114 (13)	0.0016 (13)
C11	0.0320 (18)	0.0280 (18)	0.0255 (18)	−0.0010 (14)	0.0159 (15)	0.0004 (14)
C12	0.0342 (18)	0.0291 (19)	0.0305 (19)	−0.0038 (15)	0.0121 (16)	−0.0024 (15)
C13	0.052 (2)	0.0273 (19)	0.0194 (18)	0.0018 (16)	0.0057 (16)	−0.0036 (14)
C14	0.061 (2)	0.0277 (19)	0.0213 (18)	0.0039 (17)	0.0195 (17)	0.0033 (15)
C15	0.0402 (19)	0.0260 (18)	0.0233 (18)	0.0002 (14)	0.0145 (15)	0.0016 (14)
C16	0.0343 (18)	0.0240 (17)	0.0199 (17)	−0.0078 (14)	0.0152 (15)	0.0024 (13)
C17	0.045 (2)	0.0298 (19)	0.0245 (19)	−0.0108 (16)	0.0045 (16)	−0.0003 (15)
C18	0.043 (2)	0.037 (2)	0.037 (2)	−0.0030 (17)	0.0030 (18)	0.0116 (18)
C19	0.038 (2)	0.041 (2)	0.045 (2)	0.0043 (17)	0.0205 (19)	0.0166 (18)
C20	0.047 (2)	0.0289 (19)	0.0279 (19)	0.0023 (16)	0.0198 (17)	0.0016 (15)
C21	0.0375 (19)	0.0265 (18)	0.0216 (17)	−0.0017 (15)	0.0122 (15)	0.0006 (14)

Geometric parameters (Å, º) top

Ni1—Cl1ⁱ	2.1736 (8)	C7—H7A	0.9900
Ni1—Cl1	2.1736 (8)	C7—H7B	0.9900
Ni1—P1	2.2138 (8)	C8—C9	1.531 (5)
Ni1—P1ⁱ	2.2138 (8)	C8—H8A	0.9900
P1—C1	1.829 (3)	C8—H8B	0.9900
P1—C3	1.841 (3)	C9—H9A	0.9900
P1—C4	1.841 (3)	C9—H9B	0.9900
N1—C10	1.417 (4)	C10—C15	1.397 (4)
N1—C1	1.467 (4)	C10—C11	1.400 (4)
N1—C2	1.469 (4)	C11—C12	1.383 (4)
N2—C16	1.406 (4)	C11—H11	0.9500
N2—C2	1.444 (4)	C12—C13	1.380 (4)
N2—C3	1.459 (4)	C12—H12	0.9500
C1—H1A	0.9900	C13—C14	1.372 (5)
C1—H1B	0.9900	C13—H13	0.9500
C2—H2A	0.9900	C14—C15	1.387 (4)
C2—H2B	0.9900	C14—H14	0.9500
C3—H3A	0.9900	C15—H15	0.9500
C3—H3B	0.9900	C16—C17	1.399 (4)
C4—C9	1.511 (4)	C16—C21	1.402 (4)
C4—C5	1.532 (4)	C17—C18	1.379 (5)
C4—H4	1.0000	C17—H17	0.9500
C5—C6	1.528 (4)	C18—C19	1.375 (5)
C5—H5A	0.9900	C18—H18	0.9500
C5—H5B	0.9900	C19—C20	1.376 (5)
C6—C7	1.502 (5)	C19—H19	0.9500
C6—H6A	0.9900	C20—C21	1.381 (4)
C6—H6B	0.9900	C20—H20	0.9500
C7—C8	1.511 (5)	C21—H21	0.9500

Cl1ⁱ—Ni1—Cl1	180.0	C6—C7—C8	110.5 (3)
Cl1ⁱ—Ni1—P1	90.03 (3)	C6—C7—H7A	109.6
Cl1—Ni1—P1	89.97 (3)	C8—C7—H7A	109.6
Cl1ⁱ—Ni1—P1ⁱ	89.97 (3)	C6—C7—H7B	109.6
Cl1—Ni1—P1ⁱ	90.03 (3)	C8—C7—H7B	109.6
P1—Ni1—P1ⁱ	180.0	H7A—C7—H7B	108.1
C1—P1—C3	97.82 (14)	C7—C8—C9	110.7 (3)
C1—P1—C4	105.16 (14)	C7—C8—H8A	109.5
C3—P1—C4	108.38 (14)	C9—C8—H8A	109.5
C1—P1—Ni1	116.88 (10)	C7—C8—H8B	109.5
C3—P1—Ni1	115.44 (10)	C9—C8—H8B	109.5
C4—P1—Ni1	111.83 (10)	H8A—C8—H8B	108.1
C10—N1—C1	116.7 (2)	C4—C9—C8	111.9 (3)
C10—N1—C2	119.0 (2)	C4—C9—H9A	109.2
C1—N1—C2	110.4 (2)	C8—C9—H9A	109.2
C16—N2—C2	121.1 (3)	C4—C9—H9B	109.2
C16—N2—C3	120.0 (2)	C8—C9—H9B	109.2
C2—N2—C3	114.2 (2)	H9A—C9—H9B	107.9
N1—C1—P1	111.7 (2)	C15—C10—C11	117.6 (3)
N1—C1—H1A	109.3	C15—C10—N1	122.6 (3)
P1—C1—H1A	109.3	C11—C10—N1	119.7 (3)
N1—C1—H1B	109.3	C12—C11—C10	121.4 (3)
P1—C1—H1B	109.3	C12—C11—H11	119.3
H1A—C1—H1B	107.9	C10—C11—H11	119.3
N2—C2—N1	113.0 (2)	C13—C12—C11	120.5 (3)
N2—C2—H2A	109.0	C13—C12—H12	119.8
N1—C2—H2A	109.0	C11—C12—H12	119.8
N2—C2—H2B	109.0	C14—C13—C12	118.6 (3)
N1—C2—H2B	109.0	C14—C13—H13	120.7
H2A—C2—H2B	107.8	C12—C13—H13	120.7
N2—C3—P1	112.2 (2)	C13—C14—C15	122.0 (3)
N2—C3—H3A	109.2	C13—C14—H14	119.0
P1—C3—H3A	109.2	C15—C14—H14	119.0
N2—C3—H3B	109.2	C14—C15—C10	120.0 (3)
P1—C3—H3B	109.2	C14—C15—H15	120.0
H3A—C3—H3B	107.9	C10—C15—H15	120.0
C9—C4—C5	110.5 (3)	C17—C16—C21	117.7 (3)
C9—C4—P1	110.7 (2)	C17—C16—N2	122.6 (3)
C5—C4—P1	109.9 (2)	C21—C16—N2	119.6 (3)
C9—C4—H4	108.6	C18—C17—C16	120.5 (3)
C5—C4—H4	108.6	C18—C17—H17	119.7
P1—C4—H4	108.6	C16—C17—H17	119.7
C6—C5—C4	112.5 (3)	C19—C18—C17	121.1 (3)
C6—C5—H5A	109.1	C19—C18—H18	119.5
C4—C5—H5A	109.1	C17—C18—H18	119.5
C6—C5—H5B	109.1	C18—C19—C20	119.3 (3)
C4—C5—H5B	109.1	C18—C19—H19	120.4
H5A—C5—H5B	107.8	C20—C19—H19	120.4
C7—C6—C5	111.5 (3)	C19—C20—C21	120.6 (3)
C7—C6—H6A	109.3	C19—C20—H20	119.7
C5—C6—H6A	109.3	C21—C20—H20	119.7
C7—C6—H6B	109.3	C20—C21—C16	120.8 (3)
C5—C6—H6B	109.3	C20—C21—H21	119.6
H6A—C6—H6B	108.0	C16—C21—H21	119.6

C10—N1—C1—P1	−156.1 (2)	P1—C4—C9—C8	−175.5 (3)
C2—N1—C1—P1	63.9 (3)	C7—C8—C9—C4	57.2 (5)
C3—P1—C1—N1	−51.3 (2)	C1—N1—C10—C15	−136.3 (3)
C4—P1—C1—N1	60.2 (2)	C2—N1—C10—C15	0.1 (4)
Ni1—P1—C1—N1	−175.08 (16)	C1—N1—C10—C11	46.7 (4)
C16—N2—C2—N1	−90.4 (3)	C2—N1—C10—C11	−176.8 (3)
C3—N2—C2—N1	65.4 (3)	C15—C10—C11—C12	−1.2 (4)
C10—N1—C2—N2	153.2 (3)	N1—C10—C11—C12	175.9 (3)
C1—N1—C2—N2	−67.9 (3)	C10—C11—C12—C13	−0.2 (5)
C16—N2—C3—P1	98.6 (3)	C11—C12—C13—C14	1.2 (5)
C2—N2—C3—P1	−57.5 (3)	C12—C13—C14—C15	−0.8 (5)
C1—P1—C3—N2	47.2 (2)	C13—C14—C15—C10	−0.6 (5)
C4—P1—C3—N2	−61.6 (2)	C11—C10—C15—C14	1.6 (4)
Ni1—P1—C3—N2	172.05 (16)	N1—C10—C15—C14	−175.4 (3)
C1—P1—C4—C9	−170.9 (2)	C2—N2—C16—C17	12.6 (4)
C3—P1—C4—C9	−67.1 (3)	C3—N2—C16—C17	−141.8 (3)
Ni1—P1—C4—C9	61.3 (3)	C2—N2—C16—C21	−163.6 (3)
C1—P1—C4—C5	66.7 (2)	C3—N2—C16—C21	41.9 (4)
C3—P1—C4—C5	170.5 (2)	C21—C16—C17—C18	−0.4 (5)
Ni1—P1—C4—C5	−61.1 (2)	N2—C16—C17—C18	−176.7 (3)
C9—C4—C5—C6	52.1 (4)	C16—C17—C18—C19	−0.6 (5)
P1—C4—C5—C6	174.5 (3)	C17—C18—C19—C20	0.3 (5)
C4—C5—C6—C7	−54.1 (4)	C18—C19—C20—C21	0.9 (5)
C5—C6—C7—C8	56.6 (4)	C19—C20—C21—C16	−1.9 (5)
C6—C7—C8—C9	−58.0 (4)	C17—C16—C21—C20	1.6 (4)
C5—C4—C9—C8	−53.6 (4)	N2—C16—C21—C20	178.0 (3)

Symmetry code: (i) −x+3/2, −y+1/2, −z+1.

Footnotes

‡Deceased April 1, 2022.

Acknowledgements

This work was supported by the Department of Chemistry and Physics at Southwestern Oklahoma State University. Crystallographic data were collected through the SCrALS (Service Crystallography at Advanced Light Source) program at the Small-Crystal Crystallography Beamlines 11.3.1 and 12.2.1 at the Advanced Light Source (ALS), Lawrence Berkeley National Laboratory. The ALS is supported by the US Department of Energy, Office of Energy Sciences Materials Sciences Division, under contract DE-AC02–05CH11231.

Funding information

Funding for this research was provided by: Basic Energy Sciences (contract No. DE-AC02-05CH11231).

References

Arbuzov, B. A., Erastov, O. A. & Nikonov, G. N. (1979). Izv. Akad. Nauk, Ser. Khim. pp. 2771–2773. Google Scholar
Arbuzov, B. A., Erastov, O. A., Nikonov, G. N., Arshinova, R. P. & Kadyrov, R. A. (1980). Izv. Akad. Nauk, Ser. Khim. pp. 721–723. Google Scholar
Arbuzov, B. A., Erastov, O. A., Nikonov, G. N., Zyablikova, T. A., Yufit, D. S. & Struchkov, Yu. T. (1981). Izv. Akad. Nauk, Ser. Khim. pp. 1539–1544. Google Scholar
Brennan, S. & Cowan, P. L. (1992). Rev. Sci. Instrum. 63, 850–853. CrossRef Web of Science Google Scholar
Bruker (2019). APEX3 and SAINT. Bruker AXS Inc. Madison, Wisconsin, USA. Google Scholar
Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016). Acta Cryst. B72, 171–179. Web of Science CrossRef IUCr Journals Google Scholar
Karasik, A. A., Bobrov, S. V., Nikonov, G. N. & Enikeev, K. M. (1996a). Koord. Khim. 22, 514–516. Google Scholar
Karasik, A. A., Bobrov, S. V., Nikonov, G. N., Litvinov, I. A. & Dokuchaev, A. S. (1996b). Koord. Khim. 22, 35–41. Google Scholar
Karasik, A. A., Bobrov, S. V., Nikonov, G. N., Litvinov, I. A., Naumov, V. A. & Akhmadullin, A. G. (1993). Izv. Akad. Nauk, Ser. Khim. 1650–1655. Google Scholar
Karsch, H. H., Schreiber, K. A. & Herker, M. (1997). Chem. Ber. 130, 1777–1785. CrossRef Web of Science Google Scholar
Khadiullin, R. S., Karasik, A. A., Plyamovatyi, A. Kh. & Shagidullin, R. R. (1993). J. Mol. Struct. 293, 85–88. CrossRef Web of Science Google Scholar
Krause, L., Herbst-Irmer, R., Sheldrick, G. M. & Stalke, D. (2015). J. Appl. Cryst. 48, 3–10. Web of Science CSD CrossRef ICSD CAS IUCr Journals Google Scholar
Macrae, C. F., Sovago, I., Cottrell, S. J., Galek, P. T. A., McCabe, P., Pidcock, E., Platings, M., Shields, G. P., Stevens, J. S., Towler, M. & Wood, P. A. (2020). J. Appl. Cryst. 53, 226–235. Web of Science CrossRef CAS IUCr Journals Google Scholar
Maerkl, G. & Yu, J. G. (1981). Tetrahedron Lett. 22, 229–232. Google Scholar
Pisarevskii, A. P., Struchkov, Yu. T., Karasik, A. A., Nikonov, G. N., Bobrov, S. V. & Litvinov, I. A. (1995). Koord. Khim. 21, 227–231. Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Spek, A. L. (2020). Acta Cryst. E76, 1–11. Web of Science CrossRef IUCr Journals Google Scholar
Westrip, S. P. (2010). J. Appl. Cryst. 43, 920–925. Web of Science CrossRef CAS IUCr Journals Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 81| Part 12| December 2025| Pages 1144-1148

https://doi.org/10.1107/S2056989025010011

Open

access

Format		BIBTeX
		EndNote
		RefMan
		Refer
		Medline
		CIF
		SGML
		Plain Text
		Text

Format		BIBTeX
		EndNote
		RefMan
		Refer
		Medline
		CIF
		SGML
		Plain Text
		Text

Search IUCr Journals		doi		Advanced search
Author		volume	page

research communications\(\def\hfill{\hskip 5em}\def\hfil{\hskip 3em}\def\eqno#1{\hfil {#1}}\)
