Synthesis and structure of 2-amino-4-methylpyridin-1-ium hydrogen squarate

The title salt (systematic name: 2-amino-4-methyl­pyridin-1-ium 2-hy­droxy-3,4-dioxo­cyclo­but-1-en-1-olate), C₆H₉N₂⁺·C₄HO₄⁻, was obtained by the proton-transfer reaction between 2-amino-4-methyl­pyridine and squaric acid in aqueous solution: protonation occurs at the pyridine nitro­gen atom, while squaric acid is singly deprotonated. In the crystal, the cations and anions are linked by N—H⋯O, O—H⋯O, and C—H⋯O hydrogen bonds, forming infinite layers. These layers are consolidated by π–π stacking inter­actions, resulting in a columnar packing arrangement. Hirshfeld surface analysis reveals that O⋯H/H⋯O contacts dominate the inter­molecular inter­actions, consistent with the hydrogen-bonding network observed in the crystal structure.

1. Chemical context

Proton-transfer mol­ecular salts arise when a Brønsted acid donates a proton to a Brønsted base, generating oppositely charged ions stabilized by charge-assisted hydrogen bonds and other non-covalent inter­actions (Aakeröy et al., 2007). If proton transfer does not occur, a co-crystal may result in the solid state (Cruz-Cabeza et al., 2022; Gilli et al., 2002; Lemmerer et al., 2015; Cruz-Cabeza, 2012). As to the outcome of a particular reaction, a simple qualitative approach is to consider the difference in pK_a values (ΔpK_a) between the conjugate acid of the base (BH⁺) and the acid (HA). If ΔpK_a < 0, the system favors a co-crystal (all components remain neutral), while ΔpK_a > 3 favors salt formation (Cruz-Cabeza, 2012; Cruz-Cabeza et al., 2022). For inter­mediate ΔpK_a values, however, the outcome is less predictable (Delori et al., 2013). Since hydrogen-bonded systems derived from organic cations and anions often form stronger hydrogen bonds than their neutral counterparts (Bertolasi et al., 2001), these systems have become increasingly important in crystal engineering and materials science because their structural frameworks and physicochemical properties can be finely tuned. Compared with their neutral precursors, proton-transfer salts often show greater solubility, stability, and functionality, which makes them attractive candidates for pharmaceuticals (Zhao et al., 2020; Goswami et al., 2025), optoelectronic materials (Huang et al., 2022; K. K et al., 2025; Sangtani et al., 2017), and supra­molecular assemblies.

Squaric acid (3,4-di­hydroxy­cyclo­but-3-ene-1,2-dione, C₄H₂O₄) and its derivatives have attracted significant attention in organic chemistry, materials science, and medicinal chemistry (Chasák et al., 2021; Grus et al., 2021, Laramie et al., 2017). The inter­est in its structural chemistry arises from the planar, symmetrical, and strained nature of the squaric acid mol­ecule, which allows for diverse and robust hydrogen-bonding patterns in the solid state (Allen et al., 2013; Gilli et al., 2001). As a strong diprotic organic acid (pK_a1 =1.2–1.7, pK_a2 = 3.2–3.5; MacDonald, 1968), squaric acid readily forms proton-transfer compounds with nitro­gen bases, and numerous examples of such salts are recorded in the Cambridge Structural Database (Groom et al., 2016). Upon deprotonation, squaric acid forms either the hydrogen squarate anion (Hsq⁻) or the squarate dianion (sq^2–). All three species are nearly planar, featuring symmetric π-systems with extensive electronic delocalization with conjugated C=C and C=O bonds. This planarity, combined with their electronic structure, enables strong hydrogen-bonding inter­actions: while the squarate dianion acts exclusively as a hydrogen-bond acceptor, the parent acid and the mono-deprotonated hydrogen squarate ion can function as both donors and acceptors, making them versatile building blocks for supra­molecular architectures (Seidel & Kolev, 2024).

2-Amino-4-methyl-pyridine (2A4MP, C₆H₈N₂) is a versatile pyridine-based heterocyclic compound in which the pyridine nitro­gen atom readily undergoes protonation, while the amine group donates electrons, facilitating the development of donor–acceptor (D–A) type systems. The ability of the pyridine N atom to accept protons from a wide range of organic acids, such as aromatic and aliphatic carb­oxy­lic acids, phenols, and related derivatives, makes it an excellent building block for the formation of stable mol­ecular salts. Proton-transfer salts of 2A4MP and related pyridinium derivatives have been widely explored for their nonlinear optical (NLO) properties including 2-amino-4-methylpyridinium 4-meth­oxybenzoate (Krishnakumar et al., 2018), 2-amino-4-methyl­pyridinium 4-nitro­phenolate-4-nitro­phenol (Karuppusamy et al., 2023; Thirupugalmani et al., 2015), 2-amino-4-methyl­pyridinium benzilate (Madhankumar et al., 2020) and others. As part of our studies in this area, the title proton-transfer mol­ecular salt, C₆H₉N₂⁺·C₄HO₄⁻ (I), has been synthesized and its structural features are described here.

2. Structural commentary

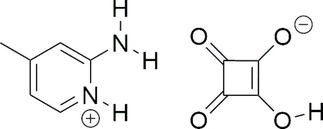

Salt (I) was obtained by proton transfer from squaric acid to 2-amino-4-methyl­pyridine in aqueous solution. The proton transfer observed in the title salt is consistent with the acidity constants of the components [pK_a(squaric acid) ≃ 1.2–1.7; pK_a(2-amino-4-methyl­pyridinium) ≃ 7.48], giving ΔpK_a > 3, which favors salt formation rather than co-crystallization. Although ΔpK_a relative to the second dissociation of squaric acid (pK_a ≃ 3.2–3.5) is also greater than 3, the formation of the fully deprotonated squarate dianion does not occur here. Whether squaric acid is mono- or fully deprotonated in the solid state depends on various factors such as stoichiometry, crystallization conditions and inter­molecular inter­actions, especially hydrogen bonds. In this case, the isolated crystalline product is the 1:1 hydrogen-squarate salt (Hsq⁻), which is consistent with the 1:1 stoichiometry and charge-assisted hydrogen bonding that favours the monoanion. Salt (I) crystallizes in the monoclinic system, space group P2₁/c. The asymmetric unit contains one C₆H₉N₂⁺ 2-amino-4-methyl­pyridin-1-ium cation and one C₄HO₄⁻ hydrogen squarate anion (Fig. 1) in which protonation occurs at the pyridine nitro­gen atom N1.

Figure 1 The mol­ecular structure of (I) with displacement ellipsoids drawn at the 50% probability level. Hydrogen bonds are indicated by dashed lines.

Both ions are nearly planar. The hydrogen squarate (Hsq⁻) anion deviates by less than 0.01 Å from planarity, and the cation shows a similar small deviation. The two planes are almost parallel, with a dihedral angle of 5.59 (12)° between the species in the asymmetric unit. Within the squarate ring, the C—C—C bond angles are close to 90°, while bond distances reveal partial bond localization: the shorter C—C bonds [C9—C10, 1.436 (2); C10—C11, 1.424 (2) Å] suggest double-bond character whereas the longer bonds [C8—C9, 1.484 (2); C8—C11, 1.479 (2) Å] resemble single bonds. Among the C—O bonds, one is short [C8—O1 = 1.228 (2) Å], while the others are elongated [C9—O2, 1.252 (2); C11—O4, 1.255 (2); C10—O3, 1.298 (2) Å]. The unusually long C10—O3 bond marks the main site of negative charge, which is delocalized over O2 and O4, consistent with resonance in the hydrogen squarate monoanion. Overall, the alternation of elongated and shortened C—C and C—O bonds highlights the extent of delocalization in the Hsq⁻ ion, in agreement with previous reports (Gołdyn et al., 2022; Dega-Szafran et al., 2012c; 2013a).

3. Supra­molecular features

In the extended structure, all four oxygen atoms of the HSq⁻ anion, along with the amine group, the protonated pyridinium N atom and the hydroxyl hydrogen atom, act as hydrogen-bond donors and acceptors, giving rise to a network of N—H⋯O, O—H⋯O, and C—H⋯O hydrogen bonds within the crystal structure (Table 1). In the asymmetric unit, the cation and anion are connected through N1—H1⋯O2 and N2—H2B⋯O1 hydrogen bonds, forming an R₂²(9) motif. Two HSq⁻ anions generate a centrosymmetric dimer via pairwise O3—H3A⋯O4 links, which corresponds to an R₂²(10) motif. These HSq⁻ dimers are further linked by N2—H2A⋯O2 inter­actions, together with C—H⋯O contacts involving C3 and C6. Together, these inter­actions link the cations and anions into infinite layers propagating in the (10) plane (Fig. 2). Adjacent layers are connected in the z direction through weak π–π stacking inter­actions between the squarate ring and the pyridine ring with a centroid–centroid distance of 3.9234 (13) Å (slippage = 2.096 Å); symmetry: x, y, 1 + z). Overall, these hydrogen-bonding and stacking inter­actions direct the assembly of cations and anions into a columnar arrangement, as shown in Fig. 3.

Table 1
Hydrogen-bond geometry (Å, °)

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
N1—H1⋯O2	0.88 (2)	1.87 (2)	2.734 (2)	167 (2)
N2—H2A⋯O2^i	0.87 (2)	2.16 (2)	3.025 (2)	175 (2)
N2—H2B⋯O1	0.91 (2)	1.95 (2)	2.856 (2)	170 (2)
O3—H3A⋯O4^ii	0.87 (2)	1.67 (2)	2.5145 (19)	163 (3)
C3—H3⋯O3^i	0.93	2.34	3.230 (2)	159
C6—H6⋯O1^iii	0.93	2.49	3.284 (2)	143
Symmetry codes: (i) ; (ii) ; (iii) .

Figure 2 Part of the crystal structure of (I), showing the infinite layers formed through N—H⋯O, O—H⋯O, and C—H⋯O hydrogen bonds.

Figure 3 Overall crystal packing of (I), illustrating the columnar arrangement of the layers.

4. Hirshfeld surface analysis

Crystal Explorer 21 (Turner et al., 2017) was used to calculate the Hirshfeld surfaces of the cation and anion of the title salt and to generate two-dimensional fingerprint plots for the analysis and qu­anti­fication of various inter­molecular inter­actions in the crystal packing.

The HS mapped over d_norm within the range of −0.27 to 1.15 a.u., and two views (front and back) of the HS for both the cation and anion are shown in Fig. 4. Prominent bright-red spots on the HS confirm the presence of significant hydrogen-bonding inter­actions, specifically N—H⋯O and O—H⋯O inter­actions in the crystal structure. Weaker red spots appear near the carbon atoms in both the squarate ring (Cg1) and the pyridine ring (Cg2), which correspond to π–π stacking inter­actions.

Figure 4 Two different orientations of the Hirshfeld surface of (I) mapped over dnorm

The two-dimensional fingerprint and decomposed plots for the individual components (cation and anion) are presented in Fig. 5. H⋯H contacts contribute 40.1% to the cation surface, representing the dominant inter­action in its crystal packing. In contrast, for the anion, these contacts account for only 6.2% of the surface, ranking as the fourth major contributor to stabilization. The corresponding FP plots reveal a deep, asymmetric broad spike around d_e + d_i > 2.4 Å (where d_e and d_i denote the distances from the Hirshfeld surface to the nearest nucleus outside and inside the surface, respectively) for the cation, whereas in the anion, these contacts appear as weak and well-separated spots. These distinct shapes suggest markedly different hydrogen environments and inter­action patterns between the cationic and anionic units. The next major inter­actions are O⋯H/H⋯O contacts, contributing 30.5% and 62.8% for the cation and anion, respectively, indicating that these contacts play a dominant role in the anion. In the cation, this contact appears as a single sharp spike at d_e + d_i = 1.6 Å, while in the anion, two distinct spikes are observed at the same distance, reflecting stronger and more varied hydrogen-bonding environments. C⋯H/H⋯C inter­actions contribute 13.8% and 10.2% to the cation and anion surfaces, respectively. Other minor contributions include N⋯H/H⋯N (5.5%), C⋯C (4.8%), and C⋯O/O⋯C (4.0%) for the cation, and C⋯O/O⋯C (7.9%), O⋯O (5.8%), and N⋯O/O⋯N (1.0%) for the anion. Overall, the FP analysis reveals that both the cation and anion are predominantly stabilized through C/N/O—H⋯O-type hydrogen-bonding inter­actions, although their spatial distribution and intensity differ significantly.

Figure 5 Two-dimensional fingerprint plots for the cation and anion in (I) showing the percentage contribution of the different contacts to the total Hirshfeld surface area.

5. Database survey

A search of the Cambridge Structural Database (CSD, Version 6.00, updates of April 2025 and August 2025; (Groom et al., 2016) using Conquest (Bruno et al., 2002) identified 52 entries containing the neutral squaric acid mol­ecule. Among these, 14 hits correspond to purely neutral squaric acid, while eight represent co-crystals formed with various organic bases, including N-methyl­piperidine betaine (CSD refcode CAPKUB; Dega-Szafran et al., 2012b), N-ethyl­piperidine betaine (CILQAR; Dega-Szafran et al., 2013a), pyridinium-2-carboxyl­ate (HETSEI; Gołdyn et al., 2022), 2-(quinuclidinium)propionate (DIMSUP; Dega-Szafran et al., 2013b), trigonelline (PAKNUM; Dega-Szafran et al., 2012a), pyrazine­carboxamide (PAQNOM; Korkmaz et al., 2011), urea (QIRKAD; Sabareesh et al., 2001) and glycine (SIZKIX01; Tyagi et al., 2016).

For hydrogen squarate species, 193 structures were found, comprising 15 metal complexes, with the remaining being mono-deprotonated salts involving a variety of aliphatic primary amines, amino acids, and nitro­gen containing heterocycles such as pyridine, bi­pyridine and related compounds. Furthermore, 104 entries were found containing the squarate dianion.

A separate CSD search for the 2-amino-4-methyl­pyridin-1-ium cation revealed 63 entries, most of which arise from the reaction of 2-amino-4-methyl­pyridine with various aliphatic or aromatic carb­oxy­lic acid and phenolic co-formers.

6. Synthesis and crystallization

Squaric acid (2.28 g, 0.0199 mmol) and 2-amino-4-methyl­pyridine (2.162 g, 0.0199 mmol) were dissolved in 25 ml of double-distilled water and stirred at room temperature (298 K) for 4 h. The reaction mixture was then filtered and allowed to evaporate slowly at room temperature, yielding yellow plates of (I) suitable for X-ray diffraction analysis.

7. Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2. The N-bound H atoms were located in a difference-Fourier map and refined with isotropic displacement parameters. All C-bound H atoms were included in calculated positions and treated as riding atoms with C–H = 0.93–0.98 Å and U_iso(H) = 1.2U_eq(C).

Table 2
Experimental details

Crystal data
Chemical formula	C6H9N2^+·C4HO4^−
Mr	222.20
Crystal system, space group	Monoclinic, P21/c
Temperature (K)	305
a, b, c (Å)	5.3441 (3), 24.9059 (12), 7.6505 (4)
β (°)	95.597 (3)
V (Å^3)	1013.42 (9)
Z	4
Radiation type	Cu Kα
μ (mm^−1)	0.97
Crystal size (mm)	0.32 × 0.13 × 0.04
Data collection
Diffractometer	Bruker D8 Venture Diffractometer
Absorption correction	Multi-scan (SADABS; Krause et al., 2015)
Tmin, Tmax	0.731, 1.000
No. of measured, independent and observed [I > 2σ(I)] reflections	20467, 1860, 1602
Rint	0.063
(sin θ/λ)max (Å^−1)	0.602
Refinement
R[F^2 > 2σ(F^2)], wR(F^2), S	0.048, 0.133, 1.05
No. of reflections	1860
No. of parameters	159
No. of restraints	4
H-atom treatment	H atoms treated by a mixture of independent and constrained refinement
Δρmax, Δρmin (e Å^−3)	0.21, −0.16
Computer programs: APEX4, SAINT and XPREP (Bruker, 2021), SHELXT2018/2 (Sheldrick, 2015a) SHELXL2019/2 (Sheldrick, 2015b), ORTEP-3 for Windows (Farrugia, 2012) and Mercury (Macrae et al., 2020).

Supporting information

Computing details

2-amino-4-methylpyridin-1-ium 2-hydroxy-3,4-dioxocyclobut-1-en-1-olate

Crystal data

C6H9N2^+·C4HO4^−	F(000) = 464
Mr = 222.20	Dx = 1.456 Mg m^−3
Monoclinic, P21/c	Cu Kα radiation, λ = 1.54178 Å
a = 5.3441 (3) Å	Cell parameters from 9939 reflections
b = 24.9059 (12) Å	θ = 3.6–68.2°
c = 7.6505 (4) Å	µ = 0.97 mm^−1
β = 95.597 (3)°	T = 305 K
V = 1013.42 (9) Å^3	Plate, yellow
Z = 4	0.32 × 0.13 × 0.04 mm

Data collection

Bruker D8 Venture Diffractometer	1602 reflections with I > 2σ(I)
Radiation source: micro focus sealed tube	Rint = 0.063
φ and ω scans	θmax = 68.2°, θmin = 3.6°
Absorption correction: multi-scan (SADABS; Krause et al., 2015)	h = −6→6
Tmin = 0.731, Tmax = 1.000	k = −30→29
20467 measured reflections	l = −9→9
1860 independent reflections

Refinement

Refinement on F^2	Hydrogen site location: mixed
Least-squares matrix: full	H atoms treated by a mixture of independent and constrained refinement
R[F^2 > 2σ(F^2)] = 0.048	w = 1/[σ^2(Fo^2) + (0.0687P)^2 + 0.3185P] where P = (Fo^2 + 2Fc^2)/3
wR(F^2) = 0.133	(Δ/σ)max < 0.001
S = 1.05	Δρmax = 0.21 e Å^−3
1860 reflections	Δρmin = −0.16 e Å^−3
159 parameters	Extinction correction: SHELXL2019/2 (Sheldrick, 2015b), Fc^*=kFc[1+0.001xFc^2λ^3/sin(2θ)]^-1/4
4 restraints	Extinction coefficient: 0.0087 (17)

Special details

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Ų)

	x	y	z	Uiso*/Ueq
C8	0.2327 (4)	0.36789 (7)	0.3849 (3)	0.0511 (5)
C9	0.4649 (3)	0.35258 (7)	0.4961 (2)	0.0484 (4)
C10	0.5292 (3)	0.40844 (7)	0.5131 (2)	0.0503 (5)
C11	0.3083 (3)	0.42479 (7)	0.4074 (2)	0.0508 (5)
C2	0.1668 (3)	0.19296 (7)	0.3631 (2)	0.0490 (5)
C3	0.1295 (3)	0.13741 (7)	0.3398 (3)	0.0513 (5)
H3	−0.014079	0.125298	0.272925	0.062*
C4	0.2983 (3)	0.10099 (8)	0.4125 (2)	0.0516 (5)
C5	0.5147 (4)	0.12001 (8)	0.5150 (3)	0.0562 (5)
H5	0.633864	0.096078	0.566124	0.067*
C6	0.5456 (3)	0.17340 (8)	0.5375 (3)	0.0555 (5)
H6	0.687478	0.186086	0.604995	0.067*
C7	0.2546 (4)	0.04188 (8)	0.3877 (3)	0.0694 (6)
H7A	0.114532	0.036192	0.301245	0.104*
H7B	0.219224	0.026088	0.497082	0.104*
H7C	0.402203	0.025529	0.348913	0.104*
N1	0.3744 (3)	0.20903 (6)	0.4638 (2)	0.0515 (4)
H1	0.412 (4)	0.2429 (7)	0.484 (3)	0.062*
N2	0.0057 (3)	0.22921 (7)	0.2916 (3)	0.0667 (5)
H2A	−0.121 (4)	0.2164 (10)	0.225 (3)	0.080*
H2B	0.038 (5)	0.2650 (7)	0.306 (3)	0.080*
O1	0.0553 (3)	0.34331 (5)	0.3083 (2)	0.0667 (5)
O2	0.5578 (2)	0.30894 (5)	0.55156 (19)	0.0590 (4)
O3	0.7207 (3)	0.43223 (6)	0.5973 (2)	0.0714 (5)
H3A	0.719 (6)	0.4672 (7)	0.598 (4)	0.107*
O4	0.2147 (3)	0.46871 (5)	0.3536 (2)	0.0708 (5)

Atomic displacement parameters (Ų)

	U^11	U^22	U^33	U^12	U^13	U^23
C8	0.0517 (10)	0.0445 (9)	0.0547 (10)	−0.0023 (8)	−0.0068 (8)	−0.0002 (8)
C9	0.0495 (9)	0.0401 (9)	0.0534 (10)	−0.0016 (7)	−0.0053 (8)	0.0007 (7)
C10	0.0521 (10)	0.0407 (9)	0.0547 (10)	−0.0042 (7)	−0.0117 (8)	0.0006 (7)
C11	0.0550 (10)	0.0398 (9)	0.0544 (10)	−0.0006 (7)	−0.0117 (8)	0.0034 (7)
C2	0.0439 (9)	0.0463 (10)	0.0547 (10)	−0.0023 (7)	−0.0055 (8)	−0.0001 (8)
C3	0.0468 (9)	0.0449 (10)	0.0594 (11)	−0.0055 (7)	−0.0097 (8)	−0.0023 (8)
C4	0.0505 (10)	0.0465 (10)	0.0562 (10)	−0.0037 (8)	−0.0033 (8)	0.0015 (8)
C5	0.0493 (10)	0.0517 (11)	0.0648 (12)	0.0020 (8)	−0.0094 (9)	0.0043 (9)
C6	0.0439 (9)	0.0581 (11)	0.0614 (11)	−0.0050 (8)	−0.0105 (8)	0.0003 (9)
C7	0.0701 (13)	0.0455 (11)	0.0877 (15)	−0.0022 (9)	−0.0168 (11)	0.0056 (10)
N1	0.0473 (8)	0.0451 (8)	0.0596 (9)	−0.0060 (6)	−0.0082 (7)	−0.0028 (7)
N2	0.0586 (10)	0.0449 (9)	0.0902 (13)	0.0002 (8)	−0.0249 (9)	−0.0001 (9)
O1	0.0583 (8)	0.0490 (8)	0.0864 (10)	−0.0072 (6)	−0.0246 (7)	−0.0013 (7)
O2	0.0577 (8)	0.0376 (7)	0.0768 (9)	0.0006 (5)	−0.0183 (6)	0.0037 (6)
O3	0.0683 (9)	0.0438 (8)	0.0935 (11)	−0.0083 (6)	−0.0349 (8)	0.0030 (7)
O4	0.0780 (10)	0.0408 (7)	0.0861 (10)	0.0021 (6)	−0.0296 (8)	0.0071 (7)

Geometric parameters (Å, º)

C8—O1	1.228 (2)	C3—C4	1.359 (3)
C8—C11	1.479 (2)	C4—C5	1.414 (3)
C8—C9	1.484 (2)	C4—C7	1.500 (3)
C9—O2	1.252 (2)	C5—C6	1.349 (3)
C9—C10	1.436 (2)	C5—H5	0.9300
C10—O3	1.298 (2)	C6—N1	1.357 (2)
C10—C11	1.424 (2)	C6—H6	0.9300
C11—O4	1.255 (2)	C7—H7A	0.9600
C2—N2	1.328 (2)	C7—H7B	0.9600
C2—N1	1.348 (2)	C7—H7C	0.9600
C2—C3	1.407 (2)	N1—H1	0.876 (16)
O1—C8—C11	136.27 (18)	C5—C4—C7	120.50 (18)
O1—C8—C9	135.13 (17)	C6—C5—C4	118.95 (18)
C11—C8—C9	88.61 (14)	C6—C5—H5	120.5
O2—C9—C10	136.63 (17)	C4—C5—H5	120.5
O2—C9—C8	134.36 (16)	C5—C6—N1	121.49 (17)
C10—C9—C8	89.00 (14)	C5—C6—H6	119.3
O3—C10—C11	136.15 (17)	N1—C6—H6	119.3
O3—C10—C9	131.12 (17)	C4—C7—H7A	109.5
C11—C10—C9	92.73 (14)	C4—C7—H7B	109.5
O4—C11—C10	135.83 (18)	H7A—C7—H7B	109.5
O4—C11—C8	134.51 (17)	C4—C7—H7C	109.5
C10—C11—C8	89.66 (14)	H7A—C7—H7C	109.5
N2—C2—N1	119.86 (17)	H7B—C7—H7C	109.5
N2—C2—C3	122.58 (17)	C2—N1—C6	121.82 (17)
N1—C2—C3	117.57 (16)	C2—N1—H1	123.2 (16)
C4—C3—C2	121.62 (17)	C6—N1—H1	114.9 (16)
C4—C3—H3	119.2	C2—N2—H2A	115.3 (17)
C2—C3—H3	119.2	C2—N2—H2B	120.4 (17)
C3—C4—C5	118.53 (18)	H2A—N2—H2B	124 (2)
C3—C4—C7	120.96 (17)	C10—O3—H3A	117 (2)
O1—C8—C9—O2	−1.0 (4)	C9—C8—C11—O4	179.8 (2)
C11—C8—C9—O2	178.9 (2)	O1—C8—C11—C10	180.0 (3)
O1—C8—C9—C10	−180.0 (2)	C9—C8—C11—C10	0.12 (15)
C11—C8—C9—C10	−0.12 (15)	N2—C2—C3—C4	179.3 (2)
O2—C9—C10—O3	0.7 (4)	N1—C2—C3—C4	−1.3 (3)
C8—C9—C10—O3	179.7 (2)	C2—C3—C4—C5	0.5 (3)
O2—C9—C10—C11	−178.8 (2)	C2—C3—C4—C7	179.5 (2)
C8—C9—C10—C11	0.13 (15)	C3—C4—C5—C6	0.2 (3)
O3—C10—C11—O4	0.7 (4)	C7—C4—C5—C6	−178.7 (2)
C9—C10—C11—O4	−179.8 (2)	C4—C5—C6—N1	−0.1 (3)
O3—C10—C11—C8	−179.6 (3)	N2—C2—N1—C6	−179.1 (2)
C9—C10—C11—C8	−0.13 (15)	C3—C2—N1—C6	1.5 (3)
O1—C8—C11—O4	−0.4 (4)	C5—C6—N1—C2	−0.8 (3)

Hydrogen-bond geometry (Å, º)

D—H···A	D—H	H···A	D···A	D—H···A
N1—H1···O2	0.88 (2)	1.87 (2)	2.734 (2)	167 (2)
N2—H2A···O2^i	0.87 (2)	2.16 (2)	3.025 (2)	175 (2)
N2—H2B···O1	0.91 (2)	1.95 (2)	2.856 (2)	170 (2)
O3—H3A···O4^ii	0.87 (2)	1.67 (2)	2.5145 (19)	163 (3)
C3—H3···O3^i	0.93	2.34	3.230 (2)	159
C6—H6···O1^iii	0.93	2.49	3.284 (2)	143

Symmetry codes: (i) x−1, −y+1/2, z−1/2; (ii) −x+1, −y+1, −z+1; (iii) x+1, −y+1/2, z+1/2.
