![[Figure 4]](wm5772fig4mag.jpg)
|
|
Figure 4

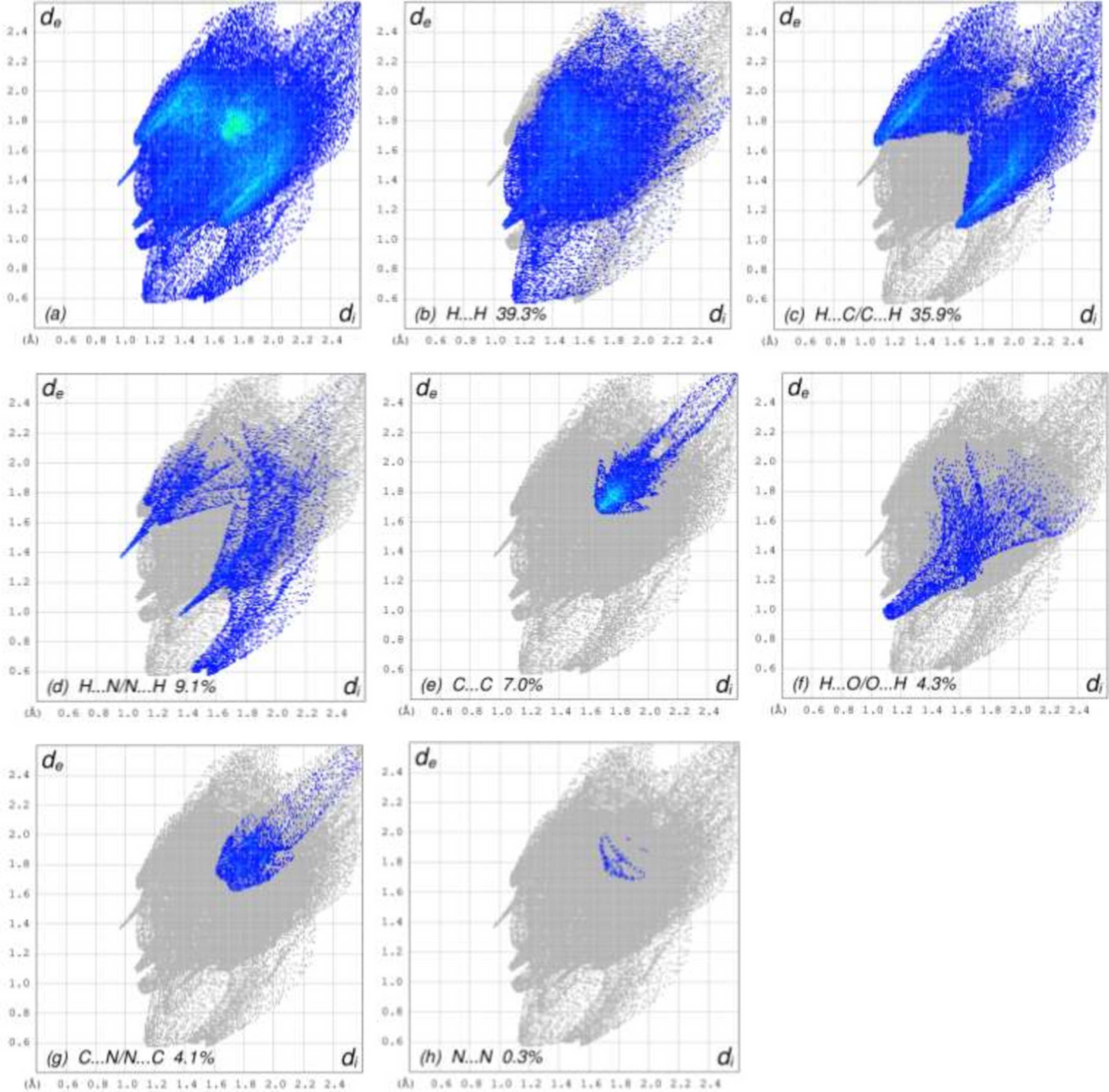

Two-dimensional fingerprint plots, showing (a) all interactions, and delineated into (b) H⋯H, (c) H⋯C/C⋯H, (d) H⋯N/N⋯H, (e) C⋯C, (f) H⋯O/O⋯H, (g) C⋯N/N⋯C and (h) N⋯N interactions. The di and de values are the closest internal and external distances (in Å) from given points on the Hirshfeld surface contacts. |
