Figure 6

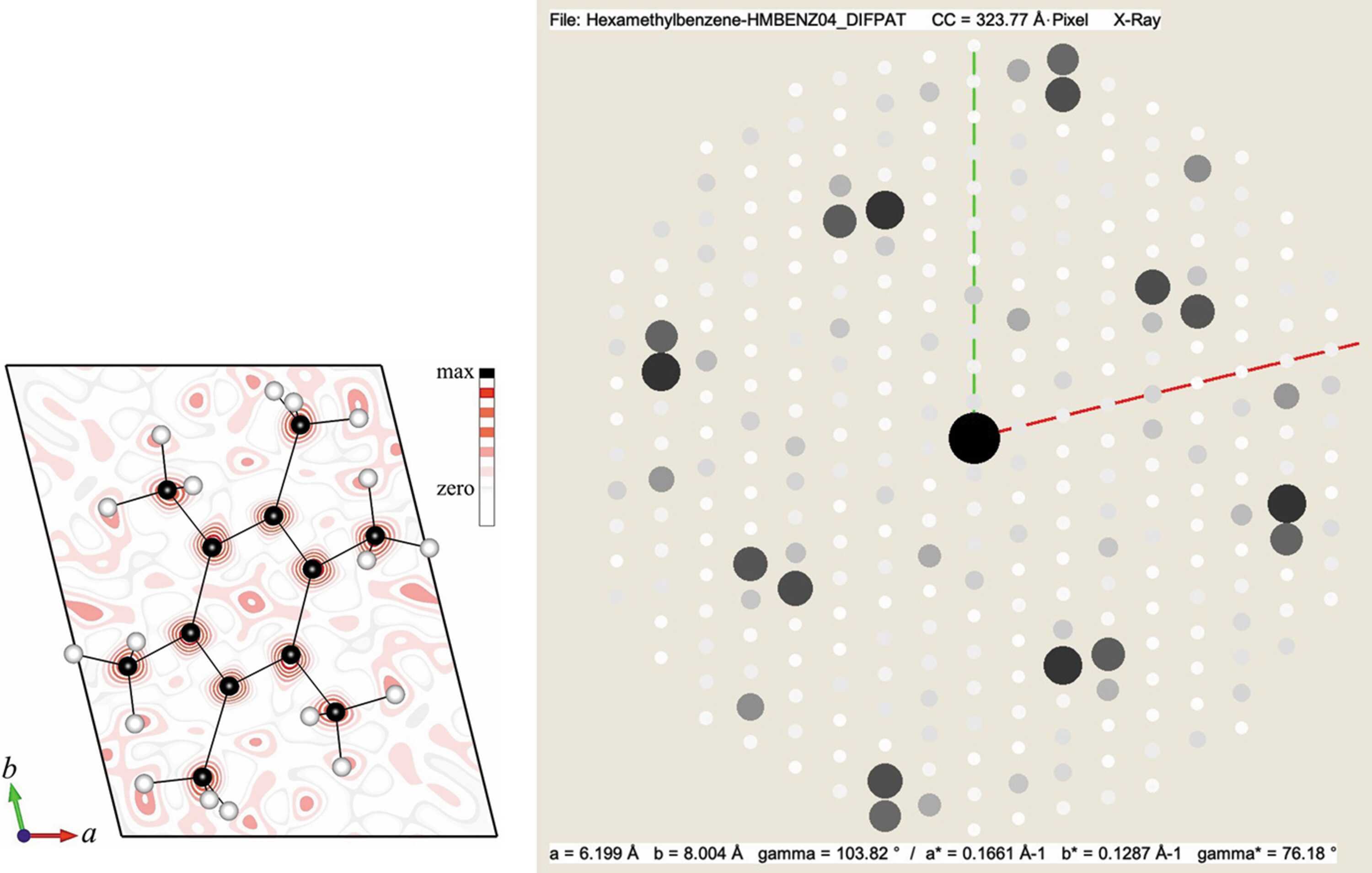

The left image shows the Fourier map of the projected structure of hexa­methyl­benzene C6(CH3)6 as calculated from the 48 Mathematical equation values in Table C1 together with the projected molecule as overlay (C = black, H = white marbles). The corresponding calculated diffraction pattern with intensities proportional to the square of the structure factor amplitude is shown in the image on the right. The reciprocal unit cell axes are indicated in the diffraction pattern as red and green lines for a* and b*, respectively.
