Synthesis and crystal structure of catena-poly[[[aqua­(2,3-di­methyl­pyrazine-κN)cadmium(II)]-di-μ-bromido] 2,3-di­methyl­pyrazine monosolvate hemihydrate]

Näther, C.

doi:10.1107/S2056989026005372

research communications

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 82| Part 6| June 2026| Pages 743-746

https://doi.org/10.1107/S2056989026005372

Open

access

Synthesis and crystal structure of catena-poly[[[aqua(2,3-dimethylpyrazine-κN)cadmium(II)]-di-μ-bromido] 2,3-dimethylpyrazine monosolvate hemihydrate]

Christian Näther ^a ^*

^aInstitut für Anorganische Chemie, Universität Kiel, Max-Eyth.-Str. 2, 24118 Kiel, Germany
^*Correspondence e-mail: [email protected]

Edited by S. P. Kelley, University of Missouri-Columbia, USA (Received 27 April 2026; accepted 21 May 2026; online 29 May 2026)

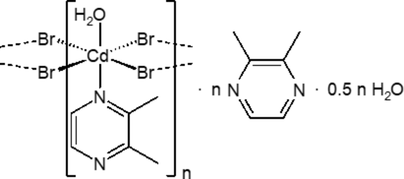

Crystals of the title compound, {[CdBr₂(C₆H₈N₂)(H₂O)]·C₆H₈N₂·0.5H₂O}_n (C₆H₈N₂ = 2,3-dimethylpyrazine), were obtained accidentally by the reaction of cadmium bromide with 2,3-dimethylpyrazine in water. The asymmetric unit consists of one Cd cation, two bromide anions, one 2,3-dimethylpyrazine ligand, one non-coordinating 2,3-dimethylpyrazine molecule, and one water molecule in general positions as well as an additional water molecule that is located on a twofold rotation axis. The cadmium cations are octahedrally coordinated by four bromide anions, one 2,3-dimethylpyrazine ligand and one water molecule, and are linked by pairs of μ-1,1-bridging bromide anions into chains that propagate in the a-axis direction. These chains are further connected into layers by intermolecular hydrogen bonding. The coordinated water ligand is hydrogen bonded to the 2,3-dimethylpyrazine, and the water solvate molecule and the 2,3-dimethylpyrazine molecules of crystallization are linked by O—H⋯N hydrogen bonding via the water solvate molecules into chains along the c-axis direction. The water solvate molecule therefore acts as donor for two O—H⋯N and as acceptor for two O—H⋯O hydrogen bonds.

Keywords: coordination polymer; synthesis; cadmium bromide; 2,3-dimethylpyrazine; crystal structure.

CCDC reference: 2555772

1. Chemical context

In recent years, numerous transition-metal halide and pseudohalide coordination compounds have been reported. In particular, those with copper(I) show a large structural variability, which can partly be traced back to the fact that these anions can act as bridging anionic ligands, leading to the formation of different metal-halide substructures (Kromp & Sheldrick, 1999 ; Peng et al., 2010 ; Li et al., 2005 , Näther et al., 2002 ). This variability frequently leads to the formation of compounds of different stoichiometry in which the ratio between the metal halide or metal pseudohalide is different. Whether this is the case for a given metal halide or pseudohalide and a given ligand can easily be checked by thermal treatment of coligand-rich compounds because in many cases they lose the neutral ligands in separate steps, leading to the formation of coligand-deficient compounds as intermediates (Näther et al., 2001 ; Näther & Jess, 2001 ).

In the beginning, we focused on compounds based on Cu^I but later we also became interested in coordination compounds based on twofold positively charged metal cations such as zinc or cadmium. These compounds are of interest, for example, because of their luminescence properties (Mautner et al., 2016 ; Jess et al., 2020 ). In contrast to copper(I), such compounds do not show a comparable structural variability. However, the structural variability can be enhanced if ligands are used that can act not only as monocoordinating but also as bridging ligands.

In this context, we recently reported on Zn and Cd halide compounds with 2,3-dimethylpyrazine as coligand. In contrast to Cd, which frequently exhibits an octahedral coordination, Zn cations usually prefer a tetrahedral coordination, even if compounds with an octahedral coordination are known. Compounds of different stoichiometry have been reported with Zn halides and 2,3-dimethylpyrazine, including ZnCl₂(2,3-dimethylpyrazine) (Näther & Bhosekar, 2025a ), ZnBr₂(2,3-dimethylpyrazine) (Näther & Bhosekar, 2025b ) and ZnI₂(2,3-dimethylpyrazine) (Näther & Bhosekar, 2026 ), with a ratio between ZnX₂ and coordinating coligands of 1:1. All of these compounds are isotypic and consist of tetrahedrally coordinated Zn cations that are linked by the 2,3-dimethylpyrazine ligands into chains.

2,3-Dimethylpyrazine-rich compounds with a ratio of 1:2 between ZnX₂ and coordinating coligands are also known. These are the isotypic compounds ZnCl₂(2,3-dimethylpyrazine)₂ (Näther & Bhosekar, 2025a) and ZnBr₂(2,3-dimethylpyrazine)₂ (Yang et al., 2025 ), which consist of discrete complexes in which the Zn cations are tetrahedrally coordinated by two halide anions and two only terminally coordinated 2,3-dimethylpyrazine ligands. An additional compound with a ratio of 1:2 is the heteroleptic tetrahedral discrete complex [ZnI₂(2,3-dimethylpyrazine)(H₂O)](H₂O)_0.5(2,3-dimethylpyrazine)_0.5 that crystallizes with additional water and 2,3-dimethylpyrazine as solvate molecules (Näther & Bhosekar, 2026).

Within this project, we also reported the first compounds with cadmium halides and 2,3-dimethylpyrazine, including CdI₂(2,3-dimethylpyrazine)₂ and CdI₂(2,3-dimethylpyrazine) with a ratio of 1:2 or 1:1 between CdI₂ and coligands (Näther, 2026 ). The former consists of discrete complexes with only terminal coligands, whereas in the latter the 2,3-dimethylpyrazine ligands link the Cd cations into chains. These structures are therefore comparable to those with Zn halides and 2,3-dimethylpyrazine mentioned above. However, in none of these compounds are condensed metal halide substructures found in which the metal cations are linked by bridging halide anions. Therefore, in the course of our systematic investigations we decided to prepare compounds with cadmium and the remaining halide anions and within these investigations we accidentally obtained crystals from the reaction of CdBr₂ with 2,3-dimethylpyrazine in water that were characterized by single crystal X-ray diffraction.

2. Structural commentary

The asymmetric unit of the title compound, [CdBr₂(C₆H₈N₂)(H₂O)]·C₆H₈N₂·0.5H₂O (C₆H₈N₂ = 2,3-dimethylpyrazine), is built up of a half water molecule that is located on a twofold rotation axis, as well as one cadmium cation, one water molecule, one coordinating and one non-coordinating 2,3-dimethylpyrazine molecules that occupy general positions (Fig. 1). The cadmium cations are sixfold coordinated by four μ-1,1 bridging bromide anions as well as one 2,3-dimethylpyrazine ligand and one aqua ligand that occupy the apical positions. The bond lengths deviate only slightly from the ideal values, which shows that the octahedra are slightly distorted (Table 1). Because of steric repulsion, the Br—Cd—Br angles of the bromide atoms in the cis-position are larger than 90° (Table 1).

Table 1
Selected geometric parameters (Å, °)

Cd1—O1	2.346 (2)	Cd1—Br2	2.7255 (4)
Cd1—N1	2.484 (3)	Cd1—Br2ⁱ	2.7450 (4)
Cd1—Br1	2.7245 (4)	Cd1—Br1ⁱⁱ	2.7497 (4)

O1—Cd1—N1	176.18 (8)	Br2—Cd1—Br2ⁱ	90.562 (11)
O1—Cd1—Br1	87.46 (6)	O1—Cd1—Br1ⁱⁱ	91.94 (6)
N1—Cd1—Br1	96.11 (6)	N1—Cd1—Br1ⁱⁱ	89.49 (6)
O1—Cd1—Br2	83.45 (6)	Br1—Cd1—Br1ⁱⁱ	88.437 (11)
N1—Cd1—Br2	95.00 (6)	Br2—Cd1—Br1ⁱⁱ	175.052 (12)
Br1—Cd1—Br2	93.156 (11)	Br2ⁱ—Cd1—Br1ⁱⁱ	87.487 (11)
O1—Cd1—Br2ⁱ	88.39 (6)	Cd1—Br1—Cd1ⁱⁱ	90.863 (11)
N1—Cd1—Br2ⁱ	88.14 (6)	Cd1—Br2—Cd1ⁱ	89.438 (11)
Br1—Cd1—Br2ⁱ	174.086 (12)
Symmetry codes: (i) $[-x, y, -z+{\script{3\over 2}}]$ ; (ii) $[-x+1, y, -z+{\script{3\over 2}}]$ .

Figure 1
Crystal structure of the title compound with labeling and displacement ellipsoids drawn at the 50% probability level. [Symmetry codes: (i) −x, y, −z + $[{3\over 2}]$ ; (ii) −x + 1, y, −z + $[{3\over 2}]$ .]

The Cd cations are linked by pairs of μ-1,1-bromide anions into chains along the a-axis direction (Fig. 2). These chains consist of octahedra that share common Br edges and the resulting Cd₂Br₂ rings are located around a twofold rotation axis. This chain motif is also observed in catena-[hexakis(μ₂-bromo)diaquabis(2-hydroxyethylsulfide-O,S)tricadmium] (Refcode HAXGUI; Rogers et al., 1993 ) and additional examples are given in the Database survey.

Figure 2
View of part of a chain in the crystal structure of the title compound.

3. Supramolecular features

In the crystal structure of the title compound, the H atoms of the coordinated water molecule are involved in intermolecular O—H⋯O and O—H⋯N hydrogen bonding to the solvate water molecule and the solvate 2,3-dimethylpyrazine molecule (Fig. 3). The latter is also connected to the solvate water molecule by intermolecular O—H⋯N hydrogen bonding. The uncoordinated water molecule is involved in four hydrogen bonds. First of all it acts as donor for two O—H⋯N hydrogen bonds to the 2,3-dimethylpyrazine molecules (O2—H1O2⋯N11) and secondly as acceptor for two O—H⋯O hydrogen bonds to the coordinated water molecules (O1—H1O1⋯O2, Fig. 3). This leads to the formation of hydrogen-bonded chains built up of water and 2,3-dimethylpyrazine molecules that propagate in the c-axis direction (Fig. 3). The O—H⋯N and O—H⋯O angles are close to linear, which suggests strong hydrogen-bonding interactions (Table 2). The CdBr₂ chains and the hydrogen-bonded network condense into layers that are parallel to the a/c-plane (Fig. 4). There are additional C—H⋯Br contacts but from the distances and angles they only correspond to weak interactions (Table 2).

Table 2
Hydrogen-bond geometry (Å, °)

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
O1—H1O1⋯O2	0.84	2.01	2.839 (3)	169
O1—H2O1⋯N12ⁱⁱⁱ	0.84	2.13	2.926 (4)	158
C4—H4⋯Br1ⁱⁱ	0.95	3.00	3.592 (3)	122
C4—H4⋯Br2ⁱ	0.95	3.01	3.545 (3)	117
C5—H5A⋯Br1	0.98	2.94	3.804 (3)	147
C5—H5A⋯Br2	0.98	3.01	3.657 (4)	125
C15—H15C⋯O2	0.98	2.65	3.449 (4)	139
O2—H1O2⋯N11	0.84	2.02	2.861 (3)	174
Symmetry codes: (i) $[-x, y, -z+{\script{3\over 2}}]$ ; (ii) $[-x+1, y, -z+{\script{3\over 2}}]$ ; (iii) $[x, -y, z+{\script{1\over 2}}]$ .

Figure 3
View of the hydrogen-bonded chains in the crystal structure of the title compound with intermolecular O—H⋯O and O—H⋯N hydrogen bonding shown as dashed lines.

Figure 4
Crystal structure of the title compound in a view along the a-axis direction and intermolecular O—H⋯O and O—H⋯N hydrogen bonding shown as dashed lines.

4. Database survey

As already mentioned in the Chemical context section, some compounds with zinc halides and 2,3-dimethylpyrazine have already been reported. In contrast, only two cadmium compounds with the composition CdI₂(2,3-dimethylpyrazine)₂ and CdI₂(2,3-dimethylpyrazine) are known (Näther, 2026). In both of these compounds the metal cations are in a tetrahedral coordination and are not connected via the halide anions, which, especially for cadmium, is somehow surprising.

However, a search in the CSD (CSD Version 5.43, 2025; Groom et al., 2016 ) using CONQUEST (Bruno et al., 2002 ) revealed that many compounds with cadmium halides and other pyrazine derivatives as coligands have been reported that also incorporate CdX₂ chains. These include CdX₂(pyrazine) [X = Cl, Br, I; CSD refcodes TISSUJ (Pickardt & Staub, 1996 ), RINSIQ and RINSOW (Bailey & Pennington, 1997 ), RINSOW01 and RINSIQ01 (Pickardt & Staub, 1997 )] in which the Cd cations are linked by pairs of bridging halide anions into chains, which are further connected into layers by the pyrazine coligands. Similar CdX₂ chains are also found in compounds with 2-chloro and 2-methylpyrazine (Näther et al., 2017 ), including CdX₂(L)₂ (X = Cl, Br, I, L = 2-chloro and methylpyrazine: QAWHOO, QAWGON, QAWGUT, QAWHAA, QAWHEE and QAWHII). Therefore, in the majority of cases the cadmium cations are linked into chains like those observed in the crystal structure of the title compound.

5. Synthesis and crystallization

General

Cadmium bromide and 2,3-dimethylpyrazine were purchased from Sigma-Aldrich.

Synthesis of the title compound

1 mmol (272.2 mg) of CdBr₂ and 2.0 mmol (216.3 mg) of 2,3-dimethylpyrazine were reacted in 3 mL of water for 3 d at room temperature, which led to the formation of crystals suitable for single-crystal X-ray diffraction analysis.

6. Refinement

Crystal data, data collection and structure refinement details are summarized in Table 3. The C—H hydrogen atoms were positioned with idealized geometry (methyl H atoms allowed to rotate but not to tip) and were refined isotropically with U_iso(H) = 1.2 U_eq(C) (1.5 for methyl H atoms). The O—H hydrogen atoms were located in difference maps, their bond lengths were set to ideal values and finally they were refined isotropically with U_iso(H) = 1.5 U_eq(O) using a riding model.

Table 3
Experimental details

Crystal data
Chemical formula	[CdBr₂(C₆H₈N₂)(H₂O)]·C₆H₈N₂·0.5H₂O
M_r	515.53
Crystal system, space group	Monoclinic, P2/c
Temperature (K)	170
a, b, c (Å)	7.7459 (4), 15.4368 (5), 14.1867 (7)
β (°)	90.621 (4)
V (Å³)	1696.23 (13)
Z	4
Radiation type	Mo Kα
μ (mm⁻¹)	6.00
Crystal size (mm)	0.13 × 0.11 × 0.09

Data collection
Diffractometer	Stoe IPDS2
Absorption correction	Numerical (X-RED and X-SHAPE; Stoe, 2002 )
T_min, T_max	0.338, 0.482
No. of measured, independent and observed [I > 2σ(I)] reflections	13656, 4097, 3340
R_int	0.031
(sin θ/λ)_max (Å⁻¹)	0.661

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.033, 0.089, 1.04
No. of reflections	4097
No. of parameters	191
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.74, −0.63
Computer programs: X-AREA (Stoe, 2002), SHELXT2014/4 (Sheldrick, 2015b ), SHELXL2016/6 (Sheldrick, 2015a ), DIAMOND (Brandenburg, 1999 ), XP in SHELXTL-PC (Sheldrick, 2008 ) and publCIF (Westrip, 2010 ).

Supporting information

CCDC reference: 2555772

Crystal structure: contains datablock I. DOI: https://doi.org/10.1107/S2056989026005372/ev2028sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2056989026005372/ev2028Isup2.hkl

checkCIF report

Computing details top

catena-Poly[[[aqua(2,3-dimethylpyrazine-κN)cadmium(II)]-di-µ-bromido] 2,3-dimethylpyrazine monosolvate hemihydrate] top

Crystal data top

[CdBr₂(C₆H₈N₂)(H₂O)]·C₆H₈N₂·0.5H₂O	F(000) = 996
M_r = 515.53	D_x = 2.019 Mg m⁻³
Monoclinic, P2/c	Mo Kα radiation, λ = 0.71073 Å
a = 7.7459 (4) Å	Cell parameters from 12616 reflections
b = 15.4368 (5) Å	θ = 2.5–27.3°
c = 14.1867 (7) Å	µ = 6.00 mm⁻¹
β = 90.621 (4)°	T = 170 K
V = 1696.23 (13) Å³	Block, colorless
Z = 4	0.13 × 0.11 × 0.09 mm

Data collection top

Stoe IPDS-2 diffractometer	3340 reflections with I > 2σ(I)
ω scans	R_int = 0.031
Absorption correction: numerical (X-Red and X-Shape; Stoe, 2002)	θ_max = 28.0°, θ_min = 2.0°
T_min = 0.338, T_max = 0.482	h = −10→9
13656 measured reflections	k = −20→20
4097 independent reflections	l = −18→18

Refinement top

Refinement on F²	Hydrogen site location: mixed
Least-squares matrix: full	H-atom parameters constrained
R[F² > 2σ(F²)] = 0.033	w = 1/[σ²(F_o²) + (0.0537P)²] where P = (F_o² + 2F_c²)/3
wR(F²) = 0.089	(Δ/σ)_max = 0.001
S = 1.04	Δρ_max = 0.74 e Å⁻³
4097 reflections	Δρ_min = −0.63 e Å⁻³
191 parameters	Extinction correction: SHELXL-2016/6 (Sheldrick 2016), Fc^*=kFc[1+0.001xFc²λ³/sin(2θ)]^-1/4
0 restraints	Extinction coefficient: 0.0028 (3)

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
Cd1	0.24844 (3)	0.33730 (2)	0.75394 (2)	0.02363 (9)
Br1	0.50745 (4)	0.32344 (2)	0.88453 (2)	0.02634 (10)
Br2	−0.00279 (4)	0.33703 (2)	0.88698 (2)	0.02708 (10)
O1	0.2182 (3)	0.18633 (15)	0.76353 (15)	0.0309 (5)
H1O1	0.309445	0.157649	0.756830	0.046*
H2O1	0.181245	0.172289	0.816830	0.046*
N1	0.2606 (3)	0.49752 (17)	0.73937 (17)	0.0261 (5)
C1	0.2571 (4)	0.5595 (2)	0.8054 (2)	0.0275 (6)
C2	0.2539 (5)	0.6471 (2)	0.7793 (3)	0.0388 (8)
N2	0.2579 (6)	0.67206 (19)	0.6891 (2)	0.0483 (9)
C3	0.2627 (5)	0.6087 (2)	0.6244 (2)	0.0389 (8)
H3	0.265776	0.623769	0.559538	0.047*
C4	0.2633 (4)	0.5231 (2)	0.6493 (2)	0.0309 (7)
H4	0.265691	0.480448	0.601080	0.037*
C5	0.2568 (5)	0.5342 (2)	0.9072 (2)	0.0331 (7)
H5A	0.274417	0.471500	0.912769	0.050*
H5B	0.145650	0.549789	0.934936	0.050*
H5C	0.349968	0.564623	0.940715	0.050*
C6	0.2480 (8)	0.7174 (3)	0.8526 (3)	0.0617 (13)
H6A	0.243977	0.774031	0.821427	0.093*
H6B	0.351389	0.713953	0.892862	0.093*
H6C	0.144923	0.710028	0.891199	0.093*
N11	0.3329 (4)	−0.03052 (18)	0.60583 (19)	0.0325 (6)
C11	0.2779 (4)	0.0162 (2)	0.5316 (2)	0.0273 (6)
C12	0.2007 (4)	−0.0250 (2)	0.4535 (2)	0.0288 (6)
N12	0.1791 (4)	−0.11062 (19)	0.4512 (2)	0.0331 (6)
C13	0.2314 (5)	−0.1561 (2)	0.5267 (2)	0.0345 (7)
H13	0.215947	−0.217148	0.527435	0.041*
C14	0.3067 (5)	−0.1161 (2)	0.6029 (2)	0.0357 (7)
H14	0.341562	−0.150324	0.655451	0.043*
C15	0.3008 (5)	0.1122 (2)	0.5364 (3)	0.0384 (8)
H15A	0.191047	0.139386	0.553252	0.058*
H15B	0.337665	0.133830	0.474869	0.058*
H15C	0.388631	0.126313	0.584184	0.058*
C16	0.1419 (5)	0.0250 (2)	0.3681 (2)	0.0393 (8)
H16A	0.242693	0.047585	0.334999	0.059*
H16B	0.068520	0.073317	0.387805	0.059*
H16C	0.076088	−0.013282	0.325975	0.059*
O2	0.500000	0.0696 (2)	0.750000	0.0333 (7)
H1O2	0.450360	0.037064	0.710700	0.050*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
Cd1	0.02233 (14)	0.02422 (14)	0.02434 (14)	0.00021 (7)	−0.00011 (9)	0.00123 (7)
Br1	0.02315 (16)	0.03242 (17)	0.02344 (16)	−0.00015 (12)	0.00002 (11)	0.00176 (11)
Br2	0.02306 (17)	0.03493 (19)	0.02322 (16)	0.00152 (11)	−0.00020 (11)	−0.00067 (11)
O1	0.0348 (11)	0.0290 (11)	0.0290 (10)	0.0023 (10)	0.0047 (9)	0.0027 (9)
N1	0.0307 (13)	0.0250 (13)	0.0228 (12)	−0.0010 (10)	−0.0005 (10)	0.0017 (9)
C1	0.0331 (16)	0.0260 (15)	0.0234 (14)	0.0010 (12)	0.0013 (12)	−0.0024 (11)
C2	0.060 (2)	0.0293 (17)	0.0274 (15)	0.0017 (17)	0.0016 (14)	−0.0009 (13)
N2	0.088 (3)	0.0268 (16)	0.0302 (15)	0.0007 (16)	0.0021 (16)	0.0029 (11)
C3	0.064 (2)	0.0276 (17)	0.0247 (16)	0.0019 (16)	0.0002 (15)	0.0026 (12)
C4	0.0394 (17)	0.0300 (16)	0.0231 (14)	0.0001 (13)	−0.0009 (12)	−0.0023 (12)
C5	0.0446 (19)	0.0325 (17)	0.0221 (14)	0.0006 (15)	0.0002 (13)	−0.0016 (12)
C6	0.120 (4)	0.0265 (18)	0.038 (2)	0.004 (2)	0.006 (2)	−0.0026 (15)
N11	0.0389 (15)	0.0280 (14)	0.0306 (13)	0.0007 (12)	−0.0047 (11)	−0.0005 (10)
C11	0.0308 (16)	0.0254 (14)	0.0257 (14)	−0.0002 (12)	0.0034 (12)	0.0008 (11)
C12	0.0298 (15)	0.0297 (16)	0.0267 (14)	−0.0004 (12)	0.0007 (12)	−0.0003 (12)
N12	0.0388 (15)	0.0295 (14)	0.0311 (14)	−0.0016 (12)	0.0014 (12)	−0.0039 (11)
C13	0.0411 (19)	0.0232 (15)	0.0393 (17)	0.0004 (13)	0.0001 (14)	−0.0024 (13)
C14	0.0426 (19)	0.0299 (17)	0.0345 (17)	0.0011 (15)	−0.0012 (14)	0.0030 (13)
C15	0.048 (2)	0.0286 (17)	0.0382 (18)	−0.0039 (15)	−0.0019 (16)	−0.0008 (13)
C16	0.049 (2)	0.0388 (19)	0.0304 (16)	0.0063 (16)	−0.0018 (15)	0.0012 (14)
O2	0.0354 (17)	0.0290 (17)	0.0353 (17)	0.000	−0.0078 (14)	0.000

Geometric parameters (Å, º) top

Cd1—O1	2.346 (2)	C6—H6A	0.9800
Cd1—N1	2.484 (3)	C6—H6B	0.9800
Cd1—Br1	2.7245 (4)	C6—H6C	0.9800
Cd1—Br2	2.7255 (4)	N11—C14	1.337 (4)
Cd1—Br2ⁱ	2.7450 (4)	N11—C11	1.342 (4)
Cd1—Br1ⁱⁱ	2.7497 (4)	C11—C12	1.406 (5)
O1—H1O1	0.8400	C11—C15	1.493 (5)
O1—H2O1	0.8400	C12—N12	1.332 (4)
N1—C4	1.338 (4)	C12—C16	1.503 (5)
N1—C1	1.339 (4)	N12—C13	1.340 (5)
C1—C2	1.402 (5)	C13—C14	1.370 (5)
C1—C5	1.497 (4)	C13—H13	0.9500
C2—N2	1.337 (4)	C14—H14	0.9500
C2—C6	1.504 (5)	C15—H15A	0.9800
N2—C3	1.342 (4)	C15—H15B	0.9800
C3—C4	1.368 (5)	C15—H15C	0.9800
C3—H3	0.9500	C16—H16A	0.9800
C4—H4	0.9500	C16—H16B	0.9800
C5—H5A	0.9800	C16—H16C	0.9800
C5—H5B	0.9800	O2—H1O2	0.8400
C5—H5C	0.9800	O2—H1O2ⁱⁱ	0.8400

O1—Cd1—N1	176.18 (8)	H5A—C5—H5B	109.5
O1—Cd1—Br1	87.46 (6)	C1—C5—H5C	109.5
N1—Cd1—Br1	96.11 (6)	H5A—C5—H5C	109.5
O1—Cd1—Br2	83.45 (6)	H5B—C5—H5C	109.5
N1—Cd1—Br2	95.00 (6)	C2—C6—H6A	109.5
Br1—Cd1—Br2	93.156 (11)	C2—C6—H6B	109.5
O1—Cd1—Br2ⁱ	88.39 (6)	H6A—C6—H6B	109.5
N1—Cd1—Br2ⁱ	88.14 (6)	C2—C6—H6C	109.5
Br1—Cd1—Br2ⁱ	174.086 (12)	H6A—C6—H6C	109.5
Br2—Cd1—Br2ⁱ	90.562 (11)	H6B—C6—H6C	109.5
O1—Cd1—Br1ⁱⁱ	91.94 (6)	C14—N11—C11	117.4 (3)
N1—Cd1—Br1ⁱⁱ	89.49 (6)	N11—C11—C12	120.2 (3)
Br1—Cd1—Br1ⁱⁱ	88.437 (11)	N11—C11—C15	117.5 (3)
Br2—Cd1—Br1ⁱⁱ	175.052 (12)	C12—C11—C15	122.3 (3)
Br2ⁱ—Cd1—Br1ⁱⁱ	87.487 (11)	N12—C12—C11	121.4 (3)
Cd1—Br1—Cd1ⁱⁱ	90.863 (11)	N12—C12—C16	116.9 (3)
Cd1—Br2—Cd1ⁱ	89.438 (11)	C11—C12—C16	121.7 (3)
Cd1—O1—H1O1	115.6	C12—N12—C13	117.6 (3)
Cd1—O1—H2O1	110.1	N12—C13—C14	121.2 (3)
H1O1—O1—H2O1	105.2	N12—C13—H13	119.4
C4—N1—C1	117.2 (3)	C14—C13—H13	119.4
C4—N1—Cd1	112.0 (2)	N11—C14—C13	122.2 (3)
C1—N1—Cd1	130.7 (2)	N11—C14—H14	118.9
N1—C1—C2	120.3 (3)	C13—C14—H14	118.9
N1—C1—C5	119.3 (3)	C11—C15—H15A	109.5
C2—C1—C5	120.4 (3)	C11—C15—H15B	109.5
N2—C2—C1	122.0 (3)	H15A—C15—H15B	109.5
N2—C2—C6	117.0 (3)	C11—C15—H15C	109.5
C1—C2—C6	120.9 (3)	H15A—C15—H15C	109.5
C2—N2—C3	116.5 (3)	H15B—C15—H15C	109.5
N2—C3—C4	121.8 (3)	C12—C16—H16A	109.5
N2—C3—H3	119.1	C12—C16—H16B	109.5
C4—C3—H3	119.1	H16A—C16—H16B	109.5
N1—C4—C3	122.1 (3)	C12—C16—H16C	109.5
N1—C4—H4	118.9	H16A—C16—H16C	109.5
C3—C4—H4	118.9	H16B—C16—H16C	109.5
C1—C5—H5A	109.5	H1O2—O2—H1O2ⁱⁱ	106.7
C1—C5—H5B	109.5

Symmetry codes: (i) −x, y, −z+3/2; (ii) −x+1, y, −z+3/2.

Hydrogen-bond geometry (Å, º) top

D—H···A	D—H	H···A	D···A	D—H···A
O1—H1O1···O2	0.84	2.01	2.839 (3)	169
O1—H2O1···N12ⁱⁱⁱ	0.84	2.13	2.926 (4)	158
C4—H4···Br1ⁱⁱ	0.95	3.00	3.592 (3)	122
C4—H4···Br2ⁱ	0.95	3.01	3.545 (3)	117
C5—H5A···Br1	0.98	2.94	3.804 (3)	147
C5—H5A···Br2	0.98	3.01	3.657 (4)	125
C15—H15C···O2	0.98	2.65	3.449 (4)	139
O2—H1O2···N11	0.84	2.02	2.861 (3)	174

Symmetry codes: (i) −x, y, −z+3/2; (ii) −x+1, y, −z+3/2; (iii) x, −y, z+1/2.

Acknowledgements

Financial support by the State of Schleswig-Holstein is gratefully acknowledged.

References

Bailey, R. D. & Pennington, W. T. (1997). Polyhedron, 16, 417–422. CSD CrossRef CAS Web of Science Google Scholar
Brandenburg, K. (1999). DIAMOND. Crystal Impact GbR, Bonn, Germany. Google Scholar
Bruno, I. J., Cole, J. C., Edgington, P. R., Kessler, M., Macrae, C. F., McCabe, P., Pearson, J. & Taylor, R. (2002). Acta Cryst. B58, 389–397. Web of Science CrossRef CAS IUCr Journals Google Scholar
Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016). Acta Cryst. B72, 171–179. Web of Science CrossRef IUCr Journals Google Scholar
Jess, I., Neumann, T., Terraschke, H., Gallo, G., Dinnebier, R. & Näther, C. (2020). Z. Anorg. Allg. Chem. 646, 1046–1054. CrossRef CAS Google Scholar
Kromp, T. & Sheldrick, W. S. (1999). Z. Naturforsch. B 54, 1175–1180. CrossRef CAS Google Scholar
Li, D., Shi, W. J. & Hou, L. (2005). Inorg. Chem. 44, 3907–3913. Web of Science CSD CrossRef PubMed CAS Google Scholar
Mautner, F. A., Berger, C., Fischer, R. C. & Massoud, S. S. (2016). Inorg. Chim. Acta 439, 69–76. CrossRef CAS Google Scholar
Näther, C. (2026). Acta Cryst. E82, 394–399. CrossRef IUCr Journals Google Scholar
Näther, C. & Bhosekar, G. (2025a). Acta Cryst. E81, 694–698. Web of Science CSD CrossRef IUCr Journals Google Scholar
Näther, C. & Bhosekar, G. (2025b). Acta Cryst. E81, 928–931. Web of Science CSD CrossRef IUCr Journals Google Scholar
Näther, C. & Bhosekar, G. (2026). Acta Cryst. E82, 244–248. Web of Science CSD CrossRef IUCr Journals Google Scholar
Näther, C., Greve, J. & Jess, I. (2002). Solid State Sci. 4, 813–820. Google Scholar
Näther, C., Jess, I. & Greve, J. (2001). Polyhedron 20, 1017–1022. Google Scholar
Näther, C. & Jess, I. (2001). Monatsh. Chem. 132, 897–910. Web of Science CSD CrossRef CAS Google Scholar
Näther, C., Jess, I., Germann, L. S., Dinnebier, R. E., Braun, M. & Terraschke, H. (2017). Eur. J. Inorg. Chem. pp. 1245–1255. Google Scholar
Peng, R., Li, M. & Li, D. (2010). Coord. Chem. Rev. 254, 1–18. Web of Science CrossRef CAS Google Scholar
Pickardt, J. & Staub, B. (1996). Z. Naturforsch B51, 947–951. CrossRef Google Scholar
Pickardt, J. & Staub, B. (1997). Z. Naturforsch B52, 1456–1460. Web of Science CrossRef Google Scholar
Rogers, R. D., Bond, A. H. & Aguinaga, S. (1993). J. Crystallogr. Spectrosc. Res. 23, 657–661. Google Scholar
Sheldrick, G. M. (2008). Acta Cryst. A64, 112–122. Web of Science CrossRef CAS IUCr Journals Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Stoe (2002). X-AREA, X-RED and X-SHAPE. Stoe & Cie, Darmstadt, Germany. Google Scholar
Westrip, S. P. (2010). J. Appl. Cryst. 43, 920–925. Web of Science CrossRef CAS IUCr Journals Google Scholar
Yang, C., Zheng, J., Xu, C., Xiao, C., Chang, Y., Zhou, L. & Gong, X. (2025). Chem. Commun. 61, 4379–4382. Web of Science CSD CrossRef CAS Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
