Crystal structure of a tetranuclear copper(II) complex with 1,10-phenanthroline and 3-nitrophthalate ligands

Naima Karimova,^a Khayit Turaev,^a Gulvar Muqumova,^a Jabbor Suyunov,^a Maftuna Primkulova ^b and Lidiya Izotova ^c ^*

^aTermez State University, A Navoiy Str, 43, Termez, 190100, Uzbekistan, ^bDenau Institute of Entrepreneurship and Pedagogy, Bog Str, 112, Denau, 733500, Uzbekistan, and ^cInstitute of Bioorganic Chemistry, Academy of Sciences of Uzbekistan, H. Abdullaev Str,83, Tashkent, 100125, Uzbekistan
^*Correspondence e-mail: [email protected]

Edited by W. T. A. Harrison, University of Aberdeen, United Kingdom (Received 6 March 2026; accepted 14 April 2026; online 19 May 2026)

In the hydrated complex tetrakis(μ-2-carboxy-6-nitrobenzoato-κ²O:O′)bis(μ-3-nitrobenzene-1,2-dicarboxylato-κ²O:O′)tetrakis[(1,10-phenanthroline-κN:N′)copper(II)] hexahydrate, [Cu₄(C₈H₄NO₆)₄(C₈H₃NO₆)₂(C₁₂H₈N₂)₄]·6H₂O, the Cu^II centres exhibit distorted coordination geometries defined by nitrogen atoms from chelating 1,10-phenanthroline ligands and oxygen atoms from 3-nitrophthalate anions. The centrosymmetric molecular assembly is consolidated by bridging carboxylate groups, while the crystal packing is governed by hydrogen bonding and π–π stacking interactions between aromatic rings. The scattering contribution of one disordered water molecule contribution was treated using the SQUEEZE procedure.

Keywords: crystal structure; tetranuclear copper(II) complex; 1,10-phenanthroline; 3-nitrophthalate.

CCDC reference: 2554327

1. Chemical context

Aromatic diimine ligands such as 1,10-phenanthroline are widely employed in coordination chemistry owing to their strong chelating ability, rigid planar geometry, and pronounced π-acceptor character (Constable, 1987 ). Copper(II) complexes incorporating phenanthroline frequently exhibit diverse structural motifs and supramolecular behaviour. Polycarboxylate ligands derived from 3-nitrophthalic acid represent versatile building units capable of multiple coordination modes. The presence of carboxylate and nitro functionalities enables structural diversity and promotes the formation of multinuclear assemblies (Thompson, 2002 ).

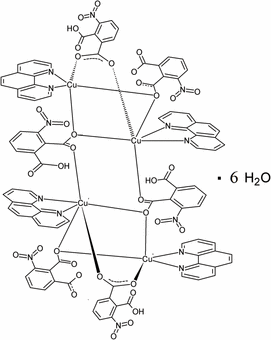

In the present work, we report how the combination of Cu^II, 1,10-phenanthroline (C₁₂H₈N₂) and 3-nitrophthalic acid (C₈H₄NO₆) in the mixed solvents of N,N-dimethylformamide, ethanol and water results in the title tetranuclear copper complex, [Cu₄(C₈H₄NO₆)₄(C₈H₃NO₆)₂(C₁₂H₈N₂)₄]·6H₂O (I).

2. Structural commentary

The structure of (I) consists of a centrosymmetric, tetranuclear, copper(II) grouping in which the metal centres are interconnected by 3-nitrophthalate ligands and further ligated by chelating 1,10-phenanthroline donors. Two crystallographically independent copper atoms are present in the asymmetric unit (Fig. 1).

Figure 1
The molecular structure of the asymmetric unit of (I) with displacement ellipsoids drawn at the 30% probability level.

Atom Cu1 is five-coordinate and adopts a distorted square-pyramidal geometry. The basal plane is defined by two nitrogen atoms from one chelating phenanthroline ligand and two oxygen atoms from carboxylate groups (Table 1). The apical position is occupied by atom O4: the pronounced elongation of this axial Cu—O bond relative to the equatorial distances is consistent with the expected Jahn–Teller distortion of a 3d⁹ Cu^II centre.

Table 1
Selected geometric parameters (Å, °)

Cu1—O5B	1.953 (3)	Cu2—O6B	1.944 (3)
Cu1—O4A	1.962 (3)	Cu2—O4	1.972 (3)
Cu1—N3A	1.999 (4)	Cu2—N2	2.013 (4)
Cu1—N2A	2.009 (4)	Cu2—N3	2.014 (4)
Cu1—O4	2.314 (3)	Cu2—O4A	2.484 (3)

O5B—Cu1—O4A	95.02 (12)	N3A—Cu1—O4	111.85 (15)
O5B—Cu1—N3A	90.89 (14)	N2A—Cu1—O4	85.08 (14)
O4A—Cu1—N3A	163.85 (16)	O6B—Cu2—O4	91.81 (12)
O5B—Cu1—N2A	169.40 (14)	O6B—Cu2—N2	89.88 (14)
O4A—Cu1—N2A	94.28 (15)	O4—Cu2—N2	175.61 (14)
N3A—Cu1—N2A	81.49 (16)	O6B—Cu2—N3	169.52 (15)
O5B—Cu1—O4	90.99 (12)	O4—Cu2—N3	96.28 (14)
O4A—Cu1—O4	83.11 (12)	N2—Cu2—N3	81.59 (16)

Atom Cu2 is four-coordinate within the asymmetric unit and exhibits a distorted square-planar geometry defined by two nitrogen atoms from phenanthroline and two oxygen atoms from carboxylate groups. These Cu—O and Cu—N bond lengths fall within the typical ranges observed for Cu^II complexes containing carboxylate and diimine ligands.

The 3-nitrophthalate ligand acts as a μ₂-bridging linker connecting adjacent copper(II) centres. Atom O4 functions as an asymmetric carboxylate bridge between Cu1 and Cu2, coordinating axially to Cu1 [Cu1—O4 = 2.314 (3) Å] and equatorially to Cu2 [Cu2—O4 = 1.972 (3) Å]. The significant difference in bond lengths indicates stronger equatorial coordination to Cu2 and a weaker axial interaction with Cu1, consistent with Jahn–Teller distortion commonly observed for Cu^II centres.

Additional carboxylate oxygen atoms, O5B and O6B, coordinate to Cu1 and Cu2, respectively, further consolidating the tetranuclear Cu₄ core through μ₂-carboxylate bridges (Fig. 2).

Figure 2
Simplified representation of the tetranuclear Cu₄ core in (I) showing the butterfly-type arrangement and the μ₂-carboxylate bridges. Primed atoms are generated by the symmetry operation 1 − x, 1 − y, 1 − z.

The C8A—O5A and C8A—O6A bond lengths [1.261 (7) and 1.256 (8) Å, respectively] are nearly identical, indicating delocalization within the carboxylate group and confirming its deprotonated state. Accordingly, this nitrophthalate ligand is presumed to be present in a doubly deprotonated form.

Taking into account the presence of two such dianionic ligands together with four monodeprotonated nitrophthalate ligands and four Cu^II centres, the overall charge of the complex is balanced.

3. Supramolecular features

In the crystal, aromatic π–π stacking interactions are observed between symmetry-related aromatic rings. The centroid–centroid separation is 3.687 (3) Å for the Cg1⋯Cg2ⁱ interaction [symmetry code: (i) 1 − x, 1 − y, 1 − z; Cg1 is the centroid of the N2/C9–C12/C20 pyridyl ring of the phenanthroline ligand and Cg2 is the centroid of the C2–C7 benzene ring of the nitrophthalate ligand].

The interplanar separation is 3.665 Å, with a dihedral angle of 4.0 (3)°, indicating that the rings are nearly parallel. The very small slippage (ca 0.4 Å) suggests an almost face-to-face arrangement of the interacting aromatic systems (Moulton & Zaworotko, 2001 ).

O—H⋯O and C—H⋯O hydrogen bonds (Table 2) are also present. The packing is showin in Fig. 3.

Table 2
Hydrogen-bond geometry (Å, °)

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
O6—H6⋯O20W	0.82	1.84	2.649 (7)	168
C9—H9⋯O6B	0.93	2.48	2.972 (6)	113
C9A—H9A⋯O1A	0.93	2.52	3.217 (7)	132
C18—H18⋯O5	0.93	2.24	3.150 (7)	166
C18A—H18A⋯O5B	0.93	2.55	3.017 (6)	112
C18A—H18A⋯O3B	0.93	2.46	3.365 (7)	165
C6—H6C⋯O3Bⁱ	0.93	2.58	3.252 (7)	129
C17A—H17A⋯O2ⁱ	0.93	2.11	3.027 (8)	169
O4B—H4B⋯O5A	0.88 (6)	1.70 (6)	2.512 (7)	151 (6)
Symmetry code: (i) $[-x+{\script{3\over 2}}, -y+{\script{1\over 2}}, -z+1]$ .

Figure 3
Crystal packing of (I) viewed along the [010] direction.

4. Hirshfeld surface analysis

Hirshfeld surface analysis was performed using CrystalExplorer (Turner et al., 2017 ; Spackman et al., 2021 ) to quantify the intermolecular interactions in the crystal structure.

The Hirshfeld surface mapped over d_norm displays prominent red regions corresponding to short O⋯H/H⋯O contacts, confirming the dominant role of hydrogen bonding in consolidate the crystal packing. (Fig. 4). Two-dimensional fingerprint plots (Fig. 5) show that O⋯H/H⋯O contacts contribute 43.6%, followed by H⋯H interactions (25.5%). C⋯H/H⋯C contacts account for 7.5%, while O⋯O (4.6%), O⋯C/C⋯O (4.4%) and O⋯N/N⋯O (1.5%) interactions provide minor contributions. These results confirm that hydrogen bonding and dispersion interactions dominate the supramolecular architecture.

Figure 4
The Hirshfeld surface of (I) mapped over d_norm showing short intermolecular O⋯H/H⋯O contacts as red regions.

Figure 5
The two-dimensional fingerprint plots for (I) showing the percentage contributions of (a) O⋯H/H⋯O, (b) H⋯H, (c) C⋯H/H⋯C, (d) O⋯O, (e) O⋯C/C⋯O and (f) O⋯N/N⋯O contacts.

5. SQUEEZE treatment

Examination of the difference-Fourier map revealed regions of diffuse residual electron density located within solvent-accessible voids, consistent with the presence of highly disordered solvent molecules. Attempts to model this electron density using discrete atomic positions resulted in unstable refinements. Accordingly, the solvent contribution was treated using the SQUEEZE (Spek, 2015 ) procedure implemented in PLATON (Spek, 2020 ). The procedure identified solvent-accessible voids with volumes of approximately 10–48 Å³, containing up to 13 electrons per void and resulted in stable refinement behaviour and chemically reasonable structural parameters. The reported molecular formula, density, etc. refer only to the ordered portion of the structure.

6. Database survey

A search of the Cambridge Structural Database (CSD Version 2025.3.1; Groom et al., 2016 ) for structures containing both ‘1,10-phenanthroline' and ‘Cu²⁺' yielded 359 hits, highlighting the widespread use of phenanthroline as a chelating ligand in copper(II) coordination chemistry.

A more specific search combining the terms ‘phenanthroline + Cu2⁺ + benzenecarboxylic acid' returned ten entries (CSD refcodes ETTIE, BOVCAT, CAMZIA, CODVOJ, DOGDVB, HOPYAM, TEJXEL, XEHTEL, RADYIF and CABCIV). Among these, the structures with refcodes RADYIF (Zhu et al., 2004 ) and CABCIV (Pinto et al., 2020 ) represent the structurally closest known analogues to the present compound.

RADYIF features a ladder-like tetranuclear Cu₄ core sustained by μ₂- and μ₃-carboxylate bridges in combination with chelating 1,10-phenanthroline ligands. Similarly, the stepped tetranuclear core in CABCIV exhibits mixed square-planar and square-pyramidal coordination geometries around the Cu^II centres, consistent with the Jahn–Teller distortion typically observed for 3d⁹ metal ions.

Despite these structural similarities, the title compound is distinguished by the presence of six 3-nitrophthalate ligands per Cu₄ unit, resulting in an increased degree of μ₂-carboxylate connectivity and a more extensively bridged metal framework. In contrast to RADYIF and CABCIV, the present structure displays a higher ligand-to-metal bridging ratio, leading to a more compact tetranuclear core. Furthermore, the supramolecular architecture in (I) is reinforced by O—H⋯O hydrogen-bonding interactions and pronounced slipped π–π stacking between adjacent phenanthroline ligands, which contribute significantly to the packing. These combined structural features differentiate the title compound from the closest CSD analogues and highlight its enhanced connectivity and packing consolidation.

7. Synthesis and crystallization

3-Nitrophthalic acid (1.00 mmol, 0.211 g) was dissolved in N,N-dimethylformamide (DMF), 1,10-phenanthroline (1.00 mmol, 0.180 g) was dissolved in ethanol, and Cu(CH₃COO)₂ (1.00 mmol, 0.18 g) in distilled water. The mixture of solutions of 3-nitrophthalic acid and copper(II) acetate were combined in a flat-bottom flask and stirred for 20 min using a magnetic stirrer. The solution of 1,10-phenanthroline was added dropwise. The reaction mixture was stirred at 333 ± 0.5 K for an additional 20 min.

The resulting solution was left to stand at room temperature in a loosely covered vessel, maintaining a pH of approximately 6.0. After 12 days, blue prism-shaped crystals of (I) suitable for X-ray diffraction formed at the bottom of the vessel. The crystals were isolated by filtration.

8. Refinement

Crystal data, data collection and structure refinement details are summarized in Table 3. Hydrogen atoms were placed geometrically and refined using a riding model. One solvent-accessible region containing highly disordered electron density, probably corresponding to water molecule(s) of crystallization, could not be modelled satisfactorily. The contribution of this diffuse solvent was treated using the SQUEEZE procedure as implemented in PLATON (Spek, 2020). Three additional water molecules were located from difference-Fourier maps. However, their hydrogen atoms could not be positioned reliably due to unfavorable geometry and large displacement parameters. These hydrogen atoms were therefore omitted from the refinement. Hydrogen atoms attached to carbon atoms were placed in calculated positions and refined using a riding model.

Table 3
Experimental details

Crystal data
Chemical formula	[Cu₄(C₈H₄NO₆)₄(C₈H₃NO₆)₂(C₁₂H₈N₂)₄]·6H₂O
M_r	2329.69
Crystal system, space group	Monoclinic, C2/c
Temperature (K)	293
a, b, c (Å)	24.890 (3), 14.3705 (7), 30.179 (3)
β (°)	116.919 (12)
V (Å³)	9624.8 (17)
Z	4
Radiation type	Cu Kα
μ (mm⁻¹)	1.90
Crystal size (mm)	0.04 × 0.03 × 0.01

Data collection
Diffractometer	Xcalibur, Ruby
Absorption correction	Multi-scan (CrysAlis PRO; Agilent Technologies, 2014 )
T_min, T_max	0.916, 1.000
No. of measured, independent and observed [I > 2σ(I)] reflections	33685, 9915, 5785
R_int	0.057
(sin θ/λ)_max (Å⁻¹)	0.632

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.061, 0.181, 1.01
No. of reflections	9915
No. of parameters	707
H-atom treatment	H atoms treated by a mixture of independent and constrained refinement
Δρ_max, Δρ_min (e Å⁻³)	0.29, −0.30
Computer programs: CrysAlis PRO (Agilent, 2014), SHELXT (Sheldrick, 2015a ) and SHELXL2025/1 (Sheldrick, 2015b ).

Supporting information

CCDC reference: 2554327

Crystal structure: contains datablock I. DOI: https://doi.org/10.1107/S2056989026005116/hb8202sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2056989026005116/hb8202Isup3.hkl

checkCIF report

Computing details top

Tetrakis(µ-2-carboxy-6-nitrobenzoato-κ²O:O')bis(µ-3-nitrobenzene-1,2-dicarboxylato-κ²O:O')tetrakis[(1,10-phenanthroline-κN:N')copper(II)] hexahydrate top
