Synthesis and crystal structure of a mixed-metal 3D coordination polymer poly[[bis­(μ5-anthra­quinone-1,8-di­sulfonato-κ5O:O′:O′′:O′′′:O′′′′)di-μ2-aqua-κ4O:O-tetra­aqua­copper(II)disodium] dihydrate]

Chen, X.-Y.; Wei, J.; He, J.; Gao, H.-L.; Chen, X.-D.; Xu, G.

doi:10.1107/S2056989026003956

research communications

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 82| Part 6| June 2026| Pages 678-682

https://doi.org/10.1107/S2056989026003956

Open

access

Synthesis and crystal structure of a mixed-metal 3D coordination polymer poly[[bis(μ₅-anthraquinone-1,8-disulfonato-κ⁵O:O′:O′′:O′′′:O′′′′)di-μ₂-aqua-κ⁴O:O-tetraaquacopper(II)disodium] dihydrate]

Xuan-Yi Chen,^a Jia Wei,^a Juan He,^a Hui-Lei Gao,^a Xu-Dong Chen ^a and Gan Xu ^a ^*

^aSchool of Chemistry and Materials Science, Nanjing Normal University, Nanjing 210023, People's Republic of China
^*Correspondence e-mail: [email protected]

Edited by S.-L. Zheng, Harvard University, USA (Received 3 March 2026; accepted 14 April 2026; online 15 May 2026)

Metal–organic hybrid materials have attracted a great deal of research interest due to their potential applications in the field such as gas storage and separation, heterogeneous catalysis, chemical/biological sensing and detection, energy transfer and photocatalysis, etc. The rational design and synthesis of organic ligands has proven to be an effective strategy in fabricating desired structures with given properties. Anthraquinone-1,8-disulfonic acid (1,8-H₂AQDS, C₈H₁₄O₈S₂) has been used to construct the title complex, {[Na₂Cu(1,8-AQDS)₂(H₂O)₆]·2H₂O}_n, by means of half-neutralization with NaOH followed by assembly with Cu(NO₃)₂·3H₂O. This mixed-metal coordination polymer exhibits a three-dimensional pillar-layered framework structure with the 1,8-AQDS²⁻ ligand adopting a μ₅-bridging mode, including a coordinated carbonyl group binding with Na⁺ cation. The Na⁺ and Cu²⁺ cations both exhibit a distorted octahedral coordination environment, in which the Na⁺ coordination sphere is more irregular stretched. The 1,8-substituted bulky sulfonate groups exert a strong stereo effect to the inter-positioned carbonyl group and lead to the bending of the 1,8-AQDS²⁻ ligand into a butterfly conformation. Both coordinated and solvent water molecules are involved in O—H⋯O hydrogen bonding, which further consolidates the three-dimensional coordination framework.

Keywords: anthraquinone-1,8-disulfonic acid; coordination polymer; hydrogen bonding; crystal structure.

CCDC reference: 2533984

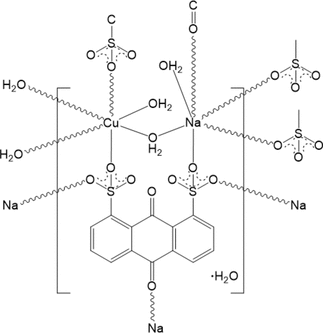

1. Chemical context

Metal–organic hybrid materials exhibiting versatile topologies and fascinating structural motifs have attracted a great deal of research interest in the past two decades. Much effort has been devoted to the design and synthesis of coordination complexes with desired structural features, which are targeted at providing different functionalities that have potential applications in areas such as gas storage and separation (Murray et al., 2009 ), heterogeneous catalysis (Lee et al., 2009 ), chemical and biological sensing and detection (Hu et al., 2014 ), energy transfer and photocatalysis (Zhang & Lin, 2014 ), etc. The rational design and synthesis of organic ligands as basic building blocks has been one of the most efficient strategies in constructing metal–organic hybrid complexes with various architectures. The exploration of versatile rigid or flexible organic ligands with various coordinating groups is therefore one of the central themes in this research area. A ligand with sulfonate groups is one of the interesting types of building blocks in this family. Normally, under hydrous conditions, sulfonate ligands and metal ions tend to form layered structures with hydrated metal cations and sulfonate ligands as alternate sheets that are paired ionically (Shimizu et al., 2009 ). When pillaring ligands are used, the compact layered packing will be interrupted and it will result in pillared-layered structures with some porosities (Shimizu et al., 2009). Another typical feature of the sulfonate ligands is that sulfonate anions have a high affinity in forming hydrogen-bonding with aqua ligands, ammonia and solvent water molecules, leading to better stability of the supramolecular structure and even hydrogen-bonded frameworks with permanent porosity (Dalrymple & Shimizu, 2007 ). Along these lines, the anthraquinonedisulfonate ligands have in recent years attracted quite a lot of research interest in building up metal–organic hybrid complexes, with the emphasis being put on anthraquinone-2,5-disulfonate and anthraquinone-2,6-disulfonate (D'Vries et al., 2012 ; Gándara et al., 2012 ; Fu et al., 2011 ; Wang et al., 2014 ; Hou et al., 2012 ; Zhang et al., 2011 ; Platero-Prats et al., 2011 ). However, metal complexes of anthraquinone-1,8-disulfonate (1,8-AQDS²⁻) remain unexplored to date. In this paper, we report a mixed-metal coordination polymer {[Na₂Cu(H₂O)₆(1,8-AQDS)₂]·2H₂O}_n (1) based on anthraquinone-1,8-disulfonate ligand.

2. Structural commentary

Complex 1 crystallizes in the centrosymmetric monoclinic space group P2₁/c. The asymmetric unit comprises one sodium cation with a terminal aqua ligand, one half-occupied copper(II) cation with a terminal aqua ligand, one dianionic 1,8-AQDS²⁻ ligand, one bridging aqua ligand that bridges the sodium cation and the copper(II) cation, and one water molecule of crystallization (Fig. 1).

Figure 1
The coordination environment of the Cu^II atom in the title complex, showing 50% probability displacement ellipsoids. [Symmetry codes: (i) −x + 2, −y + 1, −z + 1; (ii) −x + 3, −y + 1, −z + 1; (iii) x, −y + $[{1\over 2}]$ , z + $[{1\over 2}]$ ; (iv) −x + 3, −y, −z + 1; (v) x + 1, y − 1, z; (vi) x, y − 1, z; (vii) –x + 3, y − $[{1\over 2}]$ , −z + $[{1\over 2}]$ .]

In the crystal structure of 1, the copper(II) atom resides on an inversion center, and adopts an distorted octahedral environment ascribed to the Jahn–Teller effect. The coordination sphere comprises a pair of terminal aqua ligands, a pair of bridging aqua ligands and a pair of O atoms from the sulfonate groups of two symmetry-related 1,8-AQDS²⁻ ligand. The Cu–water distances are similar, being 1.941 (1) Å for Cu1—O1W (terminal aqua ligand) and 2.005 (1) Å for Cu1—O2W (bridging aqua ligand). However, as a result of the Jahn–Teller effect, the Cu—O distances between Cu1 and the O atoms of sulfonate groups is 2.457 (1) Å, which is much longer compared to the Cu–water contacts. The non-linear O—Cu—O angles are in the range 88.66 (5) to 91.34 (5)°.

Each sodium cation in 1 is six-coordinated with a distorted octahedral environment constituted of one bridging aqua ligand, one terminal aqua ligand, three O atoms from sulfonate groups of three symmetry related 1,8-AQDS²⁻ ligands, and one O atom from the carbonyl group of another 1,8-AQDS²⁻ ligand (Fig. 2). The Na1—O3W (terminal aqua ligand) bond distance is 2.346 (2) Å, which is the shortest Na—O contact in the octahedral environment. The bond length Na1—O2W (bridging aqua ligand) is 2.620 (2) Å, representing the longest Na—O contact in this compound. It is interesting that the Na—O contacts in relation to the terminal or the bridging aqua ligands differs by 0.28 Å. Distances between Na1 and the three O atoms from three distinct sulfonate groups are: Na1—O4 = 2.497 (2) Å, Na1—O5ⁱ = 2.378 (2) Å, and Na1—O8ⁱⁱ = 2.418 (2) Å [symmetry codes: (i) −x + 2, −y + 1, −z + 1; (ii) −x + 3, −y + 1, −z + 1]. Bond length between Na and O from the anthraquinone carbonyl group is Na1—O2ⁱⁱⁱ = 2.502 (2) Å [symmetry code: (iii) x, −y + $[{1\over 2}]$ , z + $[{1\over 2}]$ ). The non-linear O—Na—O angles fall in the range 82.19 (5) to 107.13 (6)°, indicating a more distorted octahedral coordination sphere as compared to that of Cu.

Figure 2
The coordination environment of the Na^I atom in the title complex, showing 50% probability displacement ellipsoids. [Symmetry codes: (i) −x + 2, −y + 1, −z + 1; (ii) −x + 3, −y + 1, −z + 1; (iii) x, −y + $[{1\over 2}]$ , z + $[{1\over 2}]$ .]

The 1,8-AQDS²⁻ ligand bears a complicated μ₅-bridging coordination mode in this complex. Except for the coordinated sulfonate O atoms, one of the carbonyl group sitting opposite to the sulfonate groups also participates into coordination, which is a major factor that extends the layered structure into a 3-D coordination polymer. The 1,8-positioned bulky sulfonate groups exert a strong stereo resistance to the inter-positioned carbonyl group and lead to bending of 1,8-AQDS²⁻ ligand into a butterfly conformation. As shown in Fig. 3, the C5–C6–C11–C12 plane is defined as the basic plane (mean deviation 0.0007 Å). The dihedral angle between the C6–C13(=O1)–C12 plane and the basic plane is 28.8 (1)° while the C5–C14(=O2)–C11 plane subtends a dihedral angel of 14.3emsp14;(1)° with the basic plane. The two phenyl rings subtend dihedral angles of 8.9emsp14;(1)) and 9.5emsp14;(1)°, respectively, with the basic plane.

Figure 3
The butterfly conformation of the 1,8-AQDS²⁻ ligand in the title complex.

3. Supramolecular features

Similar to that in many coordination complexes based on ligands containing sulfonate groups, the 3-D packing of complex 1 exhibits a pillar-layered framework, although the 2-D layers are actually linked together by Na–carbonyl coordination and not weak interactions as is usually the case (Fig. 4).

Figure 4
Packing along the b axis of the title complex.

Weak interactions such as hydrogen bonding and π–π stacking do occur widely in the crystal packing. The aqua ligands are versatile hydrogen-bond donors and participate in a wide range of O—H⋯O hydrogen bonding with aqua-, sulfonate- and carbonyl-O atoms as acceptors. These O—H⋯O hydrogen bonds contribute differently in consolidating the 3-D framework (Table 1). A couple of π-π stacking interactions are observed between the C7–C12 phenyl rings of adjacent symmetry-related 1,8-AQDS²⁻ ligands, with plane-to-plane distances at 3.578 (1) Å and 3.580 (1) Å, respectively.

Table 1
Hydrogen-bond geometry (Å, °)

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
O1W—H1WA⋯O3ⁱ	0.84	1.95	2.737 (2)	155
O1W—H1WB⋯O4Wⁱⁱ	0.84	1.87	2.681 (2)	161
O2W—H2WA⋯O1	0.83	2.03	2.808 (2)	155
O2W—H2WB⋯O6ⁱ	0.87	1.80	2.669 (2)	175
O3W—H3WA⋯O7ⁱⁱⁱ	0.91	2.12	3.008 (2)	165
O3W—H3WB⋯O4^iv	0.83	2.29	3.093 (2)	165
O4W—H4WA⋯O5^v	0.85	2.07	2.880 (2)	161
O4W—H4WB⋯O4^vi	0.87	1.94	2.809 (2)	177
Symmetry codes: (i) ; (ii) ; (iii) ; (iv) ; (v) ; (vi) .

4. Thermal stability

Thermogravimetric analysis was performed using a crystalline sample of the title complex under an N₂ atmosphere wherein the sample was heated to 800°C at a rate of 10°C min⁻¹ (Figure S1). The complex starts to lose weight at 57°C, and the first stage weight loss corresponds to the loss of three of its four water molecules (observed 11.0% vs calculated: 11.0%). It is believed that the solvent water molecule and the two terminal aqua ligands are gone at this stage. The weight loss in the second stage (148–270°C) should then be ascribed to the loss of the bridging aqua ligand (observed 3.9% vs calculated: 3.7%), because the water molecule that bridges Na and Cu centers should be more stable and will be the last one to be lost upon heating. At about 320°C, the ligand starts to decompose and loses one of its sulfonate groups to release SO₃, which corresponds to stage III (observed 16.6% vs calculated: 16.2%) weight loss. Decomposition of the ligand continues with heating and with loss of the second sulfonate group it starts to release SO₃ (430–600 °C), which corresponds to stage IV weight loss (observed 17.2% vs calculated: 16.2%).

5. Database survey

A search of the Cambridge Structural Database with WebCSD (https://www.ccdc.cam.ac.uk/structures/WebCSD; CSD version 5.43 with updats to November 2022; Groom et al., 2016 ) revealed metal complexes of anthraquinone-1,8-disulfonate (1,8-AQDS²⁻) remain unexplored to date.

6. Synthesis and crystallization

Under stirring, a 3 mL methanol solution of NaOH (8.0 mg, 0.2 mmol) was added into a 3 mL methanol solution of 1,8-H₂AQDS (73.6 mg, 0.2 mmol), resulting in a white precipitate suspended in a brown–yellow solution. To the suspension were added 4 mL of Cu(NO₃)₂·3H₂O (12.1 mg, 0.05 mmol) methanol solution. After stirring for 10 minutes, 2 mL of water were then added. A clear brown solution was obtained, which was stirred for another 10 minutes. After filtration, the solution was allowed to stand at room temperature for 2 days to give 52.5 mg (53.4% yield) of green prismatic crystals. IR(KBr, cm⁻¹): 3604 (w), 3490 (m), 3421 (s), 3093 (w), 3018 (w), 1702 (m), 1679 (m), 1628 (w), 1572 (w), 1329 (m), 1242 (m), 1217 (vs), 1047 (s), 964 (w), 856 (w), 804 (w), 735 (w), 638 (m), 561 (w) cm⁻¹.

7. Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2. Aromatic H atoms were positioned geometrically and refined using a riding model, with U_iso(H) = 1.2U_eq(C). H atoms of water molecules were found in difference-Fourier maps and refined using a riding model with fixed U_iso(H) = 1.5U_eq(O).

Table 2
Experimental details

Crystal data
Chemical formula	[Na₂Cu(C₈H₁₂O₈S₂)₂(H₂O)₆]·2(H₂O)
M_r	986.26
Crystal system, space group	Monoclinic, P2₁/c
Temperature (K)	293
a, b, c (Å)	10.7839 (15), 7.1582 (10), 22.230 (3)
β (°)	94.661 (2)
V (Å³)	1710.3 (4)
Z	2
Radiation type	Mo Kα
μ (mm⁻¹)	1.01
Crystal size (mm)	0.4 × 0.3 × 0.2

Data collection
Diffractometer	Bruker APEXII CCD
Absorption correction	Multi-scan (SADABS; Krause et al., 2015 )
T_min, T_max	0.615, 0.746
No. of measured, independent and observed [I > 2σ(I)] reflections	12719, 3511, 3137
R_int	0.019
(sin θ/λ)_max (Å⁻¹)	0.628

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.025, 0.066, 1.07
No. of reflections	3511
No. of parameters	268
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.36, −0.32
Computer programs: APEX2 and SAINT (Bruker, 2014 ), SHELXT2014/5 (Sheldrick, 2015a ), SHELXL2018/3 (Sheldrick, 2015b ) and OLEX2 (Dolomanov et al., 2009 ).

Supporting information

CCDC reference: 2533984

Crystal structure: contains datablock I. DOI: https://doi.org/10.1107/S2056989026003956/oi2034sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2056989026003956/oi2034Isup2.hkl

Supporting information file. DOI: https://doi.org/10.1107/S2056989026003956/oi2034Isup3.mol

Supporting information file. DOI: https://doi.org/10.1107/S2056989026003956/oi2034sup4.docx

checkCIF report

Computing details top

Poly[[di-µ₂-aqua-κ⁴O:O-tetraaquabis(µ₅-anthraquinone-1,8-disulfonato-κ⁵O:O':O'':O''':O'''')copper(II)disodium] dihydrate] top

Crystal data top

[Na₂Cu(C₈H₁₂O₈S₂)₂(H₂O)₆]·2(H₂O)	F(000) = 1006
M_r = 986.26	D_x = 1.915 Mg m⁻³
Monoclinic, P2₁/c	Mo Kα radiation, λ = 0.71073 Å
a = 10.7839 (15) Å	Cell parameters from 7185 reflections
b = 7.1582 (10) Å	θ = 2.5–27.6°
c = 22.230 (3) Å	µ = 1.01 mm⁻¹
β = 94.661 (2)°	T = 293 K
V = 1710.3 (4) Å³	Prism, brownish green
Z = 2	0.4 × 0.3 × 0.2 mm

Data collection top

Bruker APEXII CCD diffractometer	3137 reflections with I > 2σ(I)
φ and ω scans	R_int = 0.019
Absorption correction: multi-scan (SADABS; Krause et al., 2015)	θ_max = 26.5°, θ_min = 1.8°
T_min = 0.615, T_max = 0.746	h = −13→13
12719 measured reflections	k = −8→8
3511 independent reflections	l = −27→27

Refinement top

Refinement on F²	0 restraints
Least-squares matrix: full	Hydrogen site location: mixed
R[F² > 2σ(F²)] = 0.025	H-atom parameters constrained
wR(F²) = 0.066	w = 1/[σ²(F_o²) + (0.0251P)² + 1.5553P] where P = (F_o² + 2F_c²)/3
S = 1.07	(Δ/σ)_max = 0.001
3511 reflections	Δρ_max = 0.36 e Å⁻³
268 parameters	Δρ_min = −0.32 e Å⁻³

Special details top

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
Cu1	1.500000	0.000000	0.500000	0.01836 (9)
Na1	1.17167 (7)	0.27300 (12)	0.55206 (4)	0.02836 (18)
S1	1.12707 (4)	0.49651 (6)	0.41893 (2)	0.01815 (11)
S2	1.61805 (4)	0.36474 (6)	0.40306 (2)	0.01789 (10)
O1	1.34403 (12)	0.25015 (18)	0.37928 (6)	0.0212 (3)
O2	1.28269 (14)	0.3207 (2)	0.15062 (6)	0.0318 (3)
O3	1.25186 (12)	0.5553 (2)	0.43879 (6)	0.0272 (3)
O4	1.09581 (14)	0.31577 (19)	0.44381 (6)	0.0282 (3)
O5	0.96636 (13)	0.3612 (2)	0.57200 (6)	0.0274 (3)
O6	1.53097 (12)	0.49328 (19)	0.42803 (6)	0.0259 (3)
O7	1.60938 (13)	0.17394 (19)	0.42504 (6)	0.0262 (3)
O8	1.74520 (12)	0.4340 (2)	0.40842 (6)	0.0283 (3)
C1	1.11995 (16)	0.4698 (2)	0.33793 (8)	0.0182 (4)
C2	1.00742 (18)	0.5216 (3)	0.30740 (9)	0.0254 (4)
H2	0.941808	0.558345	0.329377	0.030*
C3	0.99110 (19)	0.5194 (3)	0.24496 (10)	0.0284 (4)
H3	0.914624	0.552458	0.225523	0.034*
C4	1.08776 (18)	0.4685 (3)	0.21157 (9)	0.0250 (4)
H4	1.077422	0.469503	0.169630	0.030*
C5	1.20137 (17)	0.4153 (3)	0.24117 (8)	0.0194 (4)
C6	1.21934 (16)	0.4138 (2)	0.30450 (8)	0.0165 (3)
C7	1.57528 (16)	0.3555 (2)	0.32329 (8)	0.0163 (3)
C8	1.67307 (17)	0.3567 (3)	0.28607 (8)	0.0219 (4)
H8	1.754512	0.358796	0.303396	0.026*
C9	1.65155 (18)	0.3549 (3)	0.22356 (9)	0.0262 (4)
H9	1.718182	0.354014	0.199502	0.031*
C10	1.53143 (18)	0.3544 (3)	0.19733 (8)	0.0248 (4)
H10	1.516653	0.352687	0.155533	0.030*
C11	1.43214 (17)	0.3566 (2)	0.23367 (8)	0.0183 (4)
C12	1.45180 (16)	0.3551 (2)	0.29703 (8)	0.0157 (3)
C13	1.33986 (16)	0.3370 (2)	0.33240 (8)	0.0152 (3)
C14	1.30373 (17)	0.3591 (3)	0.20396 (8)	0.0203 (4)
O1W	1.61332 (12)	0.12057 (18)	0.56030 (6)	0.0219 (3)
H1WA	1.635769	0.230912	0.553858	0.033*
H1WB	1.681069	0.067212	0.571258	0.033*
O2W	1.38383 (12)	0.21707 (18)	0.50523 (6)	0.0208 (3)
H2WA	1.374857	0.261596	0.470484	0.031*
H2WB	1.415457	0.307086	0.527904	0.031*
O3W	1.12642 (16)	−0.0474 (2)	0.54618 (9)	0.0457 (4)
H3WA	1.200286	−0.106327	0.555140	0.069*
H3WB	1.072886	−0.130517	0.543740	0.069*
O4W	0.84187 (14)	1.0273 (2)	0.60719 (7)	0.0322 (3)
H4WA	0.882629	1.109742	0.590029	0.048*
H4WB	0.860629	0.918542	0.592529	0.048*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
Cu1	0.01744 (16)	0.01871 (16)	0.01847 (16)	0.00042 (12)	−0.00143 (12)	−0.00487 (12)
Na1	0.0252 (4)	0.0331 (4)	0.0267 (4)	−0.0017 (3)	0.0020 (3)	−0.0016 (3)
S1	0.0185 (2)	0.0177 (2)	0.0187 (2)	0.00024 (16)	0.00391 (17)	−0.00137 (17)
S2	0.0164 (2)	0.0208 (2)	0.0162 (2)	0.00011 (17)	−0.00034 (16)	−0.00061 (17)
O1	0.0216 (6)	0.0250 (7)	0.0172 (6)	−0.0008 (5)	0.0025 (5)	0.0054 (5)
O2	0.0350 (8)	0.0427 (9)	0.0167 (7)	0.0025 (7)	−0.0033 (6)	−0.0059 (6)
O3	0.0225 (7)	0.0290 (7)	0.0296 (7)	−0.0029 (6)	−0.0012 (6)	−0.0076 (6)
O4	0.0369 (8)	0.0225 (7)	0.0264 (7)	−0.0025 (6)	0.0103 (6)	0.0031 (6)
O5	0.0258 (7)	0.0265 (7)	0.0307 (8)	0.0060 (6)	0.0071 (6)	−0.0037 (6)
O6	0.0237 (7)	0.0285 (7)	0.0253 (7)	0.0018 (6)	0.0006 (6)	−0.0097 (6)
O7	0.0292 (7)	0.0249 (7)	0.0243 (7)	0.0022 (6)	0.0014 (6)	0.0070 (6)
O8	0.0181 (7)	0.0380 (8)	0.0280 (7)	−0.0052 (6)	−0.0029 (5)	−0.0022 (6)
C1	0.0185 (9)	0.0174 (9)	0.0185 (9)	−0.0013 (7)	0.0003 (7)	0.0002 (7)
C2	0.0190 (9)	0.0282 (10)	0.0288 (10)	0.0036 (8)	0.0011 (8)	−0.0024 (8)
C3	0.0201 (9)	0.0337 (11)	0.0297 (11)	0.0064 (8)	−0.0079 (8)	0.0005 (9)
C4	0.0265 (10)	0.0277 (10)	0.0196 (9)	0.0002 (8)	−0.0057 (8)	0.0012 (8)
C5	0.0204 (9)	0.0183 (9)	0.0190 (9)	−0.0018 (7)	−0.0016 (7)	0.0000 (7)
C6	0.0172 (8)	0.0148 (8)	0.0173 (8)	−0.0022 (7)	0.0005 (7)	0.0009 (7)
C7	0.0182 (8)	0.0146 (8)	0.0160 (8)	−0.0004 (7)	0.0015 (7)	−0.0002 (7)
C8	0.0179 (9)	0.0236 (9)	0.0247 (10)	−0.0015 (7)	0.0049 (7)	−0.0007 (8)
C9	0.0241 (10)	0.0312 (11)	0.0249 (10)	0.0000 (8)	0.0116 (8)	−0.0004 (8)
C10	0.0303 (10)	0.0290 (10)	0.0159 (9)	−0.0009 (8)	0.0072 (8)	0.0006 (8)
C11	0.0224 (9)	0.0170 (9)	0.0157 (8)	0.0001 (7)	0.0023 (7)	0.0004 (7)
C12	0.0186 (8)	0.0129 (8)	0.0157 (8)	−0.0003 (6)	0.0033 (7)	0.0006 (6)
C13	0.0172 (8)	0.0133 (8)	0.0150 (8)	−0.0029 (6)	0.0010 (6)	−0.0028 (6)
C14	0.0266 (10)	0.0195 (9)	0.0144 (8)	−0.0011 (7)	−0.0002 (7)	0.0017 (7)
O1W	0.0233 (7)	0.0196 (7)	0.0222 (7)	−0.0035 (5)	−0.0031 (5)	−0.0008 (5)
O2W	0.0246 (7)	0.0201 (6)	0.0173 (6)	0.0013 (5)	−0.0010 (5)	−0.0009 (5)
O3W	0.0344 (9)	0.0316 (9)	0.0691 (12)	0.0011 (7)	−0.0075 (8)	0.0013 (8)
O4W	0.0309 (8)	0.0251 (8)	0.0410 (9)	−0.0022 (6)	0.0060 (7)	−0.0016 (6)

Geometric parameters (Å, º) top

Cu1—O1W	1.9413 (12)	C3—C4	1.377 (3)
Cu1—O1Wⁱ	1.9414 (12)	C4—H4	0.9300
Cu1—O2W	2.0053 (13)	C4—C5	1.396 (3)
Cu1—O2Wⁱ	2.0053 (13)	C5—C6	1.406 (2)
Na1—S1	3.3643 (10)	C5—C14	1.487 (3)
Na1—O2ⁱⁱ	2.5016 (16)	C6—C13	1.498 (2)
Na1—O4	2.4968 (16)	C7—C8	1.392 (2)
Na1—O5	2.3783 (15)	C7—C12	1.410 (2)
Na1—O8ⁱⁱⁱ	2.4176 (17)	C8—H8	0.9300
Na1—O2W	2.6202 (15)	C8—C9	1.390 (3)
Na1—O3W	2.3463 (19)	C9—H9	0.9300
S1—O3	1.4443 (14)	C9—C10	1.377 (3)
S1—O4	1.4573 (14)	C10—H10	0.9300
S1—O5^iv	1.4582 (14)	C10—C11	1.393 (3)
S1—C1	1.8061 (19)	C11—C12	1.407 (2)
S2—O6	1.4563 (14)	C11—C14	1.485 (3)
S2—O7	1.4561 (14)	C12—C13	1.499 (2)
S2—O8	1.4540 (14)	O1W—H1WA	0.8418
S2—C7	1.7970 (18)	O1W—H1WB	0.8427
O1—C13	1.211 (2)	O2W—H2WA	0.8340
O2—C14	1.220 (2)	O2W—H2WB	0.8704
C1—C2	1.392 (3)	O3W—H3WA	0.9090
C1—C6	1.411 (2)	O3W—H3WB	0.8277
C2—H2	0.9300	O4W—H4WA	0.8451
C2—C3	1.385 (3)	O4W—H4WB	0.8740
C3—H3	0.9300

O1W—Cu1—O1Wⁱ	180.0	C3—C2—C1	121.38 (18)
O1W—Cu1—O2Wⁱ	91.34 (5)	C3—C2—H2	119.3
O1Wⁱ—Cu1—O2Wⁱ	88.66 (5)	C2—C3—H3	119.9
O1W—Cu1—O2W	88.66 (5)	C4—C3—C2	120.20 (18)
O1Wⁱ—Cu1—O2W	91.34 (5)	C4—C3—H3	119.9
O2W—Cu1—O2Wⁱ	180.0	C3—C4—H4	120.3
O2ⁱⁱ—Na1—S1	157.23 (5)	C3—C4—C5	119.48 (18)
O2ⁱⁱ—Na1—O2W	86.32 (5)	C5—C4—H4	120.3
O4—Na1—S1	23.31 (3)	C4—C5—C6	121.23 (17)
O4—Na1—O2ⁱⁱ	166.67 (6)	C4—C5—C14	118.32 (17)
O4—Na1—O2W	82.19 (5)	C6—C5—C14	120.45 (16)
O5—Na1—S1	88.23 (4)	C1—C6—C13	123.82 (16)
O5—Na1—O2ⁱⁱ	107.13 (6)	C5—C6—C1	118.46 (16)
O5—Na1—O4	84.84 (5)	C5—C6—C13	117.50 (15)
O5—Na1—O8ⁱⁱⁱ	91.46 (6)	C8—C7—S2	116.11 (14)
O5—Na1—O2W	166.11 (6)	C8—C7—C12	119.31 (16)
O8ⁱⁱⁱ—Na1—S1	85.95 (4)	C12—C7—S2	124.52 (13)
O8ⁱⁱⁱ—Na1—O2ⁱⁱ	77.14 (5)	C7—C8—H8	119.3
O8ⁱⁱⁱ—Na1—O4	109.06 (6)	C9—C8—C7	121.39 (17)
O8ⁱⁱⁱ—Na1—O2W	88.11 (5)	C9—C8—H8	119.3
O2W—Na1—S1	77.89 (3)	C8—C9—H9	120.1
O3W—Na1—S1	113.68 (5)	C10—C9—C8	119.89 (17)
O3W—Na1—O2ⁱⁱ	82.48 (6)	C10—C9—H9	120.1
O3W—Na1—O4	90.90 (6)	C9—C10—H10	120.1
O3W—Na1—O5	94.43 (6)	C9—C10—C11	119.71 (18)
O3W—Na1—O8ⁱⁱⁱ	159.63 (7)	C11—C10—H10	120.1
O3W—Na1—O2W	90.74 (6)	C10—C11—C12	121.33 (17)
O3—S1—Na1	78.85 (6)	C10—C11—C14	118.38 (16)
O3—S1—O4	112.41 (9)	C12—C11—C14	120.29 (16)
O3—S1—O5^iv	113.04 (8)	C7—C12—C13	123.84 (15)
O3—S1—C1	107.37 (8)	C11—C12—C7	118.35 (15)
O4—S1—Na1	42.69 (6)	C11—C12—C13	117.61 (15)
O4—S1—O5^iv	112.58 (8)	O1—C13—C6	120.98 (15)
O4—S1—C1	106.97 (8)	O1—C13—C12	121.37 (16)
O5^iv—S1—Na1	105.17 (6)	C6—C13—C12	117.36 (15)
O5^iv—S1—C1	103.76 (8)	O2—C14—C5	120.88 (17)
C1—S1—Na1	144.90 (6)	O2—C14—C11	121.49 (17)
O6—S2—C7	106.12 (8)	C11—C14—C5	117.60 (15)
O7—S2—O6	113.82 (8)	Cu1—O1W—H1WA	118.3
O7—S2—C7	106.15 (8)	Cu1—O1W—H1WB	118.7
O8—S2—O6	112.72 (9)	H1WA—O1W—H1WB	102.7
O8—S2—O7	112.23 (9)	Cu1—O2W—Na1	135.34 (6)
O8—S2—C7	104.96 (8)	Cu1—O2W—H2WA	105.6
C14—O2—Na1^v	161.68 (14)	Cu1—O2W—H2WB	113.0
S1—O4—Na1	114.00 (8)	Na1—O2W—H2WA	105.7
S1^iv—O5—Na1	151.07 (9)	Na1—O2W—H2WB	88.3
S2—O8—Na1ⁱⁱⁱ	130.17 (9)	H2WA—O2W—H2WB	105.3
C2—C1—S1	115.02 (14)	Na1—O3W—H3WA	105.5
C2—C1—C6	119.23 (17)	Na1—O3W—H3WB	147.9
C6—C1—S1	125.63 (14)	H3WA—O3W—H3WB	106.0
C1—C2—H2	119.3	H4WA—O4W—H4WB	108.0

Na1—S1—C1—C2	120.74 (14)	C3—C4—C5—C6	−0.4 (3)
Na1—S1—C1—C6	−63.5 (2)	C3—C4—C5—C14	179.39 (18)
Na1^v—O2—C14—C5	−21.0 (6)	C4—C5—C6—C1	−0.8 (3)
Na1^v—O2—C14—C11	160.7 (3)	C4—C5—C6—C13	174.14 (17)
S1—C1—C2—C3	176.00 (16)	C4—C5—C14—O2	−15.8 (3)
S1—C1—C6—C5	−174.63 (13)	C4—C5—C14—C11	162.54 (17)
S1—C1—C6—C13	10.8 (3)	C5—C6—C13—O1	−144.69 (17)
S2—C7—C8—C9	−178.31 (15)	C5—C6—C13—C12	29.3 (2)
S2—C7—C12—C11	176.94 (13)	C6—C1—C2—C3	−0.1 (3)
S2—C7—C12—C13	−8.4 (3)	C6—C5—C14—O2	163.99 (18)
O3—S1—O4—Na1	40.93 (10)	C6—C5—C14—C11	−17.7 (3)
O3—S1—C1—C2	−143.94 (15)	C7—S2—O8—Na1ⁱⁱⁱ	112.45 (11)
O3—S1—C1—C6	31.86 (18)	C7—C8—C9—C10	0.9 (3)
O4—S1—C1—C2	95.20 (15)	C7—C12—C13—O1	−30.2 (3)
O4—S1—C1—C6	−89.01 (17)	C7—C12—C13—C6	155.84 (16)
O5^iv—S1—O4—Na1	−88.11 (10)	C8—C7—C12—C11	−0.2 (3)
O5^iv—S1—C1—C2	−24.02 (16)	C8—C7—C12—C13	174.46 (16)
O5^iv—S1—C1—C6	151.77 (16)	C8—C9—C10—C11	0.3 (3)
O6—S2—O8—Na1ⁱⁱⁱ	−2.60 (14)	C9—C10—C11—C12	−1.4 (3)
O6—S2—C7—C8	138.21 (14)	C9—C10—C11—C14	179.05 (18)
O6—S2—C7—C12	−39.03 (17)	C10—C11—C12—C7	1.4 (3)
O7—S2—O8—Na1ⁱⁱⁱ	−132.70 (10)	C10—C11—C12—C13	−173.61 (17)
O7—S2—C7—C8	−100.37 (15)	C10—C11—C14—O2	15.4 (3)
O7—S2—C7—C12	82.39 (16)	C10—C11—C14—C5	−162.97 (17)
O8—S2—C7—C8	18.65 (17)	C11—C12—C13—O1	144.51 (17)
O8—S2—C7—C12	−158.59 (15)	C11—C12—C13—C6	−29.5 (2)
C1—S1—O4—Na1	158.55 (8)	C12—C7—C8—C9	−0.9 (3)
C1—C2—C3—C4	−1.1 (3)	C12—C11—C14—O2	−164.15 (18)
C1—C6—C13—O1	29.9 (3)	C12—C11—C14—C5	17.5 (3)
C1—C6—C13—C12	−156.08 (16)	C14—C5—C6—C1	179.44 (16)
C2—C1—C6—C5	1.0 (3)	C14—C5—C6—C13	−5.6 (2)
C2—C1—C6—C13	−173.57 (17)	C14—C11—C12—C7	−179.11 (16)
C2—C3—C4—C5	1.4 (3)	C14—C11—C12—C13	5.9 (2)

Symmetry codes: (i) −x+3, −y, −z+1; (ii) x, −y+1/2, z+1/2; (iii) −x+3, −y+1, −z+1; (iv) −x+2, −y+1, −z+1; (v) x, −y+1/2, z−1/2.

Hydrogen-bond geometry (Å, º) top

D—H···A	D—H	H···A	D···A	D—H···A
O1W—H1WA···O3ⁱⁱⁱ	0.84	1.95	2.737 (2)	155
O1W—H1WB···O4W^vi	0.84	1.87	2.681 (2)	161
O2W—H2WA···O1	0.83	2.03	2.808 (2)	155
O2W—H2WB···O6ⁱⁱⁱ	0.87	1.80	2.669 (2)	175
O3W—H3WA···O7ⁱ	0.91	2.12	3.008 (2)	165
O3W—H3WB···O4^vii	0.83	2.29	3.093 (2)	165
O4W—H4WA···O5^viii	0.85	2.07	2.880 (2)	161
O4W—H4WB···O4^iv	0.87	1.94	2.809 (2)	177

Symmetry codes: (i) −x+3, −y, −z+1; (iii) −x+3, −y+1, −z+1; (iv) −x+2, −y+1, −z+1; (vi) x+1, y−1, z; (vii) −x+2, −y, −z+1; (viii) x, y+1, z.

Acknowledgements

We thank the Priority Academic Program Development of Jiangsu Higher Educational Institutions and the Jiangsu Collaborative Innovation Center of Biomedical Functional Materials for financial support.

Funding information

Funding for this research was provided by: the Natural Science Foundation of Jiangsu Higher Education Institutions of China (grant No. 17KJA430010).

References

Bruker (2014). APEX2 and SAINT. Bruker AXS Inc., Madison, Wisconsin, USA. Google Scholar
Dalrymple, S. A. & Shimizu, G. K. H. (2007). J. Am. Chem. Soc. 129, 12114–12116. Web of Science CSD CrossRef PubMed CAS Google Scholar
Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K. & Puschmann, H. (2009). J. Appl. Cryst. 42, 339–341. Web of Science CrossRef CAS IUCr Journals Google Scholar
D'Vries, R. F., Snejko, N., Gutiérrez-Puebla, E., Iglesias, M. & Angeles Monge, M. (2012). Inorg. Chim. Acta 382, 119–126. CAS Google Scholar
Fu, M., Wu, X. Y., Jia, J., Zhao, X. J. & Yang, E. C. (2011). J. Coord. Chem. 64, 1770–1781. Web of Science CrossRef CAS Google Scholar
Gándara, F., Snejko, N., Andrés, A., Fernandez, J. R., Gómez-Sal, J. C., Gutierrez-Puebla, E. & Monge, A. (2012). RSC Adv. 2, 949–955. Google Scholar
Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016). Acta Cryst. B72, 171–179. Web of Science CrossRef IUCr Journals Google Scholar
Hou, X. Y., Wang, X., Fu, F., Wang, J. J., Tang, L. & Wu, Y. P. (2012). J. Coord. Chem. 65, 2935–2944. Web of Science CrossRef CAS Google Scholar
Hu, Z. C., Deibert, B. J. & Li, J. (2014). Chem. Soc. Rev. 43, 5815–5840. Web of Science CrossRef CAS PubMed Google Scholar
Krause, L., Herbst-Irmer, R., Sheldrick, G. M. & Stalke, D. (2015). J. Appl. Cryst. 48, 3–10. Web of Science CSD CrossRef ICSD CAS IUCr Journals Google Scholar
Lee, J. Y., Farha, O. K., Roberts, J., Scheidt, K. A., Nguyen, S. T. & Hupp, J. T. (2009). Chem. Soc. Rev. 38, 1450–1459. Web of Science CrossRef PubMed CAS Google Scholar
Murray, L. J., Dincă, M. & Long, J. R. (2009). Chem. Soc. Rev. 38, 1294–1314. Web of Science CrossRef PubMed CAS Google Scholar
Platero-Prats, A. E., Iglesias, M., Snejko, N., Monge, Á. & Gutiérrez-Puebla, E. (2011). Cryst. Growth Des. 11, 1750–1758. CAS Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Shimizu, G. K. H., Vaidhyanathan, R. & Taylor, J. M. (2009). Chem. Soc. Rev. 38, 1430–1449. Web of Science CrossRef PubMed CAS Google Scholar
Wang, X., Zhai, Q. G., Hou, X. Y., Li, S. N., Jiang, Y. C. & Hu, M. C. (2014). Inorg. Chem. Commun. 45, 1–4. Web of Science CrossRef Google Scholar
Zhang, G. Q., Ma, J. S. & Yang, G. Q. (2011). J. Mol. Struct. 1004, 248–251. Web of Science CrossRef CAS Google Scholar
Zhang, T. & Lin, W. B. (2014). Chem. Soc. Rev. 43, 5982–5993. Web of Science CrossRef CAS PubMed Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
