Crystal structures of products from the BBr3-promoted de­methyl­ation of 3-(meth­oxymeth­yl)-6-phenyl-1,2,4,5-tetra­zine

Voss, J.; Lamm, J.-H.

doi:10.1107/S2056989026009527

research communications

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 82| Part 10| October 2026| Pages 1221-1225

https://doi.org/10.1107/S2056989026009527

Open

access

Crystal structures of products from the BBr₃-promoted demethylation of 3-(methoxymethyl)-6-phenyl-1,2,4,5-tetrazine

Jona Voss ^a ^* and Jan-Hendrik Lamm ^a

^aBielefeld University, Department of Chemistry, Universitätsstr. 25, 33615 Bielefeld, Germany
^*Correspondence e-mail: [email protected]

Edited by M. Weil, Vienna University of Technology, Austria (Received 7 August 2026; accepted 11 September 2026; online 30 September 2026)

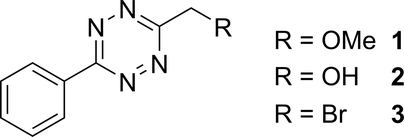

The BBr₃-promoted demethylation of 3-(methoxymethyl)-6-phenyl-1,2,4,5-tetrazine, C₁₀H₁₀N₄O, resulted in the alcohol (6-phenyl-1,2,4,5-tetrazin-3-yl)methanol, C₉H₈N₄O, and the bromide 3-(bromomethyl)-6-phenyl-1,2,4,5-tetrazine, C₉H₇BrN₄. All three compounds were analysed by nuclear magnetic resonance (NMR) spectroscopy in solution and by single-crystal X-ray diffraction using non-spherical scattering factors for structure refinement. The substrate as well as the corresponding bromide form π–π interactions between antiparallel stacks of molecules. In contrast, due to the intermolecular hydrogen bonds present, which lead to the formation of a bent dimer, the alcohol forms only very weak parallel π–π stacks. Corresponding O—H⋯N hydrogen bonds are established between the hydroxy group and an N atom of a neighbouring tetrazine molecule, an only rarely explored structural feature of 1,2,4,5-tetrazines.

Keywords: 1,2,4,5-tetrazine; hydrogen bonds; crystal structure; synthesis.

CCDC references: 2587346; 2587345; 2587344

1. Chemical context

1,2,4,5-Tetrazines, first described by Pinner (1893 ), are electron-deficient heterocycles of particular relevance in fast and chemoselective cycloaddition reactions (Zhao et al., 2022 ). While structurally simple 1,2,4,5-tetrazines (herein further abbreviated as tetrazines) are well-known in the literature, for many modern applications, tetrazines substituted at the 3- and 6-positions are needed (Yim et al., 2026 ). In particular, tetrazines modified with a hydroxymethyl group at the 3-position and derivatives thereof are frequently used as marker molecules in biochemical applications (Baalmann et al., 2019 ; Tu et al., 2020 ; Wang et al., 2022 ). Early reports on the synthesis and derivatization of such tetrazines were provided by Lang et al. (1975 ) through the synthesis of a panel of 3,6-disubstituted tetrazines. Out of this library, 3-(methoxymethyl)-6-phenyl-1,2,4,5-tetrazine (1) was synthesized (Tu et al., 2019), and the BBr₃-promoted demethylation re-investigated to obtain the deprotected alcohol (2) and the bromide (3) as a side product (Fig. 1). In the scope of the present investigations, tetrazines (1)–(3) were characterised by NMR spectroscopy in solution and by single-crystal X-ray diffraction.

Figure 1
Treatment of tetrazine (1) with BBr₃ afforded both alcohol (2) and bromide (3).

2. Structural commentary

While the structures of tetrazine (1) and alcohol (2) were clearly confirmed by NMR spectroscopy in solution with ¹³C{¹H} NMR shifts of the methylene groups at 72.3 and 63.0 ppm, respectively, the strong upfield shift of the bromomethyl group of bromide (3) to 27.8 ppm hints to the introduction of a strongly deshielding substituent. However, unambiguous structural proof was given by the results of single-crystal X-ray diffraction.

Both the substrate (1) and the bromide (3) crystallize in the triclinic space group P $[\overline{1}]$ with one molecule in the asymmetric unit each (Fig. 2). In contrast, alcohol (2) crystallizes in the monoclinic space group P2₁/n with a hydrogen-bonded dimer in the asymmetric unit (Fig. 3). The two crystallographically independent molecules (2A/2B) show close conformational similarity with a root-mean-square deviation of 0.169 Å (Fig. 3, right). The phenyl units of all tetrazines (1)–(3) show similar bond lengths for all C—C bonds [1.391 (2)–1.401 (2) Å] and all C—N and N—N bonds of the tetrazine units [1.308 (1)–1.353 (1) Å], indicative of their aromaticity with an extended co-planar arrangement of the biaryl moieties. The dihedral angles between the phenyl and tetrazine rings are 3.63 (4)° (1), 2.29 (4)° (2A), 8.47 (5)° (2B), and 2.72 (1)° (3). All bond angles agree with values obtained from structurally similar disubstituted tetrazines containing a phenyl and substituted methyl substituents (for details see Section 4). The methoxymethyl group of tetrazine (1) and the bromomethyl group of bromide (3) accommodate the largest atoms (O and Br), resulting in the smallest torsion angles with 73.17 (8)° for the N1—C2—C1—O1 connection and −74.63 (17)° for the N4—C2—C1—Br1 connection, likely due to repulsion with the N-centered lone pairs of the tetrazine units. Interestingly, the N1—C2—C1—O1 torsion angles of alcohol (2) are different from those of (1) and (3) with −162.92 (7)° for (2A) and 16.06 (9)° for (2B), an observation that may be explained by the intermolecular hydrogen-bonding interactions between hydroxy groups and tetrazine-N atoms (see Section 3).

Figure 2
Molecular structures of tetrazine (1) and bromide (3) with displacement ellipsoids represented at the 50% probability level and H atoms as spheres of arbitrary radius.

Figure 3
(Left) Molecular structure of alcohol (2) with displacement ellipsoids represented at the 50% probability level and H atoms as spheres of arbitrary radius; for the sake of clarity only molecule A is shown. (Right) Overlay-plot (generated using the ‘match' option within OLEX2) of molecules (2A/2B) showing their close conformational similarity.

3. Supramolecular features

All of the tetrazines investigated here show π–π interactions, the strongest between antiparallel stacked molecules of tetrazine (1) and bromide (3) with centroid-to-centroid distances of 3.724 (1) Å [slippage of 1.676 (1) Å] between the phenyl/tetrazine rings for (1) and of 3.716 (1) Å [slippage of 1.643 (3) Å] for (3)], respectively (Fig. 4).

Figure 4
Supramolecular π–π interactions of molecules of tetrazine (1) (top) and bromide (3) (bottom) with centroid-to-centroid distances indicated. Displacement ellipsoids are represented at the 50% probability level; symmetry code to obtain the second molecule: (1 − x, 1 − y, 1 − z).

Two hydrogen bonds between hydroxy groups and tetrazine N atoms of molecules (2A) and (2B) form a bent dimer of alcohol (2), as shown in Fig. 5, bottom. The drastic reduction in the N1—C2—C1—O1 torsion angle compared with tetrazine (1) may be explained by the reduced electron density at the neighbouring N atom, which is attributable to its role as a hydrogen-bond acceptor (Table 1). Similar hydrogen-bonding interactions were described previously for hydroxymethyl substituted tetrazines (Voss et al., 2025 ).

Table 1
Hydrogen-bond geometry (Å, °) for (2)

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
O1A—H1A⋯N1B	0.969 (12)	1.963 (13)	2.9019 (9)	162.7 (10)
O1B—H1B⋯N4A	0.972 (13)	1.871 (13)	2.8287 (9)	168.2 (11)

Figure 5
(Top) Supramolecular π–π interactions of molecules of alcohol (2) with the centroid-to-centroid distances indicated; (bottom) formation of a dimer through hydrogen bonds (dashed lines). Displacement ellipsoids are represented at the 50% probability level; symmetry code to obtain the second molecule: ( $[{3\over 2}]$ − x, $[{1\over 2}]$ + y, $[{1\over 2}]$ − z).

Interestingly, the intermolecular hydrogen bonds of alcohol (2) cause the formation of weakly interacting parallel stacks of molecules without contacts between phenyl/tetrazine ring centroids but with comparably elongated phenyl/phenyl and tetrazine/tetrazine centroid-to-centroid distances of 4.557 (1) Å [slippage of 3.245 (1) Å] and 4.622 (1) Å [slippage of 3.311 (1) Å], respectively (Fig. 5, top). The observation of stronger interactions between antiparallel stacks of tetrazine (1) and the bromide (3) as compared to parallel stacks of alcohol (2) might be favoured by the increased dipole moment between phenyl and tetrazine rings in antiparallel stacks (Huber et al., 2014 ; Voss et al., 2025).

4. Database survey

A search of the Cambridge Structural Database (CSD version 6.01, November 2025; Groom et al., 2016 ) using ConQuest (version 2026.1.0) revealed eight reports for 3-aryl-6-alkyl-1,2,4,5-tetrazines, including CSD refcodes VEMZUM (Voss et al., 2025), CICPOU (Hu & Xu, 2008 ) and REWDUT (Xu & Hu, 2007 ). Out of these, the lengths of all aromatic C—C, C—N and N—N bonds are identical within a 3σ margin of error. With dihedral angles between the phenyl and tetrazine rings of tetrazines (1)–(3) in the range 2.29 (4) to 8.47 (5)°, similar values between the two rings are also reported for these structurally similar tetrazines.

5. Synthesis and crystallisation

5.1. Materials and methods

Solvents and starting materials were used without further purification, unless noted otherwise. Dichloromethane for reactions was dried by distillation over CaH₂. The solvents used for extraction and chromatography were of technical grade and were distilled prior to use. Column chromatography was performed with silica gel 60 M (Acros, 0.04–0.063 mm). Reactions were monitored by thin-layer chromatography (TLC) carried out on silica gel plates (Merck, F254) using UV light (254 nm) for visualization. 3-(Methoxymethyl)-6-phenyl-1,2,4,5-tetrazine (1) was used as starting material and synthesised following a literature protocol (Tu et al., 2019).

5.2. Analytical devices

Nuclear magnetic resonance spectra were recorded on an Avance 500 spectrometer (Bruker) at 298 K using the residual protonated solvent signal [δ(¹H of CHCl₃) = 7.26 ppm, δ(¹³C of CDCl₃) = 77.36 ppm] (Fulmer et al., 2010 ) as internal standard. Electrospray ionisation (ESI) mass spectra (MS) were acquired with an Esquire 3000 ion trap mass spectrometer (Bruker Daltonik) equipped with a nano-ESI source.

5.3. Demethylation of 3-(methoxymethyl)-6-phenyl-1,2,4,5-tetrazine (1)

This reaction was performed under an argon atmosphere. Tetrazine (1) (593 mg, 2.93 mmol) was dissolved in dry CH₂Cl₂ (8 ml) and the resulting pink solution cooled to 258 K. A solution of BBr₃ (0.70 ml, 7.38 mmol) in dry CH₂Cl₂ (15 ml) was added dropwise to this solution over the course of 10 min while maintaining the temperature. The resulting orange solution was stirred at 258 K for 105 min after which a small part of the solution (50 µl) was withdrawn, added to H₂O (0.3 ml), and the organic layer analysed by TLC (CH₂Cl₂), which indicated full consumption of tetrazine (1). After a total of 155 min, the reaction mixture was poured onto ice (50 g) and CH₂Cl₂ (100 ml) was added consecutively. After the ice had melted, the layers were separated and the aqueous layer extracted with CH₂Cl₂ (1×80 ml). The combined pink organic layers were washed with brine (40 ml), dried over MgSO₄, filtered and evaporated to obtain a pink solid (481 mg). Purification by column chromatography (diameter = 4.5 cm, length = 23 cm) using CH₂Cl₂/MeOH (95:5, v/v) to firstly obtain bromide (3) (90.0 mg, 358 µmol, 12%) as a pink solid. Secondly, tetrazine (1) (42.3 mg, 209 µmol, 7%) was re-isolated as a pink solid. Note that since analysis by TLC indicated complete consumption of tetrazine (1) a small amount of it must have been formed during the work-up, likely by methylation of alcohol (2) through in situ formed bromomethane. Thirdly, a mixture of different compounds and alcohol (2) (333 mg, R_f (CH₂Cl₂/MeOH, 95:5, v/v) = 0.22–0.07) was obtained. Purification of the third fraction by column chromatography (diameter = 4.5 cm, length = 33 cm) using CH₂Cl₂/MeOH (97.5:2.5, v/v) obtained alcohol (2) (291 mg, 1.55 mmol, 53%) as a pink solid. In Lang's pioneering work (Lang et al., 1975), alcohol (2) was described as ‘relatively unstable', a finding which we are unable to confirm – all the compounds isolated here remained stable in solid form at room temperature for over a year.

Analytical data of tetrazine (1): ¹H NMR (500 MHz, CDCl₃) δ [ppm]: 8.63 (m, 2H, o-C^arylH), 7.67–7.57 (m, 3H, m-/p-C^arylH), 5.10 (s, 2H, CH₂), 3.64 (s, 3H, CH₃). ¹³C{¹H}NMR (125 MHz{500 MHz}, CDCl₃) δ [ppm]: 166.3 (C^arylCH₂), 165.2 (C^arylPh), 133.1 (p-C^aryl), 131.7 (C^aryl attached to tetrazine), 129.5 (m-C^aryl), 128.4 (o-C^aryl), 72.3 (CH₂), 59.8 (CH₃). MS (ESI, positive): m/z = 225.0 [C₁₀H₁₀N₄O+Na]⁺, 427.1 [2·(C₁₀H₁₀N₄O)+Na]⁺. R_f (CH₂Cl₂/MeOH, 95:5, v/v) = 0.25). Tetrazine (1) was crystallized by slow evaporation from a CH₂Cl₂/MeOH solution at room temperature.

Analytical data of alcohol (2): ¹H NMR (500 MHz, CDCl₃) δ [ppm]: 8.62 (m, 2H, o-C^arylH), 7.66 (m, 1H, p-C^arylH), 7.61 (m, 2H, m-C^arylH), 5.34 (d, ³J = 6.2 Hz, 2H, CH₂), 3.12 (t, ³J = 6.3 Hz, 1H, OH). ¹³C{¹H}NMR (125 MHz{500 MHz}, CDCl₃) δ [ppm]: 167.4 (C^arylCH₂), 165.6 (C^arylPh), 133.2 (p-C^aryl), 131.6 (C^aryl attached to tetrazine), 129.5 (m-C^aryl), 128.4 (o-C^aryl), 63.0 (CH₂). MS (ESI, negative): m/z = 186.9 [C₉H₈N₄O–H]⁻. R_f (CH₂Cl₂/MeOH, 97.5:2.5, v/v) = 0.20). Alcohol (2) was crystallized by slow evaporation from a CH₂Cl₂/cyclohexane solution at room temperature.

Analytical data of bromide (3): ¹H NMR (500 MHz, CDCl₃) δ [ppm]: 8.63 (m, 2H, o-C^arylH), 7.66 (m, 1H, p-C^arylH), 7.61 (m, 2H, m-C^arylH), 5.00 (s, 2H, CH₂). ¹³C{¹H}NMR (125 MHz{500 MHz}, CDCl₃) δ [ppm]: 167.4 (C^arylCH₂), 164.3 (C^arylPh), 133.4 (p-C^aryl), 131.4 (C^aryl attached to tetrazine), 129.6 (m-C^aryl), 128.6 (o-C^aryl), 27.8 (CH₂). MS (ESI): the compound was not ionisable. R_f (CH₂Cl₂/MeOH, 95:5, v/v) = 0.79. Bromide (3) was crystallized by slow evaporation from a CH₂Cl₂/MeOH solution at room temperature.

6. Refinement

Crystal data, data collection and structure refinement details are summarised in Table 2. All structures were refined using NoSpherA2 (Kleemiss et al., 2021 ), an implementation of non-spherical atom-form-factors in OLEX2 (Dolomanov et al., 2009 ). All non-hydrogen atoms were refined anisotropically; hydrogen atoms were refined isotropically. ORCA 5.0 (Neese, 2022 ) was used for quantum mechanical calculations. The olex2_refinement_description section of the CIF gives further details.

Table 2
Experimental details

	(1)	(2)	(3)
Crystal data
Chemical formula	C₁₀H₁₀N₄O	C₉H₈N₄O	C₉H₇BrN₄
M_r	202.22	188.19	251.09
Crystal system, space group	Triclinic, P $[\overline{1}]$	Monoclinic, P2₁/n	Triclinic, P $[\overline{1}]$
Temperature (K)	100	100	100
a, b, c (Å)	5.3147 (4), 7.4164 (8), 12.2277 (8)	11.8719 (3), 8.4682 (2), 17.2987 (5)	5.2376 (4), 7.5069 (6), 12.0638 (8)
α, β, γ (°)	86.710 (7), 79.913 (6), 78.920 (8)	90, 92.709 (2), 90	89.632 (6), 80.517 (6), 79.451 (7)
V (Å³)	465.53 (7)	1737.16 (8)	459.80 (6)
Z	2	8	2
Radiation type	Mo Kα	Mo Kα	Mo Kα
μ (mm⁻¹)	0.10	0.10	4.44
Crystal size (mm)	0.52 × 0.24 × 0.18	0.35 × 0.09 × 0.06	0.35 × 0.29 × 0.09

Data collection
Diffractometer	SuperNova, Single source at offset/far, Eos	SuperNova, Single source at offset/far, Eos	SuperNova, Single source at offset/far, Eos
Absorption correction	Gaussian (CrysAlis PRO; Rigaku OD, 2025 )	Gaussian (CrysAlis PRO; Rigaku OD, 2025)	Gaussian (CrysAlis PRO; Rigaku OD, 2025)
T_min, T_max	0.571, 1.000	0.744, 1.000	0.394, 1.000
No. of measured, independent and observed [I ≥ 2u(I)] reflections	8849, 3058, 2256	32315, 4666, 3774	7431, 2531, 2136
R_int	0.035	0.045	0.048

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.038, 0.061, 1.09	0.030, 0.066, 1.07	0.033, 0.061, 1.03
No. of reflections	3058	4666	2531
No. of parameters	166	317	148
H-atom treatment	H-atom parameters constrained	All H-atom parameters refined	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.34, −0.33	0.21, −0.21	0.81, −0.70
Computer programs: CrysAlis PRO (Rigaku OD, 2025), SHELXT (Sheldrick, 2015 ), OLEX2.refine (Bourhis et al., 2015 ), OLEX2 (Dolomanov et al., 2009) and publCIF (Westrip, 2010 ).

Supporting information

CCDC references: 2587346; 2587345; 2587344

Crystal structure: contains datablocks global, 1, 2, 3. DOI: https://doi.org/10.1107/S2056989026009527/wm5811sup1.cif

Structure factors: contains datablock 1. DOI: https://doi.org/10.1107/S2056989026009527/wm58111sup2.hkl

Structure factors: contains datablock 2. DOI: https://doi.org/10.1107/S2056989026009527/wm58112sup3.hkl

Structure factors: contains datablock 3. DOI: https://doi.org/10.1107/S2056989026009527/wm58113sup4.hkl

Supporting information file. DOI: https://doi.org/10.1107/S2056989026009527/wm58111sup5.cml

Supporting information file. DOI: https://doi.org/10.1107/S2056989026009527/wm58112sup6.cml

checkCIF report

Computing details top

3-(Methoxymethyl)-6-phenyl-1,2,4,5-tetrazine (1) top

Crystal data top

C₁₀H₁₀N₄O	Z = 2
M_r = 202.22	F(000) = 212.144
Triclinic, P1	D_x = 1.443 Mg m⁻³
a = 5.3147 (4) Å	Mo Kα radiation, λ = 0.71073 Å
b = 7.4164 (8) Å	Cell parameters from 3153 reflections
c = 12.2277 (8) Å	θ = 2.8–32.2°
α = 86.710 (7)°	µ = 0.10 mm⁻¹
β = 79.913 (6)°	T = 100 K
γ = 78.920 (8)°	Block, clear light red
V = 465.53 (7) Å³	0.52 × 0.24 × 0.18 mm

Data collection top

SuperNova, Single source at offset/far, Eos diffractometer	3058 independent reflections
Radiation source: micro-focus sealed X-ray tube, SuperNova (Mo) X-ray Source	2256 reflections with I ≥ 2u(I)
Mirror monochromator	R_int = 0.035
Detector resolution: 8.0951 pixels mm^-1	θ_max = 32.5°, θ_min = 1.7°
ω scans	h = −7→7
Absorption correction: gaussian (CrysAlisPro; Rigaku OD, 2025)	k = −10→10
T_min = 0.571, T_max = 1.000	l = −18→18
8849 measured reflections

Refinement top

Refinement on F²	10 constraints
Least-squares matrix: full	Primary atom site location: dual
R[F² > 2σ(F²)] = 0.038	H-atom parameters constrained
wR(F²) = 0.061	w = 1/[σ²(F_o²) + (0.0081P)² + 0.0348P] where P = (F_o² + 2F_c²)/3
S = 1.09	(Δ/σ)_max = −0.0002
3058 reflections	Δρ_max = 0.34 e Å⁻³
166 parameters	Δρ_min = −0.33 e Å⁻³
0 restraints

Special details top

Refinement. Refinement using NoSpherA2, an implementation of NOn-SPHERical Atom-form-factors in Olex2. The following options were used: SOFTWARE: ORCA 6.1 PARTITIONING: NoSpherA2 INT ACCURACY: Normal METHOD: r2SCAN BASIS SET: def2-TZVPP CHARGE: 0 MULTIPLICITY: 1 SOLVATION: Water DATE: 2026-09-01_14-23-46. Hydrogen atoms were refined isotropically.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
O1	0.92532 (11)	0.72986 (10)	0.04592 (5)	0.01998 (16)
N1	0.90879 (13)	0.72470 (11)	0.29459 (5)	0.01504 (16)
N2	0.80917 (13)	0.68850 (11)	0.39730 (5)	0.01471 (16)
N3	0.40354 (13)	0.86997 (11)	0.37086 (5)	0.01404 (16)
N4	0.50426 (13)	0.90517 (11)	0.26685 (5)	0.01454 (16)
C1	0.88144 (18)	0.88087 (14)	0.11730 (7)	0.01780 (19)
H1A	1.0746 (17)	0.9105 (14)	0.1216 (7)	0.0214 (2)*
H1B	0.7597 (17)	0.9979 (14)	0.0836 (7)	0.0214 (2)*
C2	0.75552 (15)	0.83623 (13)	0.23290 (6)	0.01368 (17)
C3	0.55900 (15)	0.76548 (12)	0.43439 (6)	0.01153 (17)
C4	0.45400 (15)	0.73006 (12)	0.55162 (6)	0.01131 (17)
C5	0.61259 (15)	0.61944 (13)	0.61873 (6)	0.01317 (18)
H5	0.8094 (16)	0.5550 (13)	0.5846 (7)	0.0158 (2)*
C6	0.51547 (16)	0.58844 (13)	0.73007 (7)	0.01524 (18)
H6	0.6404 (16)	0.5014 (14)	0.7800 (7)	0.0183 (2)*
C7	0.26109 (16)	0.66712 (13)	0.77537 (7)	0.01518 (18)
H7	0.1901 (16)	0.6439 (13)	0.8630 (7)	0.0182 (2)*
C8	0.10211 (16)	0.77628 (13)	0.70835 (7)	0.01495 (18)
H8	−0.0982 (17)	0.8388 (14)	0.7428 (7)	0.0179 (2)*
C9	0.19769 (15)	0.80708 (13)	0.59684 (7)	0.01359 (18)
H9	0.0751 (16)	0.8899 (13)	0.5440 (7)	0.0163 (2)*
C10	0.6980 (2)	0.70573 (16)	0.00716 (8)	0.0244 (2)
H10A	0.7482 (19)	0.5807 (16)	−0.0412 (8)	0.0366 (3)*
H10B	0.5439 (19)	0.7009 (15)	0.0746 (8)	0.0366 (3)*
H10C	0.6313 (19)	0.8196 (16)	−0.0467 (8)	0.0366 (3)*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
O1	0.0209 (3)	0.0204 (4)	0.0158 (3)	0.0008 (3)	0.0004 (2)	−0.0028 (3)
N1	0.0115 (3)	0.0168 (4)	0.0148 (3)	0.0001 (3)	0.0004 (3)	−0.0006 (3)
N2	0.0115 (3)	0.0165 (4)	0.0143 (3)	0.0009 (3)	−0.0012 (3)	0.0004 (3)
N3	0.0111 (3)	0.0158 (4)	0.0140 (3)	−0.0007 (3)	−0.0011 (3)	0.0007 (3)
N4	0.0132 (3)	0.0153 (4)	0.0137 (3)	−0.0005 (3)	−0.0014 (3)	0.0009 (3)
C1	0.0188 (4)	0.0172 (5)	0.0158 (4)	−0.0032 (4)	0.0011 (3)	0.0005 (4)
C2	0.0138 (4)	0.0131 (5)	0.0134 (4)	−0.0025 (3)	0.0000 (3)	−0.0005 (3)
C3	0.0103 (4)	0.0112 (4)	0.0130 (4)	−0.0019 (3)	−0.0018 (3)	−0.0007 (3)
C4	0.0102 (4)	0.0114 (4)	0.0123 (4)	−0.0019 (3)	−0.0015 (3)	−0.0007 (3)
C5	0.0114 (4)	0.0141 (5)	0.0134 (4)	−0.0010 (3)	−0.0018 (3)	−0.0006 (3)
C6	0.0142 (4)	0.0175 (5)	0.0135 (4)	−0.0018 (4)	−0.0025 (3)	0.0006 (3)
C7	0.0152 (4)	0.0167 (5)	0.0129 (4)	−0.0029 (4)	−0.0003 (3)	−0.0011 (3)
C8	0.0124 (4)	0.0167 (5)	0.0146 (4)	−0.0023 (4)	0.0008 (3)	−0.0014 (3)
C9	0.0108 (4)	0.0152 (5)	0.0140 (4)	−0.0011 (3)	−0.0017 (3)	−0.0001 (3)
C10	0.0280 (5)	0.0250 (6)	0.0199 (5)	−0.0030 (5)	−0.0043 (4)	−0.0032 (4)

Geometric parameters (Å, º) top

O1—C1	1.4181 (11)	C4—C9	1.4003 (11)
O1—C10	1.4176 (11)	C5—H5	1.084 (8)
N1—N2	1.3087 (9)	C5—C6	1.3915 (11)
N1—C2	1.3422 (10)	C6—H6	1.078 (8)
N2—C3	1.3514 (10)	C6—C7	1.3952 (11)
N3—N4	1.3226 (9)	C7—H7	1.087 (9)
N3—C3	1.3403 (10)	C7—C8	1.3944 (11)
N4—C2	1.3359 (10)	C8—H8	1.096 (8)
C1—H1A	1.101 (9)	C8—C9	1.3912 (11)
C1—H1B	1.086 (9)	C9—H9	1.081 (8)
C1—C2	1.5019 (12)	C10—H10A	1.092 (11)
C3—C4	1.4724 (11)	C10—H10B	1.060 (10)
C4—C5	1.3986 (11)	C10—H10C	1.084 (11)

C10—O1—C1	113.11 (7)	C6—C5—C4	119.78 (7)
C2—N1—N2	117.77 (7)	C6—C5—H5	119.5 (4)
C3—N2—N1	118.01 (7)	H6—C6—C5	118.5 (5)
C3—N3—N4	117.89 (6)	C7—C6—C5	120.50 (8)
C2—N4—N3	117.60 (7)	C7—C6—H6	121.0 (5)
H1A—C1—O1	106.1 (5)	H7—C7—C6	119.4 (4)
H1B—C1—O1	109.8 (5)	C8—C7—C6	119.77 (8)
H1B—C1—H1A	111.3 (7)	C8—C7—H7	120.8 (4)
C2—C1—O1	112.18 (8)	H8—C8—C7	120.5 (5)
C2—C1—H1A	108.1 (5)	C9—C8—C7	119.99 (8)
C2—C1—H1B	109.4 (5)	C9—C8—H8	119.5 (5)
N4—C2—N1	124.67 (8)	C8—C9—C4	120.29 (8)
C1—C2—N1	115.93 (7)	H9—C9—C4	119.2 (5)
C1—C2—N4	119.39 (7)	H9—C9—C8	120.5 (5)
N3—C3—N2	123.89 (7)	H10A—C10—O1	107.4 (5)
C4—C3—N2	117.22 (7)	H10B—C10—O1	110.6 (5)
C4—C3—N3	118.89 (7)	H10B—C10—H10A	112.8 (9)
C5—C4—C3	119.64 (7)	H10C—C10—O1	111.3 (6)
C9—C4—C3	120.71 (7)	H10C—C10—H10A	108.2 (7)
C9—C4—C5	119.65 (7)	H10C—C10—H10B	106.6 (8)
H5—C5—C4	120.7 (4)

O1—C1—C2—N1	73.17 (8)	N4—N3—C3—C4	177.76 (7)
O1—C1—C2—N4	−105.80 (8)	C2—N1—N2—C3	0.06 (9)
N1—N2—C3—N3	3.10 (9)	C2—N4—N3—C3	−1.00 (9)
N1—N2—C3—C4	−177.26 (7)	C2—C1—O1—C10	78.41 (9)
N1—C2—N4—N3	4.28 (11)	C3—C4—C5—C6	178.83 (8)
N2—N1—C2—N4	−3.79 (9)	C3—C4—C9—C8	−178.51 (8)
N2—N1—C2—C1	177.30 (8)	C4—C5—C6—C7	−0.10 (10)
N2—C3—N3—N4	−2.60 (10)	C4—C9—C8—C7	−0.51 (10)
N2—C3—C4—C5	−0.45 (9)	C5—C4—C9—C8	1.00 (10)
N2—C3—C4—C9	179.06 (8)	C5—C6—C7—C8	0.59 (11)
N3—N4—C2—C1	−176.84 (8)	C6—C5—C4—C9	−0.69 (10)
N3—C3—C4—C5	179.21 (8)	C6—C7—C8—C9	−0.29 (11)
N3—C3—C4—C9	−1.28 (10)

(6-Phenyl-1,2,4,5-tetrazin-3-yl)methanol (2) top

Crystal data top

C₉H₈N₄O	F(000) = 784.550
M_r = 188.19	D_x = 1.439 Mg m⁻³
Monoclinic, P2₁/n	Mo Kα radiation, λ = 0.71073 Å
a = 11.8719 (3) Å	Cell parameters from 9457 reflections
b = 8.4682 (2) Å	θ = 2.1–30.8°
c = 17.2987 (5) Å	µ = 0.10 mm⁻¹
β = 92.709 (2)°	T = 100 K
V = 1737.16 (8) Å³	Needle, clear red
Z = 8	0.35 × 0.09 × 0.06 mm

Data collection top

SuperNova, Single source at offset/far, Eos diffractometer	4666 independent reflections
Radiation source: micro-focus sealed X-ray tube, SuperNova (Mo) X-ray Source	3774 reflections with I ≥ 2u(I)
Mirror monochromator	R_int = 0.045
Detector resolution: 8.0951 pixels mm^-1	θ_max = 29.1°, θ_min = 2.0°
ω scans	h = −16→17
Absorption correction: gaussian (CrysAlisPro; Rigaku OD, 2025)	k = −12→11
T_min = 0.744, T_max = 1.000	l = −24→24
32315 measured reflections

Refinement top

Refinement on F²	0 constraints
Least-squares matrix: full	Primary atom site location: dual
R[F² > 2σ(F²)] = 0.030	All H-atom parameters refined
wR(F²) = 0.066	w = 1/[σ²(F_o²) + (0.0179P)² + 0.2291P] where P = (F_o² + 2F_c²)/3
S = 1.07	(Δ/σ)_max = −0.0000
4666 reflections	Δρ_max = 0.21 e Å⁻³
317 parameters	Δρ_min = −0.21 e Å⁻³
0 restraints

Special details top

Refinement. Refinement using NoSpherA2, an implementation of NOn-SPHERical Atom-form-factors in Olex2. The following options were used: SOFTWARE: ORCA 6.1 PARTITIONING: NoSpherA2 INT ACCURACY: Normal METHOD: r2SCAN BASIS SET: def2-TZVPP CHARGE: 0 MULTIPLICITY: 1 SOLVATION: Water DATE: 2026-09-01_16-19-35. Hydrogen atoms were refined isotropically.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
O1A	0.59801 (5)	1.02413 (7)	0.28063 (4)	0.01965 (14)
H1A	0.6607 (10)	0.9789 (14)	0.3110 (7)	0.029 (3)*
O1B	0.86881 (5)	1.01966 (7)	0.25962 (4)	0.02058 (14)
H1B	0.8062 (11)	0.9790 (15)	0.2273 (7)	0.035 (3)*
N1A	0.52904 (6)	0.74303 (8)	0.12699 (4)	0.01679 (15)
N1B	0.76371 (6)	0.82834 (8)	0.36380 (4)	0.01715 (15)
N2A	0.57676 (5)	0.67508 (8)	0.06899 (4)	0.01688 (15)
N2B	0.71656 (6)	0.75248 (8)	0.42088 (4)	0.01752 (15)
N3A	0.75136 (6)	0.79518 (8)	0.10707 (4)	0.01599 (15)
N3B	0.89047 (6)	0.62307 (9)	0.45041 (4)	0.01907 (16)
N4A	0.70263 (6)	0.86196 (8)	0.16591 (4)	0.01601 (15)
N4B	0.93624 (6)	0.69768 (9)	0.39344 (4)	0.01918 (16)
C1A	0.53859 (7)	0.89889 (11)	0.24476 (5)	0.01957 (18)
H1Aa	0.5285 (9)	0.8000 (13)	0.2849 (6)	0.039 (3)*
H1Ab	0.4555 (9)	0.9394 (13)	0.2265 (6)	0.043 (3)*
C1B	0.92960 (7)	0.88877 (11)	0.28883 (5)	0.01941 (18)
H1Ba	0.9452 (9)	0.8015 (13)	0.2444 (6)	0.042 (3)*
H1Bb	1.0106 (9)	0.9282 (12)	0.3117 (6)	0.034 (3)*
C2A	0.59403 (6)	0.83232 (9)	0.17545 (5)	0.01452 (16)
C2B	0.87263 (7)	0.80304 (10)	0.35268 (5)	0.01583 (17)
C3A	0.68812 (6)	0.70005 (9)	0.06061 (5)	0.01377 (16)
C3B	0.78189 (7)	0.65559 (10)	0.46492 (5)	0.01512 (17)
C4A	0.74238 (6)	0.61986 (9)	−0.00351 (5)	0.01426 (16)
C4B	0.73344 (7)	0.57847 (10)	0.53216 (5)	0.01579 (17)
C5A	0.67944 (7)	0.52052 (10)	−0.05393 (5)	0.01702 (17)
H5A	0.5903 (8)	0.5023 (12)	−0.0456 (6)	0.031 (3)*
C5B	0.61878 (7)	0.59683 (11)	0.54546 (5)	0.02024 (18)
H5B	0.5665 (9)	0.6653 (14)	0.5054 (6)	0.040 (3)*
C6A	0.73229 (7)	0.44423 (10)	−0.11365 (5)	0.01900 (18)
H6A	0.6838 (9)	0.3643 (13)	−0.1510 (6)	0.036 (3)*
C6B	0.57384 (8)	0.52971 (11)	0.61061 (5)	0.0245 (2)
H6B	0.4841 (9)	0.5440 (13)	0.6203 (6)	0.039 (3)*
C7A	0.84716 (7)	0.46702 (11)	−0.12364 (5)	0.01942 (18)
H7A	0.8874 (9)	0.4069 (13)	−0.1685 (7)	0.043 (3)*
C7B	0.64302 (8)	0.44385 (12)	0.66256 (5)	0.0257 (2)
H7B	0.6084 (9)	0.3926 (13)	0.7137 (7)	0.041 (3)*
C8A	0.90950 (7)	0.56615 (11)	−0.07371 (5)	0.01958 (18)
H8A	0.9988 (9)	0.5834 (13)	−0.0805 (6)	0.038 (3)*
C8B	0.75664 (8)	0.42286 (11)	0.64873 (5)	0.0247 (2)
H8B	0.8100 (9)	0.3533 (14)	0.6870 (7)	0.048 (3)*
C9A	0.85757 (7)	0.64189 (10)	−0.01341 (5)	0.01796 (18)
H9A	0.9041 (8)	0.7182 (12)	0.0273 (6)	0.028 (3)*
C9B	0.80233 (7)	0.48971 (10)	0.58373 (5)	0.01967 (18)
H9B	0.8907 (9)	0.4737 (13)	0.5731 (6)	0.039 (3)*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
O1A	0.0218 (3)	0.0163 (3)	0.0205 (3)	0.0027 (2)	−0.0014 (3)	−0.0006 (2)
O1B	0.0229 (3)	0.0159 (3)	0.0225 (3)	−0.0039 (2)	−0.0036 (3)	−0.0006 (2)
N1A	0.0115 (3)	0.0197 (4)	0.0190 (4)	−0.0028 (3)	−0.0002 (3)	−0.0001 (3)
N1B	0.0151 (3)	0.0180 (4)	0.0182 (4)	0.0037 (3)	−0.0015 (3)	0.0009 (3)
N2A	0.0120 (3)	0.0199 (4)	0.0187 (4)	−0.0036 (3)	−0.0004 (3)	−0.0019 (3)
N2B	0.0140 (3)	0.0197 (4)	0.0188 (4)	0.0044 (3)	−0.0006 (3)	0.0011 (3)
N3A	0.0125 (3)	0.0189 (4)	0.0164 (4)	−0.0045 (3)	−0.0005 (3)	−0.0008 (3)
N3B	0.0149 (3)	0.0211 (4)	0.0210 (4)	0.0054 (3)	−0.0016 (3)	0.0015 (3)
N4A	0.0145 (3)	0.0174 (4)	0.0160 (3)	−0.0038 (3)	−0.0006 (3)	−0.0005 (3)
N4B	0.0145 (3)	0.0215 (4)	0.0215 (4)	0.0035 (3)	−0.0000 (3)	0.0010 (3)
C1A	0.0161 (4)	0.0211 (5)	0.0217 (5)	0.0003 (3)	0.0019 (3)	−0.0022 (4)
C1B	0.0196 (4)	0.0174 (4)	0.0212 (5)	−0.0018 (3)	0.0007 (3)	−0.0013 (3)
C2A	0.0132 (4)	0.0141 (4)	0.0162 (4)	−0.0005 (3)	−0.0003 (3)	0.0010 (3)
C2B	0.0146 (4)	0.0154 (4)	0.0173 (4)	0.0007 (3)	−0.0012 (3)	−0.0018 (3)
C3A	0.0117 (4)	0.0151 (4)	0.0144 (4)	−0.0025 (3)	−0.0008 (3)	0.0015 (3)
C3B	0.0141 (4)	0.0151 (4)	0.0160 (4)	0.0020 (3)	−0.0014 (3)	−0.0018 (3)
C4A	0.0131 (4)	0.0156 (4)	0.0139 (4)	−0.0026 (3)	−0.0009 (3)	0.0015 (3)
C4B	0.0166 (4)	0.0149 (4)	0.0157 (4)	0.0011 (3)	−0.0013 (3)	−0.0017 (3)
C5A	0.0152 (4)	0.0197 (4)	0.0160 (4)	−0.0035 (3)	−0.0009 (3)	−0.0005 (3)
C5B	0.0176 (4)	0.0230 (5)	0.0202 (5)	0.0023 (3)	0.0013 (3)	−0.0010 (4)
C6A	0.0198 (4)	0.0207 (4)	0.0164 (4)	−0.0035 (3)	−0.0003 (3)	−0.0017 (3)
C6B	0.0234 (5)	0.0287 (5)	0.0217 (5)	−0.0027 (4)	0.0048 (4)	−0.0015 (4)
C7A	0.0201 (4)	0.0219 (4)	0.0165 (4)	0.0002 (3)	0.0029 (3)	−0.0004 (3)
C7B	0.0320 (5)	0.0267 (5)	0.0183 (5)	−0.0086 (4)	0.0015 (4)	0.0006 (4)
C8A	0.0147 (4)	0.0245 (5)	0.0196 (4)	−0.0009 (3)	0.0022 (3)	−0.0002 (3)
C8B	0.0289 (5)	0.0243 (5)	0.0203 (5)	−0.0049 (4)	−0.0057 (4)	0.0039 (4)
C9A	0.0134 (4)	0.0221 (4)	0.0183 (4)	−0.0030 (3)	0.0002 (3)	−0.0010 (3)
C9B	0.0201 (4)	0.0194 (4)	0.0190 (4)	−0.0005 (3)	−0.0043 (3)	0.0012 (3)

Geometric parameters (Å, º) top

O1A—H1A	0.969 (12)	C3B—C4B	1.4742 (12)
O1A—C1A	1.4022 (10)	C4A—C5A	1.4018 (11)
O1B—H1B	0.972 (13)	C4A—C9A	1.3988 (11)
O1B—C1B	1.4036 (10)	C4B—C5B	1.3999 (11)
N1A—N2A	1.3086 (10)	C4B—C9B	1.4003 (11)
N1A—C2A	1.3448 (10)	C5A—H5A	1.085 (10)
N1B—N2B	1.3242 (10)	C5A—C6A	1.3926 (12)
N1B—C2B	1.3336 (10)	C5B—H5B	1.078 (11)
N2A—C3A	1.3534 (10)	C5B—C6B	1.3909 (13)
N2B—C3B	1.3413 (10)	C6A—H6A	1.082 (10)
N3A—N4A	1.3214 (10)	C6A—C7A	1.3961 (12)
N3A—C3A	1.3421 (10)	C6B—H6B	1.093 (11)
N3B—N4B	1.3101 (10)	C6B—C7B	1.3932 (13)
N3B—C3B	1.3533 (10)	C7A—H7A	1.061 (11)
N4A—C2A	1.3314 (10)	C7A—C8A	1.3922 (12)
N4B—C2B	1.3466 (10)	C7B—H7B	1.084 (11)
C1A—H1Aa	1.098 (11)	C7B—C8B	1.3925 (13)
C1A—H1Ab	1.078 (11)	C8A—H8A	1.082 (10)
C1A—C2A	1.5042 (12)	C8A—C9A	1.3929 (12)
C1B—H1Ba	1.089 (11)	C8B—H8B	1.071 (11)
C1B—H1Bb	1.075 (10)	C8B—C9B	1.3918 (13)
C1B—C2B	1.5083 (12)	C9A—H9A	1.087 (10)
C3A—C4A	1.4745 (11)	C9B—H9B	1.082 (11)

C1A—O1A—H1A	107.3 (7)	C9A—C4A—C3A	119.68 (7)
C1B—O1B—H1B	107.0 (7)	C9A—C4A—C5A	119.95 (8)
C2A—N1A—N2A	117.96 (7)	C5B—C4B—C3B	119.95 (7)
C2B—N1B—N2B	118.46 (7)	C9B—C4B—C3B	120.17 (7)
C3A—N2A—N1A	118.29 (7)	C9B—C4B—C5B	119.87 (8)
C3B—N2B—N1B	117.83 (7)	H5A—C5A—C4A	119.8 (5)
C3A—N3A—N4A	117.73 (7)	C6A—C5A—C4A	119.63 (8)
C3B—N3B—N4B	118.29 (7)	C6A—C5A—H5A	120.6 (5)
C2A—N4A—N3A	118.46 (7)	H5B—C5B—C4B	119.3 (6)
C2B—N4B—N3B	118.11 (7)	C6B—C5B—C4B	120.07 (8)
H1Aa—C1A—O1A	111.4 (6)	C6B—C5B—H5B	120.6 (6)
H1Ab—C1A—O1A	108.9 (6)	H6A—C6A—C5A	119.1 (6)
H1Ab—C1A—H1Aa	107.6 (8)	C7A—C6A—C5A	120.31 (8)
C2A—C1A—O1A	113.97 (7)	C7A—C6A—H6A	120.5 (6)
C2A—C1A—H1Aa	106.4 (6)	H6B—C6B—C5B	119.6 (6)
C2A—C1A—H1Ab	108.3 (6)	C7B—C6B—C5B	119.93 (9)
H1Ba—C1B—O1B	112.6 (6)	C7B—C6B—H6B	120.5 (6)
H1Bb—C1B—O1B	108.8 (6)	H7A—C7A—C6A	120.0 (6)
H1Bb—C1B—H1Ba	106.9 (8)	C8A—C7A—C6A	120.02 (8)
C2B—C1B—O1B	113.76 (7)	C8A—C7A—H7A	119.9 (6)
C2B—C1B—H1Ba	106.7 (6)	H7B—C7B—C6B	120.1 (6)
C2B—C1B—H1Bb	107.7 (6)	C8B—C7B—C6B	120.14 (9)
N4A—C2A—N1A	123.99 (8)	C8B—C7B—H7B	119.8 (6)
C1A—C2A—N1A	116.60 (7)	H8A—C8A—C7A	120.6 (6)
C1A—C2A—N4A	119.40 (7)	C9A—C8A—C7A	120.08 (8)
N4B—C2B—N1B	123.68 (8)	C9A—C8A—H8A	119.3 (6)
C1B—C2B—N1B	119.98 (7)	H8B—C8B—C7B	120.9 (6)
C1B—C2B—N4B	116.27 (7)	C9B—C8B—C7B	120.31 (9)
N3A—C3A—N2A	123.45 (8)	C9B—C8B—H8B	118.8 (6)
C4A—C3A—N2A	118.18 (7)	C8A—C9A—C4A	120.01 (8)
C4A—C3A—N3A	118.36 (7)	H9A—C9A—C4A	118.0 (5)
N3B—C3B—N2B	123.33 (8)	H9A—C9A—C8A	122.0 (5)
C4B—C3B—N2B	118.84 (7)	C8B—C9B—C4B	119.66 (8)
C4B—C3B—N3B	117.83 (7)	H9B—C9B—C4B	120.0 (6)
C5A—C4A—C3A	120.37 (7)	H9B—C9B—C8B	120.3 (6)

O1A—C1A—C2A—N1A	−162.92 (7)	N3B—C3B—C4B—C5B	−174.15 (7)
O1A—C1A—C2A—N4A	18.03 (9)	N3B—C3B—C4B—C9B	7.26 (9)
O1B—C1B—C2B—N1B	16.06 (9)	N4A—N3A—C3A—C4A	−177.69 (7)
O1B—C1B—C2B—N4B	−166.93 (7)	N4B—N3B—C3B—C4B	−176.25 (7)
N1A—N2A—C3A—N3A	−2.39 (9)	C2A—N1A—N2A—C3A	−0.78 (9)
N1A—N2A—C3A—C4A	178.34 (7)	C2A—N4A—N3A—C3A	−0.49 (8)
N1A—C2A—N4A—N3A	−2.73 (9)	C2B—N1B—N2B—C3B	0.77 (9)
N1B—N2B—C3B—N3B	−5.01 (9)	C2B—N4B—N3B—C3B	0.23 (9)
N1B—N2B—C3B—C4B	175.76 (7)	C3A—C4A—C5A—C6A	−179.25 (8)
N1B—C2B—N4B—N3B	−4.47 (10)	C3A—C4A—C9A—C8A	179.81 (8)
N2A—N1A—C2A—N4A	3.38 (9)	C3B—C4B—C5B—C6B	−177.30 (8)
N2A—N1A—C2A—C1A	−175.62 (7)	C3B—C4B—C9B—C8B	177.35 (8)
N2A—C3A—N3A—N4A	3.04 (9)	C4A—C5A—C6A—C7A	−0.35 (10)
N2A—C3A—C4A—C5A	−0.12 (9)	C4A—C9A—C8A—C7A	−0.75 (10)
N2A—C3A—C4A—C9A	−179.41 (7)	C4B—C5B—C6B—C7B	−0.14 (10)
N2B—N1B—C2B—N4B	3.95 (9)	C4B—C9B—C8B—C7B	0.03 (10)
N2B—N1B—C2B—C1B	−179.28 (7)	C5A—C4A—C9A—C8A	0.51 (9)
N2B—C3B—N3B—N4B	4.50 (9)	C5A—C6A—C7A—C8A	0.12 (10)
N2B—C3B—C4B—C5B	5.13 (9)	C5B—C4B—C9B—C8B	−1.23 (9)
N2B—C3B—C4B—C9B	−173.46 (8)	C5B—C6B—C7B—C8B	−1.07 (11)
N3A—N4A—C2A—C1A	176.25 (7)	C6A—C5A—C4A—C9A	0.04 (10)
N3A—C3A—C4A—C5A	−179.42 (7)	C6A—C7A—C8A—C9A	0.43 (10)
N3A—C3A—C4A—C9A	1.29 (9)	C6B—C5B—C4B—C9B	1.29 (10)
N3B—N4B—C2B—C1B	178.65 (7)	C6B—C7B—C8B—C9B	1.13 (11)

Hydrogen-bond geometry (Å, º) top

D—H···A	D—H	H···A	D···A	D—H···A
O1A—H1A···N1B	0.969 (12)	1.963 (13)	2.9019 (9)	162.7 (10)
O1B—H1B···N4A	0.972 (13)	1.871 (13)	2.8287 (9)	168.2 (11)

3-(Bromomethyl)-6-phenyl-1,2,4,5-tetrazine (3) top

Crystal data top

C₉H₇BrN₄	Z = 2
M_r = 251.09	F(000) = 247.736
Triclinic, P1	D_x = 1.814 Mg m⁻³
a = 5.2376 (4) Å	Mo Kα radiation, λ = 0.71073 Å
b = 7.5069 (6) Å	Cell parameters from 3207 reflections
c = 12.0638 (8) Å	θ = 3.2–30.6°
α = 89.632 (6)°	µ = 4.44 mm⁻¹
β = 80.517 (6)°	T = 100 K
γ = 79.451 (7)°	Block, clear red
V = 459.80 (6) Å³	0.35 × 0.29 × 0.09 mm

Data collection top

SuperNova, Single source at offset/far, Eos diffractometer	2531 independent reflections
Radiation source: micro-focus sealed X-ray tube, SuperNova (Mo) X-ray Source	2136 reflections with I ≥ 2u(I)
Mirror monochromator	R_int = 0.048
Detector resolution: 8.0951 pixels mm^-1	θ_max = 29.6°, θ_min = 1.7°
ω scans	h = −7→7
Absorption correction: gaussian (CrysAlisPro; Rigaku OD, 2025)	k = −10→10
T_min = 0.394, T_max = 1.000	l = −17→16
7431 measured reflections

Refinement top

Refinement on F²	7 constraints
Least-squares matrix: full	Primary atom site location: dual
R[F² > 2σ(F²)] = 0.033	H-atom parameters constrained
wR(F²) = 0.061	w = 1/[σ²(F_o²) + (0.0159P)²] where P = (F_o² + 2F_c²)/3
S = 1.03	(Δ/σ)_max = −0.0002
2531 reflections	Δρ_max = 0.81 e Å⁻³
148 parameters	Δρ_min = −0.70 e Å⁻³
0 restraints

Special details top

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq
Br1	0.65100 (5)	0.72768 (3)	0.010906 (19)	0.02391 (8)
N1	0.8794 (3)	0.7258 (3)	0.28825 (15)	0.0176 (4)
N2	0.7978 (3)	0.6944 (3)	0.39466 (15)	0.0178 (4)
N3	0.3775 (3)	0.8719 (2)	0.38276 (15)	0.0172 (4)
N4	0.4589 (3)	0.9025 (3)	0.27664 (16)	0.0191 (4)
C1	0.8027 (5)	0.8656 (3)	0.11273 (19)	0.0212 (5)
H1a	1.023 (5)	0.823 (3)	0.0968 (19)	0.0254 (6)*
H1b	0.726 (5)	1.015 (3)	0.097 (2)	0.0254 (6)*
C2	0.7078 (4)	0.8275 (3)	0.23224 (18)	0.0159 (4)
C3	0.5477 (4)	0.7671 (3)	0.43979 (18)	0.0144 (4)
C4	0.4543 (4)	0.7315 (3)	0.55885 (17)	0.0134 (4)
C5	0.6212 (4)	0.6175 (3)	0.62007 (18)	0.0148 (4)
H5	0.817 (4)	0.550 (3)	0.5826 (18)	0.0178 (5)*
C6	0.5325 (4)	0.5841 (3)	0.73262 (19)	0.0174 (5)
H6	0.664 (4)	0.495 (3)	0.7779 (19)	0.0209 (5)*
C7	0.2781 (4)	0.6636 (3)	0.78360 (19)	0.0171 (5)
H7	0.211 (4)	0.629 (3)	0.8726 (19)	0.0205 (5)*
C8	0.1121 (4)	0.7774 (3)	0.72290 (19)	0.0178 (5)
H8	−0.086 (4)	0.841 (3)	0.7634 (19)	0.0214 (5)*
C9	0.1997 (4)	0.8101 (3)	0.61046 (18)	0.0152 (4)
H9	0.075 (4)	0.900 (3)	0.5609 (19)	0.0182 (5)*

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
Br1	0.02876 (14)	0.02440 (14)	0.01709 (13)	−0.00081 (10)	−0.00401 (9)	−0.00149 (9)
N1	0.0139 (9)	0.0189 (10)	0.0180 (10)	0.0008 (7)	−0.0008 (7)	−0.0004 (8)
N2	0.0124 (9)	0.0200 (10)	0.0189 (10)	0.0018 (8)	−0.0022 (7)	0.0004 (8)
N3	0.0134 (9)	0.0171 (10)	0.0194 (10)	0.0015 (7)	−0.0024 (7)	0.0004 (8)
N4	0.0159 (10)	0.0192 (10)	0.0205 (10)	0.0012 (8)	−0.0030 (7)	0.0022 (8)
C1	0.0201 (12)	0.0232 (13)	0.0195 (12)	−0.0036 (10)	−0.0020 (9)	0.0040 (10)
C2	0.0149 (11)	0.0156 (11)	0.0171 (11)	−0.0015 (8)	−0.0036 (8)	0.0004 (9)
C3	0.0116 (10)	0.0135 (11)	0.0180 (11)	−0.0010 (8)	−0.0032 (8)	−0.0010 (9)
C4	0.0121 (10)	0.0098 (10)	0.0183 (11)	−0.0003 (8)	−0.0041 (8)	−0.0015 (8)
C5	0.0114 (10)	0.0134 (11)	0.0181 (11)	0.0019 (8)	−0.0023 (8)	−0.0008 (9)
C6	0.0145 (11)	0.0153 (11)	0.0214 (12)	0.0012 (9)	−0.0045 (9)	−0.0006 (9)
C7	0.0166 (11)	0.0153 (11)	0.0186 (12)	−0.0013 (9)	−0.0023 (9)	0.0012 (9)
C8	0.0129 (11)	0.0181 (12)	0.0206 (12)	0.0003 (9)	−0.0008 (9)	−0.0009 (9)
C9	0.0115 (10)	0.0152 (11)	0.0179 (11)	−0.0000 (8)	−0.0021 (8)	0.0004 (9)

Geometric parameters (Å, º) top

Br1—C1	1.962 (2)	C4—C5	1.404 (3)
N1—N2	1.318 (2)	C4—C9	1.399 (3)
N1—C2	1.338 (3)	C5—H5	1.09 (2)
N2—C3	1.348 (3)	C5—C6	1.397 (3)
N3—N4	1.314 (2)	C6—H6	1.08 (2)
N3—C3	1.351 (3)	C6—C7	1.397 (3)
N4—C2	1.345 (3)	C7—H7	1.12 (2)
C1—H1a	1.13 (2)	C7—C8	1.397 (3)
C1—H1b	1.15 (3)	C8—H8	1.09 (2)
C1—C2	1.489 (3)	C8—C9	1.394 (3)
C3—C4	1.478 (3)	C9—H9	1.10 (2)

C2—N1—N2	117.68 (17)	C9—C4—C3	120.19 (18)
C3—N2—N1	117.92 (17)	C9—C4—C5	119.94 (19)
C3—N3—N4	118.14 (18)	H5—C5—C4	122.4 (11)
C2—N4—N3	117.46 (18)	C6—C5—C4	119.76 (19)
H1a—C1—Br1	109.3 (12)	C6—C5—H5	117.8 (11)
H1b—C1—Br1	105.8 (12)	H6—C6—C5	118.5 (12)
H1b—C1—H1a	115.0 (17)	C7—C6—C5	119.9 (2)
C2—C1—Br1	110.83 (15)	C7—C6—H6	121.6 (12)
C2—C1—H1a	107.5 (12)	H7—C7—C6	118.0 (12)
C2—C1—H1b	108.4 (12)	C8—C7—C6	120.4 (2)
N4—C2—N1	125.0 (2)	C8—C7—H7	121.5 (12)
C1—C2—N1	117.44 (19)	H8—C8—C7	120.2 (12)
C1—C2—N4	117.57 (19)	C9—C8—C7	119.8 (2)
N3—C3—N2	123.82 (19)	C9—C8—H8	120.0 (12)
C4—C3—N2	118.23 (18)	C8—C9—C4	120.18 (19)
C4—C3—N3	117.95 (18)	H9—C9—C4	118.2 (12)
C5—C4—C3	119.87 (18)	H9—C9—C8	121.6 (12)

Br1—C1—C2—N1	107.43 (16)	N3—C3—C4—C9	−2.1 (2)
Br1—C1—C2—N4	−74.63 (17)	N4—N3—C3—C4	−179.36 (18)
N1—N2—C3—N3	−0.9 (2)	C2—N1—N2—C3	−0.2 (2)
N1—N2—C3—C4	179.59 (18)	C2—N4—N3—C3	−0.3 (2)
N1—C2—N4—N3	−0.8 (2)	C3—C4—C5—C6	179.94 (19)
N2—N1—C2—N4	1.0 (2)	C3—C4—C9—C8	−179.63 (19)
N2—N1—C2—C1	178.79 (19)	C4—C5—C6—C7	0.3 (2)
N2—C3—N3—N4	1.1 (2)	C4—C9—C8—C7	−0.9 (2)
N2—C3—C4—C5	−2.9 (2)	C5—C4—C9—C8	0.7 (2)
N2—C3—C4—C9	177.44 (19)	C5—C6—C7—C8	−0.5 (2)
N3—N4—C2—C1	−178.56 (19)	C6—C5—C4—C9	−0.4 (2)
N3—C3—C4—C5	177.48 (18)	C6—C7—C8—C9	0.8 (2)

Acknowledgements

The authors are deeply grateful to Professor Dr Norbert Sewald for his constant encouragement and for providing infrastructure and research materials. Jona Voss thanks the Studienstiftung des deutschen Volkes for its support. We also thank Dr Jascha Rüter for fruitful discussions and proof-reading of the manuscript. Open access funding enabled and organised by Projekt DEAL. We acknowledge support for the publication costs by the Open Access Publication Fund of Bielefeld University.

Funding information

Funding for this research was provided by: Studienstiftung des deutschen Volkes (scholarship to Jona Voss).

References

Baalmann, M., Ziegler, M. J., Werther, P., Wilhelm, J. & Wombacher, R. (2019). Bioconjugate Chem. 30, 1405–1414. CrossRef CAS Google Scholar
Bourhis, L. J., Dolomanov, O. V., Gildea, R. J., Howard, J. A. K. & Puschmann, H. (2015). Acta Cryst. A71, 59–75. Web of Science CrossRef IUCr Journals Google Scholar
Dolomanov, O. V., Bourhis, L. J., Gildea, R. J., Howard, J. A. K. & Puschmann, H. (2009). J. Appl. Cryst. 42, 339–341. Web of Science CrossRef CAS IUCr Journals Google Scholar
Fulmer, G. R., Miller, A. J. M., Sherden, N. H., Gottlieb, H. E., Nudelman, A., Stoltz, B. M., Bercaw, J. E. & Goldberg, K. I. (2010). Organometallics 29, 2176–2179. CrossRef CAS Google Scholar
Groom, C. R., Bruno, I. J., Lightfoot, M. P. & Ward, S. C. (2016). Acta Cryst. B72, 171–179. Web of Science CrossRef IUCr Journals Google Scholar
Hu, W.-X. & Xu, F. (2008). J. Heterocycl. Chem. 45, 1745–1750. Web of Science CSD CrossRef CAS Google Scholar
Huber, R. G., Margreiter, M. A., Fuchs, J. E., von Grafenstein, S., Tautermann, C. S., Liedl, K. R. & Fox, T. (2014). J. Chem. Inf. Model. 54, 1371–1379. Web of Science CrossRef CAS PubMed Google Scholar
Kleemiss, F., Dolomanov, O. V., Bodensteiner, M., Peyerimhoff, N., Midgley, L., Bourhis, L. J., Genoni, A., Malaspina, L. A., Jayatilaka, D., Spencer, J. L., White, F., Grundkötter-Stock, B., Steinhauer, S., Lentz, D., Puschmann, H. & Grabowsky, S. (2021). Chem. Sci. 12, 1675–1692. Web of Science CSD CrossRef CAS Google Scholar
Lang, S. A., Johnson, B. D. & Cohen, E. (1975). J. Heterocycl. Chem. 12, 1143–1153. CrossRef CAS Google Scholar
Neese, F. (2022). WIREs Comput. Mol. Sci. 12, e1606. Google Scholar
Pinner, A. (1893). Ber. Dtsch. Chem. Ges. 26, 2126–2135. CrossRef Google Scholar
Rigaku OD (2025). CrysAlis PRO. Rigaku Oxford Diffraction, Yarnton, England. Google Scholar
Sheldrick, G. M. (2015). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Tu, J., Svatunek, D., Parvez, S., Eckvahl, H. J., Xu, M., Peterson, R. T., Houk, K. N. & Franzini, R. M. (2020). Chem. Sci. 11, 169–179. CrossRef CAS PubMed Google Scholar
Voss, J., Stammler, H. G. & Sewald, N. (2025). Acta Cryst. E81, 164–168. CrossRef IUCr Journals Google Scholar
Wang, Y., Shen, G., Li, J., Mao, W., Sun, H., Feng, P. & Wu, H. (2022). Org. Lett. 24, 5293–5297. CrossRef CAS PubMed Google Scholar
Westrip, S. P. (2010). J. Appl. Cryst. 43, 920–925. Web of Science CrossRef CAS IUCr Journals Google Scholar
Xu, F. & Hu, W.-X. (2007). Acta Cryst. E63, o2397. CrossRef IUCr Journals Google Scholar
Yim, J., Park, J., Lee, Y. & Park, J. (2026). Chem. Eur. J. 32, e71028. CrossRef PubMed Google Scholar
Zhao, G., Li, Z., Zhang, R., Zhou, L., Zhao, H. & Jiang, H. (2022). Front. Mol. Biosci. 9, 1055823. Web of Science CrossRef PubMed Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.

CRYSTALLOGRAPHIC
COMMUNICATIONS

ISSN: 2056-9890

Volume 82| Part 10| October 2026| Pages 1221-1225

https://doi.org/10.1107/S2056989026009527

Open

access

Format		BIBTeX
		EndNote
		RefMan
		Refer
		Medline
		CIF
		SGML
		Plain Text
		Text

Format		BIBTeX
		EndNote
		RefMan
		Refer
		Medline
		CIF
		SGML
		Plain Text
		Text

research communications\(\def\hfill{\hskip 5em}\def\hfil{\hskip 3em}\def\eqno#1{\hfil {#1}}\)
