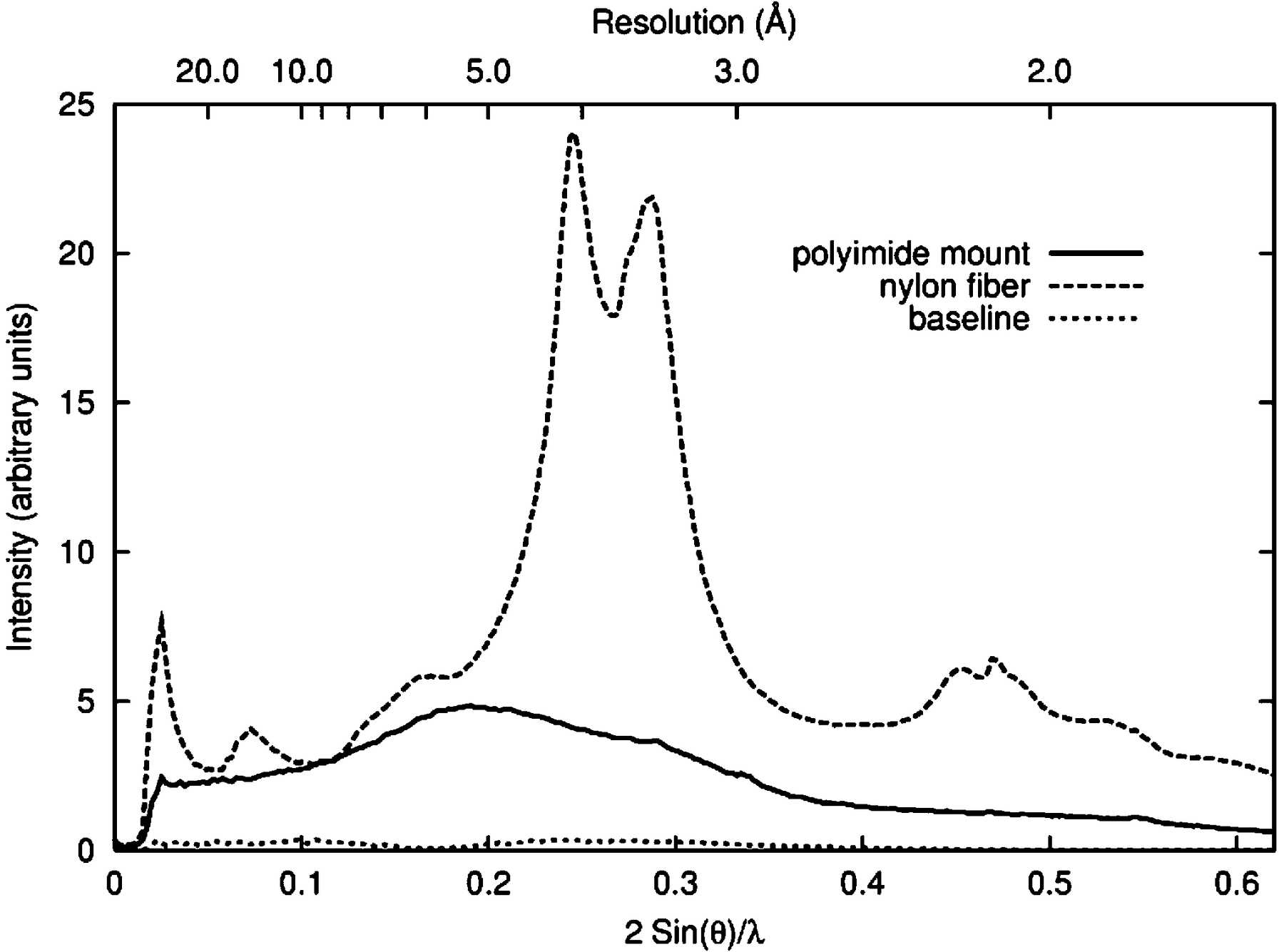

Figure 6
Diffuse scattering intensity versus 2sin(θ)/λ and resolution for a 20 µm thick nylon loop and a 9 µm thick polyimide mount when illuminated using a 12.7 keV X-ray beam focused to a 10 µm spot. For the nylon loop, the spot was focused on the middle of the nylon line and for the polyimide film the spot was focused normal to the plane of the film.
