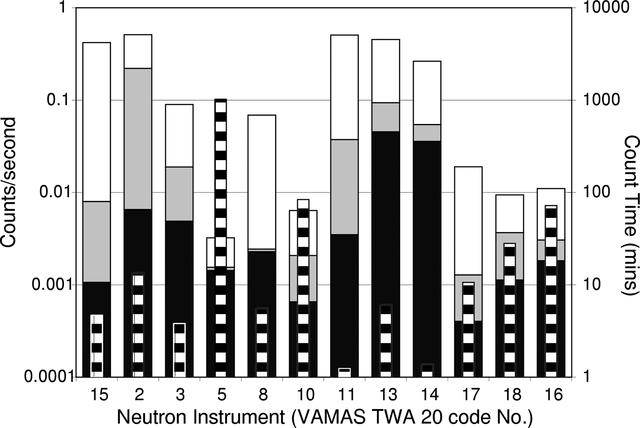

Figure 5
The peak height (hhkl, white), and sample-dependent (bsample, grey) and constant background (b0, black) count levels per second (left-hand axis), for a 40 mm3 Al gauge volume at zero depth for many neutron instruments worldwide, based on data collected for an Al ring and plug as part of a round robin. Also shown as narrow columns are the count times to acquire to 10−4 strain accuracy at zero depth (right-hand axis). The instrument identifier codes correspond to those in the VAMAS TWA20 report (Webster, 2000BB4).

Journal logoJOURNAL OF
APPLIED
CRYSTALLOGRAPHY
ISSN: 1600-5767
Volume 37| Part 4| July 2004| Pages 607-612
doi:10.1107/S0021889804012750
