Figure 2

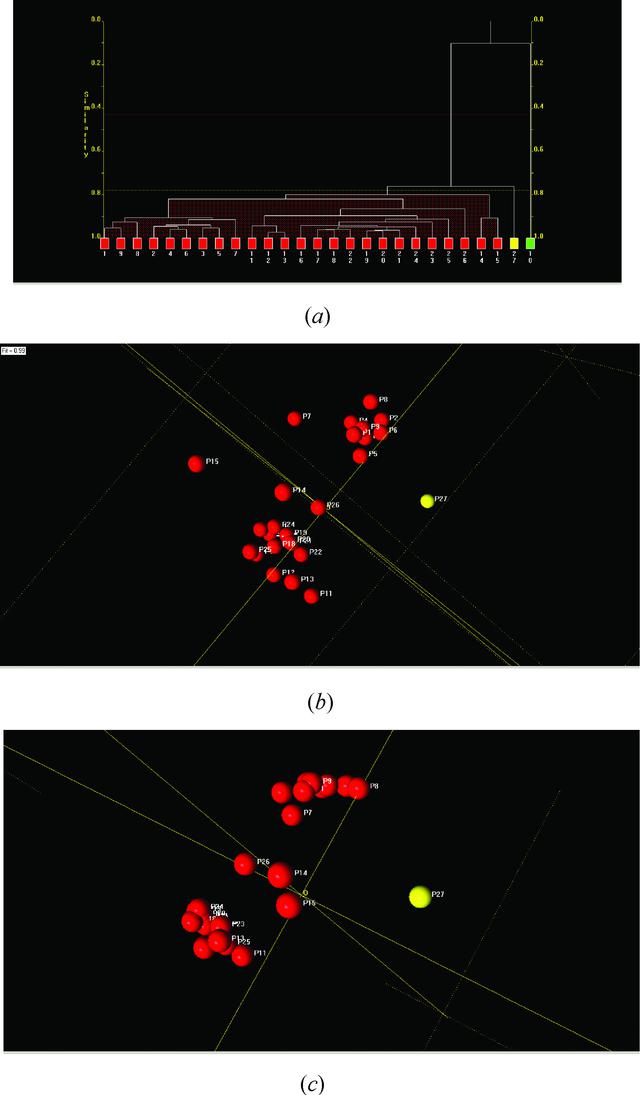

(a) Dendrogram where an optimum shift has been calculated. The optimum cut level partitions the data into three clusters. The red cluster contains all but two of the diffraction patterns. (b) The MMDS plot. (c) The three-dimensional PCA plot. The colour of each sphere in (b) and (c) is taken from the dendrogram. |
