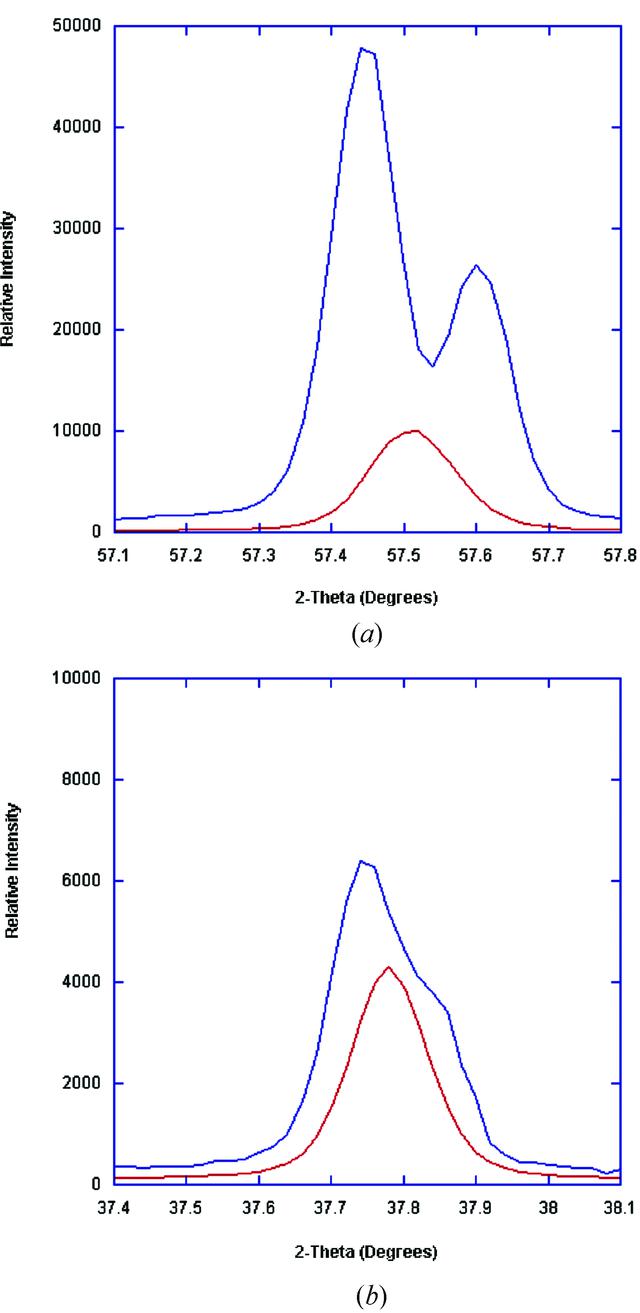

Figure 5
Two individual peak comparisons between pattern 27 (in red) and pattern 19 (in blue). The latter is the most representative sample of the large 25-sample set of patterns. The Cu Kα1–Kα2 splitting is present in pattern 19 but not in 27. The patterns have not been shifted relative to each other.
