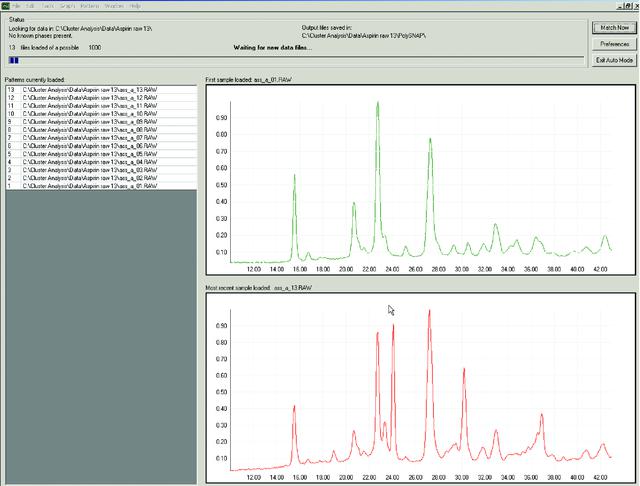

Figure 2
The initial pattern-import window. The top graphics pane contains the diffraction pattern for the first input pattern (or another selected from the left-hand column) and the lower pane contains the current imported pattern. PolySNAP either looks in a specified directory and loads all the pattern files in it, or it waits for patterns to arrive as they are collected on a high-throughput data collection system

Journal logoJOURNAL OF
APPLIED
CRYSTALLOGRAPHY
ISSN: 1600-5767
Volume 37| Part 4| July 2004| Pages 658-664
doi:10.1107/S0021889804011173
