Figure 2

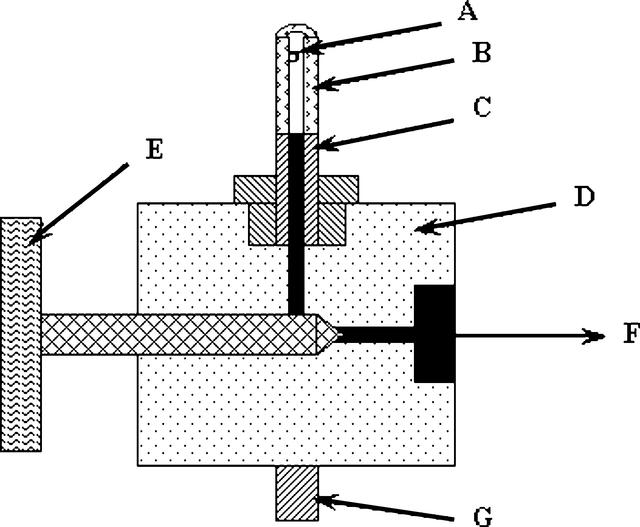

Schematic of the QPC. A: Crystal. B: quartz capillary. C: brass part of quartz–metal seal. D: valve 30-12HF2. E: removable handle. F: standard 1/8″ connector to a pressure line. G: stud for attachment of the QPC to the goniometer head. |
|
