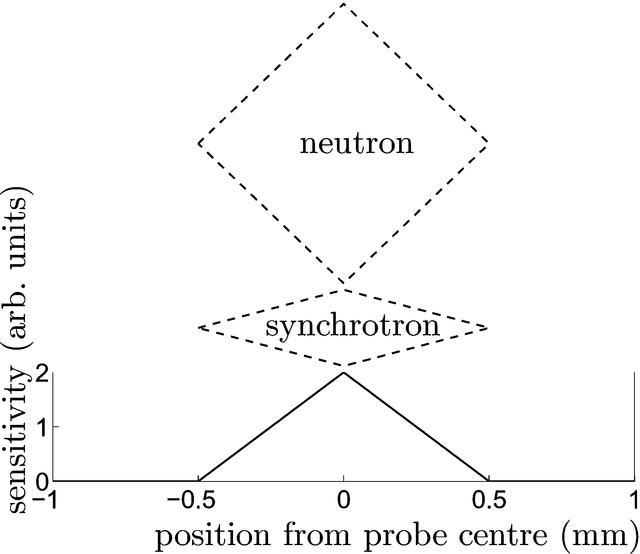

Figure 1
The sensor response function for a typical synchrotron sampling gauge (shown dashed) of length 1 mm neglecting beam attenuation across the gauge volume. A neutron sensor response function would be identical even though the gauge (shown dashed) using a scattering angle of 90° would normally be a square. |
