Figure 7

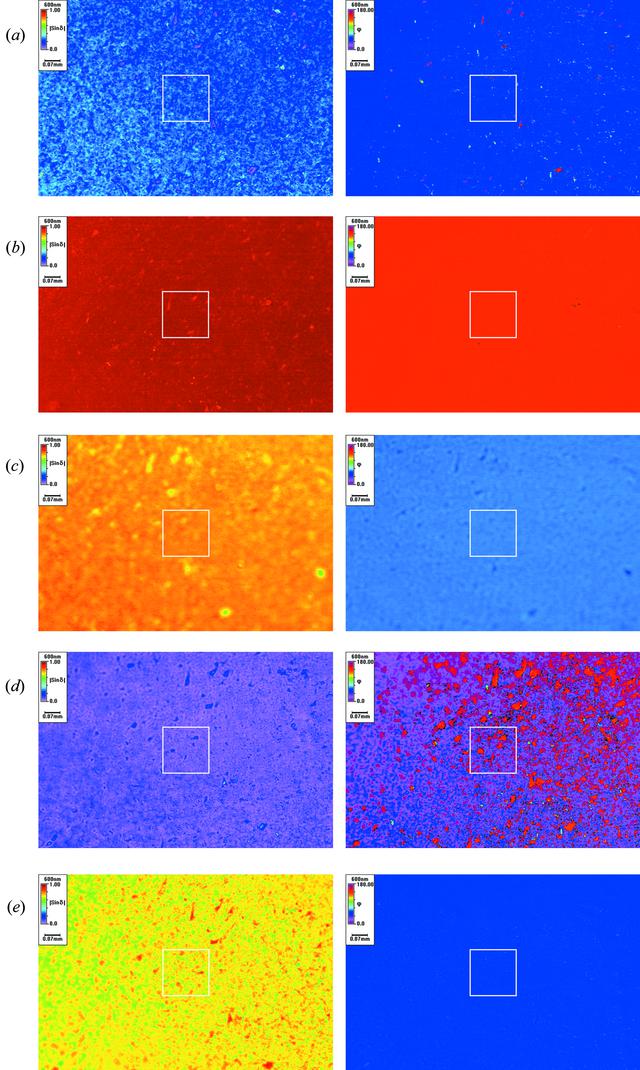

[|\sin \delta |] and azimuthal angle [\phi] images collected on a sample of quartz with approximate orientation 45° to the [0001] direction and thickness 0.14 mm, for different tilt angles [\Theta _{1}] and [\Theta _{2}] of the tilting-stage: (a) [\Theta _{1}] = 0° and [\Theta _{2}] = 0°, (b) [\Theta _{1}] = −10° and [\Theta _{2}] = −10°, (c) [\Theta _{1}] = −10° and [\Theta _{2}] = 10°, (d) [\Theta _{1}] = 10° and [\Theta _{2}] = −10°, (e) [\Theta _{1}] = 10° and [\Theta _{2}] = 10°.
