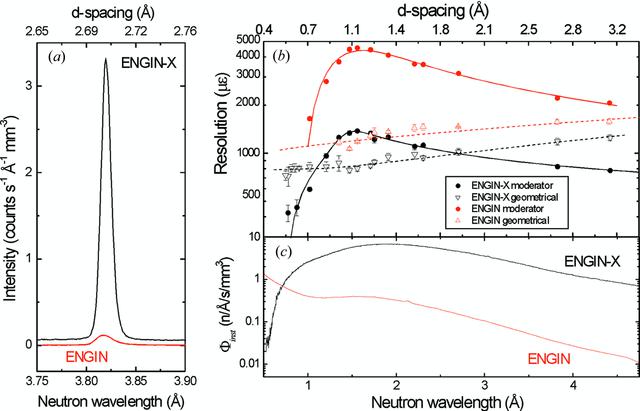

Figure 7
Comparison in performance between ENGIN-X and its predecessor ENGIN. (a) Ceria (200) diffraction peak as measured by both instruments. (b) Contributions to the instrument resolution: moderator (circles) and geometrical (triangles). In ENGIN-X, both component are matched over the complete wavelength range. (c) Gain in intensity: scattering spectra for a vanadium specimen. The fall of the ENGIN-X spectrum at low wavelength is due to the curvature of the neutron guide. |
