Figure 1

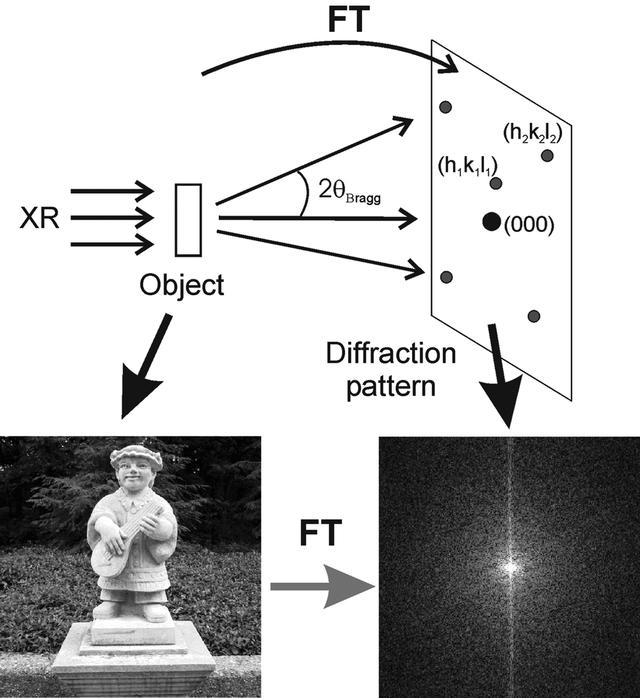

Analogy between single-crystal X-ray diffraction and image manipulation. The bright spot at the centre of the Fourier transform (FT) of the photograph directly corresponds to the F(0, 0, 0) spot in the diffraction pattern. The diffraction pattern of a crystal is composed of peaks as a result of the periodicity of the crystal (top), whereas the photograph is a `single' object: its FT is `continuous' (bottom).
