Figure 7

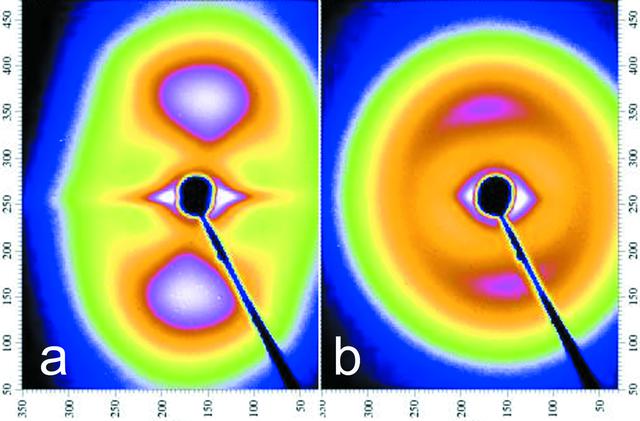

SAXS patterns showing the variation in morphology through the thickness of the sample (sample 0.15 m s−1, 0.7 mm). The flow direction is vertical; Fig. 7[link]a is the outer 200 µm while Fig. 7[link]b is from the core of the sample. z (vertical) and y scales are in pixels.
