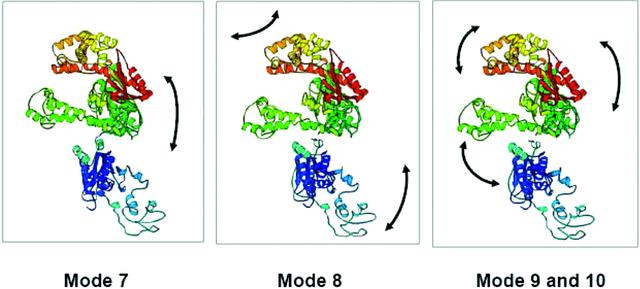

Figure 8
Structure of Taq polymerase and normal mode analysis (NMA). Taq polymerase has two distinct domains: a 5′ nuclease (residues 1–289) and a Klentaq (residues 294–831) domain connected by a linker (residues 290–305). The Klentaq domain resembles a right hand with palm, finger and thumb subdomains. NMA on Taq polymerase using computer code ELNEMO (Suhre & Sanejouand, 2004BB19) can identify the type and direction of internal motions. The Klentaq domain can be subdivided into the 3′–5′ exonuclease domain (residues 294–422) and the polymerase domain (residues 424–831). The first six normal modes are the translational and rotational motions of Taq polymerase as a whole (not shown). The lowest internal seventh and eighth normal modes are relative en bloc motions between the Klentaq domain and the 5′ nuclease with 5′ nuclease moving towards the thumb, which is functionally important. Subdomain motions become apparent for the 9th, 10th and higher normal modes.
