Figure 9

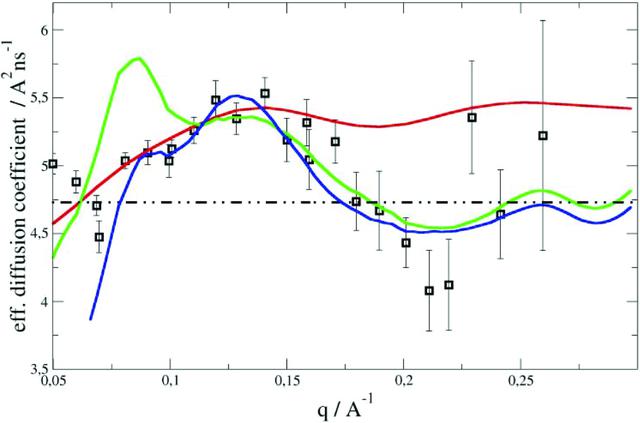

The figure compares the experimental Deff(Q)  = [\bar{\Gamma}](Q)/Q2 of Taq polymerase by NSE (open squares) with those from different dynamic models. The horizontal dashed line is Dt,DLS. The black solid line is the Deff(Q) of a rigid-body model of Taq polymerase. The red line is the Deff(Q) calculated using the dynamic model that parses Taq polymerase into two domains, the 5′ nuclease and the Klentaq domains. The blue line is the Deff(Q) calculated assuming three domains.
