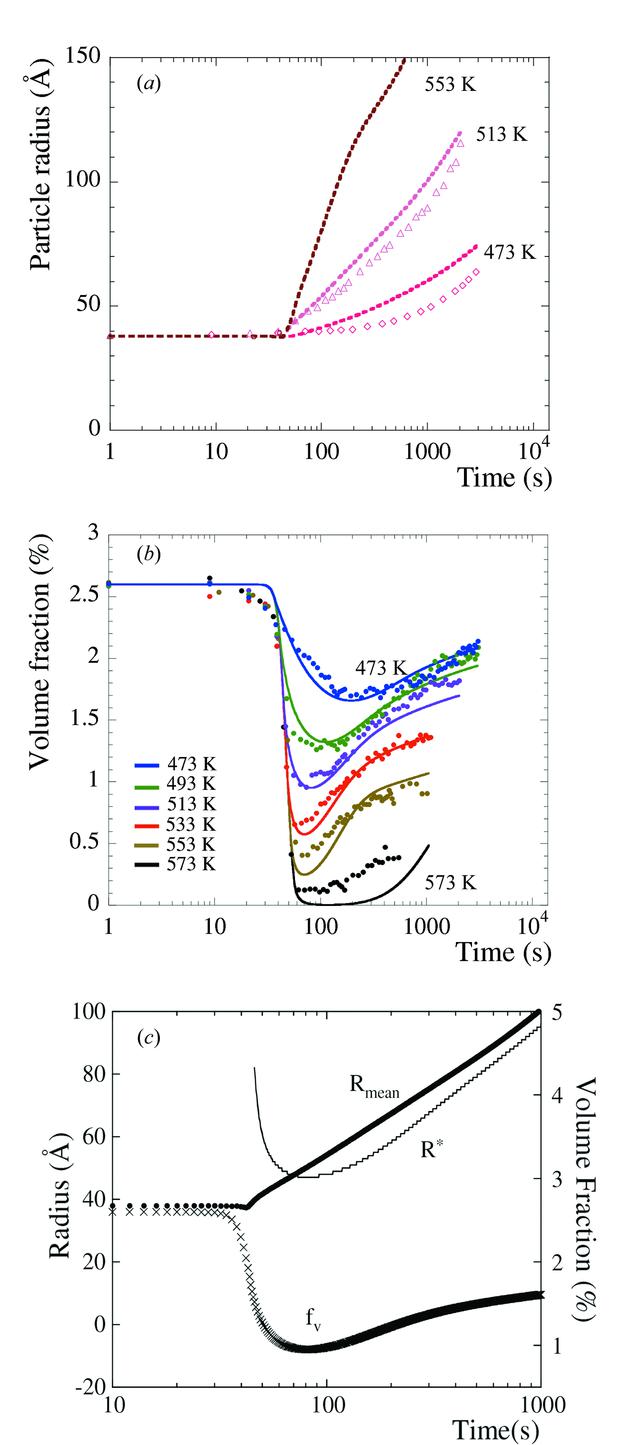

Figure 4
(a), (b) Comparison between experimental results and model predictions for the Al–Zn–Mg alloy, initially in the Tη state, subjected to isothermal reversion treatments at temperatures between 473 and 573 K. (c) Focus on the model prediction of the evolution of volume fraction, critical radius and average radii during the 413 K treatment (Deschamps, Genevois et al., 2005BB12; courtesy Taylor & Francis).
