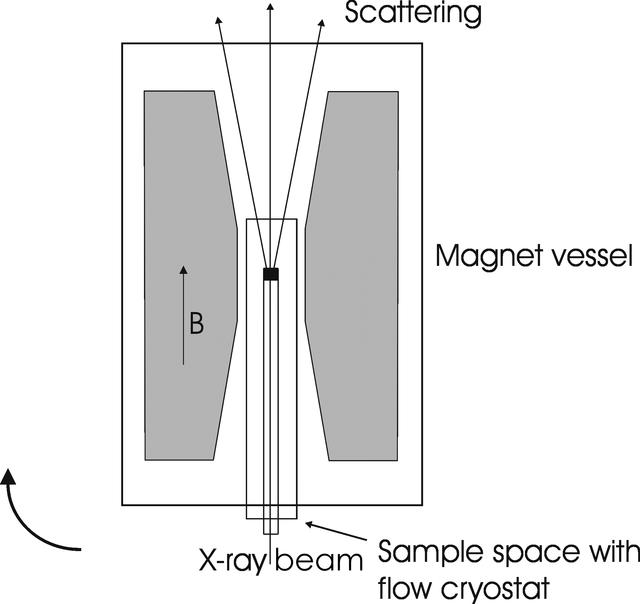

Figure 2
Schematic top view of the Faraday geometry used in the experiments described in this text when utilizing the 30 T pulsed magnet. The field is parallel with the X-ray access. This configuration is of limited use in the study of macromolecules but can be very useful in solid-state physics. The arrow indicates the rotation direction of the magnet when one wants to change the sample.
