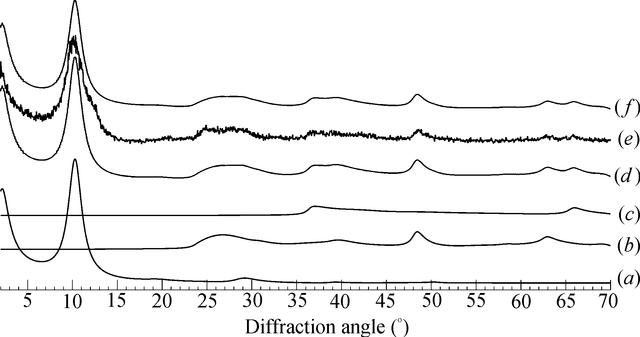

Figure 5
Simulated and observed X-ray powder patterns (Cu Kα) of the specimen 0.7Ti–0.3Mn: (a) calculated powder pattern intensity of 00ζ; (b) sum of calculated h1k1ζ intensities; (c) sum of calculated h2k2ζ intensities; (d) total summation of calculated powder pattern intensities of 00ζ, h1k1ζ and h2k2ζ; (e) experimental pattern; (f) calculated pattern fitted using a scale factor and background parameters.
