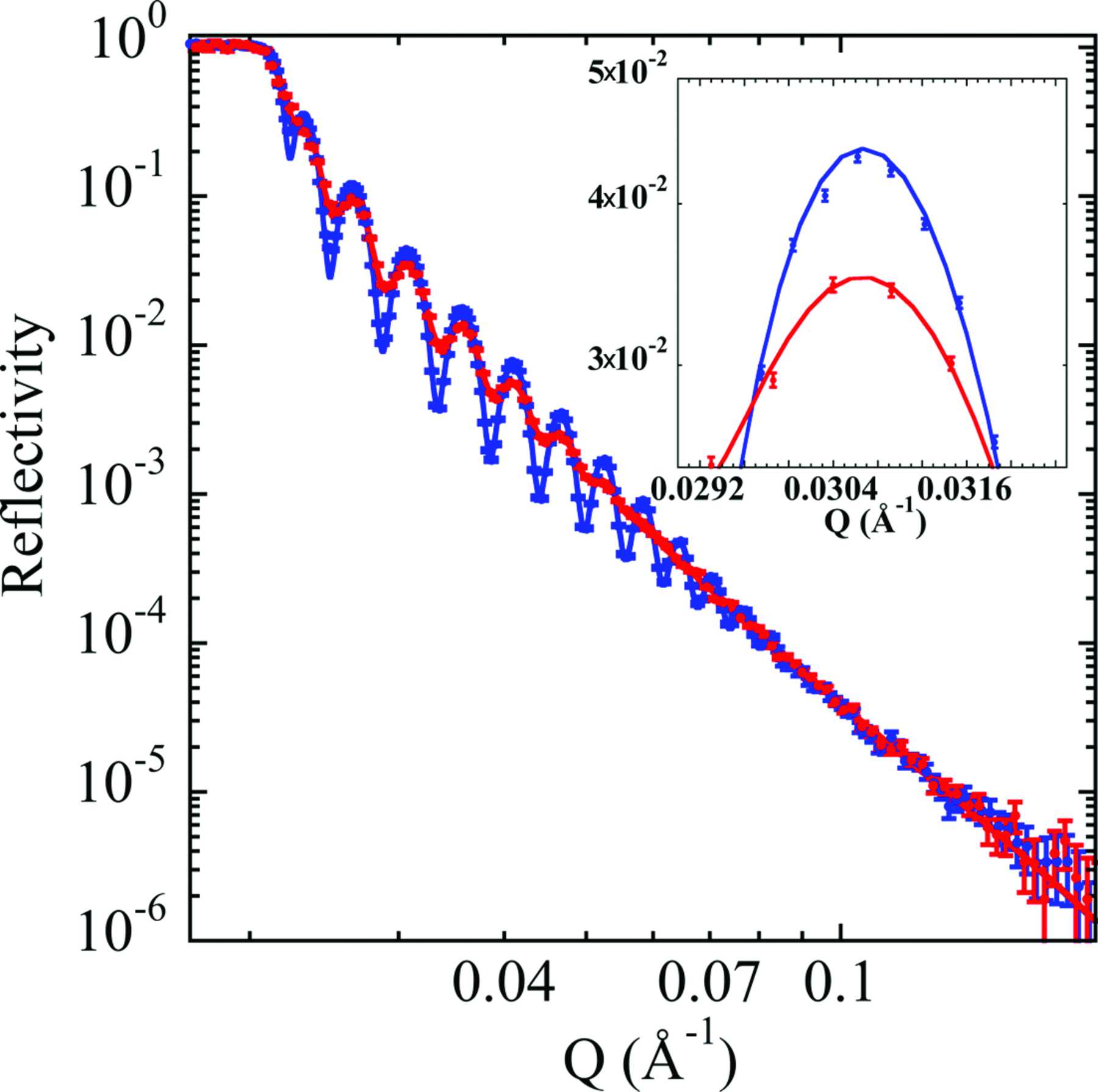

Figure 4
Reduced data using the coherent (blue) and incoherent (red) summing methods from the raw data in Fig. 3[link]. The solid lines are from a single model, the only difference being the different resolution calculated from equations (4)[link] and (2)[link], or equations (3)[link] and (2)[link]. The inset shows data around the third peak in the range 0.029–0.033 Å−1.
