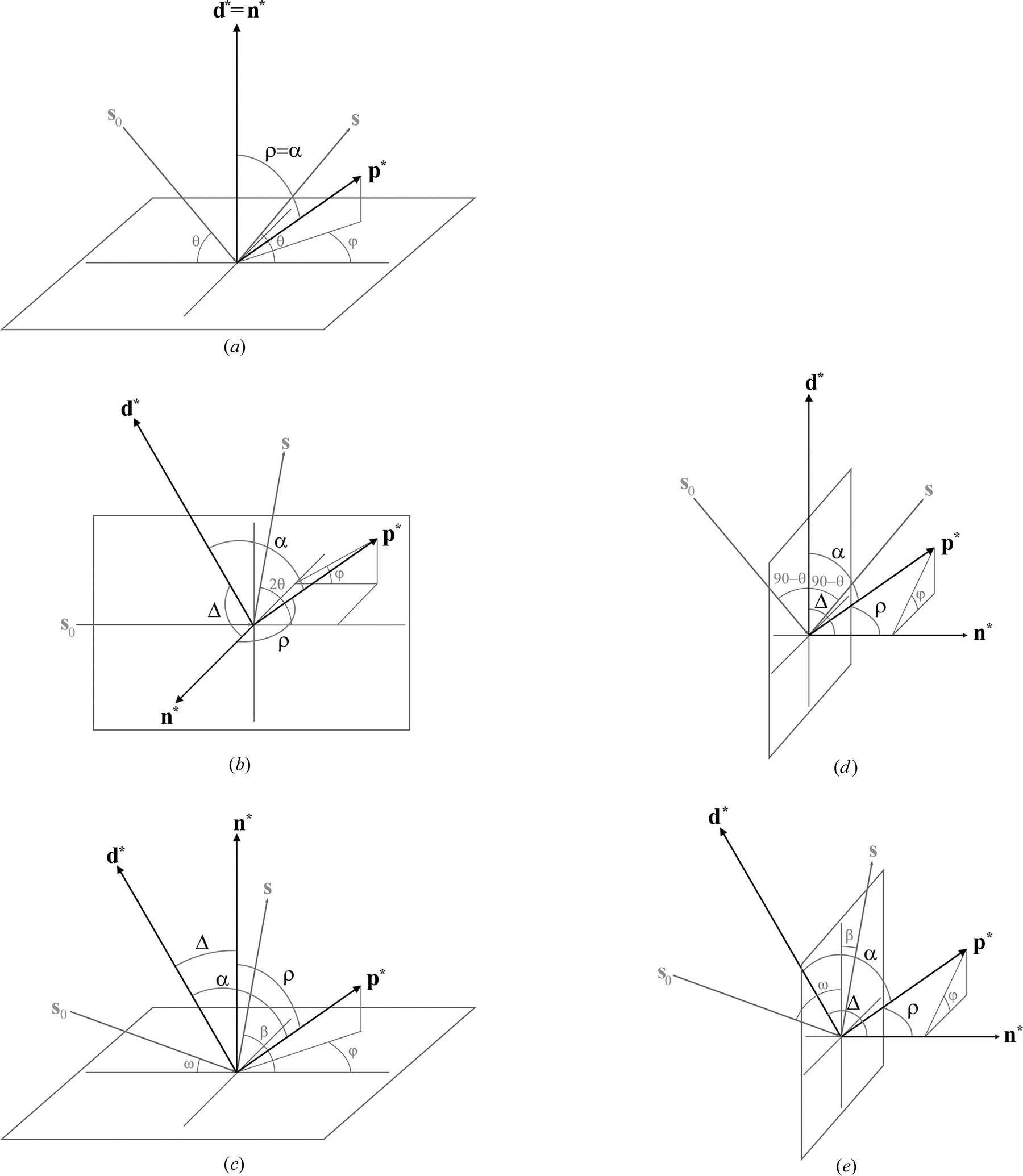

Figure 18
Required vectors and angles for both March–Dollase and spherical harmonics corrections for (a) symmetric reflection, (b) Debye–Scherrer, (c) asymmetric reflection, (d) symmetric transmission and (e) asymmetric transmission geometries. [{\bf d}^*] is the diffraction vector, [{\bf n}^*] is the rotation axis of the specimen and [{\bf p}^*] is the preferred orientation vector. The angle between [{\bf d}^*] and [{\bf n}^*] is Δ, [{\bf d}^*] and [{\bf p}^*] is α, and [{\bf n}^*] and [{\bf p}^*] is ρ. φ is the rotation angle about [{\bf n}^*] of the projection of [{\bf p}^*] onto the plane defined by [{\bf n}^*]. [{\bf s}_0] and [{\bf s}] are the incident and diffracted beams, respectively.
