Figure 5

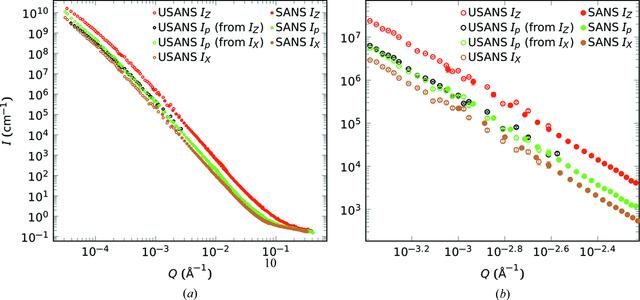

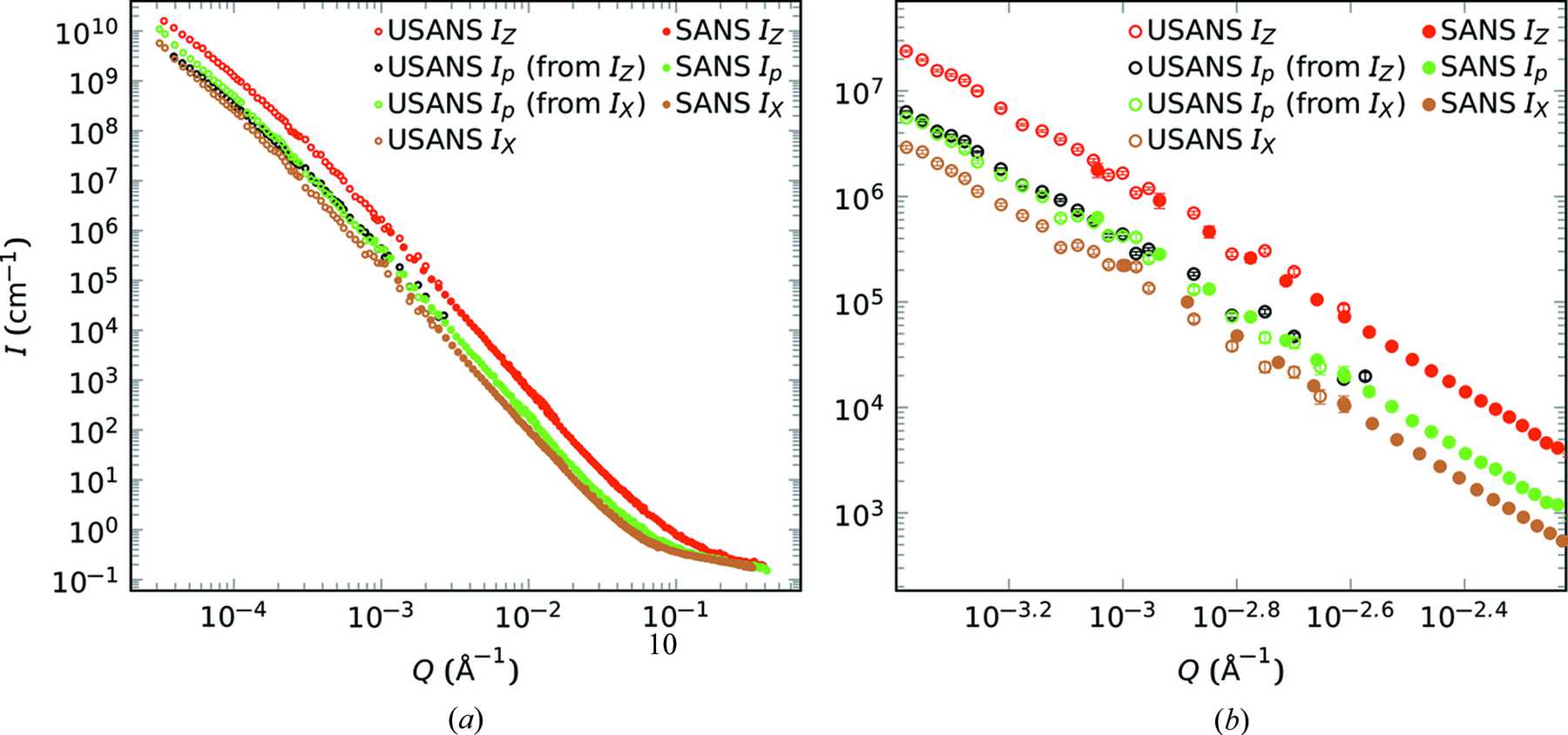

(a) Combined results from the desmeared USANS (open circles) and the SANS (solid dots) measurements for the Erie sample. (b) An enlarged view showing details of the overlapping region of the SANS/USANS transition. The USANS data for the X (IX, in brown) and Z (IZ, in red) orientations were measured on parallel- and perpendicular-cut samples, respectively, such that the latter is placed so that the scan direction is normal to the bedding plane (φ = 0). The intensities of the entire scattering averaged over all possible directions (Ip) in the USANS range are estimated from the USANS IX (green) and IZ (black) using equation (18)[link] and (19), respectively. Both show smooth transitions with Ip in the SANS range (green), which were calculated using equation (16)[link].
