Figure 2

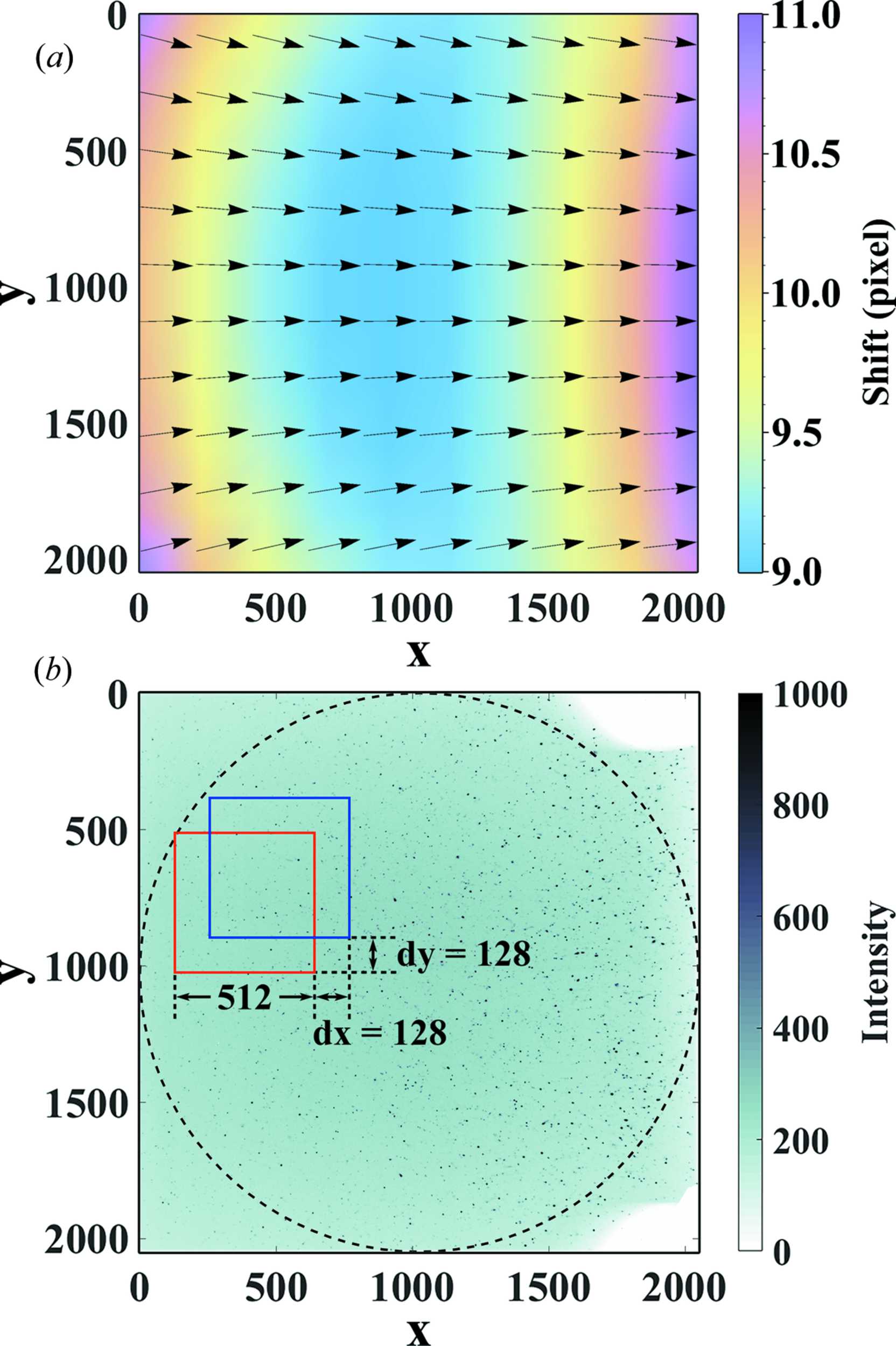

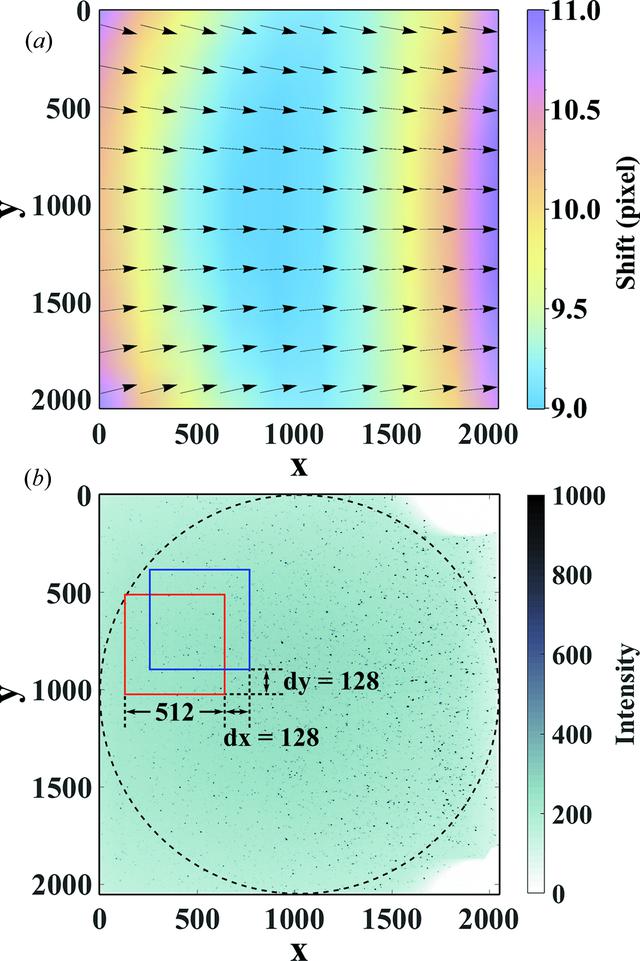

(a) Simulated displacement field for the Laue diffraction signal on the detector, assuming a sample rotation of 0.1° about the beamline X axis (see Fig. 1[link]). The direction of the shift is shown by arrows and the magnitude of the shift by the colour scale. (b) Example Laue diffraction pattern (2048 × 2048 pixels) from an Al sample of 2.5 µm grain size. Two example ROIs used for sample rotation determination (512 × 512 pixels in size) are shown, offset by 128 pixels along both detector axes. The black dashed circle shows the limiting boundary for ROI placement.
