Figure 10

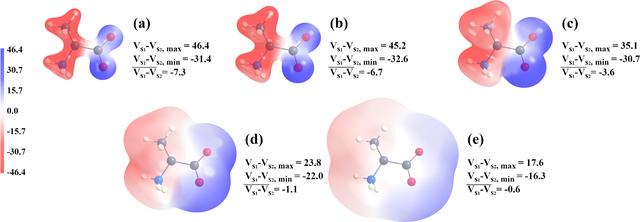

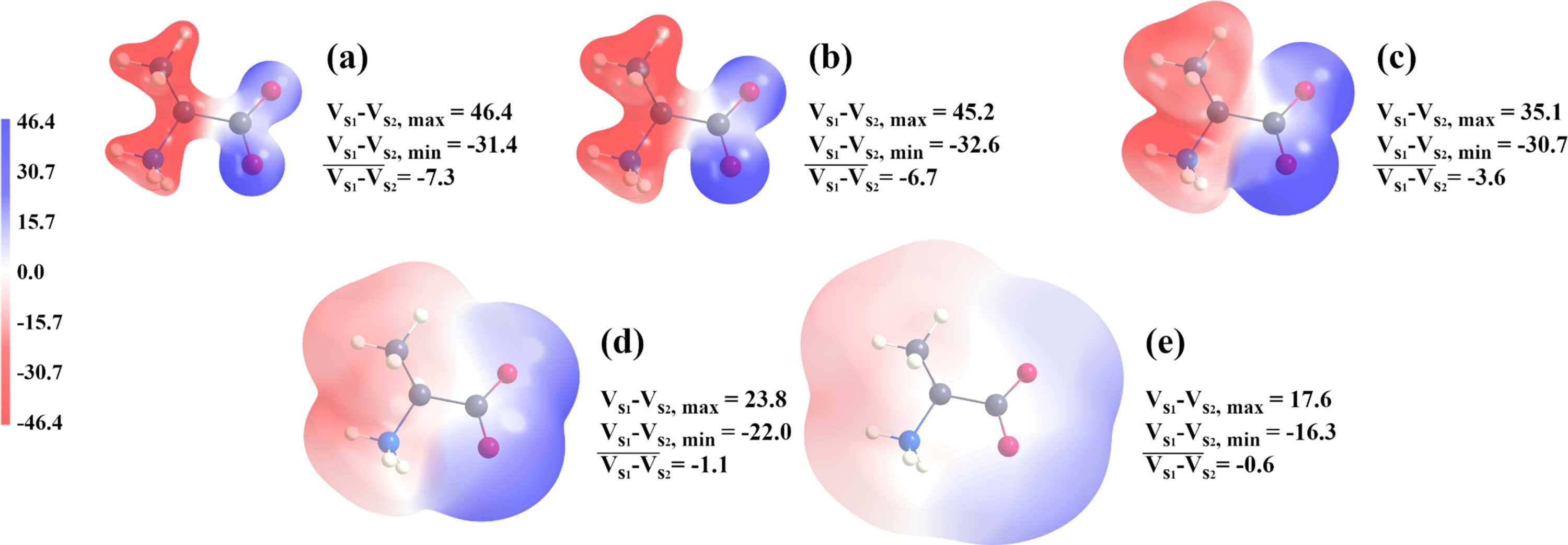

Visualization of the C3H7NO2 molecule iso-density surface with the difference between the reference electrostatic potential and the electrostatic potential of an MM based on the Def2TZVP basis set mapped onto it. Iso-density surfaces values are (a) 0.1 a.u., (b) 0.05 a.u., (c) 0.01 a.u., (d) 0.001 a.u. and (e) 0.0001 a.u.. The range of electrostatic potential values is from −46.4 to 46.4 kcal mol−1 e−1. Vs1 − Vs2,max, Vs1 − Vs2,min and [{\overline {V_{\rm s1} - V_{\rm s2}}}] denote the maximum, minimum and average differences between electrostatic potentials on a given surface, respectively.
