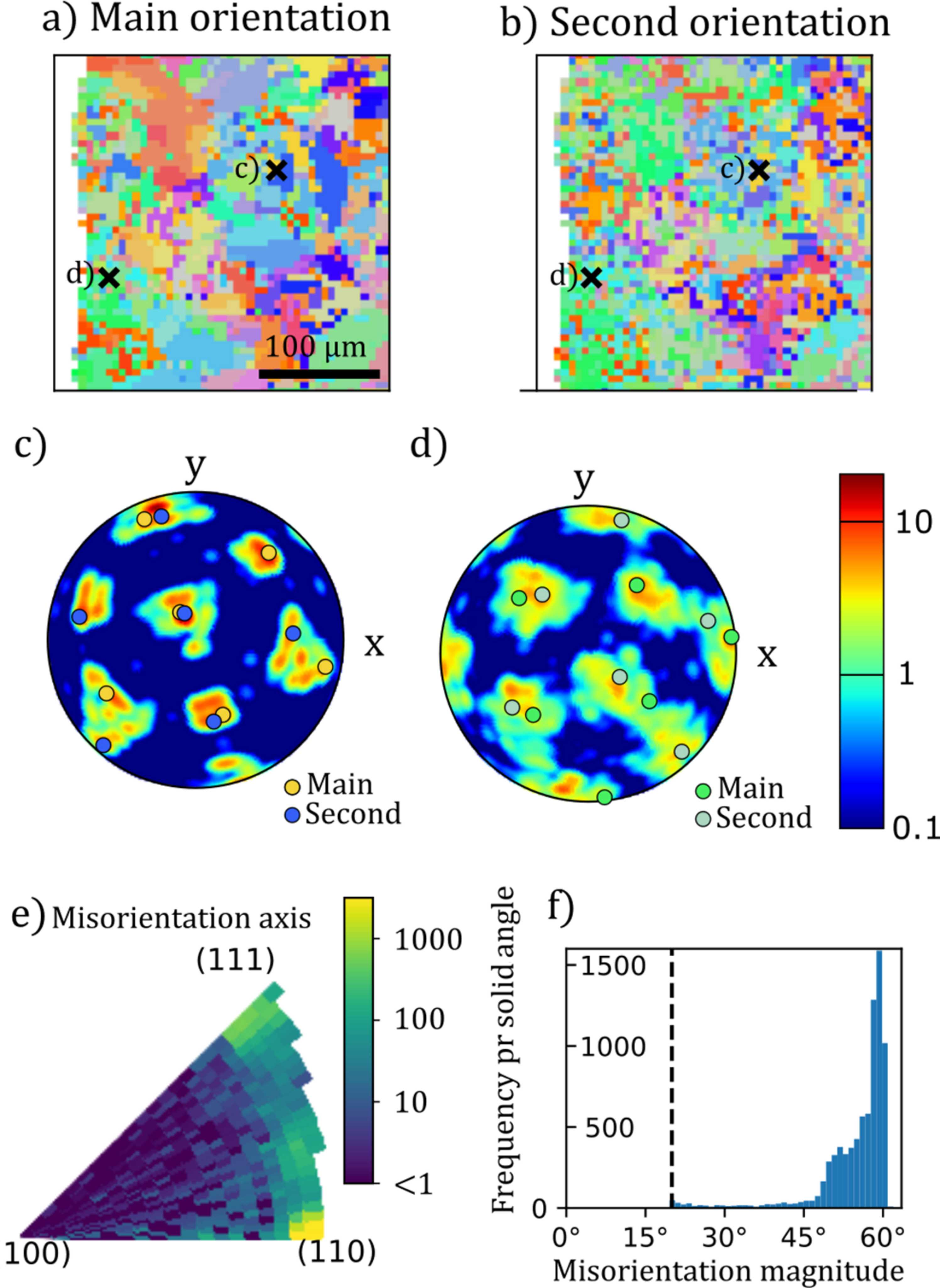

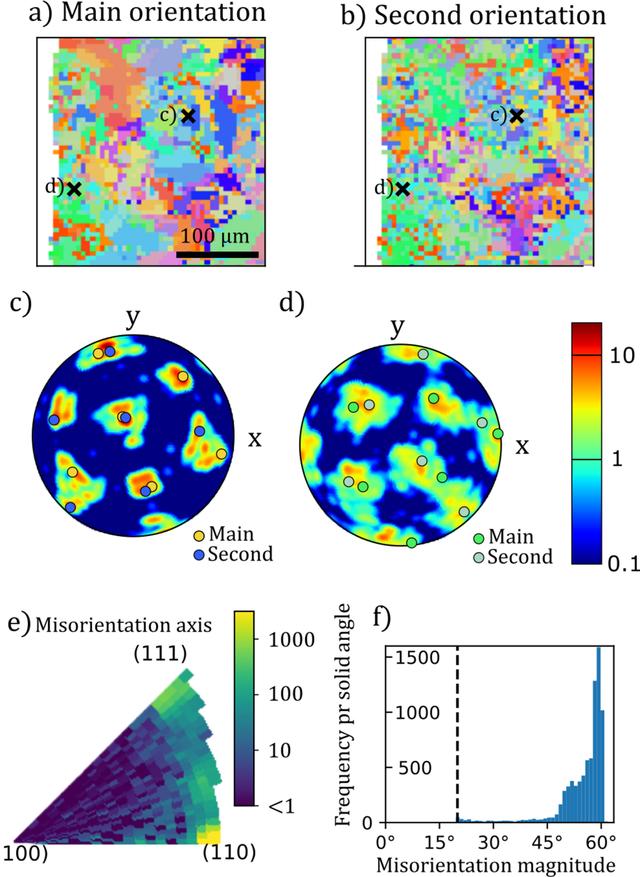

Figure 3
Zoomed-in view of the region of the martensite sample marked in Fig. 2[link](f). Inverse pole figure maps of the (a) primary and (b) secondary orientations. (c, d) show the {110} pole figures of two 4 × 4 pixel regions, marked in (a) and (b). Overlaid on these pole figures are the poles corresponding to the main orientations colored by the corresponding inverse pole figure color. Histograms of (e) the direction of the misorientation axis between the primary and secondary orientations in lattice coordinates and (f) the magnitude of the misorientation.
