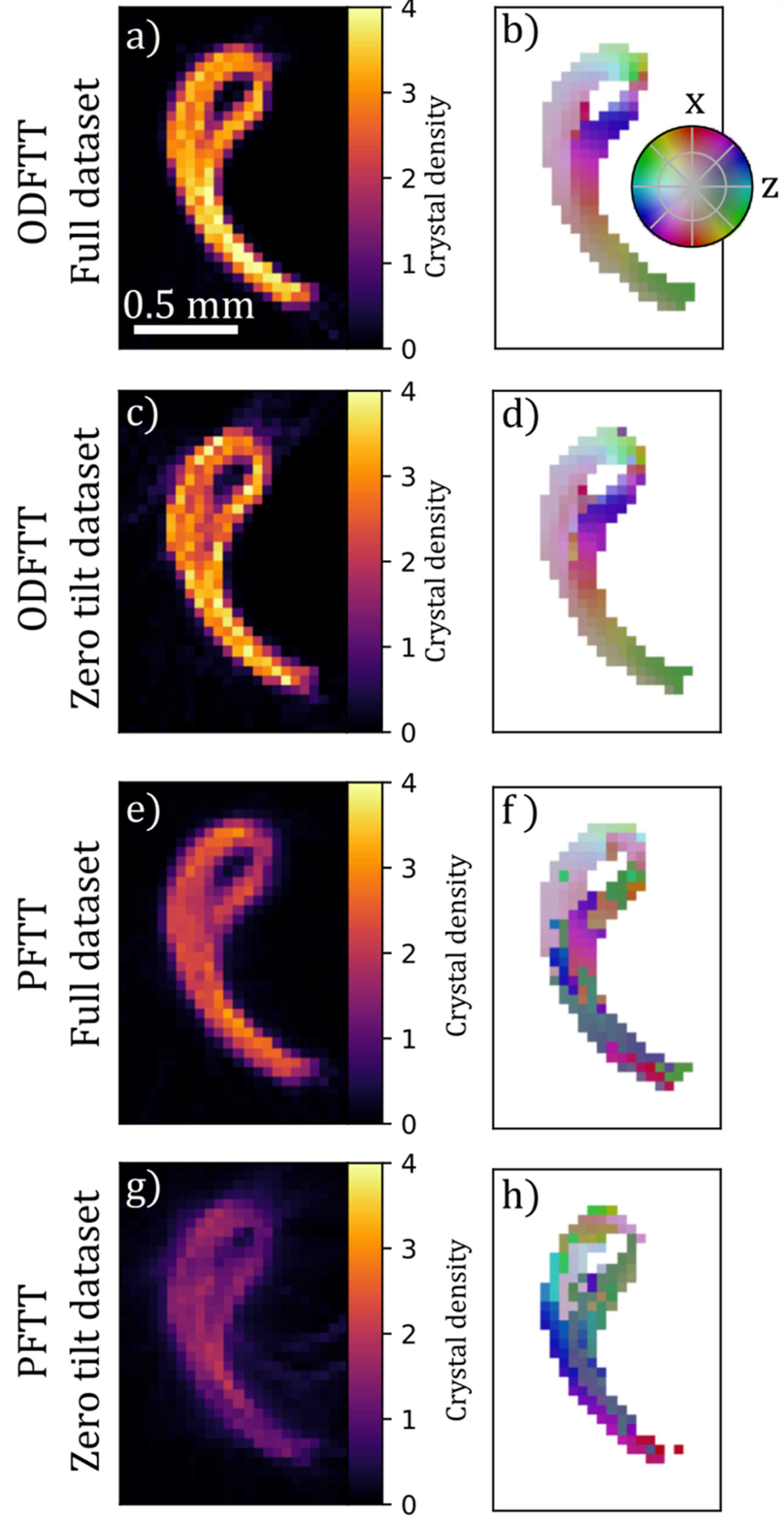

Figure 5
Comparison of reconstructions using ODF-TT and PF-TT of the gastropod shell sample. (a, c, e, g) show a single slice, orthogonal to the shell axis, of the reconstructed crystal density while (b, d, f, h) show the main orientation of the (100) crystallographic direction using a color coding. (a, b) are from ODF-TT reconstructions using the full dataset with tilts up to 45° and (c, d) are from ODF-TT using only the zero-tilt part. (e, f) are from a PF-TT reconstruction using the full dataset. (g, h) are from a PF-TT reconstruction made using only the zero-tilt part of the dataset.
