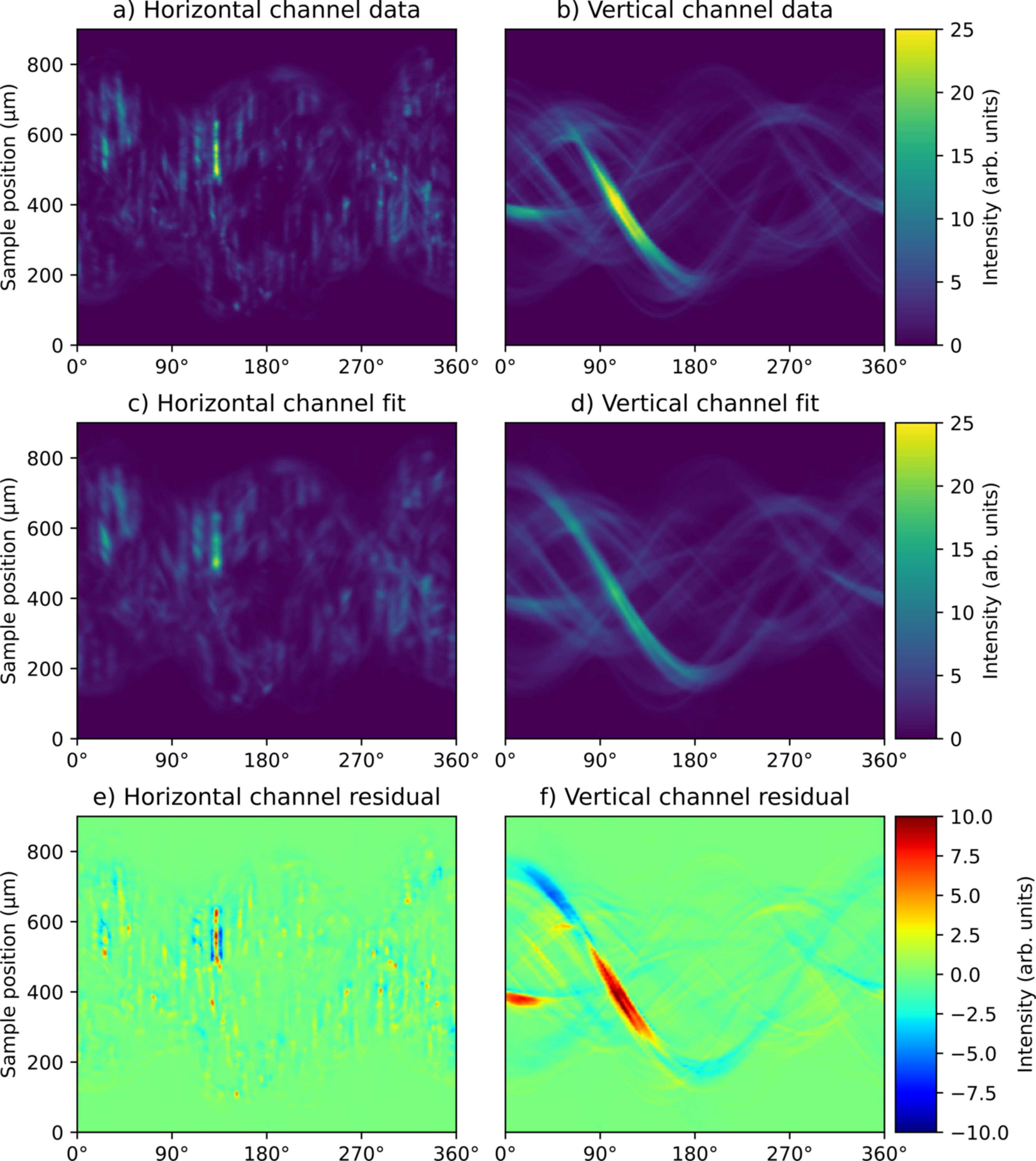

Figure 9
Comparison of data and fit of the martensite reconstruction. (a, b) Experimental sinograms of the 110 peak for a single azimuthal detector channel. (c, d) Fitted sinograms of the same angular channel. (e, f) Residual. (a, c, e) show an angular channel orthogonal to the rotation axis and (b, d, f) show an angular channel parallel to the rotation axis.
