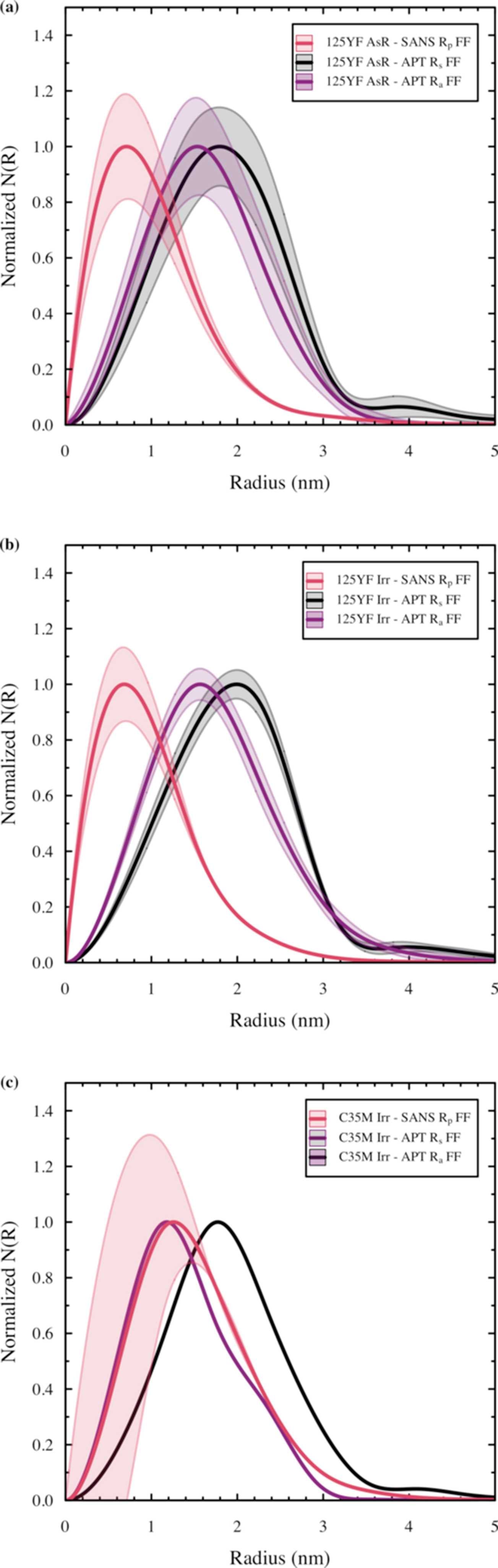

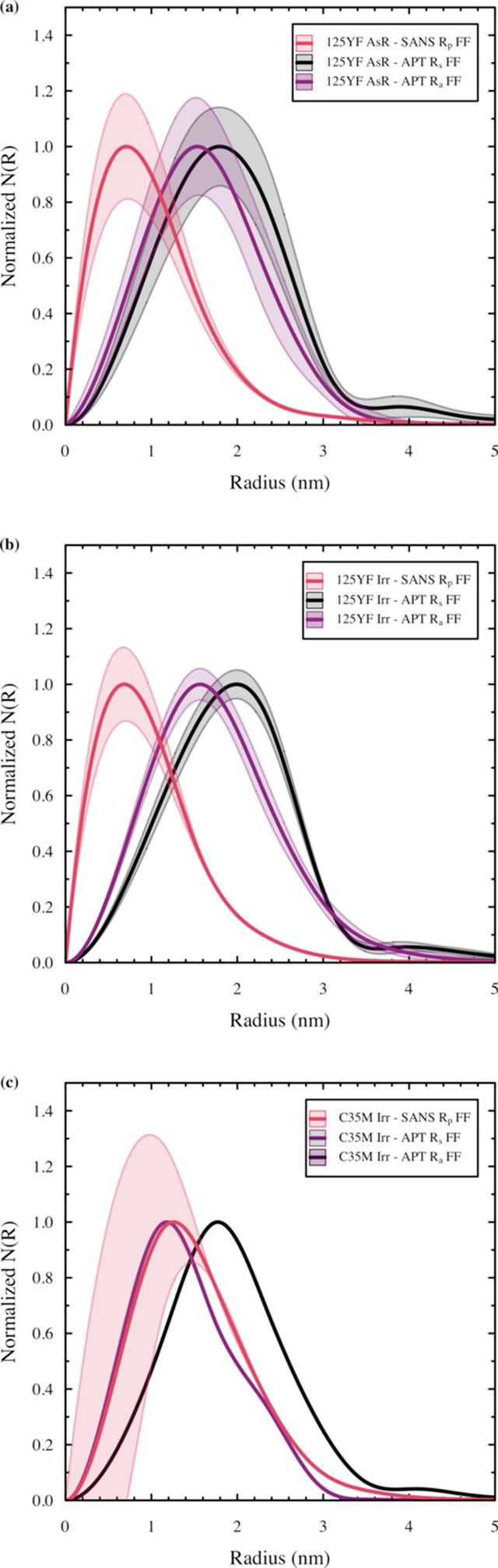

Figure 6
Comparison of SANS-fitted FF local monodisperse approximation size distributions with APT-derived fitted FF size distributions for Rs and Ra for all scatterers when the numbers of basis functions are identical between the two techniques for (a) 125YF specimen in the as-received state, (b) 125YF specimen after irradiation to 1.8 dpa at 357°C and (c) C35M specimen after irradiation to 1.8 dpa at 357°C. Shaded areas in size distributions represent the 95% confidence interval from Monte Carlo-based error analysis.

Journal logoJOURNAL OF
APPLIED
CRYSTALLOGRAPHY
ISSN: 1600-5767
Volume 58| Part 3| June 2025| Pages 1000-1014
https://doi.org/10.1107/S1600576725003176
