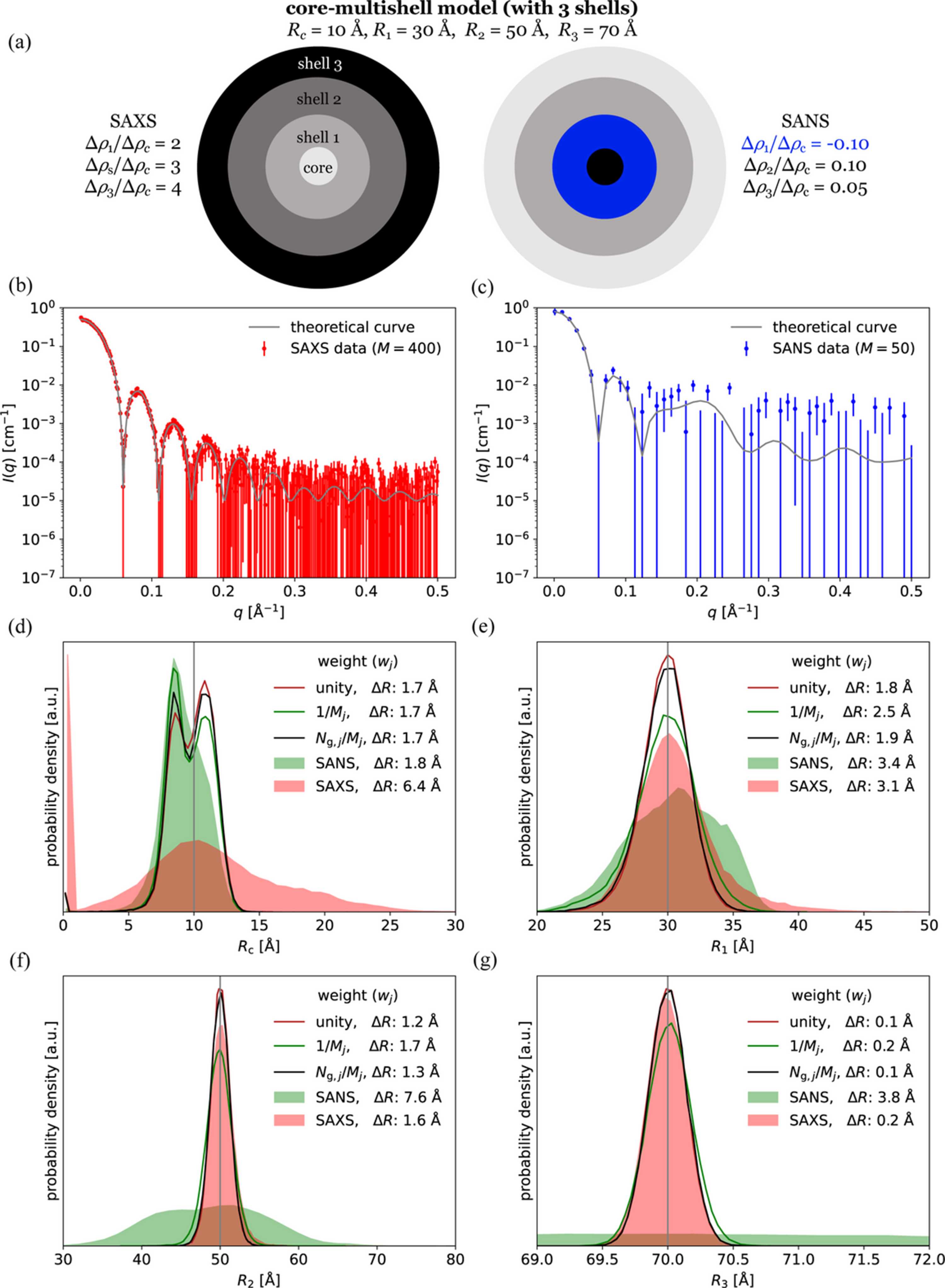

Figure 1
Refinement of a core–multishell model using different weighting schemes. (a) Core–multishell particle with relative scattering contrasts and radii annotated. (b) Simulated SAXS-like data with 400 points. (c) Simulated SANS-like data with 50 points. (d)–(g) Refined values of Rc, R1, R2 and R3 from 50000 fits (new data simulated each time). The parameters were refined against SANS alone (green area), SAXS alone (red area), or SAXS and SANS with the naive weighting scheme (red line), the reduced weighting scheme (green line) or the information-based weighting scheme (red line). The gray vertical line is the true value. |
