Figure 2

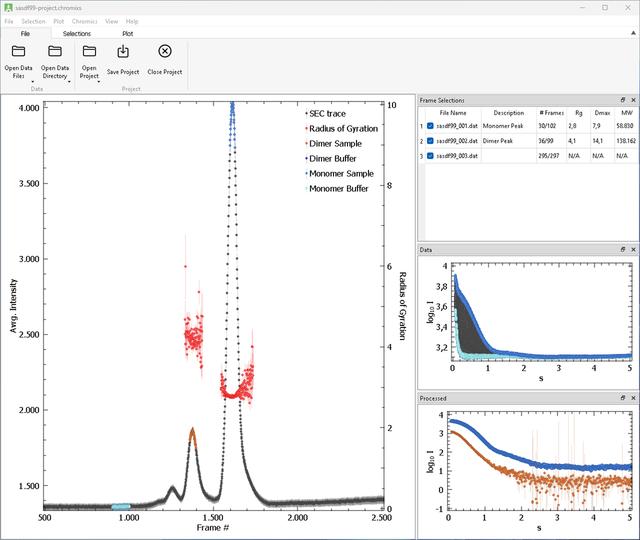

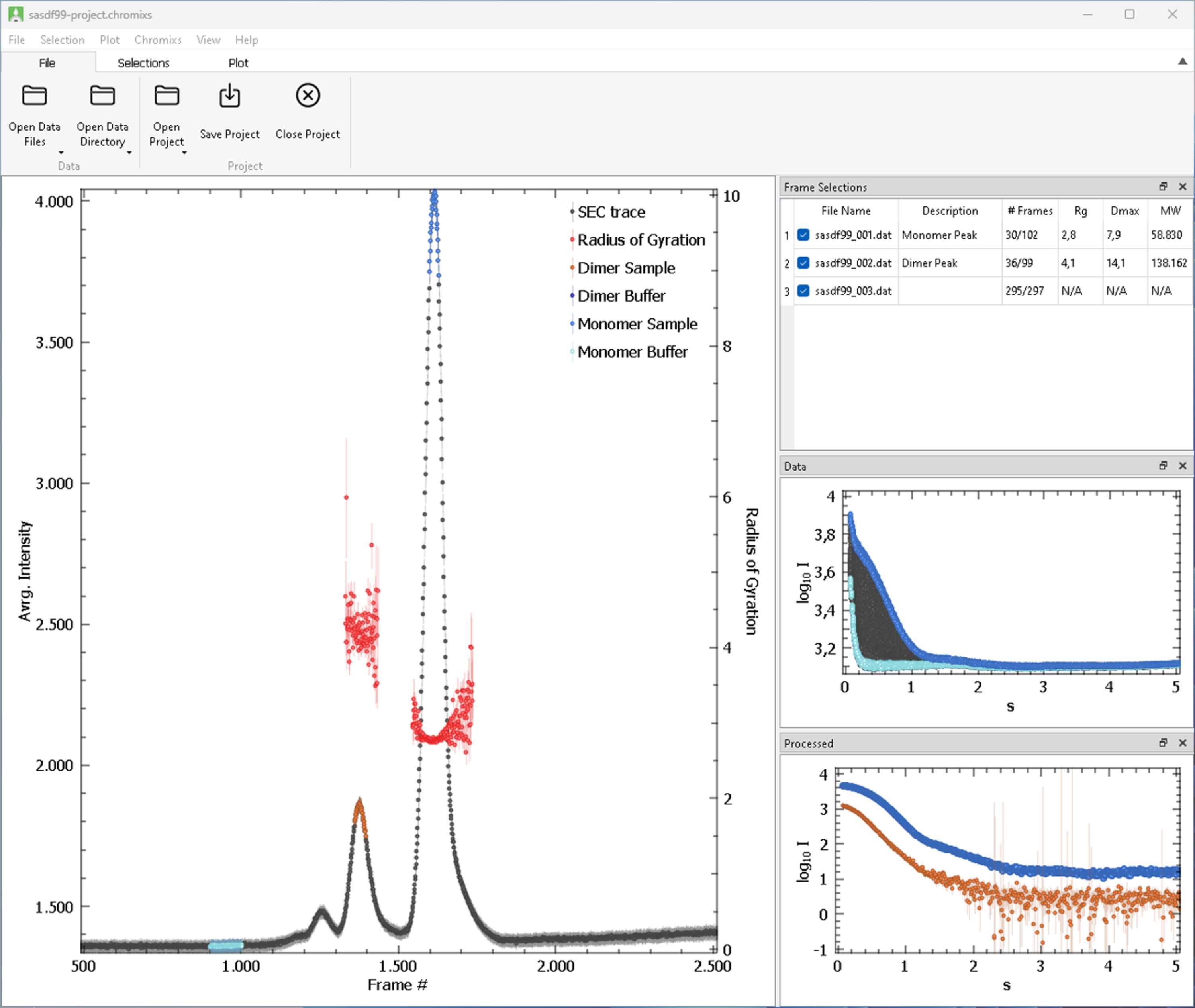

GUI for SEC-SAXS data analysis program CHROMIXS, here with data from the Small Angle Scattering Biological Data Bank: SASDF99 (BSA). The intensity trace together with multiple selections is shown in the left window. The top right-hand table lists the three selections: one for the monomer peak (around frame #1600), one for the dimer peak (around frame #1350) and one for the Rg calculations in a wider range (frames #1300–#1700). The plot at the center right shows all selected data frames with the current selection, here the monomer peak, shown in the corresponding colors. The plot at the lower right shows the two subtracted datasets, one for the monomer (blue), the other for the dimer (brown).
