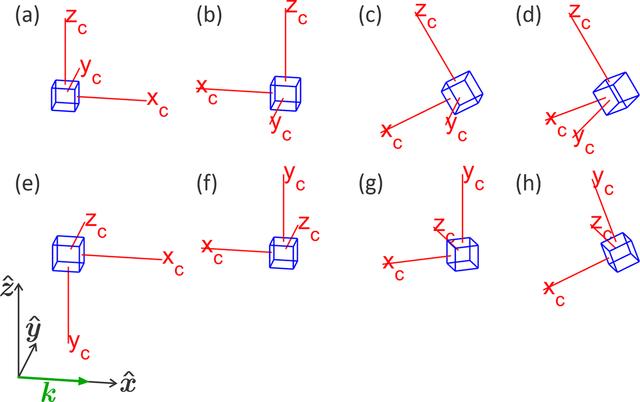

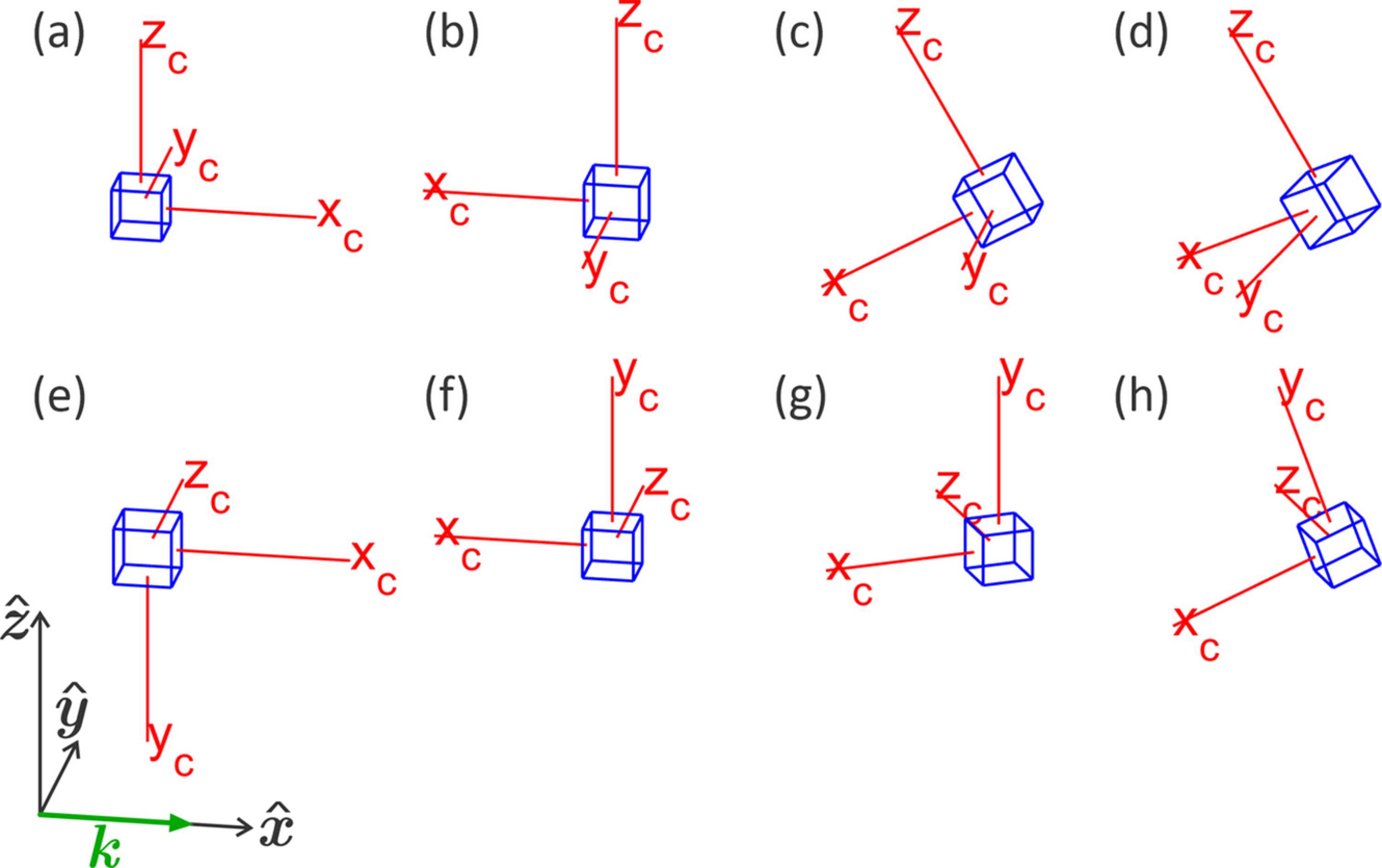

Figure 10
Orientation of the crystal reference frame [{\bb X}_{\rm c}] = [\left [ {\hat {\bf x}}_{\rm c}, {\hat {\bf y}}_{\rm c}, {\hat {\bf z}}_{\rm c} \right ]^{\rm T}] = [{\bb M}_{\rm c} {\bb X}] with respect to the laboratory frame [{\bb X}] = [\left [ {\hat {\bf x}}, {\hat {\bf y}}, {\hat {\bf z}} \right ]^{\rm T}]. (a)–(d) Vertical scattering plane (xz plane), χ = 90°. (e)–(h) Horizontal scattering plane (xy plane), χ = 0. (b) and (f) Setting [{\hat {\bf x}}_{\rm c}] pointing to the X-ray source. (c) and (g) Counter-clockwise ω0 = 20° rotation around [{\hat {\bf y}}_{\rm c}]. (d) and (h) Clockwise Φ0 = 25° rotation around [{\hat {\bf z}}_{\rm c}].
