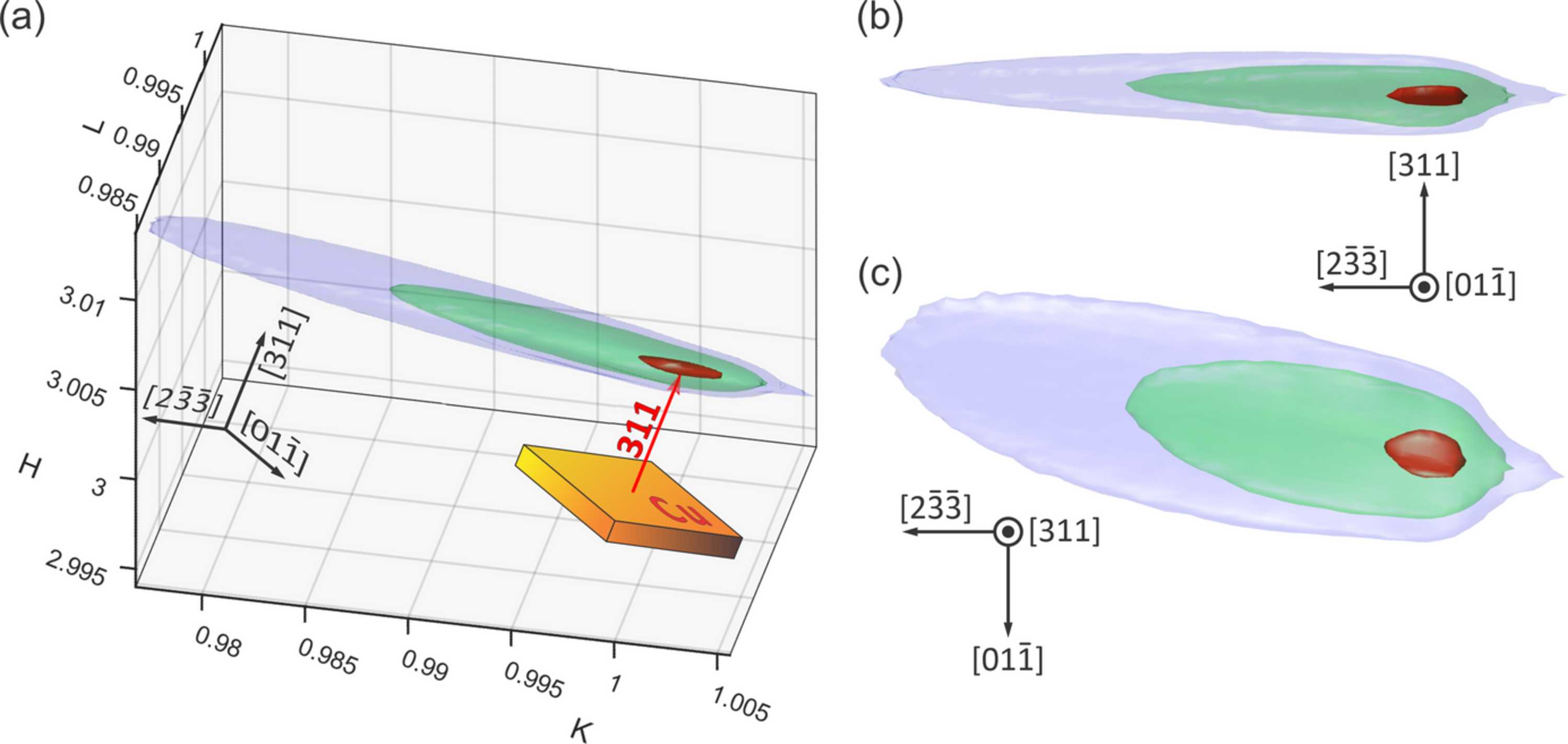

Figure 12
A 3D-RSM around the Cu(311) reflection, acquired using 8.0436 keV X-rays. The map is composed of 44 images with varying ω0 values, collected using a 100k detector with parameter vector P = [565 mm, 90°, ω0, 80.727°, 89.965, 0, 35°, 0, 0]. Crystal frame, A ∥ [311] and B ∥ [100]. Isosurfaces on a logarithmic scale are shown at 50% (red), 35% (green) and 30% (blue) of the log-transformed maximum intensity. (a) hkl coordinates, 311 diffraction vector (red arrow) not to scale. (b) Side view along the [[0 1 {\overline 1}]] in-plane direction. (c) Top view along [311].
