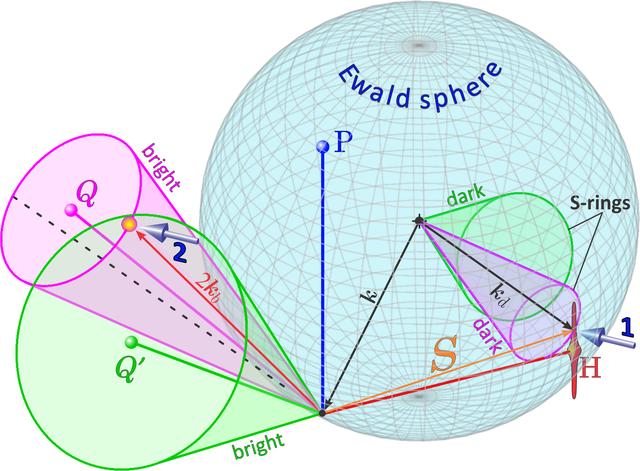

Modified Ewald construction to describe second-order scattering events giving rise to DMS lines. Bright cones have their apex at the reciprocal-space origin, while dark cones have their apex at the centre of the Ewald sphere, as shown for reflections Q and Q′. When scattering vectors of first order (S vectors) terminate at S-rings (dark cone–sphere intersections), the resulting second-order scattering is directed along the bright cones. For instance, the S-ring of reflection Q touches an intensity distribution near the reciprocal node of reflection H (arrow 1), defining the wavevector kd = S + k that is re-scattered as kb = Q + kd along the Q bright cone (arrow 2); the kd direction on the bright cone is indicated as a dashed line. |
