A SAXS/WAXD beamline with laboratory SAXS apparatus at NanoTerasu

Meguro, H.; Nishibori, M.; Yamane, H.; Kotani, Y.; Watanabe, Y.; Kamitani, K.; Nakamura, T.; Matsumura, K.; Takata, M.; Takasaki, Y.; Yagi, N.

doi:10.1107/S1600576725002547

Journal of Applied Crystallography Journal of Applied
Crystallography

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

Figure 1

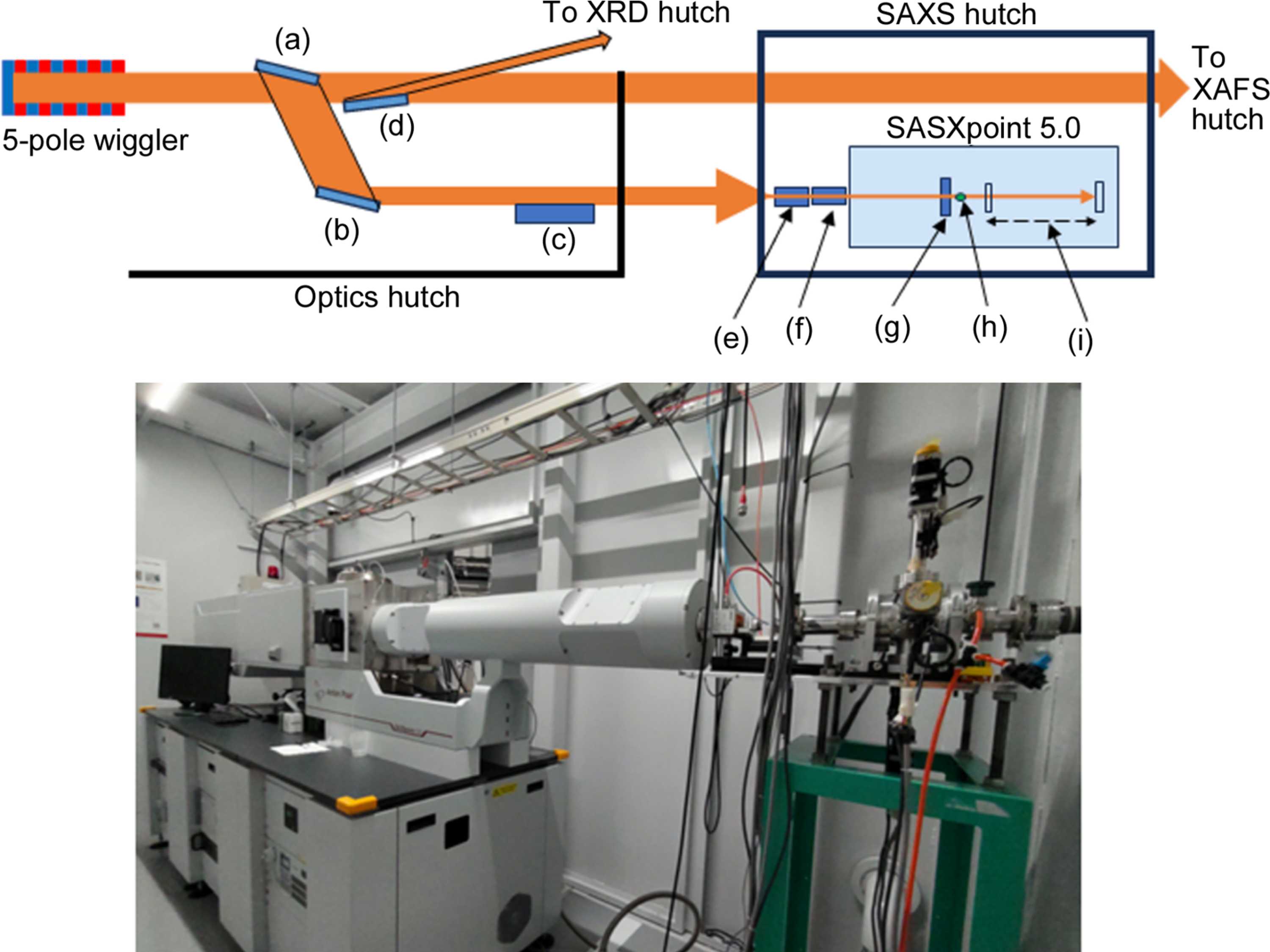

(Top) Schematic of the BL08W SAXS branch at NanoTerasu. (a) First branch crystal. (b) Second branch crystal. (c) Focusing mirror. (d) Branch crystal for the XRD endstation. (e) Four-quadrant slits. (f) X-ray shutter, absorber and ion chamber. (g) Low-scatter slits. (h) Sample position. (i) Eiger2 1M with a beamstop. (Bottom) Photograph of the apparatus in the hutch.
